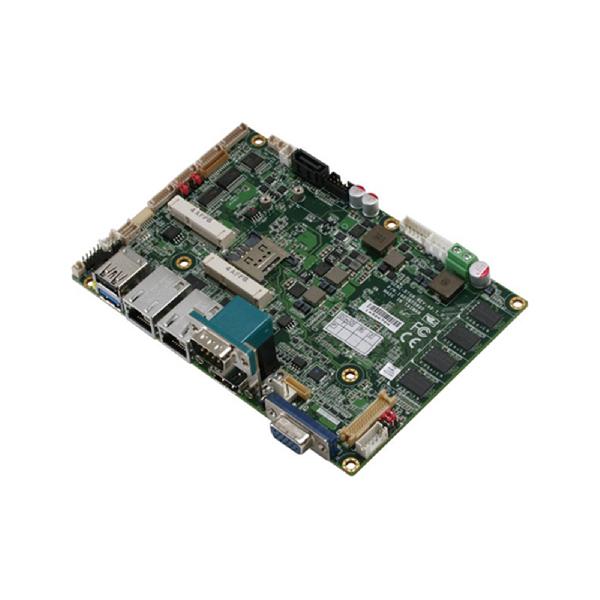

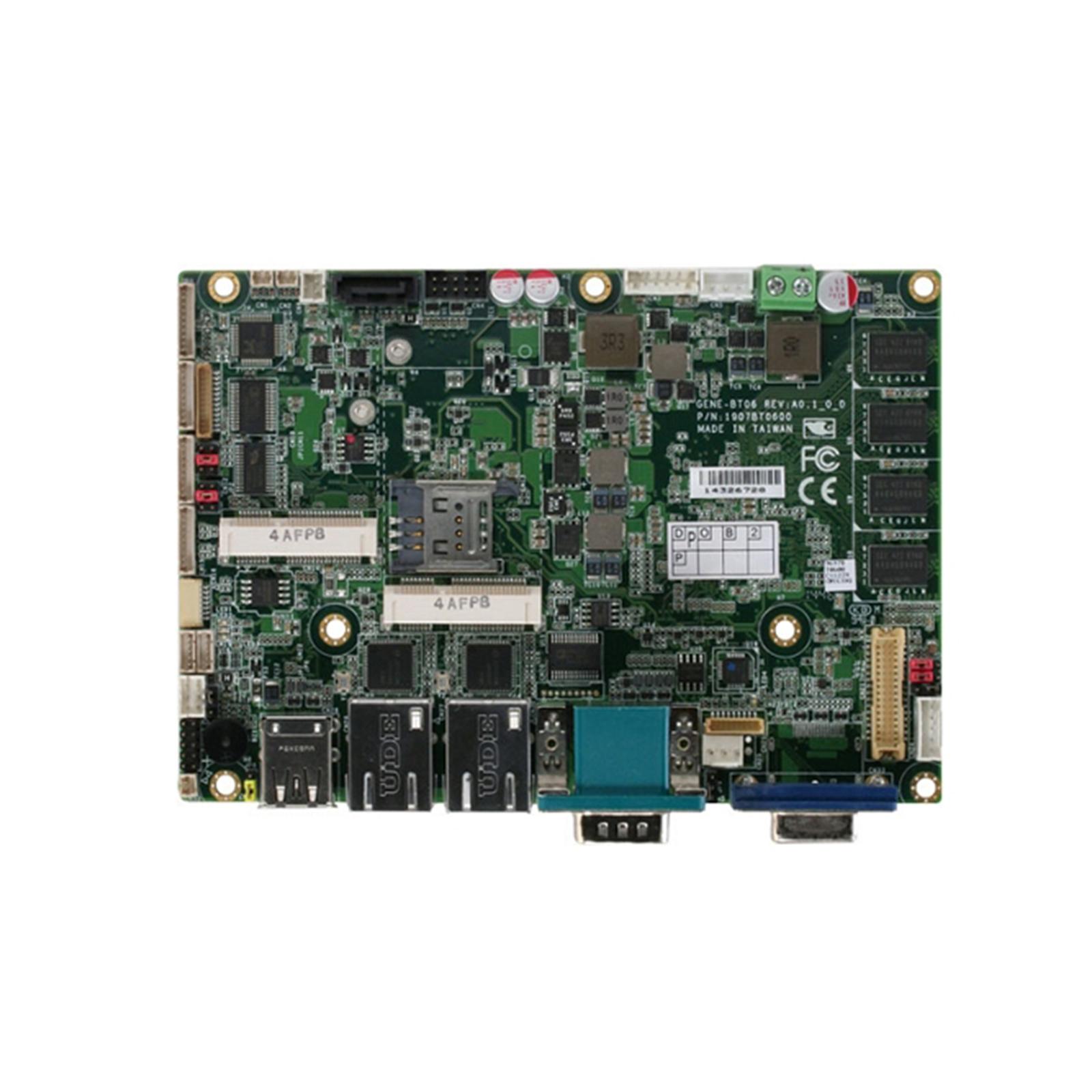

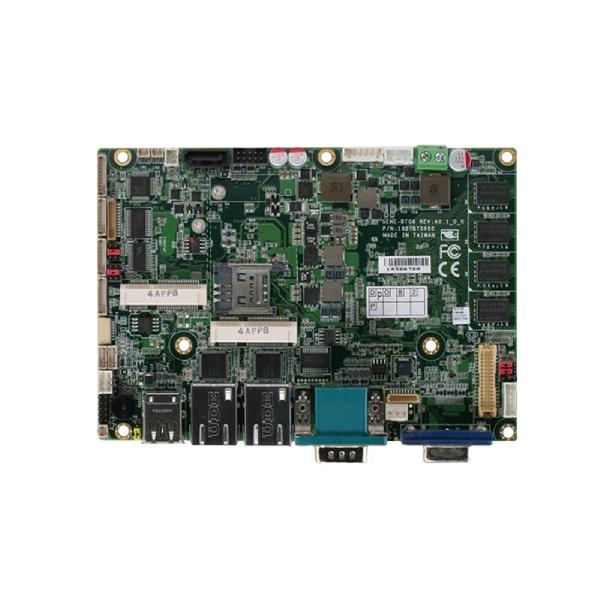

Building on one of the most popular form factors in today’s computing landscape, the 3.5” GENE-BT06 has everything any in-vehicle solutions has to offer: Soldered connections rather than wired one for sturdiness in high shock/ vibration settings; Wide operable voltages in observation of fluctuating voltages in vehicles; Compactness for easy installation; and different SKUs for users demanding different performance levels.
The CPU is now located at the solder side of the board and is accompanied by a heat spreader. Compared with the use of a heat sink in previous models, this change reduces vertical space needed while still retaining effective heat dissipation, making it more conducive for usage in confined spaces. The CPU, along with other components such as RAMs, is soldered onto the board for a sturdier connection when used in high shock/ high vibration environments.
Observing conditions, such as fluctuating voltages, in vehicles, the board can be powered by a DC voltage with a range of 9 ~ 24V, in addition to the standard input of 12V.A version supporting extended temperature ranges will be forthcoming in the near future.
SKUs featuring dual-core (E3825, N2807) and quad-core (E3845, J1900) CPUs are designed for users demanding various levels of performance. Furthermore, dual display is also provided with the board’s VGA, LVDS, and HDMI interface, while the media being played can be stored using any mSATA device, supported by one of the two PCIe slots.
The GENE-BT06 was born out of the needs of this ongoing market trend. The need for infotainment in vehicles is on the rise and the GENE-BT06 is the ideal solution to support this growing trend.
SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Intel® Atom™ E3845/E3825 |
| CPU FREQUENCY | Up to 2.0GHz |
| CHIPSET | Intel® Atom™ series Processor SoC |
| MEMORY TYPE | Onboard DDR3L 1066/1333 |
| MAX. MEMORY CAPACITY | Up to 4GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Wide DC support 9~24V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® E3845, Onboard DDR3L 1600MHz 4G, 0.64A@+12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (TBD) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 110,000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Atom™ Processor SoC |
| VIDEO OUTPUT | CRT+LVDS, HDMI+LVDS , CRT+HDMI |
| BACKLIGHT INVERTER SUPPLY | 18/24-bit dual-channel LVDS LCD |

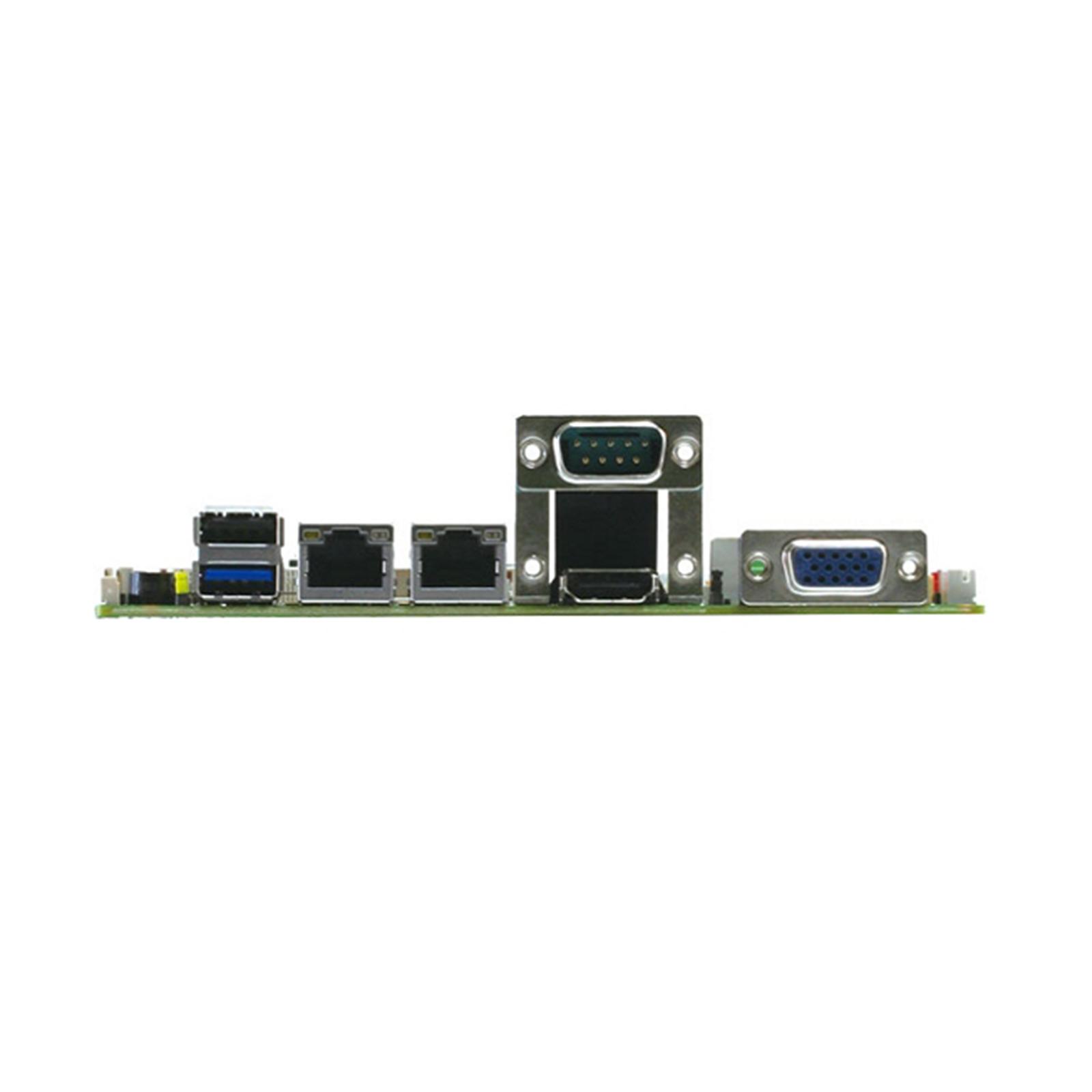

I/O | |
| ETHERNET | Intel® I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High definition audio interface |
| USB PORT | USB 2.0 x 3, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | RS-232 x 2 , RS-232/422/485 x 2 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (Half-size, shared with Mini-Card) |
| EXPANSION SLOT | Mini-Card x 1 (Full-size) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | x 1 |
| TOUCH | x 1 |
