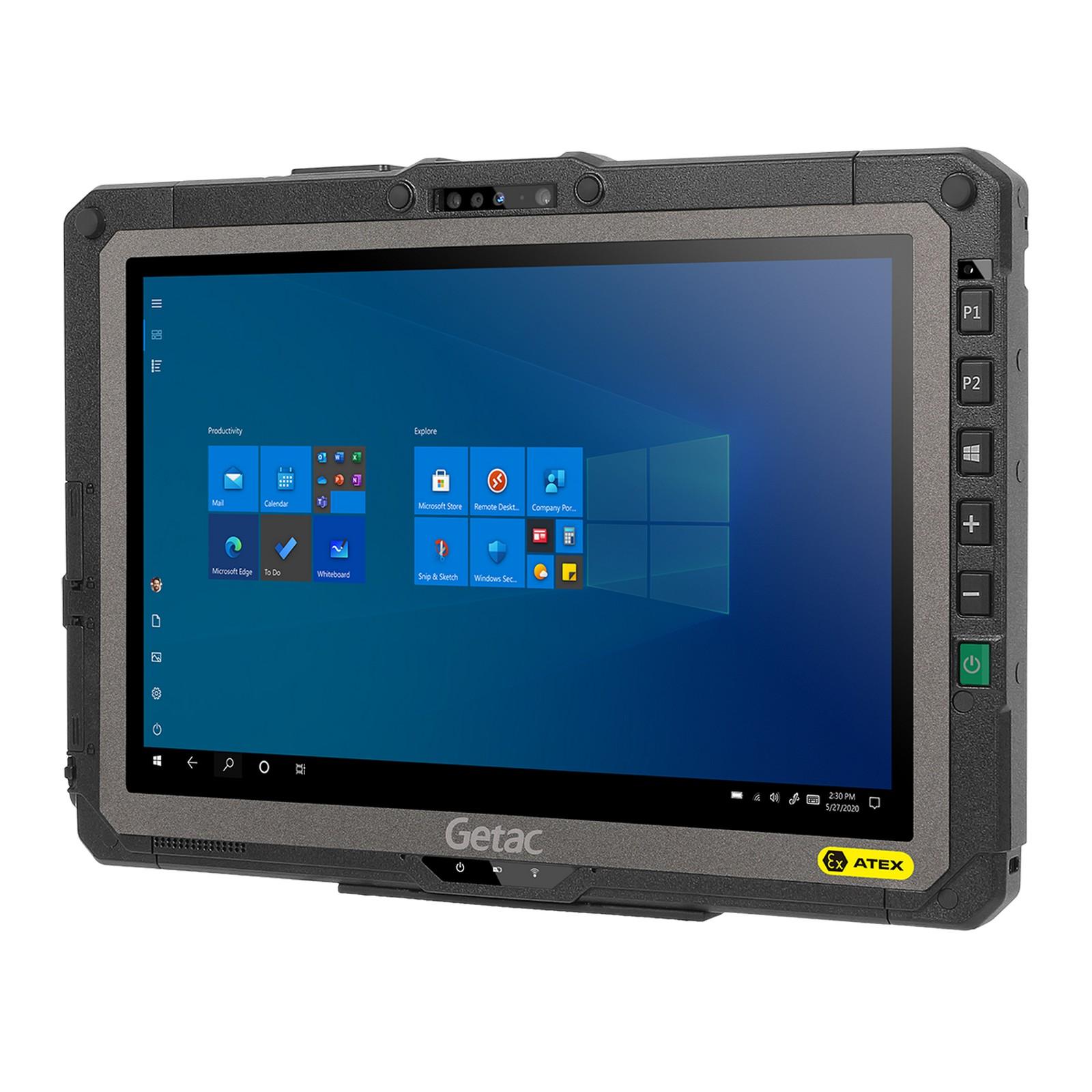

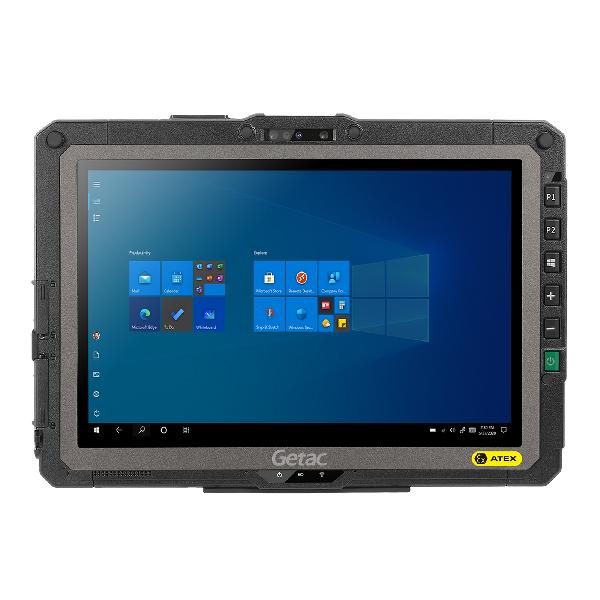

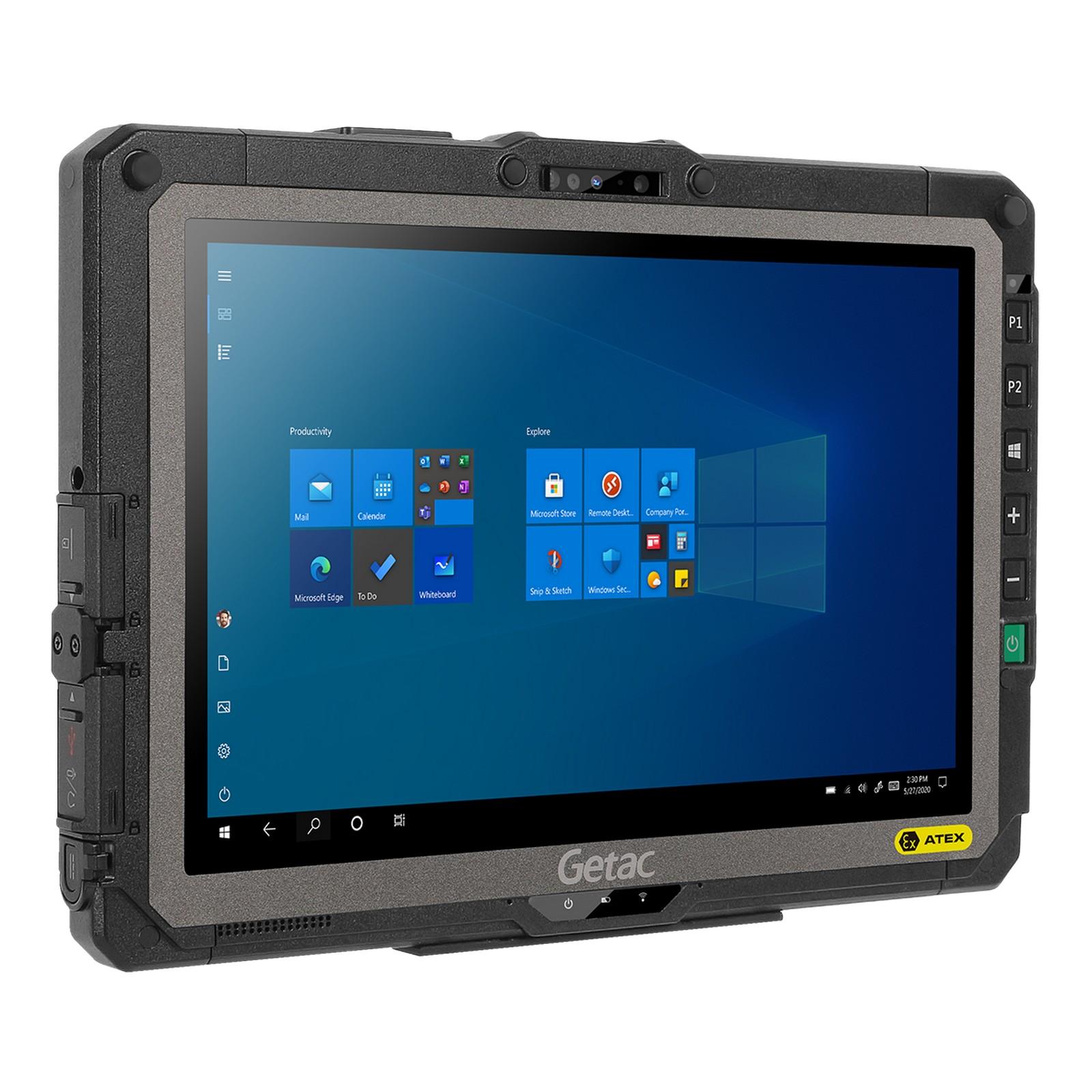

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.
Certified for hazardous locations, the UX10 fully rugged tablet offers optional ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.
| Operating System | Windows 10 Pro |
| Mobile Computing Platform | Intel® Core™ i5-10210U Processor 1.6GHz Platform Options: Intel® Core™ i7-10510U Processor 1.8GHz Intel® Core™ i7-10610U vPro™ processor 1.8GHz |
| VGA Controller | Intel® UHD Graphics |
| Display | 10.1" IPS TFT LCD FHD (1920 x 1200) Protection film 1000 nits LumiBond® display with Getac sunlight readable technology Capacitive multi-touch screen |
| Storage & Memory | 8GB DDR4 256GB PCIe NVMe SSD |
| Keyboard | Power button 5 tablet programmable buttons |
| Pointing Device | Touchscreen - Capacitive multi-touch screen - Optional dual mode touchscreen (multi-touch and digitizer) |
| Expansion Slots (Will have same disclaimer number and Dimensions (disclaimer number vary from model to model) | Optional: 1D/2D imager barcode reader, or HF RFID readeri, or LAN port (RJ45), or USB 3.2 Gen 1 Type-A, or USB 3.2 Gen 1 Type-C port, or VGA portii Without MicroSD starting March 5th, 2021 |
| I/O Interface | FHD webcam x 1viii 8M pixels auto focus rear camera x 1 Headphone out / mic-in combo x 1 DC in Jack x 1 USB 3.2 Gen 2 Type-A x 1 HDMI x 1 Optional: Windows Hello face-authentication camera (front-facing) x 1viii |
| Communication Interface | Intel® Wi-Fi 6 AX200, 802.11ax Bluetooth (v5.2)iii Optional: Dedicated GPSiv Optional: 4G LTE mobile broadband with integrated GPSiv Optional: 10/100/1000 base-T Ethernet |
| Pre-installed software | Getac Utility Getac Camera Getac Geolocation Getac Barcode Managerix Optional: Absolute Persistence® |
| Security Features | TPM 2.0 Kensington Lock Optional: Intel® vPro™ Technology Optional: HF RFID readeri,ii |
| Power | AC adapter (65W, 100-240VAC, 50 / 60Hz) Li-Ion smart battery (11.1V, typical 4200mAh; min. 4080mAh) x 1 Optional high capacity battery (10.8V, 9240mAh) x 1 |
| Dimension (W x D x H) & Weigh | 276.8 x 194.5 x 23.5 mm (10.89" x 7.65" x 0.92") 1.22 kg (2.68 lbs)iv |
| Rugged Feature | MIL-STD-810H certified and IP65 certified IP65 certified Vibration & 6 feet (1.8m) drop resistantvi,vii ATEX & IECEx certified |
| Environmental Specification | Temperaturevi: - Operating: -21°C to 63°C / -6°F to 145°F - Storage: -51°C to 71°C / -60°F to 160°F Humidity: - 95% RH , non-condensing |
| Explosion Protection | ATEX / IECEx Zone 2/22 Ex II 3G Ex ic op is IIC T4 Gc Ex II 3D Ex ic op is IIIB T130°C Dc |
| Accessories | Battery (11.1V, typical 4200mAh; min. 4080mAh) AC Adapter (65W, 100-240VAC) Capacitive Stylus Optional: Battery (11.1V, typical 4200mAh; min. 4080mAh) High Capacity Battery (10.8V, 9240 mAh) Multi-bay Charger (Dual Bay) Multi-Bay Charger (Eight-Bay) AC Adapter (65W, 100-240VAC) Capacitive Stylus Digitizer Pen Protection Film Hand Strap Shoulder Strap (2-point) Shoulder Harness (4-point; handsfree) 100W Type-C Adaptor x |
| Bumper-toBumper warranty | Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. Standard 3 years Bumper-to-Bumper |
| Name | Type | Version | Release Date | |
| GETAC UX10-EX datasheet | Datasheet | V1.0 | 09 April 2021 |
