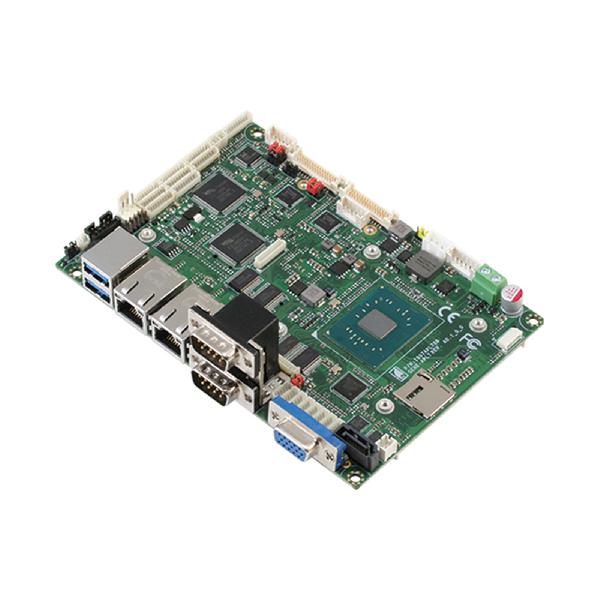

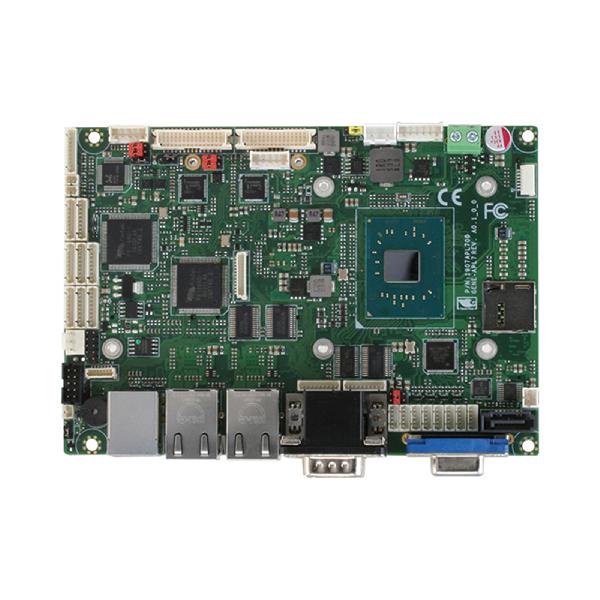

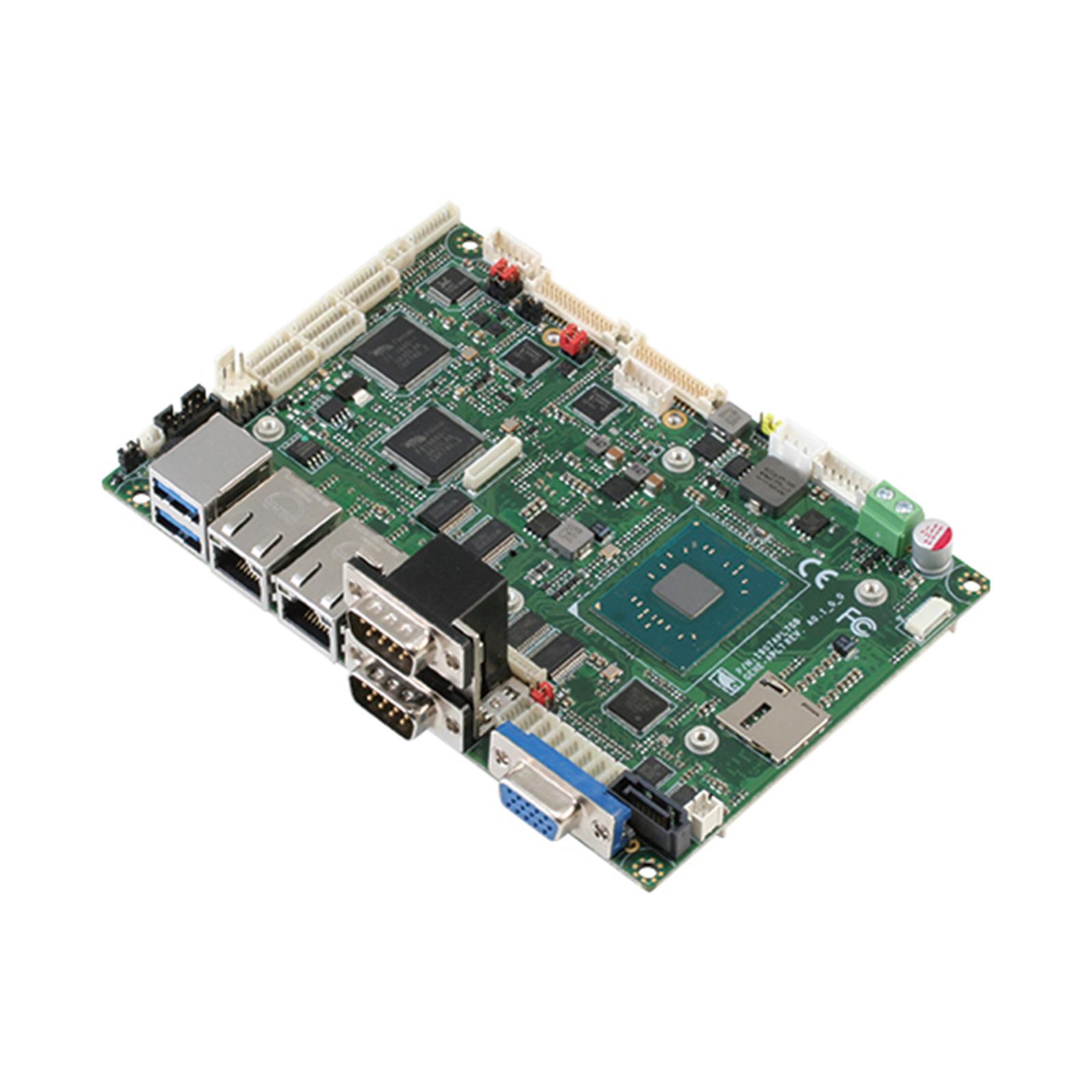

3.5” SubCompact Board with Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| CPU FREQUENCY | Up to 2.5 GHz |
| CHIPSET | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| MEMORY TYPE | DDR3L 1866MHz, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 12V Only |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® N4200,DDR3L 1600MHz 8GB,1.61A@+12V |
| DIMENSION (L X W) | 5.75" x 4" (146 mm x 101.7 mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 126000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| VIDEO OUTPUT | VGA/LVDS1 (Option: LVDS2/eDP) |
| BACKLIGHT INVERTER SUPPLY | Max 12V, 2A |
I/O | |
| ETHERNET | Realtek RTL-8111E, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface (Option 2W Amp) |
| USB PORT | Rear I/O: USB 3.2 Gen 1 x 2 Internal: USB2.0 x 8 |
| SERIAL PORT | Rear I/O: COM x 2 (COM2 is RS-232/422/485) Internal: COM x 4 (Option to COM x 10) COM2-5 support 5V/12V/RI |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Full, optioal for mini-card) |
| EXPANSION SLOT | Mini-card x 1 (Full size) |
| DIO | 8-bit |
| SIM | Micro SIM x 1 (Optional) |
| TPM | — |
| TOUCH | — |
