GENE-BSW5

Home > AAEON > Embedded Boards >
Embedded Single Board Computers > 3.5” SubCompact Boards

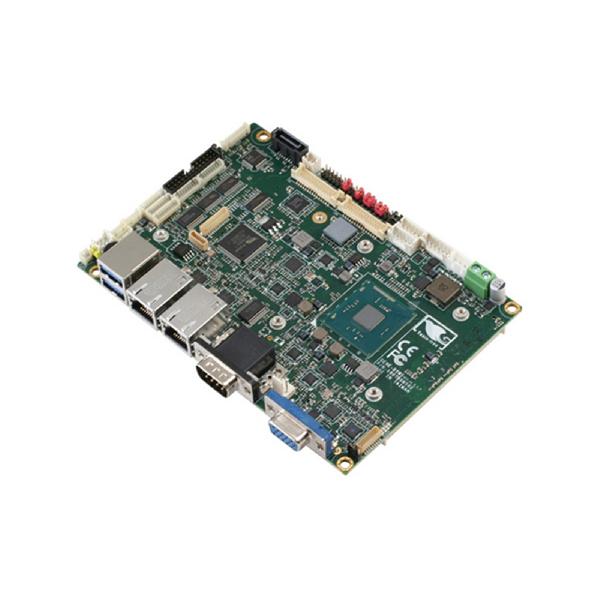

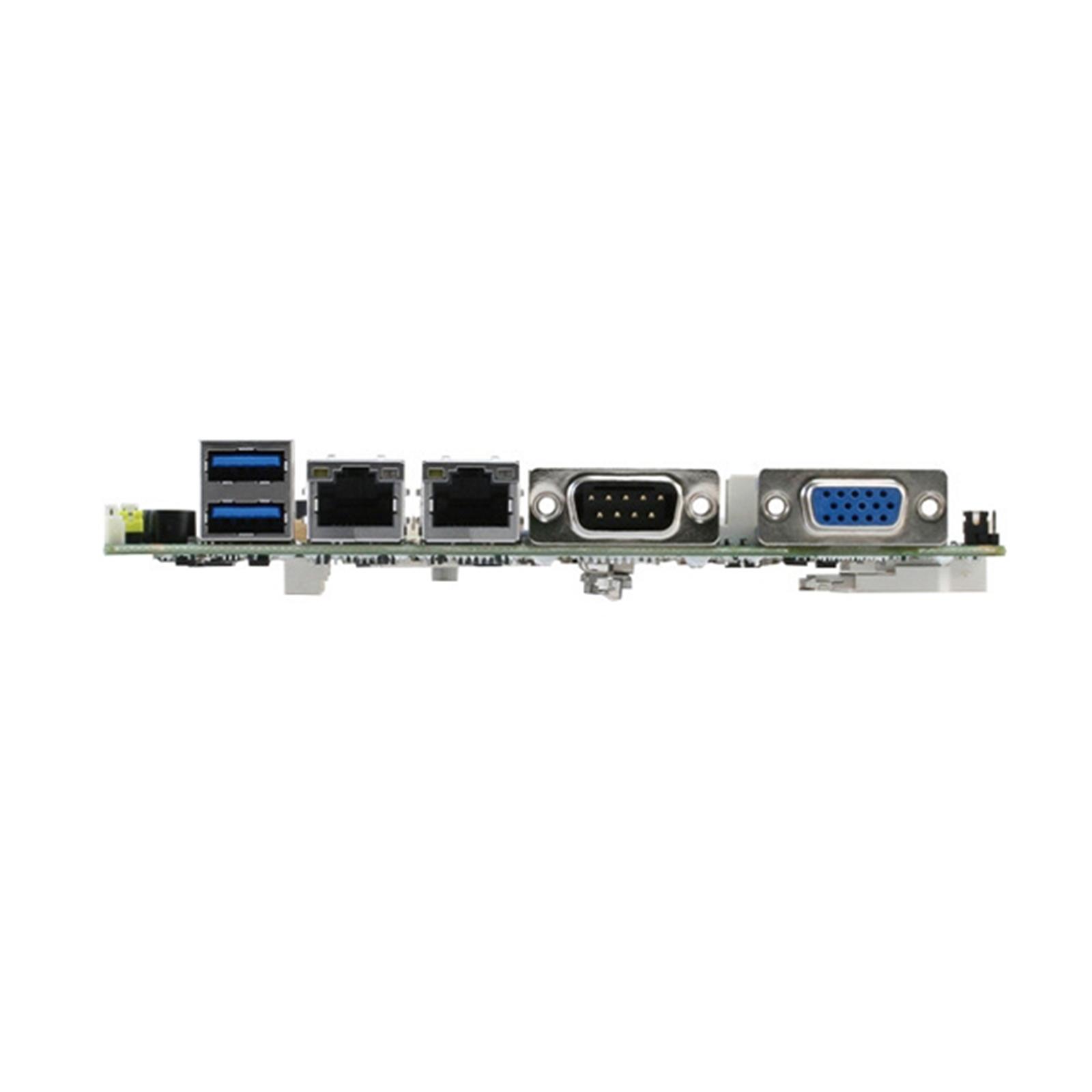

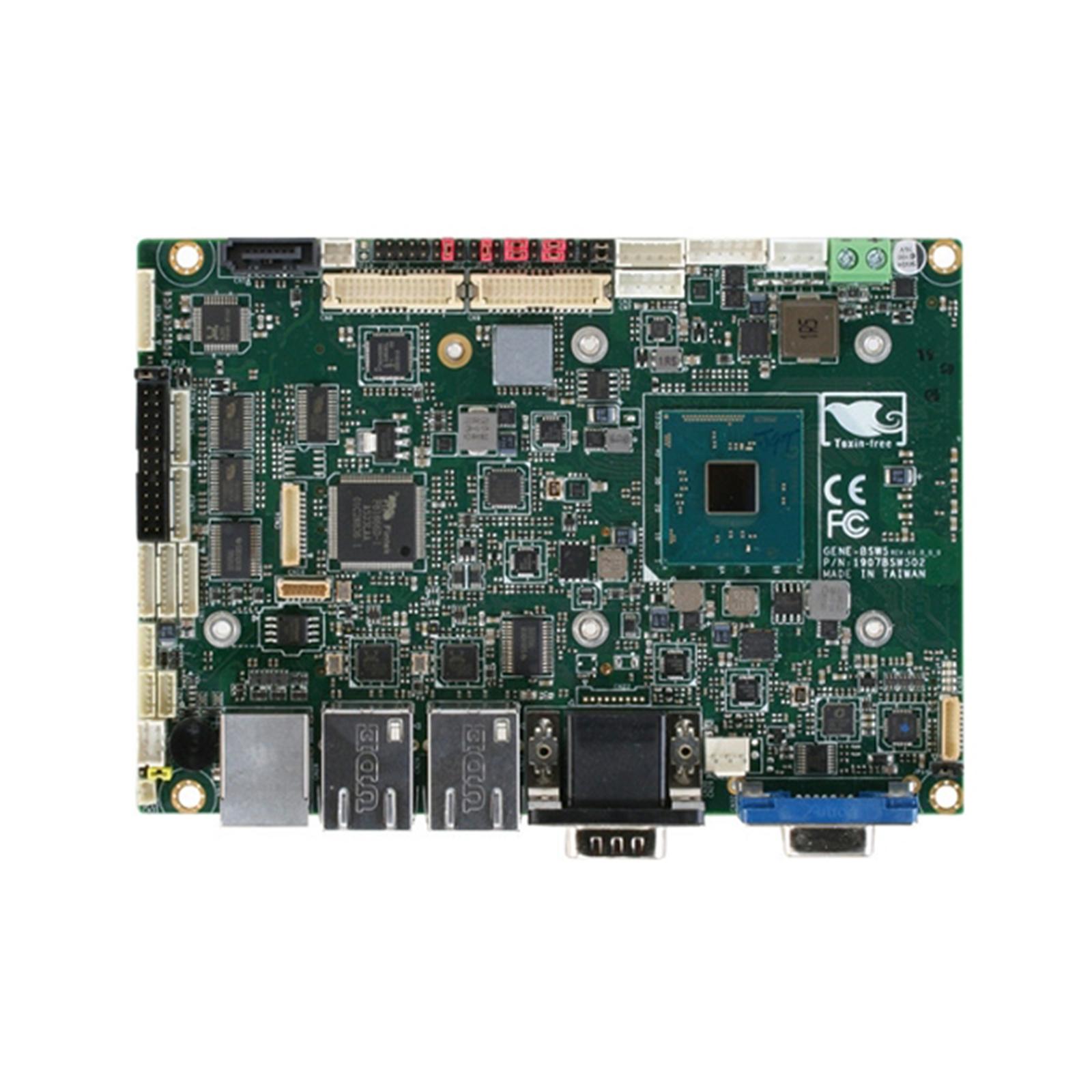

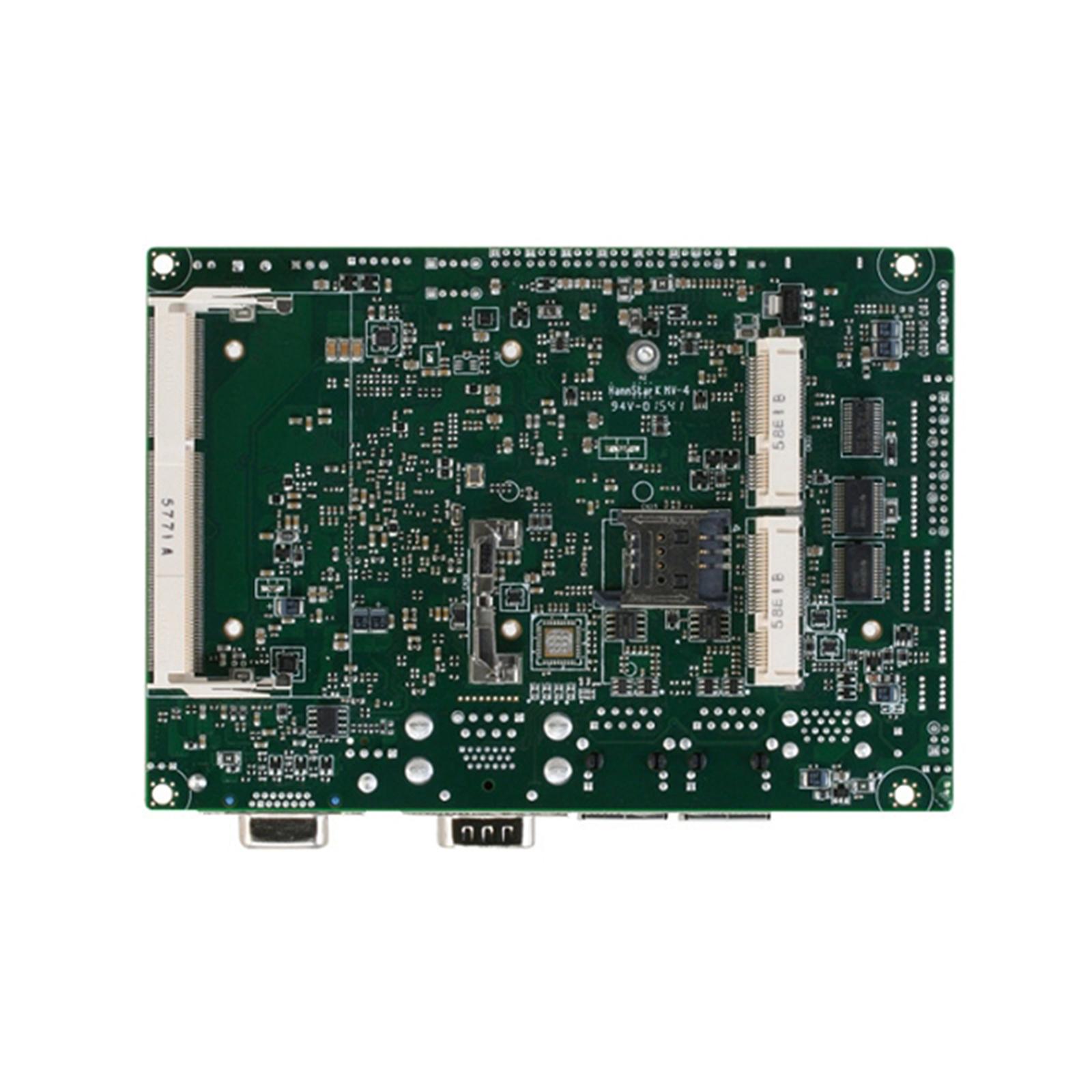

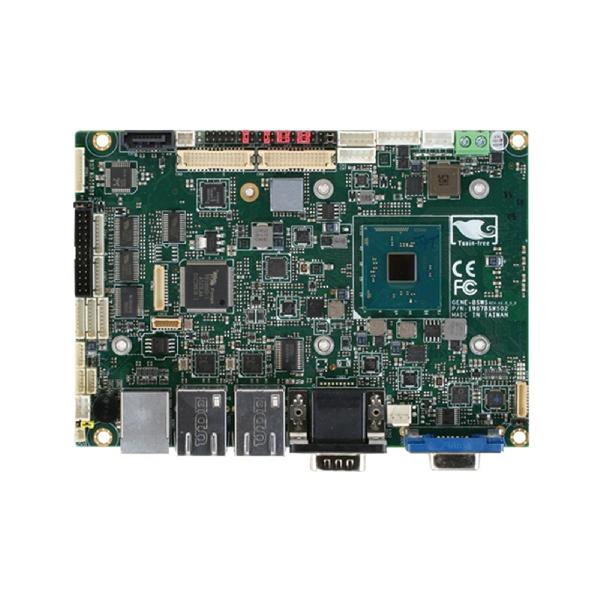

3.5” SubCompact Board with Intel® Pentium & Celeron® N3000 Series Processor SoC

Product Feature

Onboard Intel® Pentium®/Celeron® N3000 Series Processor SoC
DDR3L 1600 SODIMM x 1, Up to 8 GB
Gigabit Ethernet x 2
VGA, LVDS1, LVDS2/HDMI (Co-design)
2CH HD Audio
Mini-Card x 1 (Full-Size)
mSATA x 1 (Shared with Mini-Card, Half-size)
USB 3.2 Gen 1 x 2, USB2.0 x 3, COM x 6, Digital I/O 8-bit
+12V DC, AT/ATX

3.5” SubCompact Board with Intel® Pentium & Celeron® N3000 Series Processor SoC

Applications

Building
Factory Automation
Panel PC
KIOSK
Medical Equipment
Test & Measurement

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/english/productview.php on line 614

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/english/productview.php on line 615

SYSTEM
FORM FACTOR	3.5" SubCompact Board
CPU	Intel® Pentium® & Celeron® M/D Processor SoC
CPU FREQUENCY	Up to 2.6 GHz
CHIPSET	Intel® Pentium® & Celeron® M/D Processor SoC
MEMORY TYPE	DDR3L 1600, SODIMM x 1
MAX. MEMORY CAPACITY	Up to 8GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	+12V
POWER SUPPLY TYPE	AT/ ATX
POWER CONSUMPTION (TYPICAL)	Intel® Celeron® N3160 (2M Cache,up to 2.24 GHz,DDR3L 1600MHz,8GB,0.65A@+12V)
DIMENSION (L X W)	5.75" x 4" (146mm x 101.7mm)
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 81°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	81,000
CERTIFICATION	CE/FCC
DISPLAY
VGA/LCD CONTROLLER	Intel® Pentium® & Celeron® M/D SoC
VIDEO OUTPUT	LVDS x 2 + VGA (HDMI is optional, shared with LVDS2)
BACKLIGHT INVERTER SUPPLY	Up to 24-bit dual-channel LVDS
I/O
ETHERNET	Realtek RTL-8111E, 10/100/1000Base-TX, RJ-45 x2
AUDIO	High Definition Audio Interface
USB PORT	USB 3.2 Gen 1 x 2 USB 2.0 x 3
SERIAL PORT	RS-232/422/485 x 2, RS-232 x 4
PARALLEL PORT	SPP/EPP/ECP x 1 (Option, Shared with DIO)
HDD INTERFACE	SATA 3.0 x 1
FDD INTERFACE	—
SSD	mSATA x 1 (Half-size)
EXPANSION SLOT	Mini-Card x 1(Full-size)
DIO	8-bit
SIM	x 1
TPM	—
TOUCH	x 1 (USB interface)
