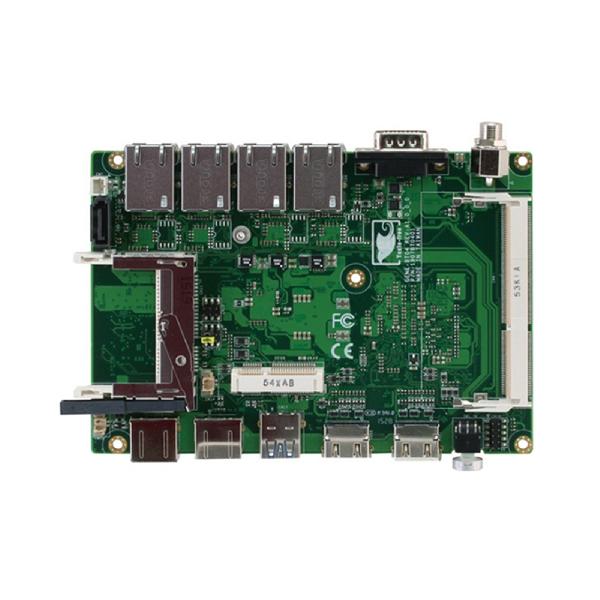

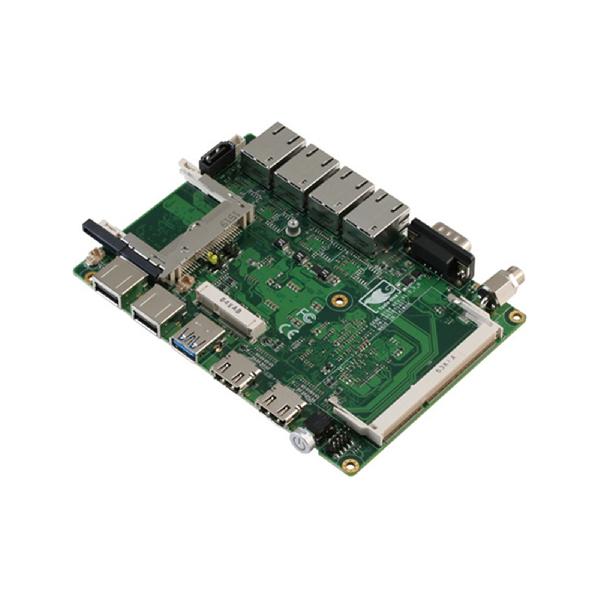

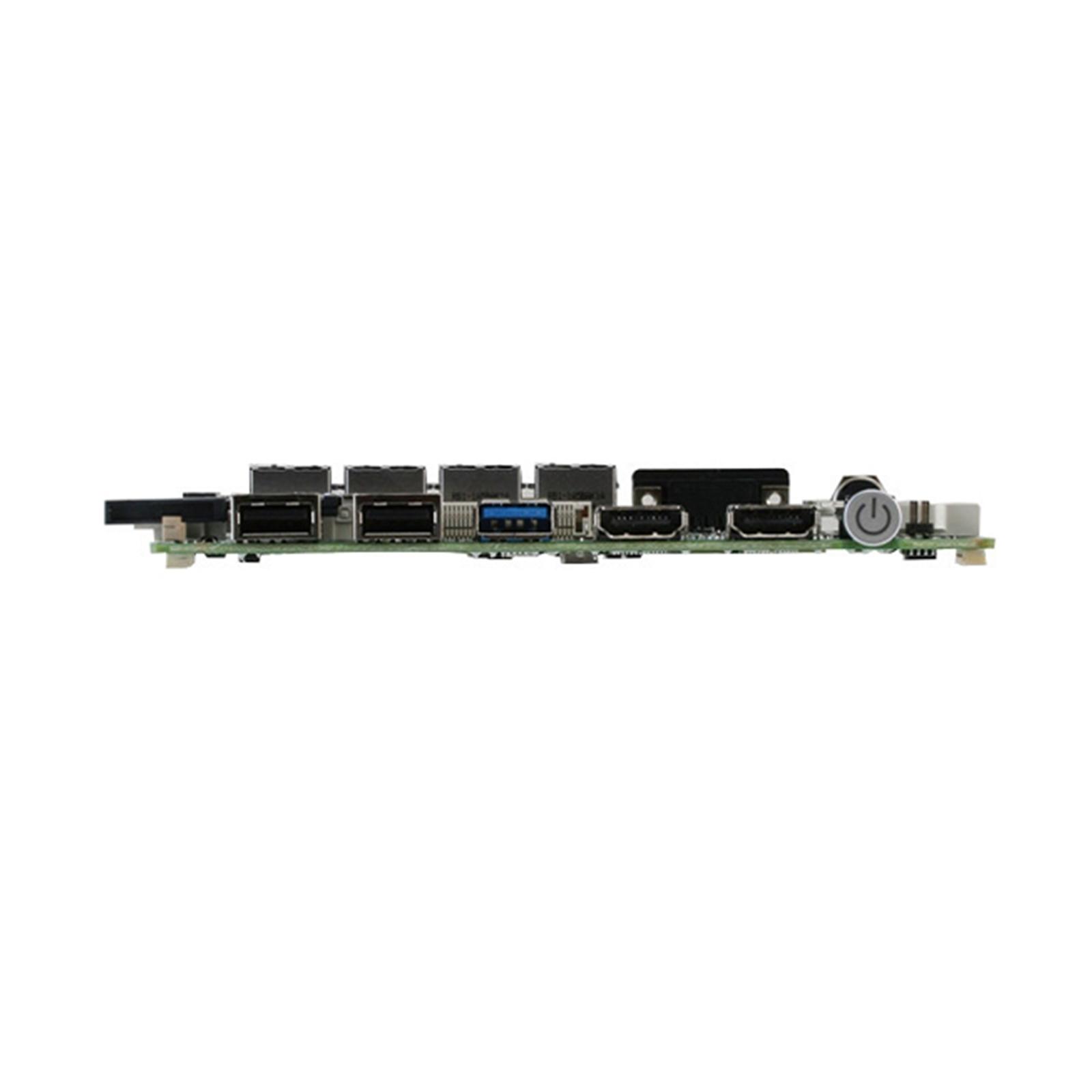

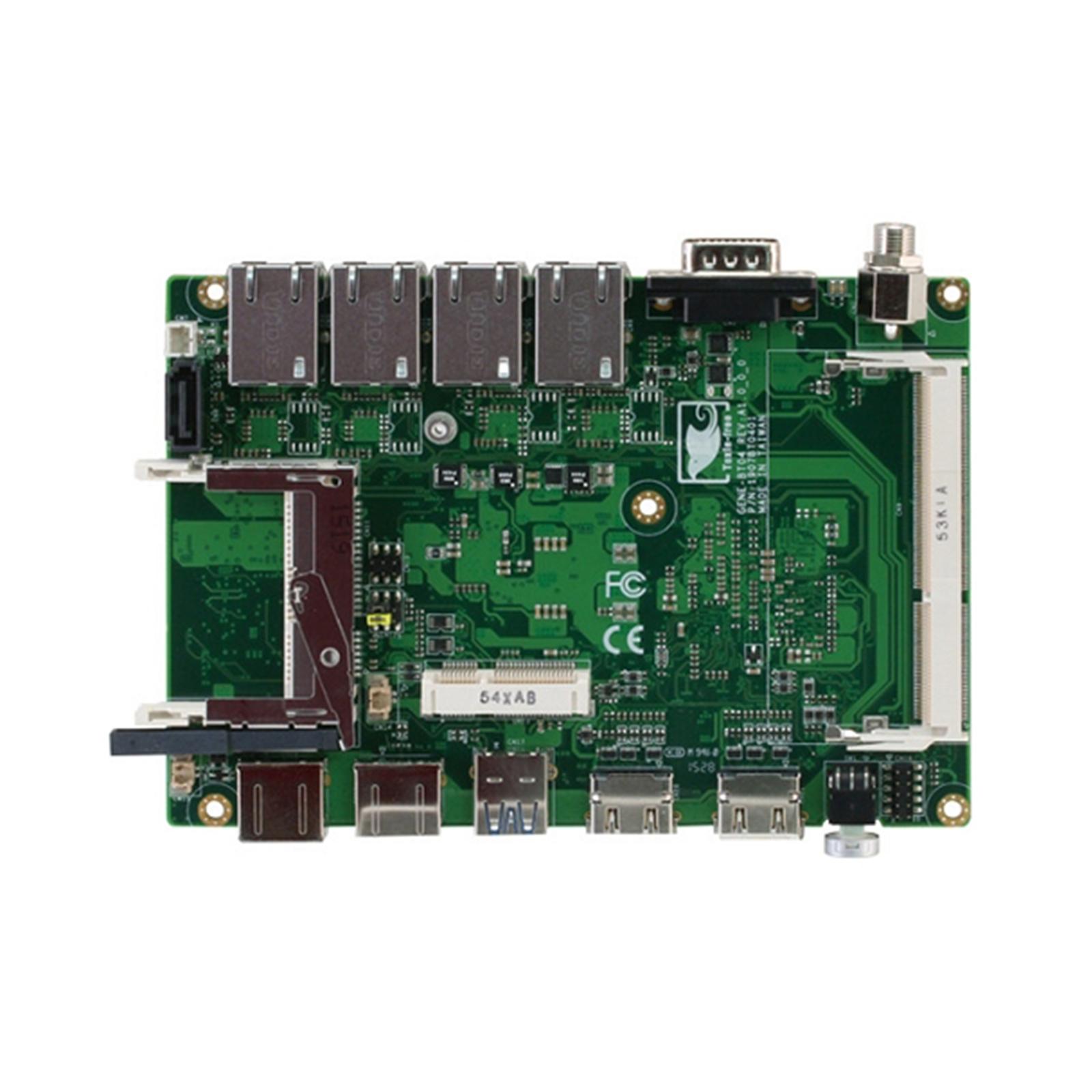

Targeted at the signage/ networking market, the GENE-BT04 is capable of 2k resolution with its two HDMI ports (audio included with one port) while its four Giga LAN ports and Intel® I211 Ethernet chipset provides the muscle for any networking requirement.
SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Intel® Celeron® J1900/ N2807 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® Celeron® J1900/ N2807 Processor SoC |
| MEMORY TYPE | DDR3L 1333, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8G |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V ~ +24V |
| POWER SUPPLY TYPE | ATX mode |
| POWER CONSUMPTION (TYPICAL) | Intel® N2807, DDR3L 1600MHz 4G, 0.65A@ +12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 155,000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Celeron® J1900/ N2807 Processor SoC |
| VIDEO OUTPUT | HDMI x 2: HDMI 1(w/Audio), HDMI 2(w/o Audio) |
| BACKLIGHT INVERTER SUPPLY | — |
I/O | |
| ETHERNET | Intel® I211AT(or 210), 10/100/1000Base-TX, RJ-45 x 4 |
| AUDIO | High definition audio interface |
| USB PORT | USB 2.0 x 2, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | RS-232 x 1 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | CFast™ x 1 |
| EXPANSION SLOT | Mini-Card x 1 (for USB only) |
| DIO | 4 Bit |
| SIM | x 1 |
| TPM | x 1 |
| TOUCH | — |
