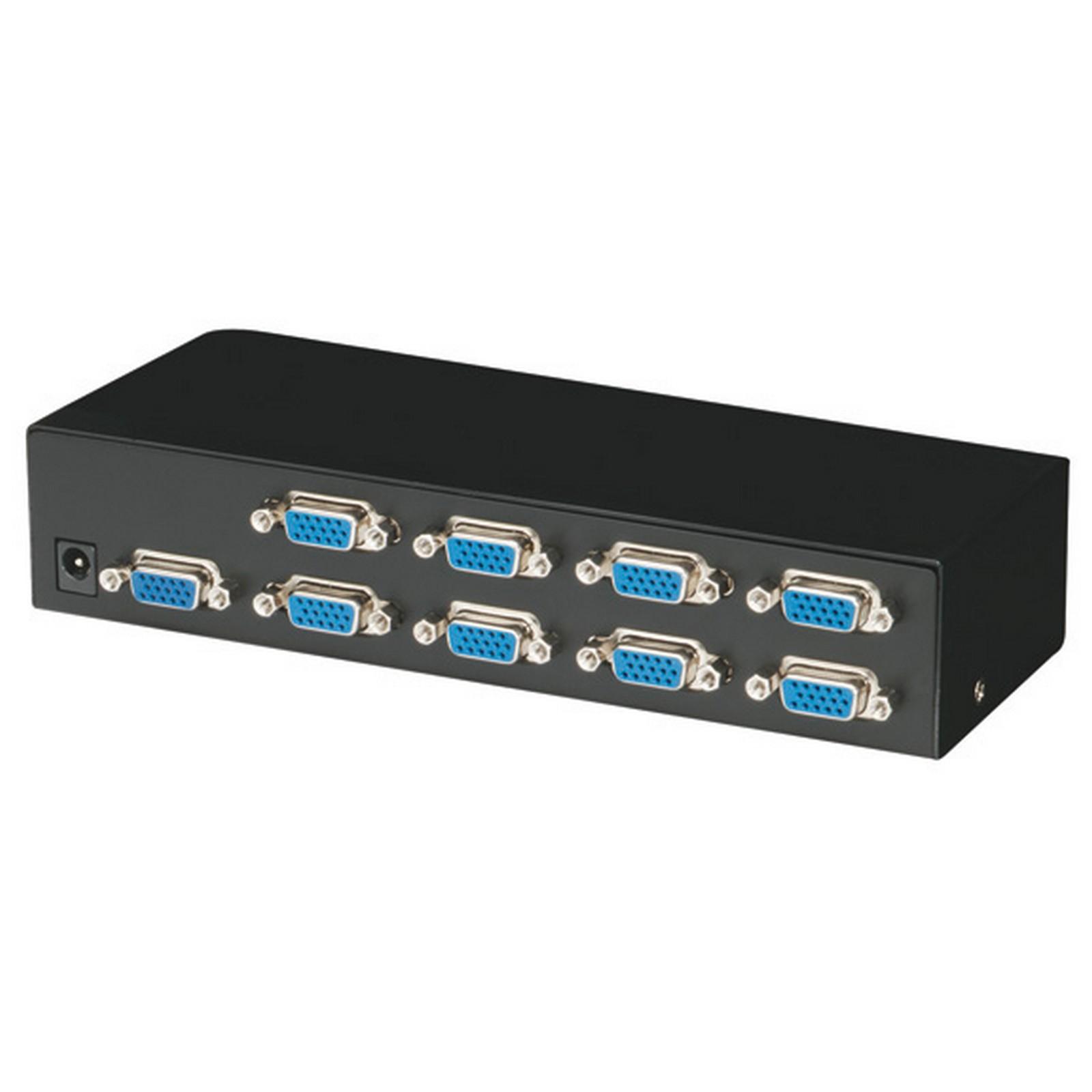

Compact VGA Video Splitter - 8-Channel

Home  >   Black Box  >   VIDEO SPLITTERS  >
RGB/VGA

Link eight monitors to one PC for a great presentation seen by many.

Product Feature

  • Send crisp, clear images from your PC to mulitple displays for trade shows, training, even public information systems.
  • Broadcast your PC monitor displays on eight monitors up to 210 feet (64 m) away.
  • Great for presentations, trade show or point of sale displays, or for displaying multimedia video to large audiences at sales or training meetings.
  • Or use to distribute on-line information to workstations on a factory floor while maintaining your CPU in a separate room.
  • Automatic power-save function for situations when the VGA signal is lost.
  • Quick setup. Just connect the VGA cables, power up your system, and you're ready to start duplicating VGA images for multiple monitors.
  • Includes VGA cables for input and output connections.
  • Cascade units to increase VGA outputs to connect more monitors.
  • Provides clear, sharp images whether you're using VGA, Super VGA (SVGA), or multisync monitors!
  • Features 300-MHz bandwidth.
  • Two- and four-channel models also available.

What's included:

  • Splitter
  • (1) 6-ft. (1.8-m) HD15 male/HD15 male VGA input cable
  • (7) 10-ft. (3-m) HD15 male/HD15 female VGA outputs cable
Compliance
cUL0
FCC
UL0
General
CE ApprovalYes
Distance (Maximum)210 ft. (64 m)
Pixel Frequency300 MHz
PowerInput: 100–240 VAC, 50–60 Hz; Output: 5 VDC, 2 A
Resolution1920 x 1440 at 70 Hz
Item Specifications
ConnectorsOutput: (8) HD15 F; Input: (1) HD15 F
Dimensions1.6"H x 7.8"W x 3"D (4.1 x 19.8 x 7.6 cm)
Weight1.3 lb. (0.6 kg)

Product Includes:

  • Splitter
  • (1) 6-ft. (1.8-m) HD15 male/HD15 male VGA input cable
  • (7) 10-ft. (3-m) HD15 male/HD15 female VGA outputs cable
Name Type Version Release Date
Compact VGA Video Splitter Manual 11 May 2021
