Modular Matrix Switcher Video Input Card CATx 4K Audio IR

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

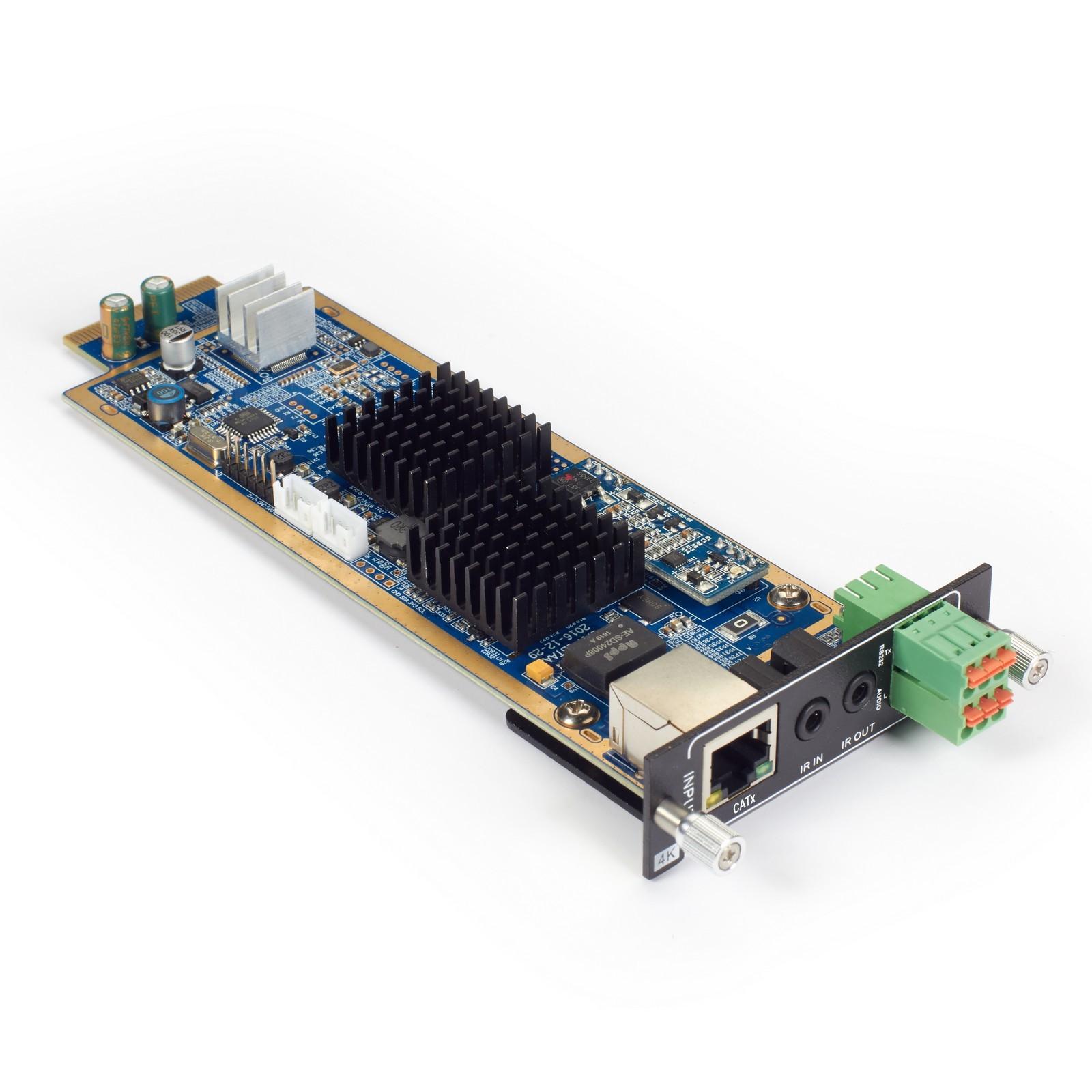

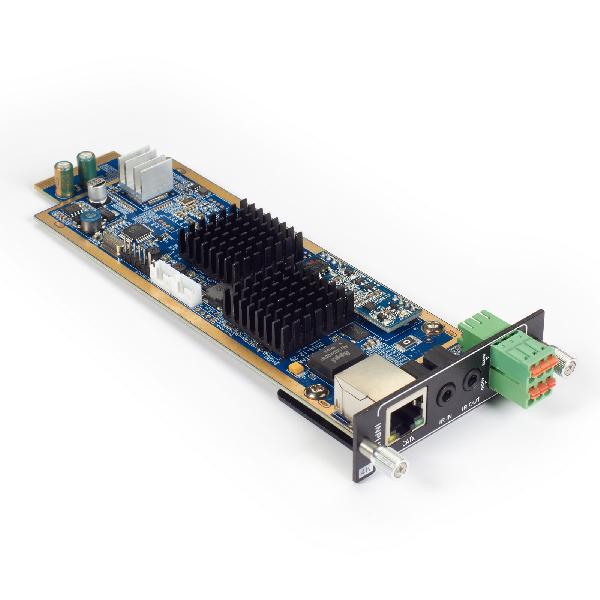

Modular Matrix Switcher Video Input Card.

Product Feature

  • Adaptive HDCP input and supports HDCP 22, the output signal supports HDCP 14
  • Yellow LED blinks once powered on; green LED lights when the port is connected to CATx devices
  • CATx port supports PoE
  • Input audio source selectable via command or GUI, including HDMI embedded audio (default), and external analog audio
  • The default output resolution is 4K × 2K @ 30 Hz and it can be adjusted via commands or GUI, supports 4K × 2K @ 60 Hz, 1024 × 768 @ 60 Hz, 1920 × 1080p @ 60 Hz, 1280 × 720 @ 60 Hz

These are Single 4K seamless HDB I/O signal cards

General
Power15 W
Item Specifications
Dimensions9.5”L x 4.5”W x 2.75”H
Weight0.217
Video

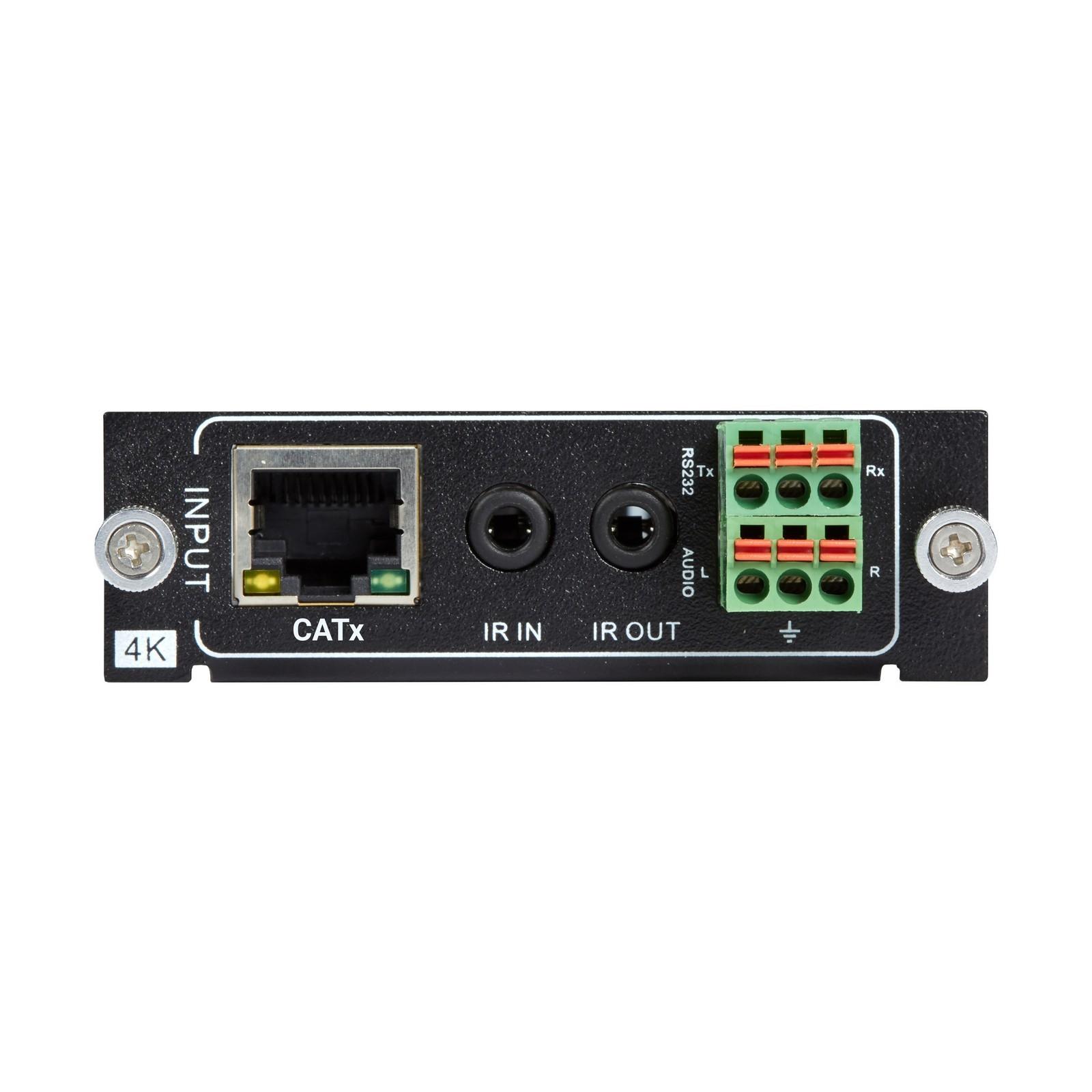

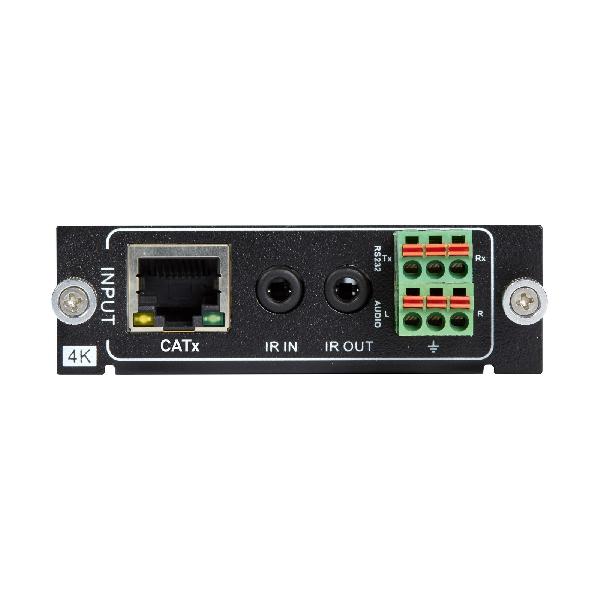

Input Connector(1) RJ-45 female; (2) 3-pin pluggable terminal block; (2) 3.5-mm mini jack
Input(1) CATx; (1) Analog audio; (1) RS232; (1) IR IN, (1) IR OUT
Name Type Version Release Date
Modular Matrix Switches Datasheet 18 May 2021
