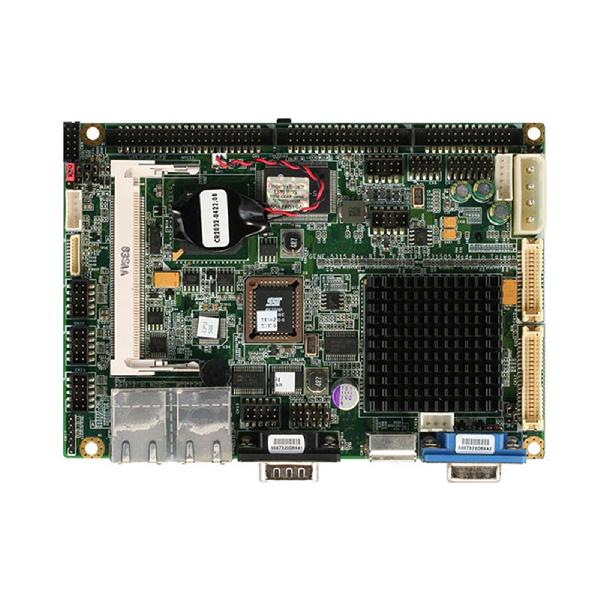

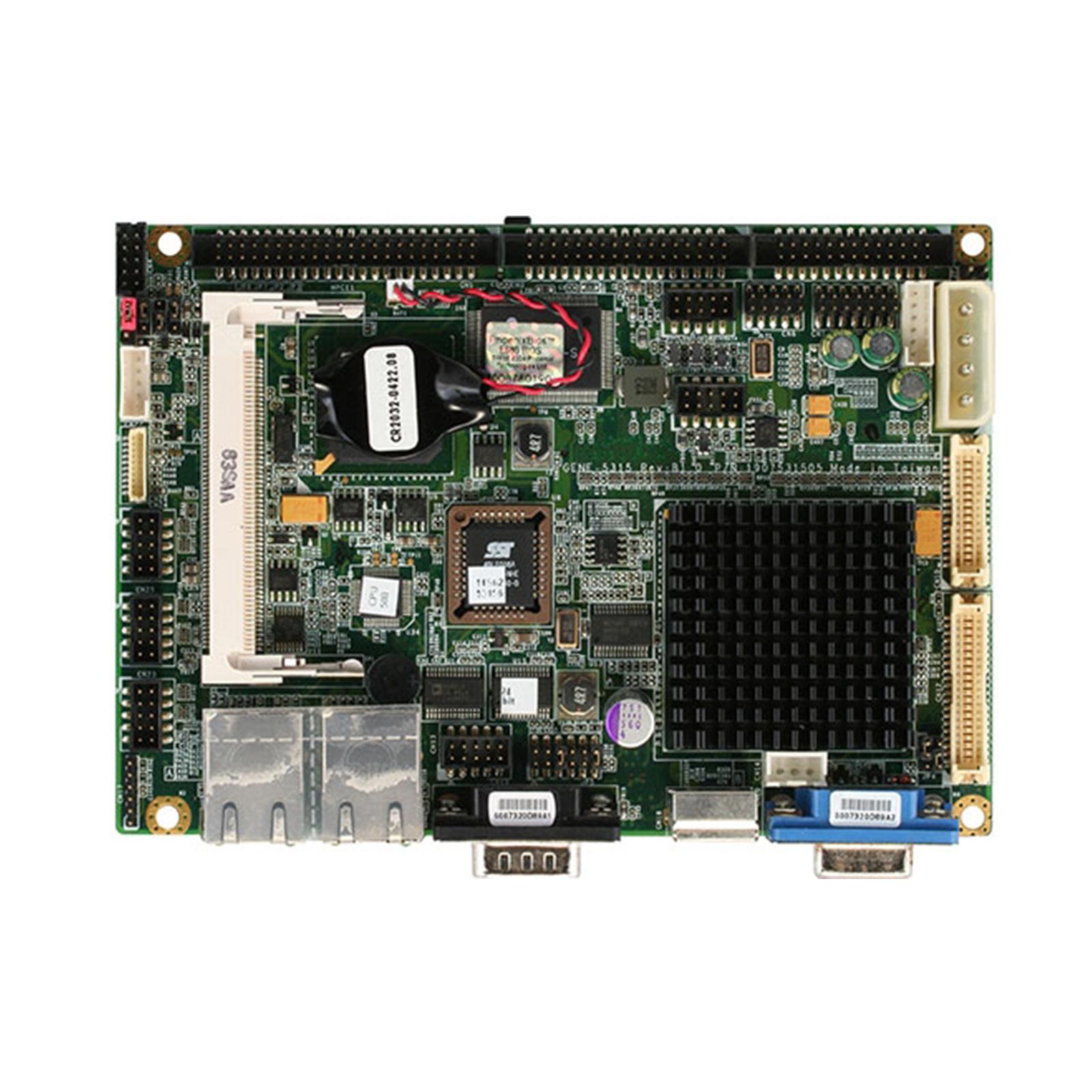

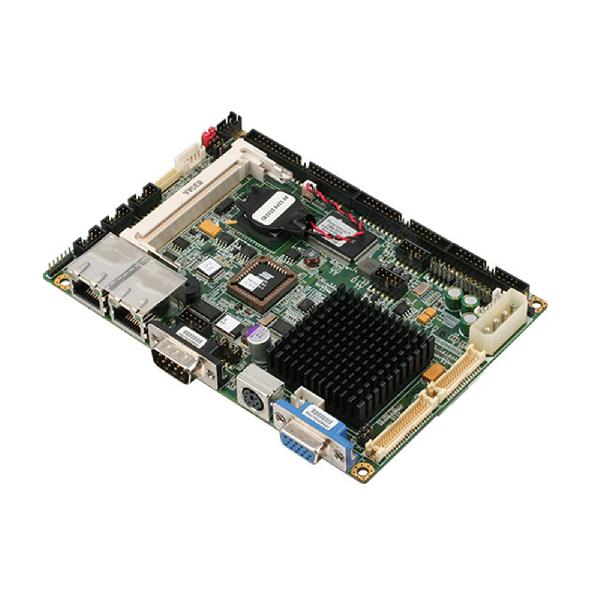

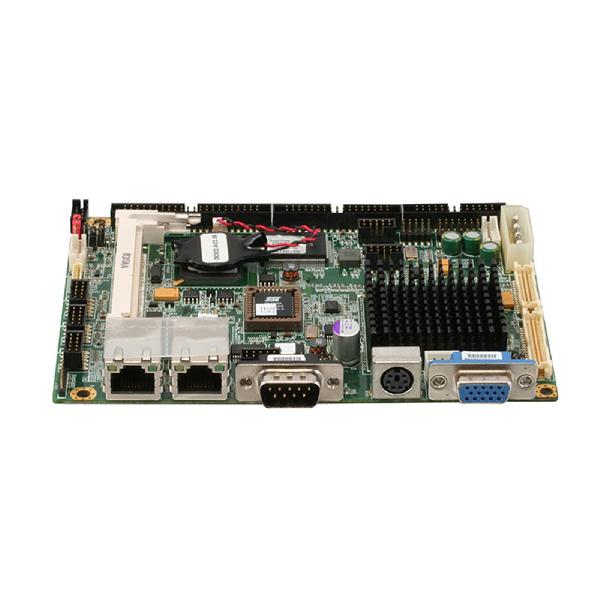

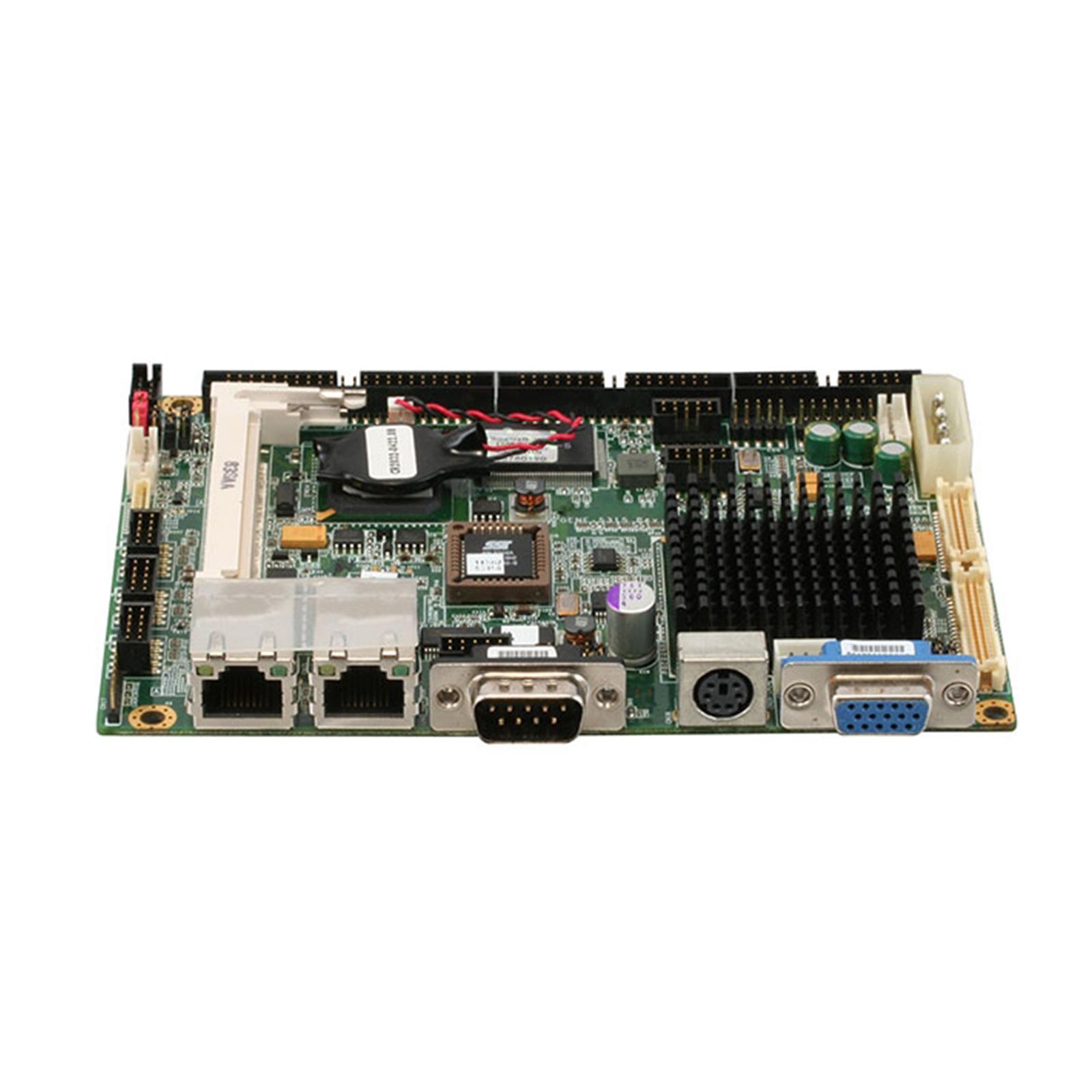

The GENE-5315 Rev. B Subcompact board balance performance and cost in the embedded market. GENE-5315 Rev. B adopts optional onboard AMD Geode™ LX 800 and LX 700. The system memory is deployed with SODIMM DDR 333/400 up to 1GB. In addition, Realtek RTL8139DL supports two 10/100Base-TX allowing network connections. This model applies a Type III Mini PCI socket and PC/104 socket for expansion. Moreover, four USB 2.0, IDE, RS-232, RS-232/422/485 and parallel ports are configured on the GENE-5315 Rev. B. Full functions make GENE-5315 Rev. B user friendly. With the GENE-5315 Rev. A, there are no more worries about installing many necessary devices to complete the functions of your system.
SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Onboard AMD Geode™ LX 800 |
| CPU FREQUENCY | 500 MHz |
| CHIPSET | AMD Geode™ LX |
| MEMORY TYPE | DDR333 SODIMM x 1 (DDR400 optional) |
| MAX. MEMORY CAPACITY | 1 GB |
| BIOS | Award 1 MB |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +5V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | LX 800 500 MHz, DDR400 1 GB, 1.17A@+5V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C), -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1 |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 90,000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ |
| VIDEO OUTPUT | CRT, TTL LCD, LVDS LCD |
| BACKLIGHT INVERTER SUPPLY | Up to 24-bit single channel TTL/LVDS |
I/O | |
| ETHERNET | 10/100Base-TX x 2, Realtek RTL 8139DL |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 4 & TTL UART x 1, RS-232/422/485 x 1 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | UDMA33 x 1 |
| FDD INTERFACE | FDD x 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | Mini-PCI |
| DIO | 8-bit |
| SIM | — |
| TPM | — |
| TOUCH | — |
