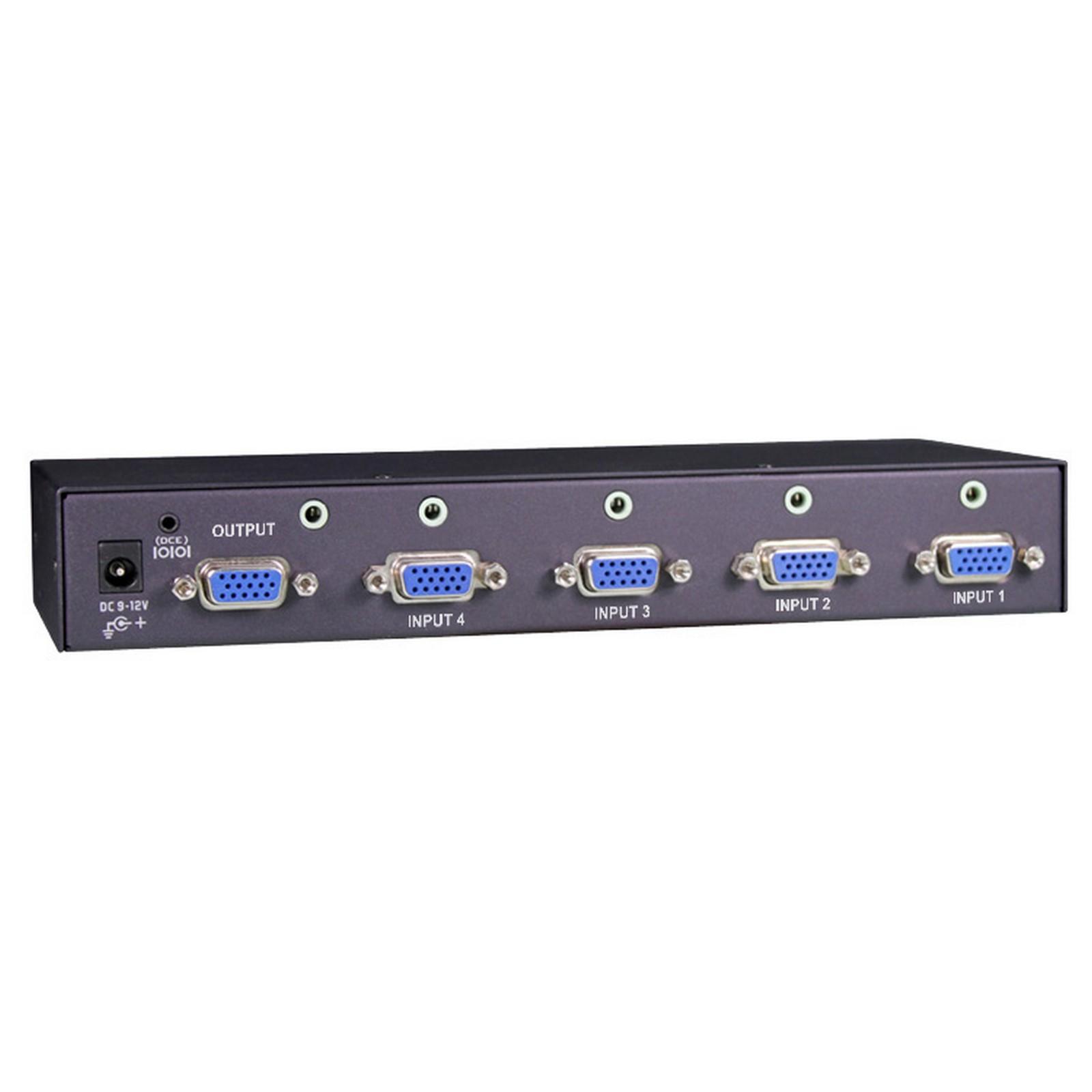

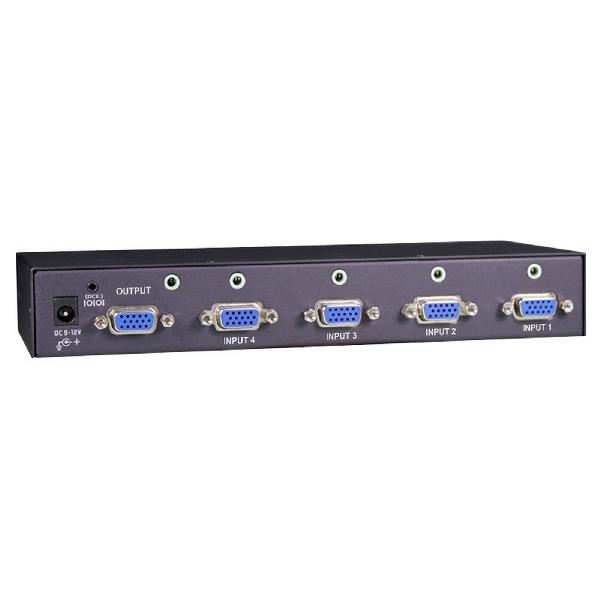

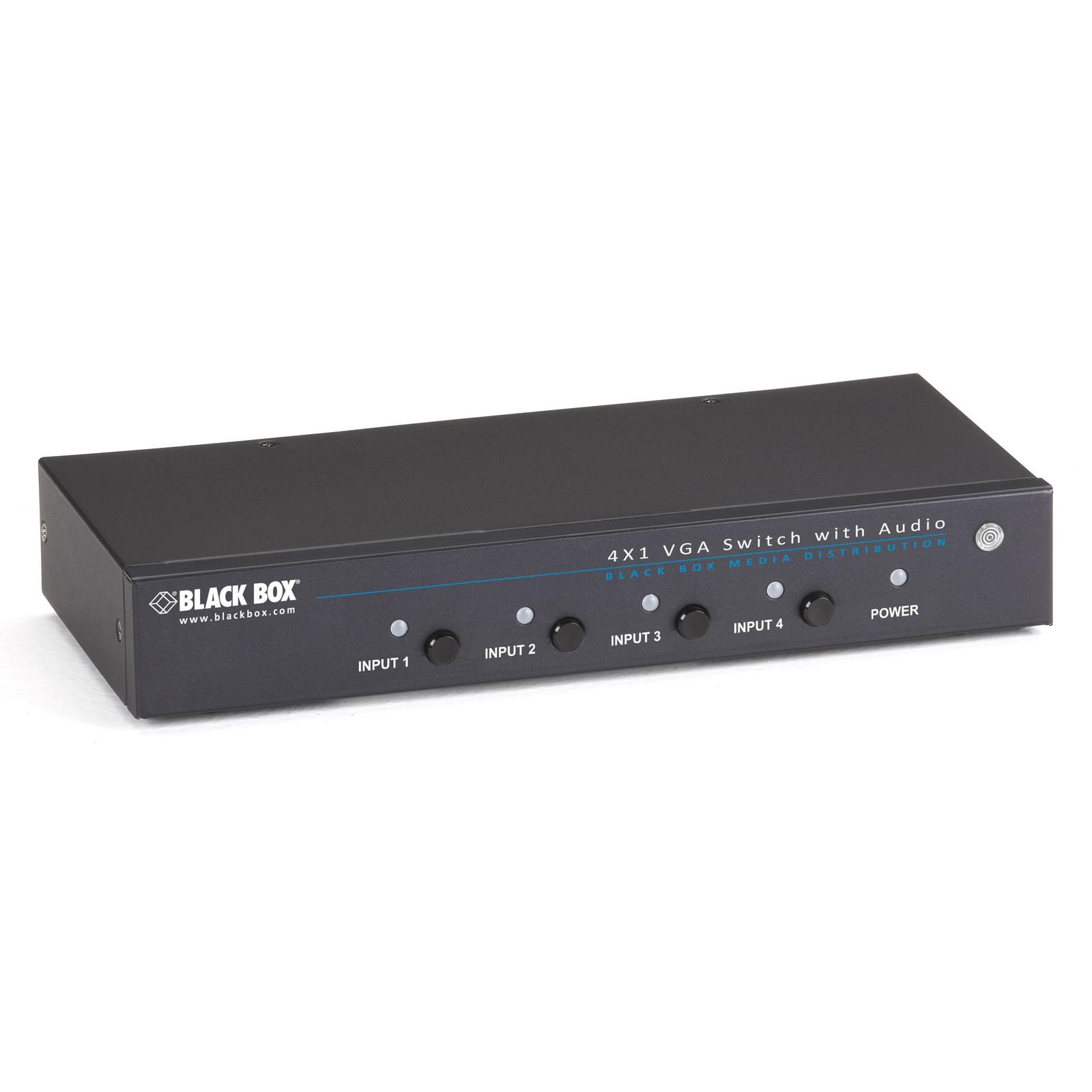

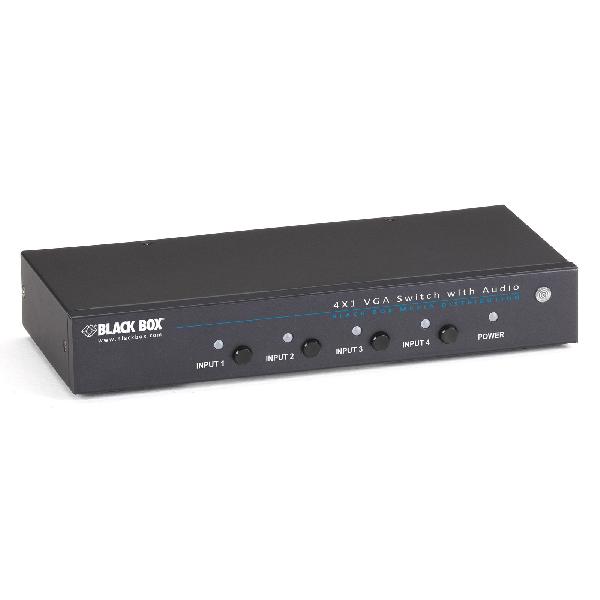

Use this low-priced, highly reliable 4 x 1 VGA Switch with Serial and Audio anywhere you need to route both video and audio from four PC sources to a common display.
It's ideal for classrooms, control centers, and digital signage applications as well as for use at meetings and seminars where you need to switch between multiple sources for output on a VGA monitor or through a VGA projector.
Compliance | |
FCC | |
General | |
CE Approval | Yes |
Power | Input: 100-240 VAC, 50-60 Hz; Output: 9-12 VDC; Consumption: 4.5 W |
Resolution | Full HD 1080p (1920 x 1080), WUXGA (1920 x 1200), 1920 x 1440 |
RoHS | Yes |
Item Specifications | |
Connectors | Input: (4) HD15 M (VGA), (4) 3.5-mm jack (audio), (1) 1.7-mm DCE jack (serial, for use with included adapter); Output: (1) HD15 F (VGA), (1) 3.5-mm jack (audio) |
Dimensions | 1.3"H x 8.6"W x 3.9"D (3.4 x 22 x 10 cm) |
Indicators | (4) LEDs: (1) per each port (for active status of VGA input source) |
Weight | 1.5 lb. (0.7 kg) |
Product Includes:
Name | Type | Version | Release Date | |
VGA Switches (with Serial and Audio) User Manual | Manual | 24 May 2021 |
