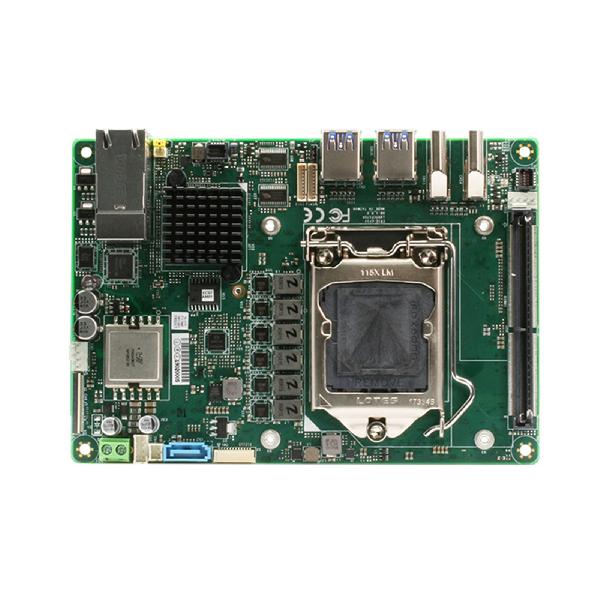

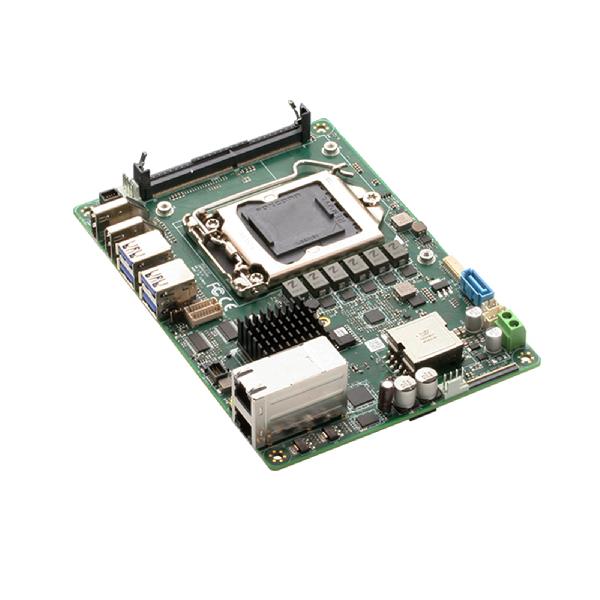

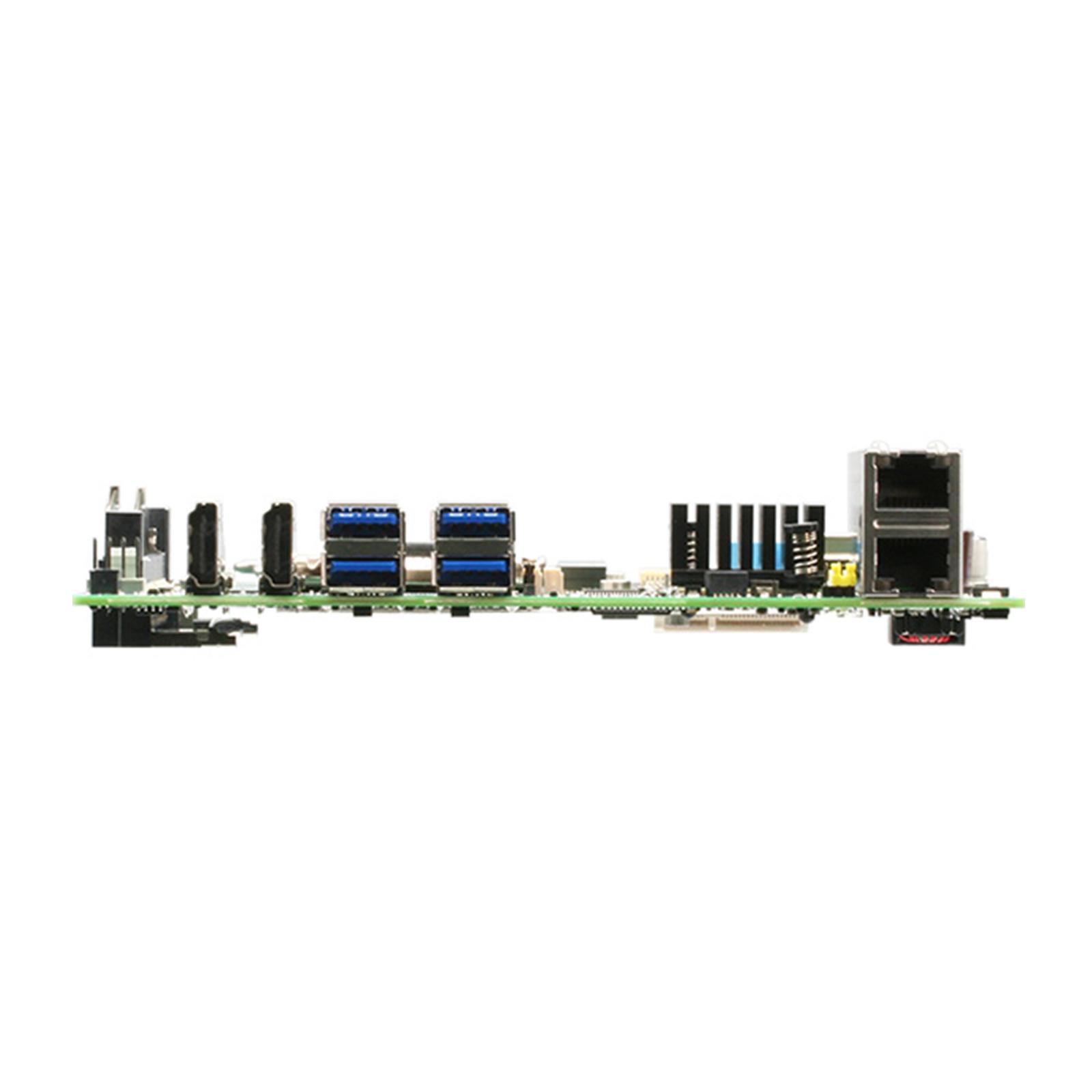

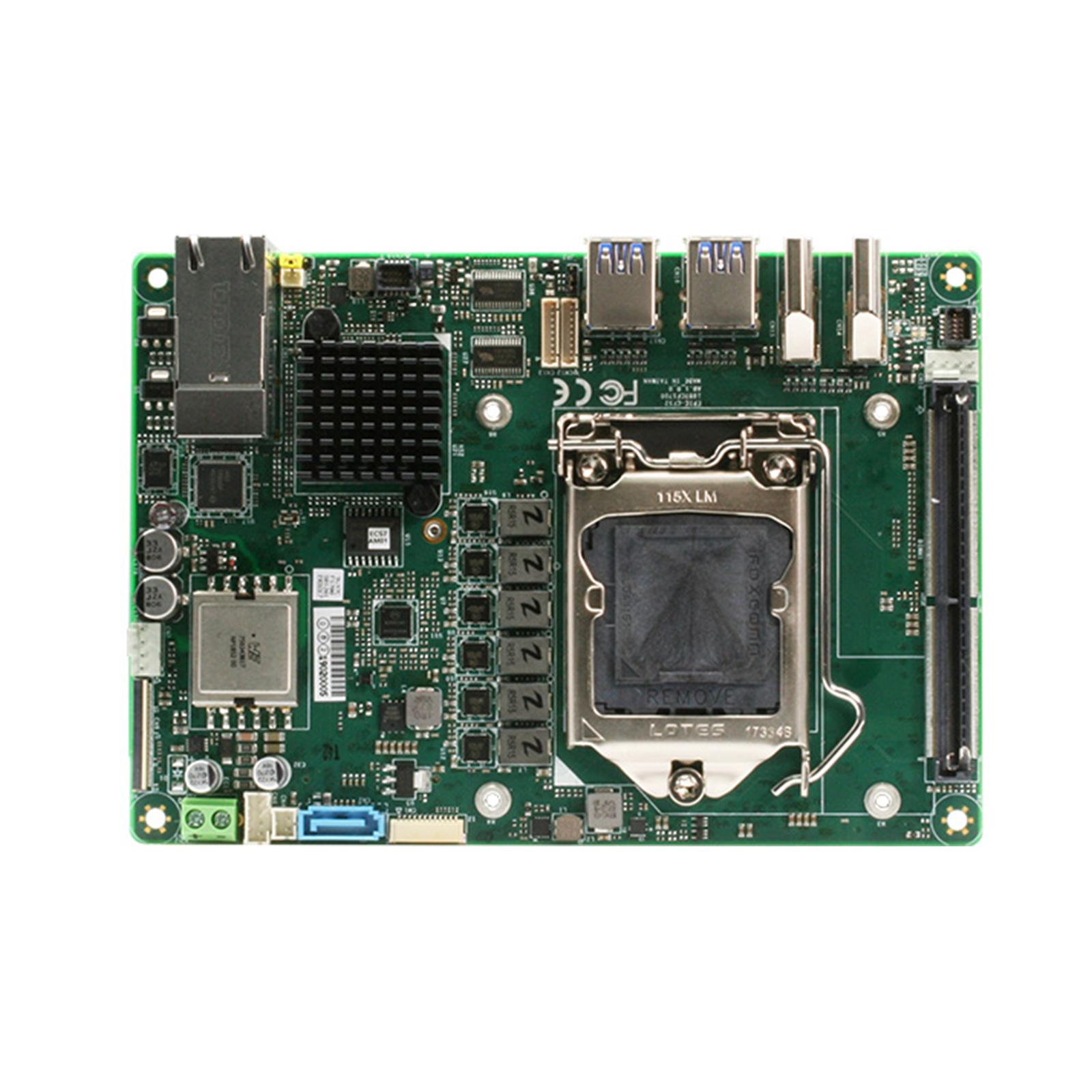

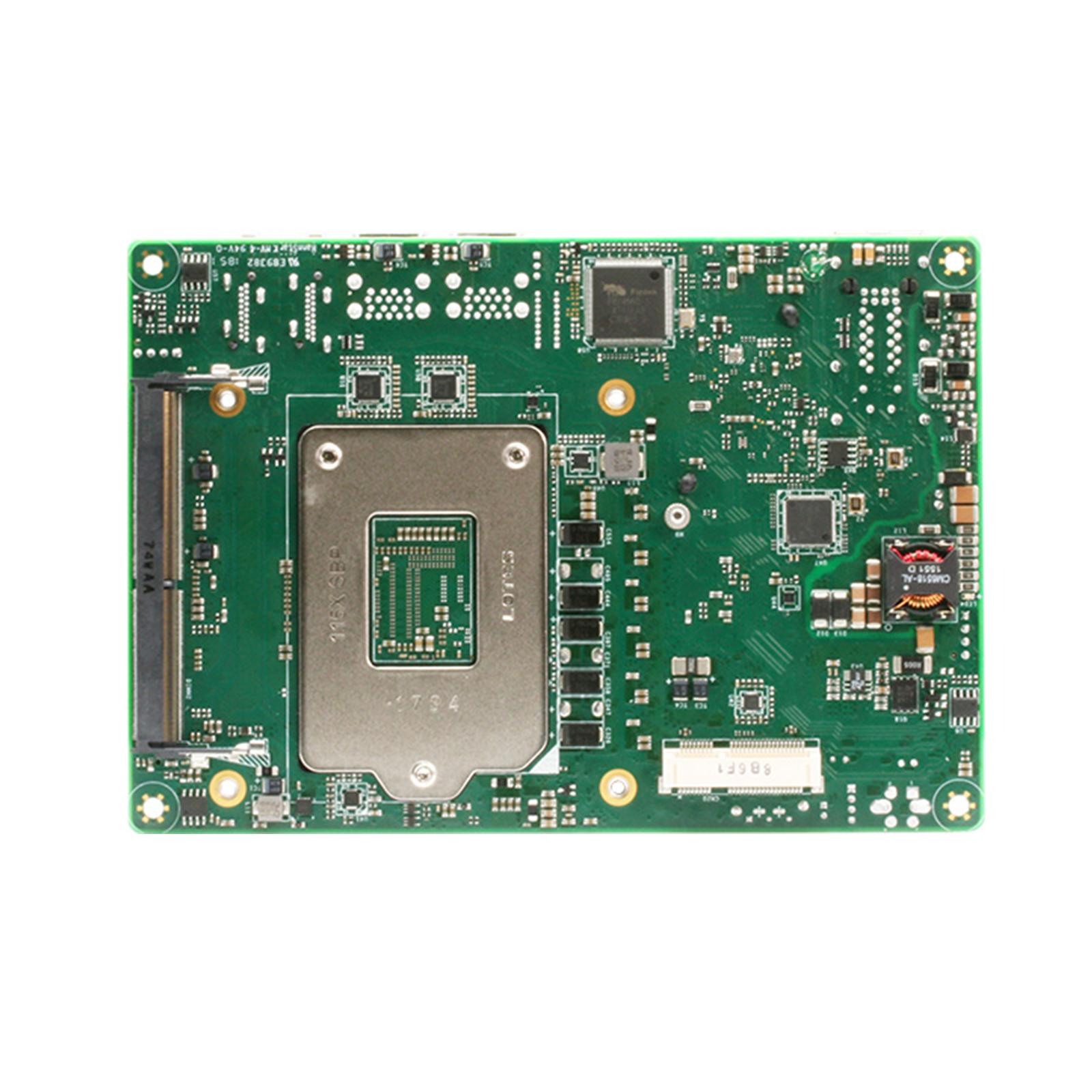

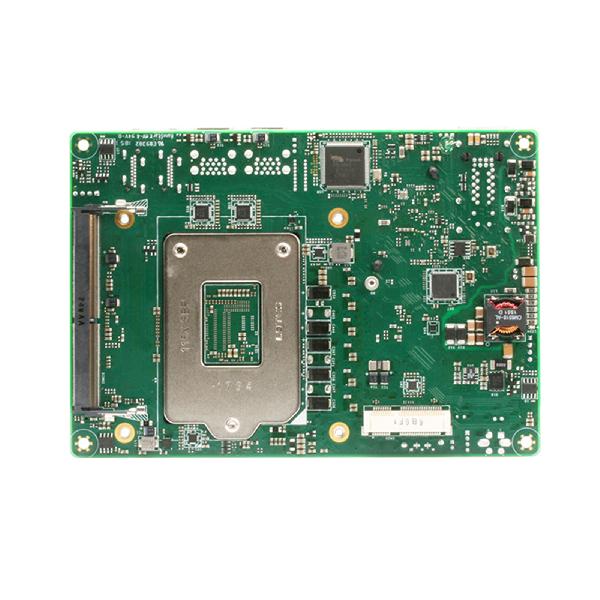

EPIC Board with 8th Generation Intel® Core™ i-S series Processor (Socket Type)
SYSTEM | |
| FORM FACTOR | 4" EPIC Board |
| CPU | 8th Generation CPU Socket Type (Support up to 65W SKU) |
| CPU FREQUENCY | 8th Generation Intel® Core i3/i5/i7/ Celeron® Up to 3.60 GHz |
| CHIPSET | H310 / Q370 (6W) |
| MEMORY TYPE | DDR4 (Non-ECC) SODIMM x 2, 2666MHz, up to 32 GB |
| MAX. MEMORY CAPACITY | — |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 12V only |
| POWER SUPPLY TYPE | AT (Default) / ATX |
| POWER CONSUMPTION (TYPICAL) | TBD |
| DIMENSION (L X W) | — |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | TBD |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | 8th Generation Intel® Core i3/i5/i7/ Celeron® |
| VIDEO OUTPUT | 1. HDMI1 x 1 2. HDMI2 x 1 |
| BACKLIGHT INVERTER SUPPLY | — |
I/O | |
| ETHERNET | Intel® GbE Ethernet I211 x 2 |
| AUDIO | — |
| USB PORT | USB 3.2 Gen 2/ USB2.0 x 4 (Rear I/O) USB 2.0 x 2 (Internal header) |
| SERIAL PORT | COM x 2 (Internal header) ,RS-232/422/485 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA / Mini-PCIe (Full size) x 1 Q370: By BIOS Change for mPCIe H310: By BOM change for mPCIe |
| EXPANSION SLOT | PCIe[x4] slot*1 (FPC Type) PCIe[x1] x 2 only for H310 PCIe[x4] x 1 for Q370 |
| PWM LCD SUPPORT | — |
| DIO | — |
| TPM | — |
| TOUCH | — |
