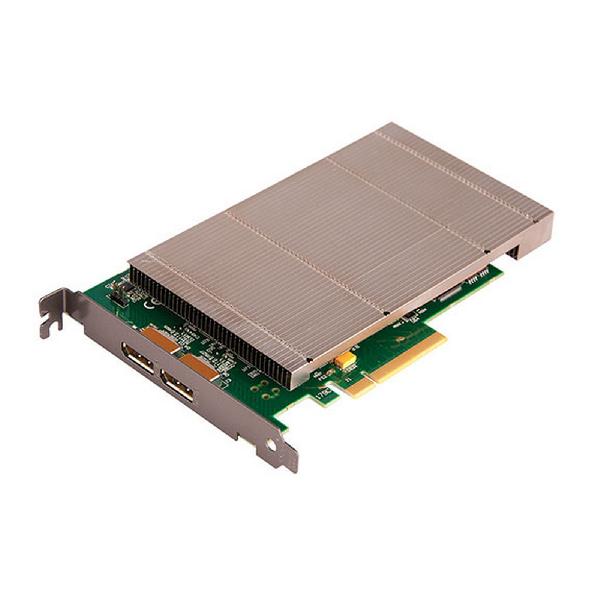

Radian Video Wall Processor Capture Card - 4K DisplayPort, 2-Channel

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

Capture HD video channels.

Product Feature

  • Wide range of input cards for any video format: Component, composite, SDI, HDMI, VGA, DP, DVI, IP (H.264).
  • Outputs include DisplayPort, DVI, and HDMI.
  • Use with Radian Video Wall Processor chassis.
  • Provides up to 4K capture resolution.
  • Simultaneously capture multiple 4K, Ultra-High Definition video feeds each at 60 Hz.
  • Single PCIe endpoint enables more cards and captures to be placed in a single system.
  • HDCP support.
  • Low latency video and audio capture minimizes the delay prior to post processing.
  • Open and independently control multiple instances of the same capture from a single input source.
Compliance
FCC
General
BoardPCIe, x 8 plug-in card 4.3” x 6.9” (11 x 17.7 cm)
Capture Frame ResolutionLocking dual-DisplayPort 1.2
Frame Buffer Memory768 MB
Input Mode DetectionDecodes Main Stream Attribute (MSA) data to determine video geometry
Operating System SupportWindows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux (not audio)
Operating Temperature32 to 96° F (0 to 35° C);
Pixel Capture FormatRGB with 18 or 24 bits per pixel
Pixel Transfer FormatRGB: 5:5 (16 bit) or 8:8:8 (24-bit); YUV: 4:2:2 (16-bit); Mono: 8-bit
Power12 V @ 1.0 A; Thermal dissipation: 12 W
Storage Temperature-4 to +158° F (-20 to +70° C)
Update ResolutionUser defined; Captured frame rate will match the source providing maximum data rate (6.4 Gbps) is not exceeded; Multi-buffered to eliminate tearing artifacts
Item Specifications
Connectors640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1080, 1920x1200, custom modes

Product Includes:

  • Radian Video Wall Processor Capture Card - 2 DisplayPort, 4K
Name Type Version Release Date
Radian Video Wall Processor User Datasheet Datasheet 27 May 2021
Radian Video Wall Processor Manual 27 May 2021
