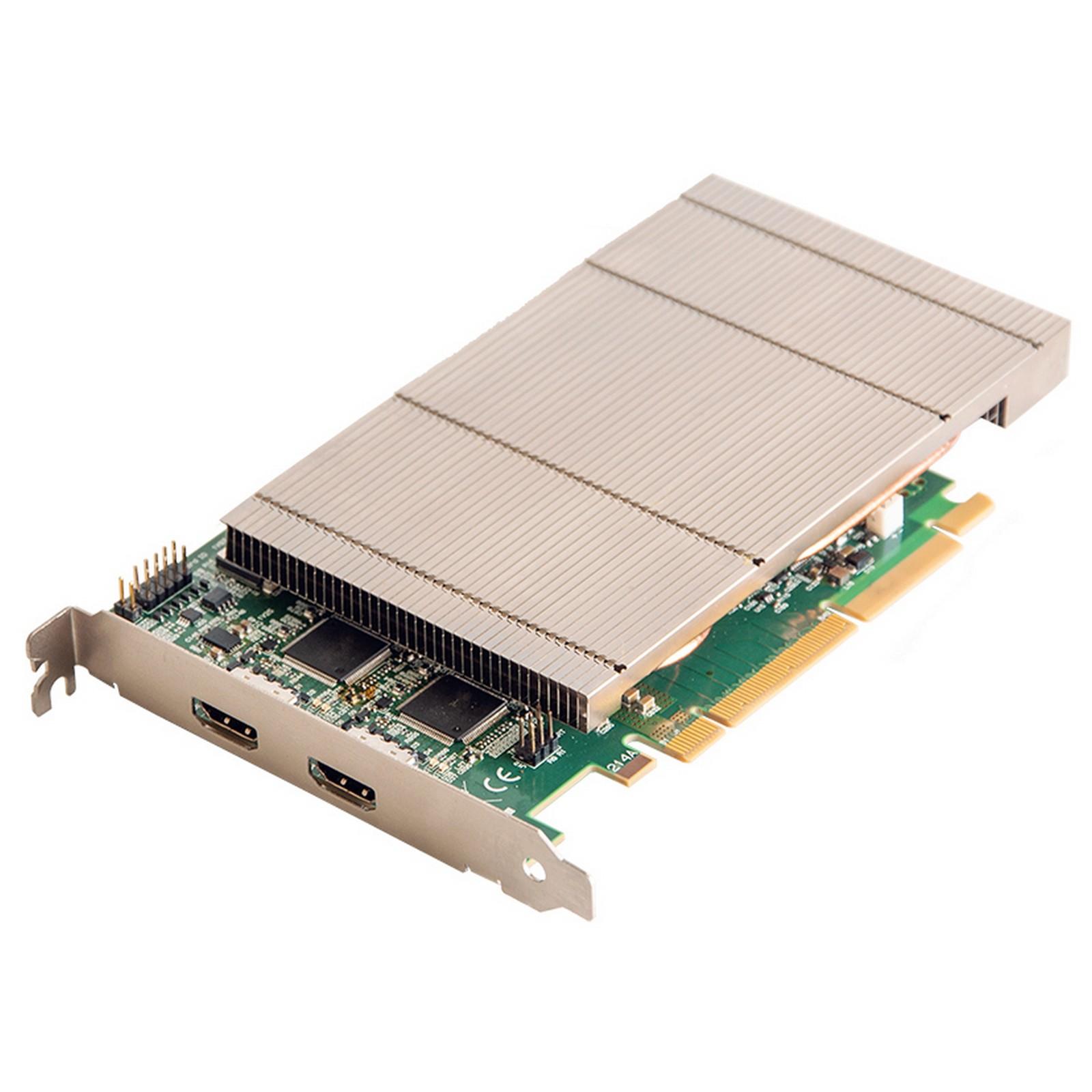

Radian Flex Video Wall Processor Capture Card - 4K 60Hz HDMI 2.0, 2-Channel

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

Capture two 4K UHD video channels simultaneously

Product Feature

  • Two independent HDMI 2.0 capture channels
  • Eight lane PCIe Generation 3 interface (6 Gbps total capture bandwidth)
  • 2-Gb Frame Buffer Memory
  • Full 10-bit processing pipeline
  • Supports up to 8K x 8K resolutions
  • Supports multiple inputs
  • Full support of the Vision Performance feature set

Capture Two HDMI 2.0 Channels at 4K 60
If you need a high-quality video capture card, look no further. This card provides two HDMI 2.0 capture channels and supports 4K 60 video, HDCP 2.2, and full 4:4:4 color sampling. It also offers unparalleled performance in frame grabber technology.

Supported by the Datapath Vision Performance Driver
The Datapath Vision Performance Driver gives the Radian Video Wall Processor Capture Card advanced functionality like Datapath LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning, automatic mode detection, frame synchronized ganging of inputs (dual 4K into 8K x 2K), and much more.

In addition, a robust hardware scaling engine with a polyphase multitap filter provides superb antialiasing performance when downscaling and smooth transitions when upscaling.

Advanced and Trusted SDK
This Radian capture card supports RGBEasy SDK for application developers, and it features a Microsoft DirectShow interface based on the AV Stream framework. You can access inputs with any DirectShow or Media Foundation applications, such as Microsoft Media Encoder, VLC, Telestream WireCast, vMix, VidBlaster, OBS Project, Adobe Flash Media Encoder, and Dataton Watchout. A Video for Linux (V4L) driver package is also available for download.

Compatible with Most Operating Systems
The Radian capture card is compatible with the following operating systems: Linux, Windows® XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8/8.1, and Windows 10.

General
Relative Humidity5 to 90% non-condensing
Video StandardHDMI 2.0, HDMI 1.4, HDMI 1.3
Color SpacesBT2020, BT709, BT601 with selectable limited and full range encoding
BoardPCIe x8 plug-in card
Frame Buffer Memory2GB
Input Mode DetectionAutomatic
Operating Temperature32 to 96° F (0 to 35° C)
Pixel Transfer FormatR RGB10 (10-bit), 8-8-8 (24/32)
5-6-5, 5-5-5, 8-bit mono
Y410 (10-bit), 4:2:2, YUY2, UYVY, YVYU
Planar Modes: NV12, YV12
PowerMax current at +3.3V - 1A
Max current at +12V - 1.6A
Max power ≈ 22W
Storage Temperature-4 to +158° F (-20 to +70° C)
Update RateCaptured frame rate will match the source providing PCIe bandwidth is not exceeded
Video Capture Rate600 MHz TMDS Clock;
Max. capture surface of 8K x 8K
Item Specifications
Connectors(2) HDMI 2.0
Dimensions4.3" H x 6.9" L (11 x 17.7 cm) (including heat sink)
Name Type Version Release Date
Radian Chassis and Modules Datasheet 01 June 2021
Radian Chassis and Modules Manual 01 June 2021
