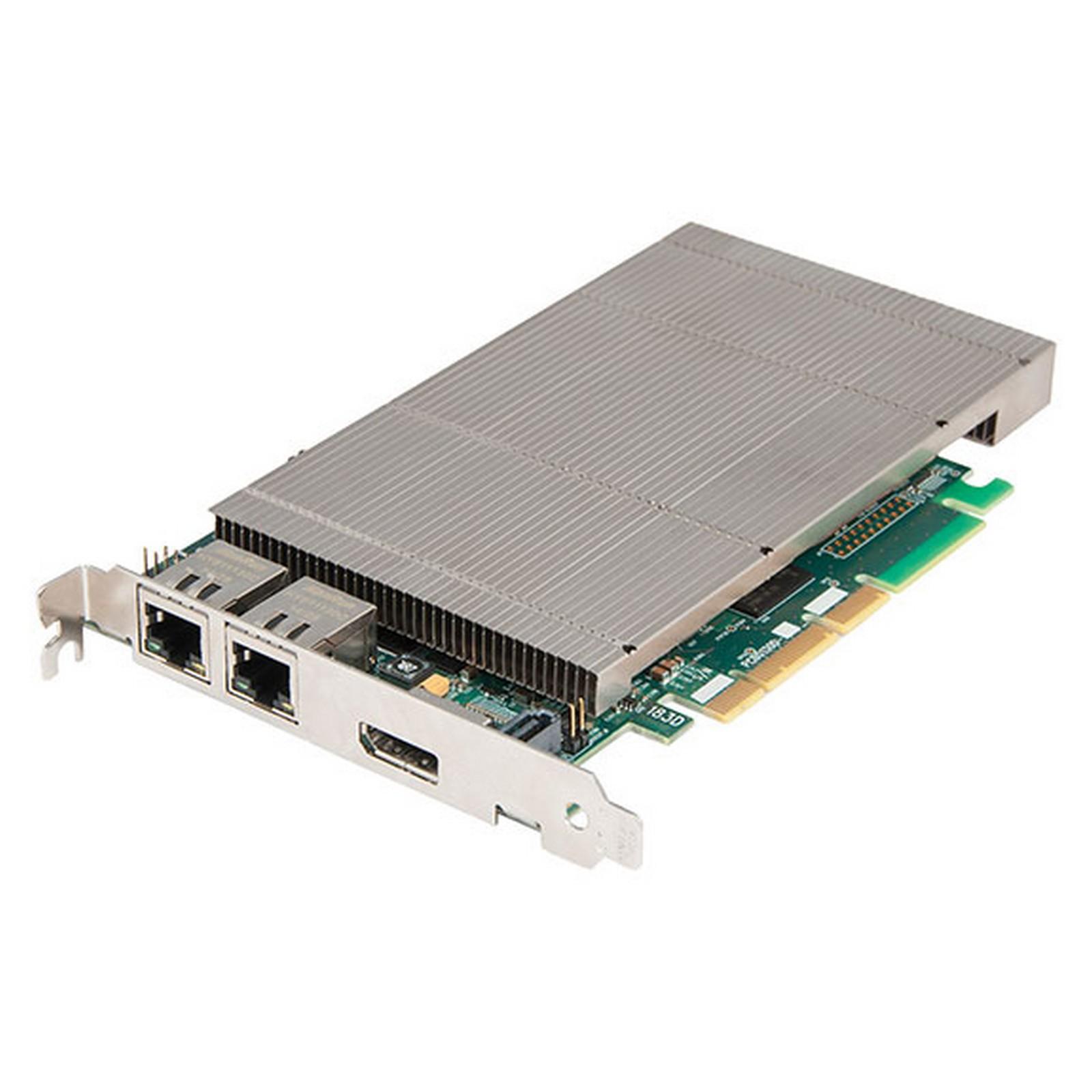

Radian Video Wall Processor Decoding Card - DisplayPort H.264

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

A scalable decoding card with advanced video compression technology.

Product Feature

  • Dedicated decoding card features an on-board SQX decoding engine.
  • Decode multiple H.264/MPEG4 streams simultaneously.
  • Features dual-RJ-45 Ethernet ports.
  • Decode streams up to three 4096x2160p at 30 fps; six 1920x1080p at 60 fps, 12 at 30 fps; 50 at 720x480 at 30 fps.
  • The maximum number of streams depends on H.264 profiles and levels of incoming media.
  • Compatible with industry standards for video compression and streaming.
  • Multiple cards can reside in a single system to provide even more decoding capabilities.
  • It can be placed in systems alongside graphics cards and video capture cards.

Receive and display video from many different sources and locations, including online sources such as CCTV networks and remote desktop applications. Combine video with local inputs as well. This dedicated processor is capable of decoding several IP streams simultaneously via on-board Ethernet ports. Fully PCIe compatible, multiple cards can be used in a single system to provide scalability.

Compliance
FCC
General
BoardPCIe x4 gen.2 plug-in card, half-length, full-height
CarouselIP Window carousel supported including the hardware based pre-buffering of IP decodes for smoother playback
Codec SupportH.264 (Mpeg4 Part 10 AVC), VC-1 (WMV), and MPEG2 PArt 2 and MJPEG
Color FormatNV12 4:2:0
Decode DensityUp to (3) 4096x2160p @ 30 fps or (6) 1920x1080p @ 60 fps/(12) @ 30 fps or (50) 720x480 @ 30 fps
De-interlacingSupported
DMA EngineDirect DMA to physical or virtual memory buffers with full scatter-gather support DMA band- width up to 1.3 Gbps
Ethernet(2) 1000BASE-T Ethernet ports, DHCP or Static IP support, IPv4 and IPv6
Frame Rate768 MB
H.264 ProfilesConstrained baseline profile (CBP), main profile (MP), high profile (HP)
H.264v LevelsLevel 3, 3.1, 4, 4.1, 5, 5.1, 5.2
Input Mode DetectionSMTPE-352 payload identifiers
Operating System SupportWindows® 7, 64-bit, Server 2012
PowerCurrrent (maximum): 3.3 V at 1.9 A; 12 V at 1.9 A; thermal dissipation: 14 W, average
Sample Formats4:4:4 (+A)
ScalingHardware downscaling prior to DMA transfer. One to one (1:1) transfer for upscale after DMA
Stream AuthenticationBasic and digest stream authentication
Streaming ProtocolsHTTP, RTSP, MPEG2-TS support, Multicast and Unicast support
Video Capture Rate4 GB
Item Specifications
Connectors(2) RJ-45, (1) DisplayPort output connector (reserved for future use)
Dimensions4.3" x 6.9" (11 x 17.7 cm)

Product Includes:

  • Decoding Card

NOTE(s):

Product works with:

  • Radian Video Wall Processors (VWP-2090, VWP-2110, VWP-2040)
Name Type Version Release Date
Radian Chassis and Modules Datasheet 01 June 2021
Radian Chassis and Modules Manual 01 June 2021
