Radian Video Wall Processor Chassis

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

A modular solution for video walls with up to 20 screens.

Product Feature

  • Freely position any source anywhere on the video wall.
  • Drag, drop, resize, and scale windows.
  • Affordable yet impressive data visualization solution for non-critical applications.
  • Can be installed outside of a server room.
  • Use with a wide range of input cards including DisplayPort, DVI, HDMI, IP, SDI, VGA, H.264 and more.
  • Supports true 4K at 60 Hz input and is compatible with ultra high-definition displays.
  • Decodes and displays standard-based IP video streams (H.264, VC-1, MPEG2, and MJPEG).

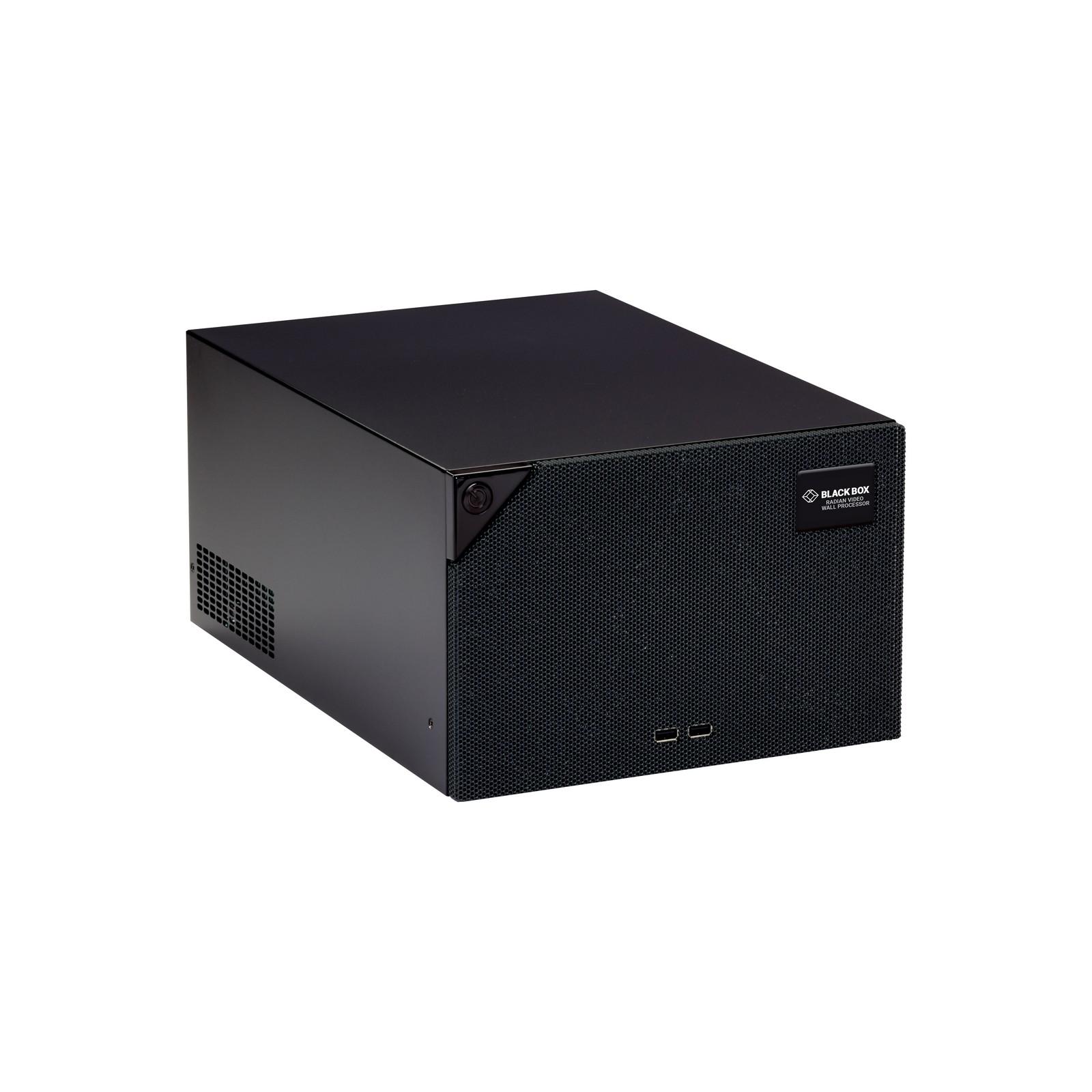

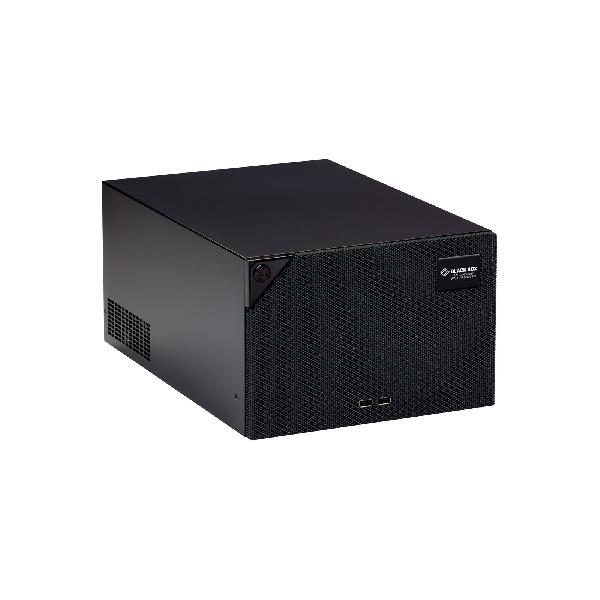

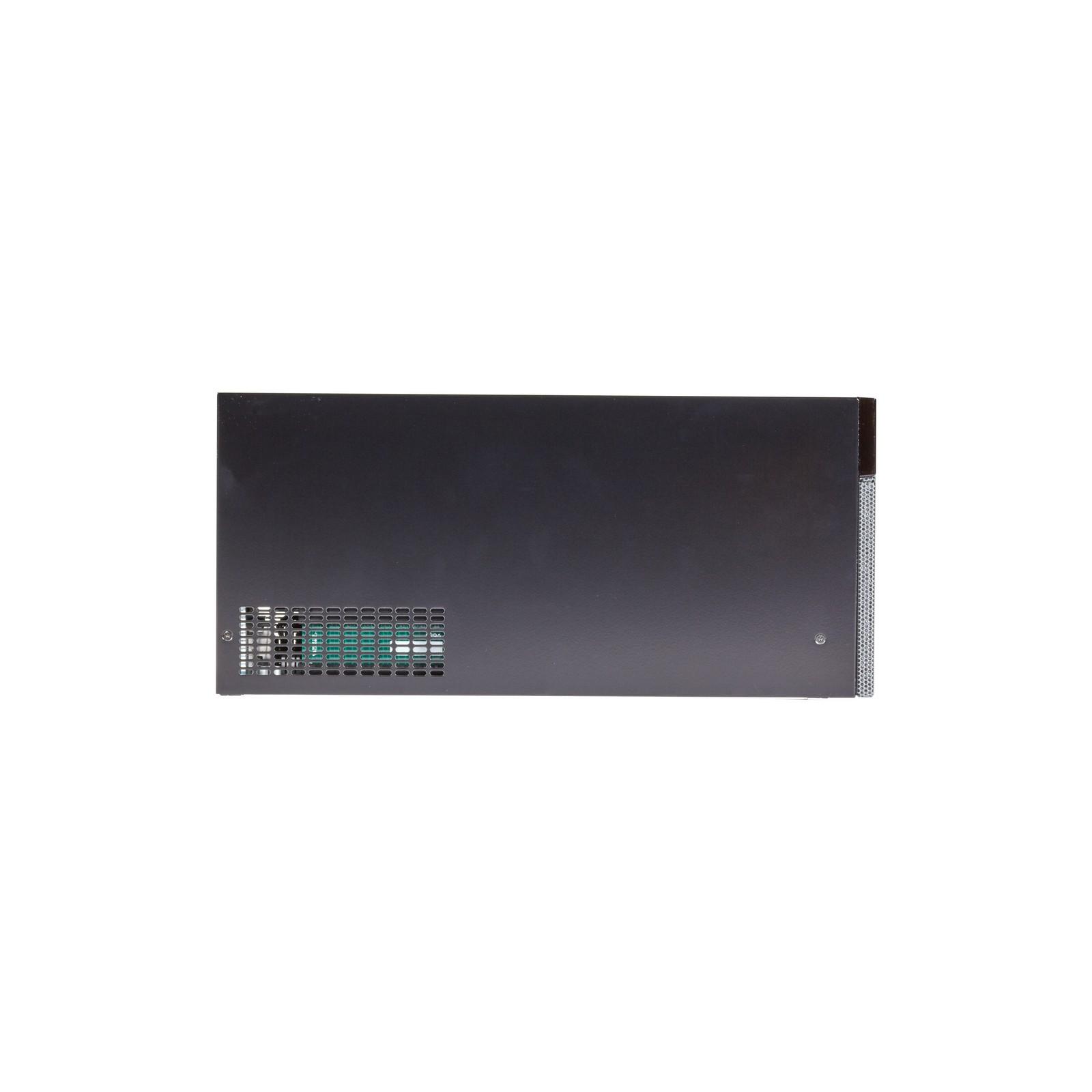

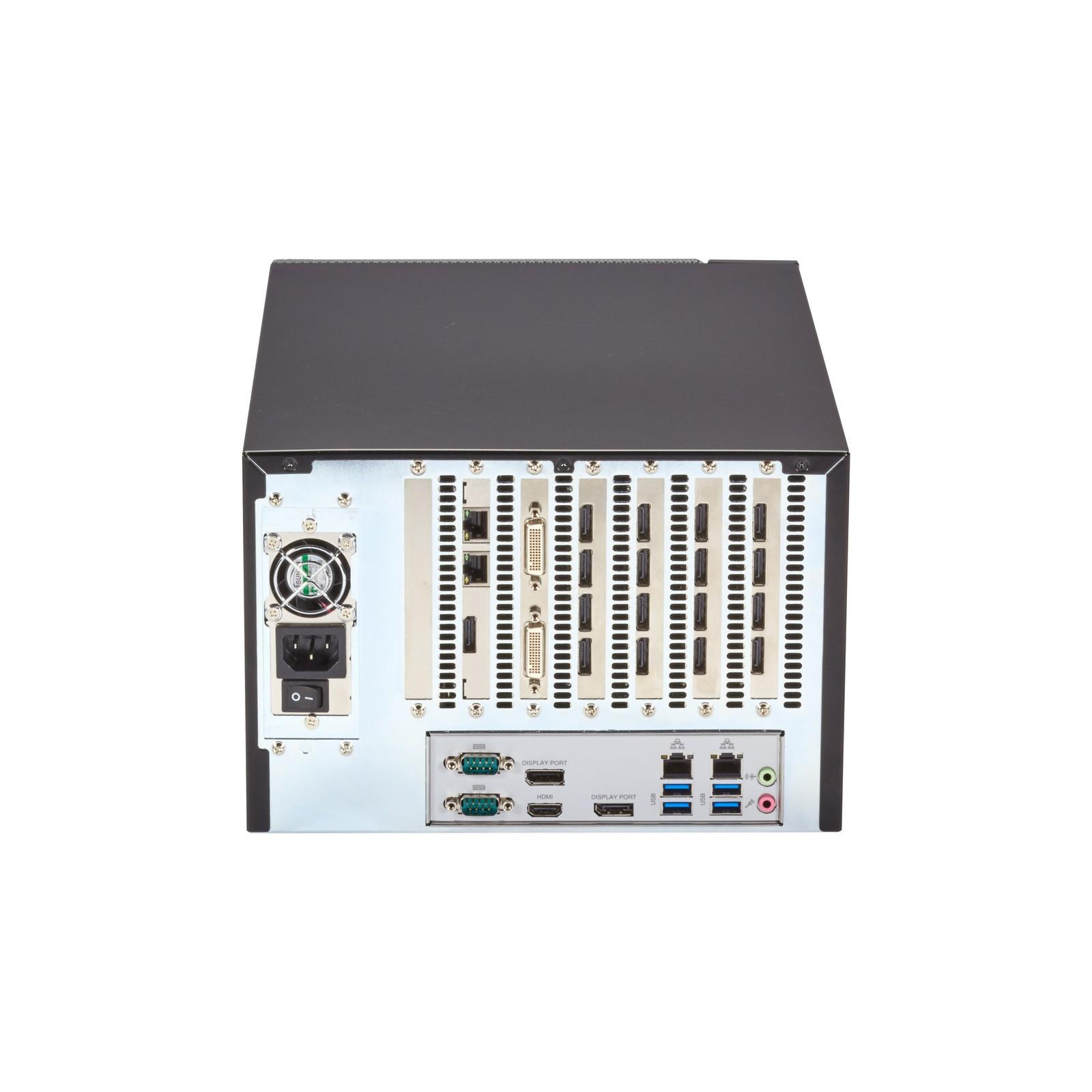

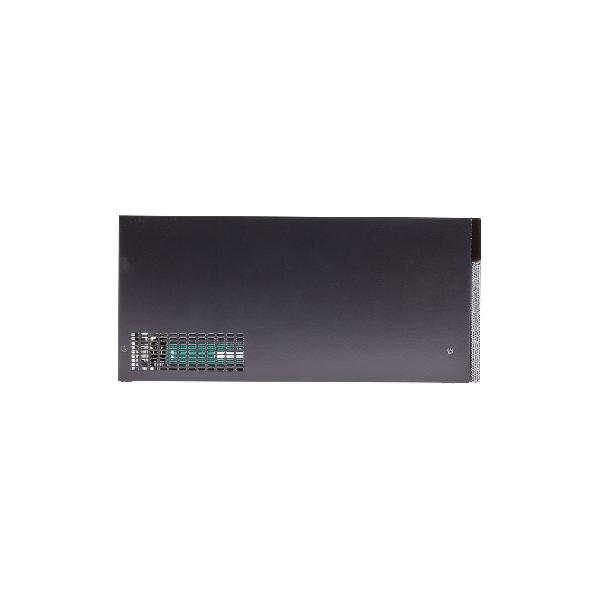

The chassis
The heart of the system is the six-slot controller chassis. It uses a high-performance enterprise-grade motherboard that connects to a Radian PCIe backplane. The backplane contains six half-length PCIe slots for use with compatible Radian cards, including video capture, graphics and IP decoding cards.
An integrated solution—ships fully assembled
Radian is a hybrid hardware and software solution. It’s part of a complete solution that includes the chassis, graphics cards, video capture cards, expansion cards, and software. To help you get the right combination of chassis and cards for your specific application, Black Box offers free application engineering and 24/7 free tech support. Talk to one of our technical experts and we’ll design a solution for you. And, we’ll ship the chassis fully loaded with cards and software.

Compliance
FCC
General
Memory8 GB DDR4
Operating System SupportWindows 7 Ultimate
Power110 to 240 V, 500 Watts
ProcessorIntel i5
Item Specifications
Dimensions6.9"H x 9.8"W x 12.5"D (17.5 x 25 x 32 cm)
Weight22 to 33 lb. (10 to 15 kg)

Product Includes:

  • Radian chassis, 6-slot
  • (2) Power cables
Name Type Version Release Date
Radian Video Wall Processor Chassis Manual 01 June 2021
