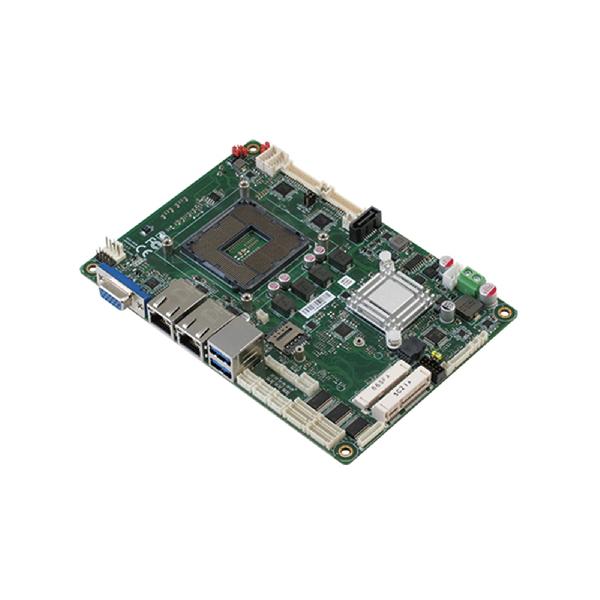

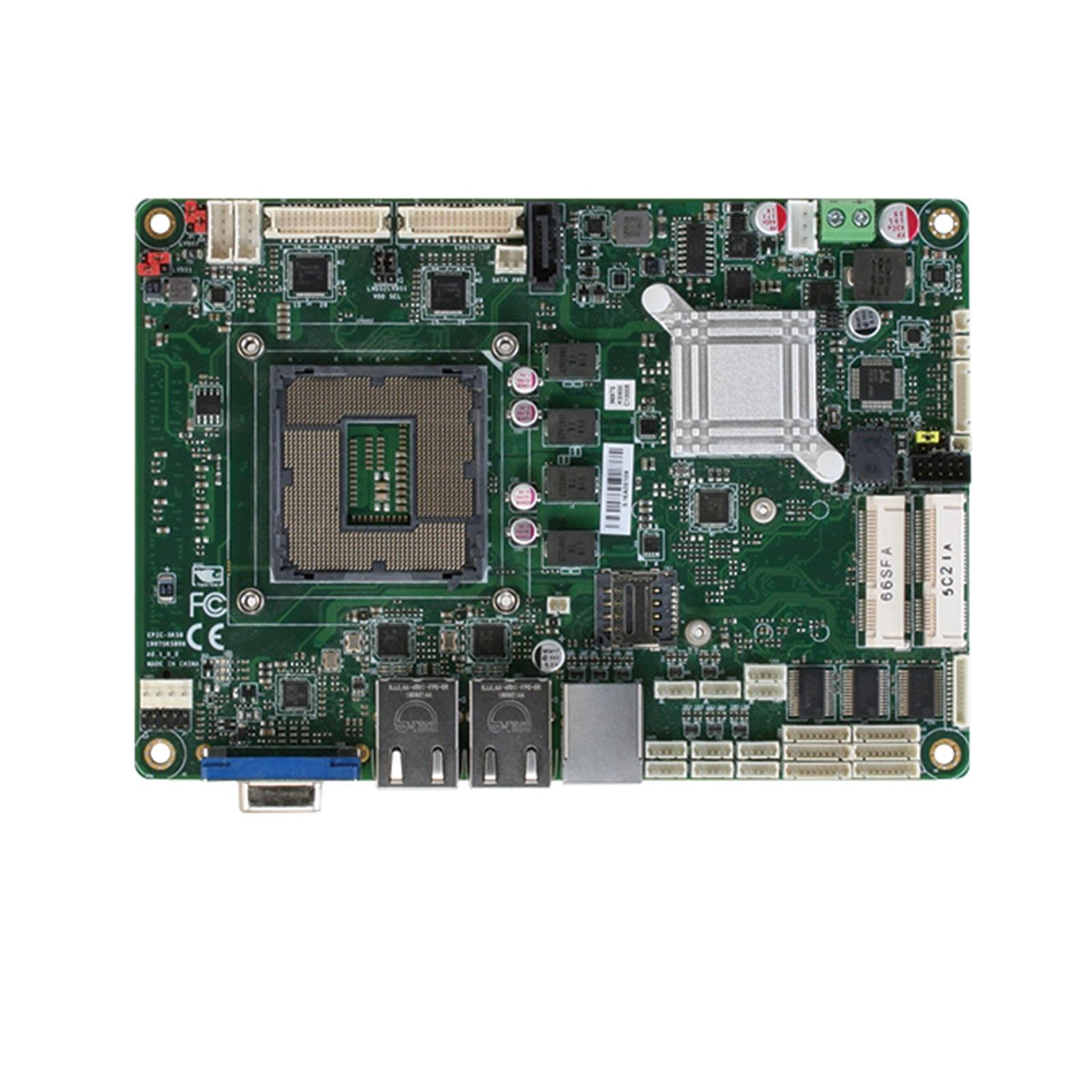

The EPIC-KBS8 features a 6th/7th Generation Intel® Core™ i socket-type processor and up to 16GB DDR4 SODIMM memory. With other manufacturers only offering this level of computing power on larger, Mini-ITX boards, the EPIC-KBS8 represents a clear upgrade on competing products.
Modern retail solutions might include a camera, barcode scanner, cash register, scale, and even a fingerprint detector. To accommodate all these peripherals – and possible future technologies – the EPIC-KBS8 has two USB3.0 ports, up to ten internal USB2.0 connectors, and six COM connectors. The board also features possible dual LVDS support and the option of an eDP connection.
With its pair of LAN ports, the EPIC-KBS8 is also already being used as a powerful wireless Internet station, and its 0°C~60°C operating temperature range means it can be reliably used in the field. SATA, mSATA, and MiniCard slots provide multiple expansion slots, and the board’s CPU socket enables users to quickly and easily upgrade their processor whenever they want.
SYSTEM | |
| FORM FACTOR | 4" EPIC Board |
| CPU | CPU Socket Type |
| CPU FREQUENCY | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® (Support up to 54W SKU) |
| CHIPSET | H110/Q170 (6W) |
| MEMORY TYPE | DDR4 (Non-ECC) SODIMM x 1, 2133MHz |
| MAX. MEMORY CAPACITY | Up to 16GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 9-24V (Optional: 12V) |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | — |
| DIMENSION (L X W) | 4.53" x 6.50" (115mm x 165mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | — |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® |
| VIDEO OUTPUT | VGA/LVDS1 (Optional: LVDS2/eDP) |
| BACKLIGHT INVERTER SUPPLY | Max.12V, 2A |
I/O | |
| ETHERNET | LAN x 2 (Rear IO) |
| AUDIO | REALTEK ALC892 (Optional: 2W Amp, I2S) |
| USB PORT | Rear I/O: USB 3.2 Gen 1 x 2 Internal: USB 2.0 x 10 (for Q170 SKU) |
| SERIAL PORT | — |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Half size, optional for Mini-card) |
| EXPANSION SLOT | Mini-card x 1 (Full size) |
| PWM LCD SUPPORT | — |
| DIO | 8-bit |
| TPM | — |
| TOUCH | — |
