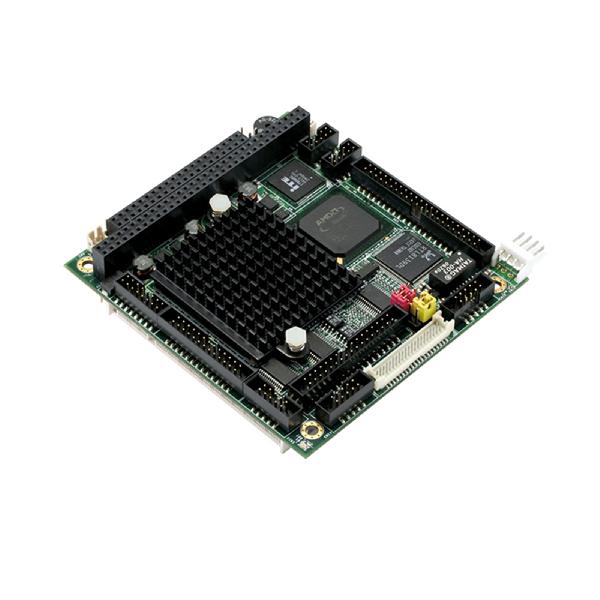

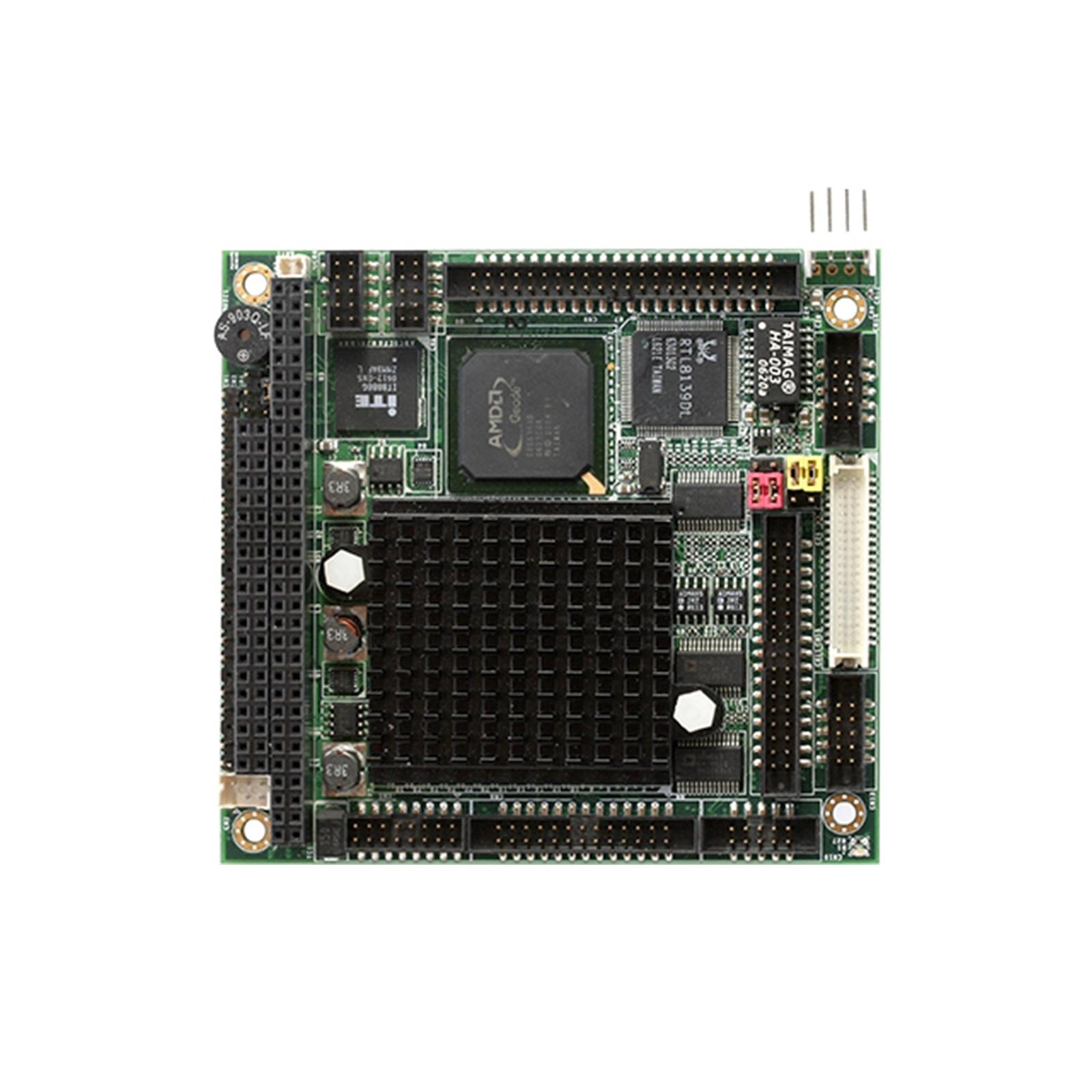

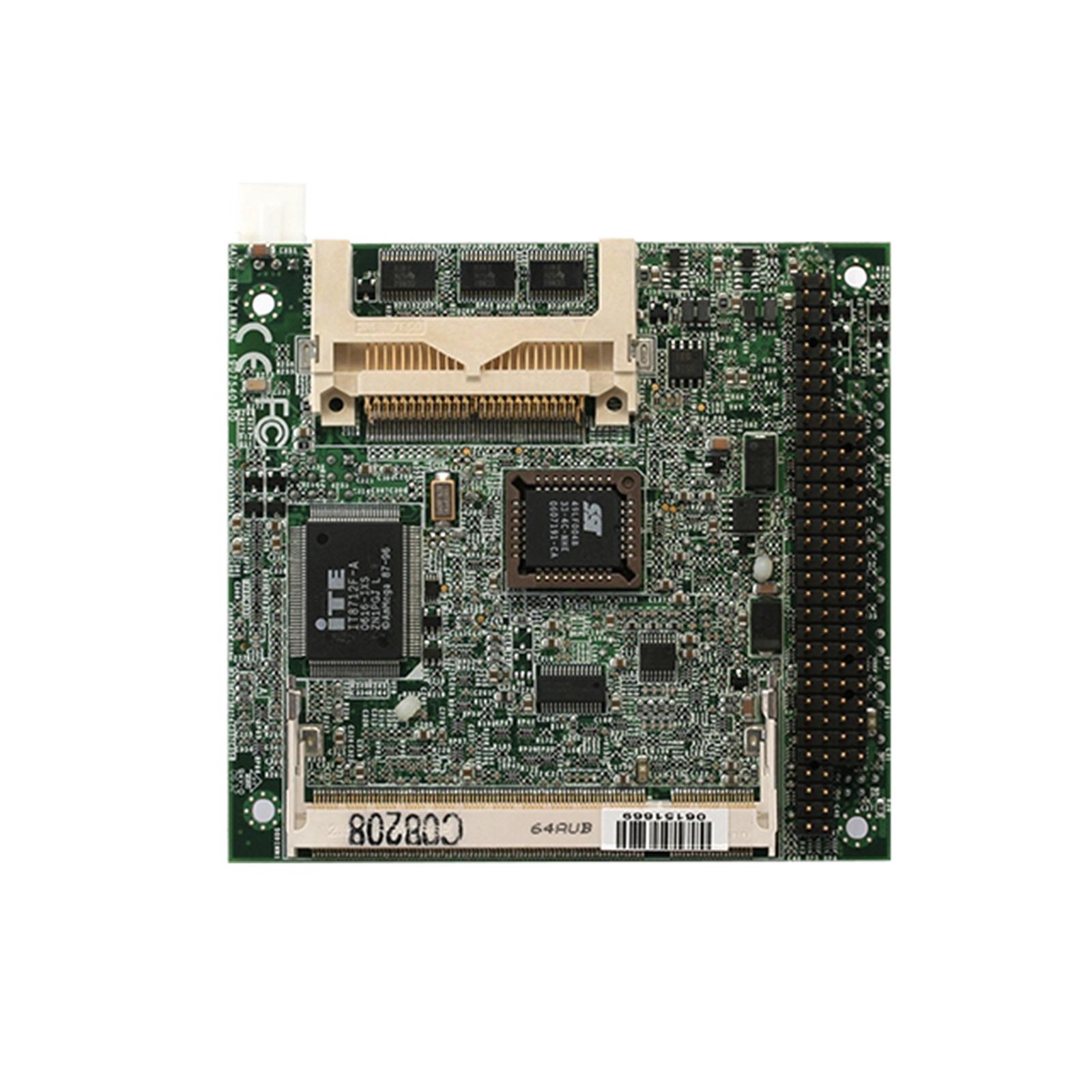

PFM-540I Rev.A adopts an AMD Geode™ LX800 processor that is more cost effective compared to other PC/104 CPU modules on the market. This model supports DDR333 SODIMM Memory max. 1GB for DDR333 and 512MB for DDR400. Although PFM-540I Rev.A is a small board, it offers the full functions customers demand. The chipset of PFM-540I Rev.A deploys AMD LX800 and CS5536 that makes this board achieve high performance. It features one 10/100Base-TX Ethernet port, four USB 2.0 ports, two serial ports, one parallel port, IR interface, watchdog timer and includes PC/104 expansion.
SYSTEM | |
| FORM FACTOR | PC/104 |
| CPU | Onboard AMD Geode™ LX 800 |
| CPU FREQUENCY | 500 MHz |
| CHIPSET | AMD Geode™ LX 800 + CS5536 |
| MEMORY TYPE | DDR333/400, SODIMM x 1, (512 MB for DDR400) |
| MAX. MEMORY CAPACITY | 1 GB |
| BIOS | Award 512 KB |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +5V |
| POWER SUPPLY TYPE | AT |
| POWER CONSUMPTION (TYPICAL) | AMD Geode™ LX 800 500 MHz, DDR400 512 MB, 1.53A@+5V |
| DIMENSION (L X W) | 3.55" x 3.77" (90mm x 96mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 100,000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ LX 800 |
| VIDEO OUTPUT | CRT, TTL LCD |
| BACKLIGHT INVERTER SUPPLY | — |
I/O | |
| ETHERNET | 10/100Base-TX x 1, Realtek RTL 8139DL |
| AUDIO | — |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | UDMA33 x 1 |
| FDD INTERFACE | FDD x 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | PC/104 |
| PWM LCD SUPPORT | — |
| DIO | — |
| TPM | — |
| TOUCH | — |
