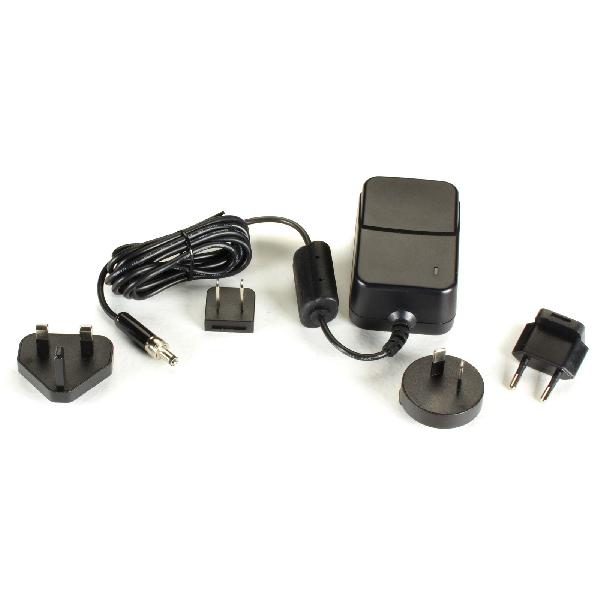

Locking barrel plug for secure connection to the unit. 100 - 240-VAC, 47 - 63-Hz input. 12-VDC output. 4-kV isolation protects sensitive equipment from surges.
| General | |
| Application | Medical, industrial |
| CE Approval | No |
| Classification | Class II |
| Dielectric Withstand Voltage | Line Surge EN 61000-4.5 Level 4 |
| EMI | Complies with EN55011 Class B and FCC part 15 Class B when tested with resistive load, both conductive and radiated |
| Input Configuration | Wall plug |
| Isolation | 4 Kv |
| MTBF | 200,000 hour |
| Other Protection | Input fusing |
| Output Regulation (Line/Load) | +5% |
| Overcurrent/Short Circuit | HICCUP With autorecovery to 1.1- 1.3 IO |
| Overvoltage Protection | Voltage limited less than 130% of nominal voltage for main output |
| Power | Input: Current (RMS), maximum: <0.6 amps; Frequency 47 to 63 Hz; Voltage: 100 to 240 VAC; Output: Current: 0 to 2.08 amps; Voltage: 12 VDC; Power range: 0 to 25 watts |
| RoHS | Yes |
| Temperature | Operating: 32 to 104° F (0 to 40° C); Storage: -40 to +176° F (-40 to +80° C) |
| Typical Output Ripple | <1% |
| Typical Switching Frequency | 66.5 KHz |
| Item Specifications | |
| Connectors | Input: AC adapter connectors: US, EU, UK, CN; Output: Female locking barrel 5.5-mm OD, 2.5-mm center conductor, 9-mm long, center positive |
| Dimensions | 3.3"H x 2.2"W x 1.5"D (8.4 x 5.6 x 3.8 cm) |
