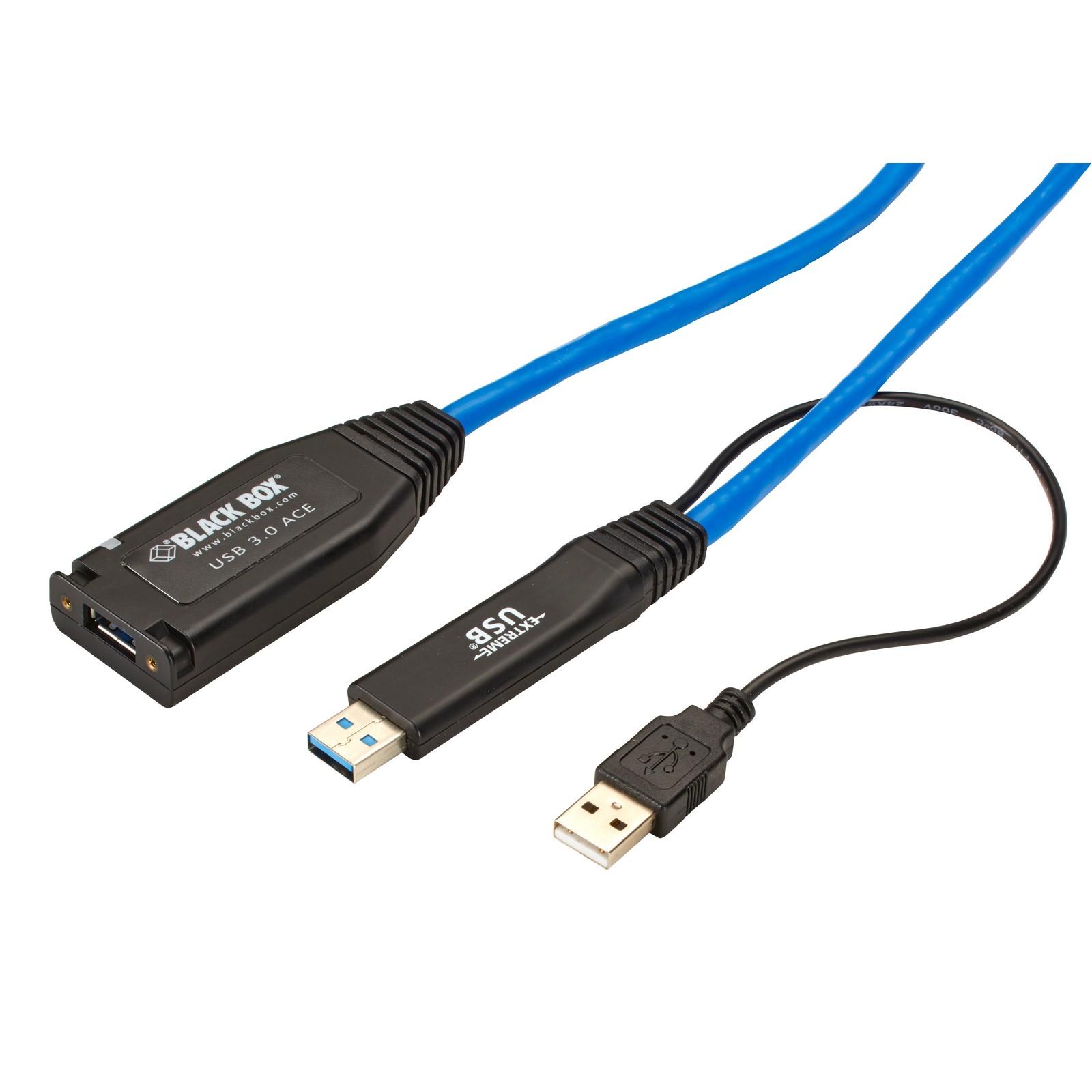

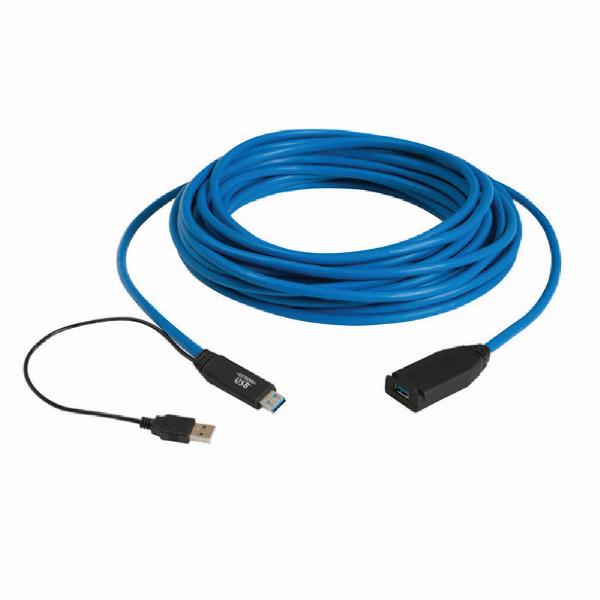

USB 3.0 Active Cable Extender

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend a USB 3.0 connection beyond the 16 ft (5 m) limitation up to 15 meters using this active USB 3.0 cable.

Product Feature

  • Extends a USB 3.0 connection up to 15 meters (49.21 feet)
  • Supports USB 3.0 throughputs up to 5 Gbps.
  • Bus-powered from host computer—no external power supply needed
  • USB 3.0 device port provides 5-V, 900-mA power
  • Use the cable’s second USB power connector if your device needs additional power
  • Works with AIA USB3 Vision™ compliant devices
  • Works with Windows®, Mac®OS, and Linux® operating systems
  • Simply Plug and play wihtout drivers to load on a host computer

The Black Box USB3ACE-15M provides USB 3.0 5-Gbps speeds extended 15 meters (nearly 50 feet!) over active copper cabling. The USB 3.0 Active Extension Cable stretches the reach of USB 3.0 devices such as machine vision cameras, security cameras, and storage drives in commercial and industrial locations.


General
ApprovalsFCC, RoHS2
Distance15 m (49 feet) over active copper cable
SpeedUSB 3.0 up to 5 Gbps
Item Specifications
ConnectorsDevice side: (1) USB 3.0 Type A locking receptacle; Host side: (1) USB 3.0 Type A host connector; (1) USB 3.0 Type A power connector

NOTE(s):

This extension cable is not backward compatible with USB 2.0 or USB 1.1.

Name Type Version Release Date
USB 3.0 Active Extension Cable Datasheet 10 August 2021
USB 3.0 Active Extension Cable (15m)` Manual 10 August 2021
