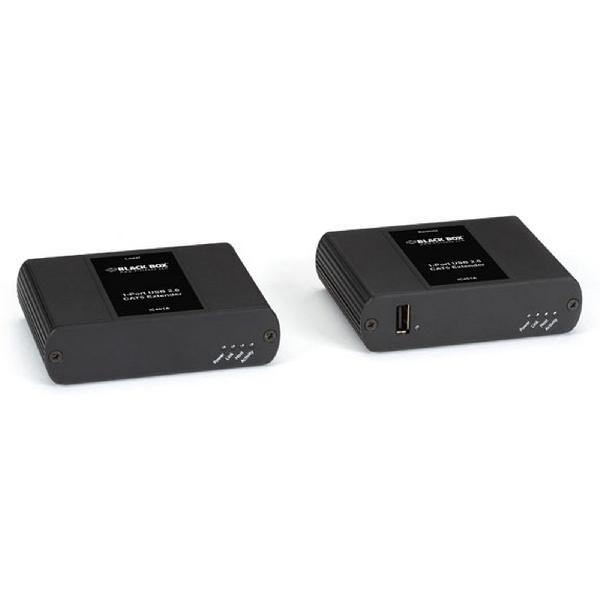

USB 2.0 Extender - CATx, FCC Class B, 1-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend USB 2.0 peripherals beyond the 16 ft (5 m) limitation reaching distances of up to 328 ft (100 m) using CATx cables.

Product Feature

  • Reliably extend USB 1.0 or 2.0 signaling over CATx cable to remote a USB device.
  • Works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps.
  • It is ideal for a wide variety of USB devices, from printers, scanners, and hard drives to audio devices, touch screens, Web cams, and more!
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac®OS, and Linux® operating systems. No new driver installation is required.

Extend a USB 2.0 peripheral beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx. Extend a USB connection beyond the desktop to a peripheral for applications such as indistrial control, KVM extension, Digital Sinage, Remote Desktop USB connections, Security web cameras and access control, Medical device connectivity, USB Web device sharing: printing scanning , storage. The extender can be used in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

General
Connectivity30 USB devices
Operating Humidity20 to 80%, noncondensing
Operating Temperature32 to 122° F (0 to 50° C)
PowerLocal unit: not required for normal operation
Remote unit: External power adapter, 100-240 VAC input, 5VDC 1A output
Range330 feet (100 meters) over CAT5e (or better) cable
RoHSYes
StandardsFCC (Class B), IC (Class B), CE (Class B);
ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
Storage Humidity10 to 90%, noncondensing
Item Specifications
ConnectorsLocal Extender Unit: (1) USB Type B, (1) RJ-45;
Remote Extender Unit: (1) USB Type A, (1) RJ-45
Dimensions (Per Unit)3.4"H x 3"W x 1"D (8.6 x 7.6 x 2.6 cm)
Weight (Each Unit)1 lb. (0.8 kg)

Product Includes:

  • Local unit
  • Remote unit
  • USB cable (2-meter)
  • Power adapter
  • US Power cord
