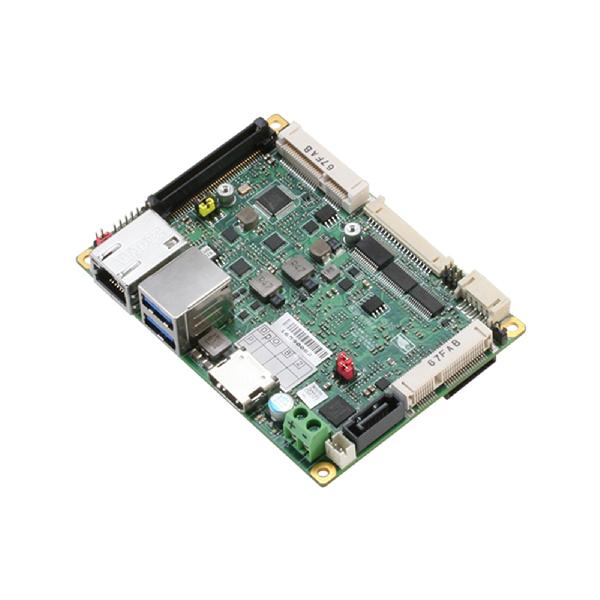

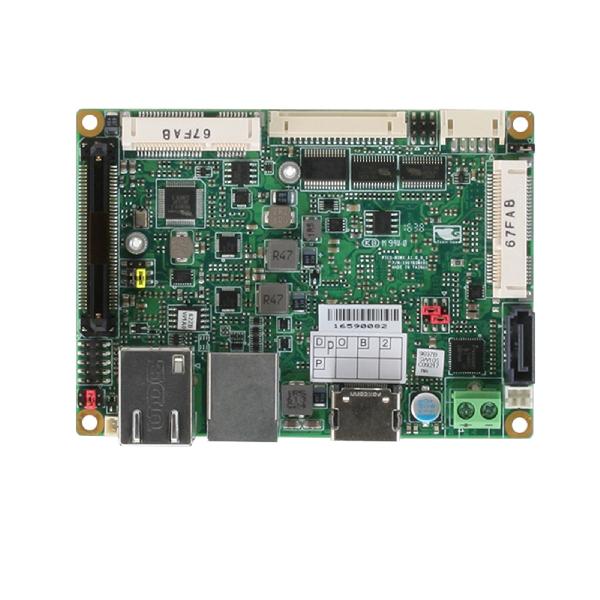

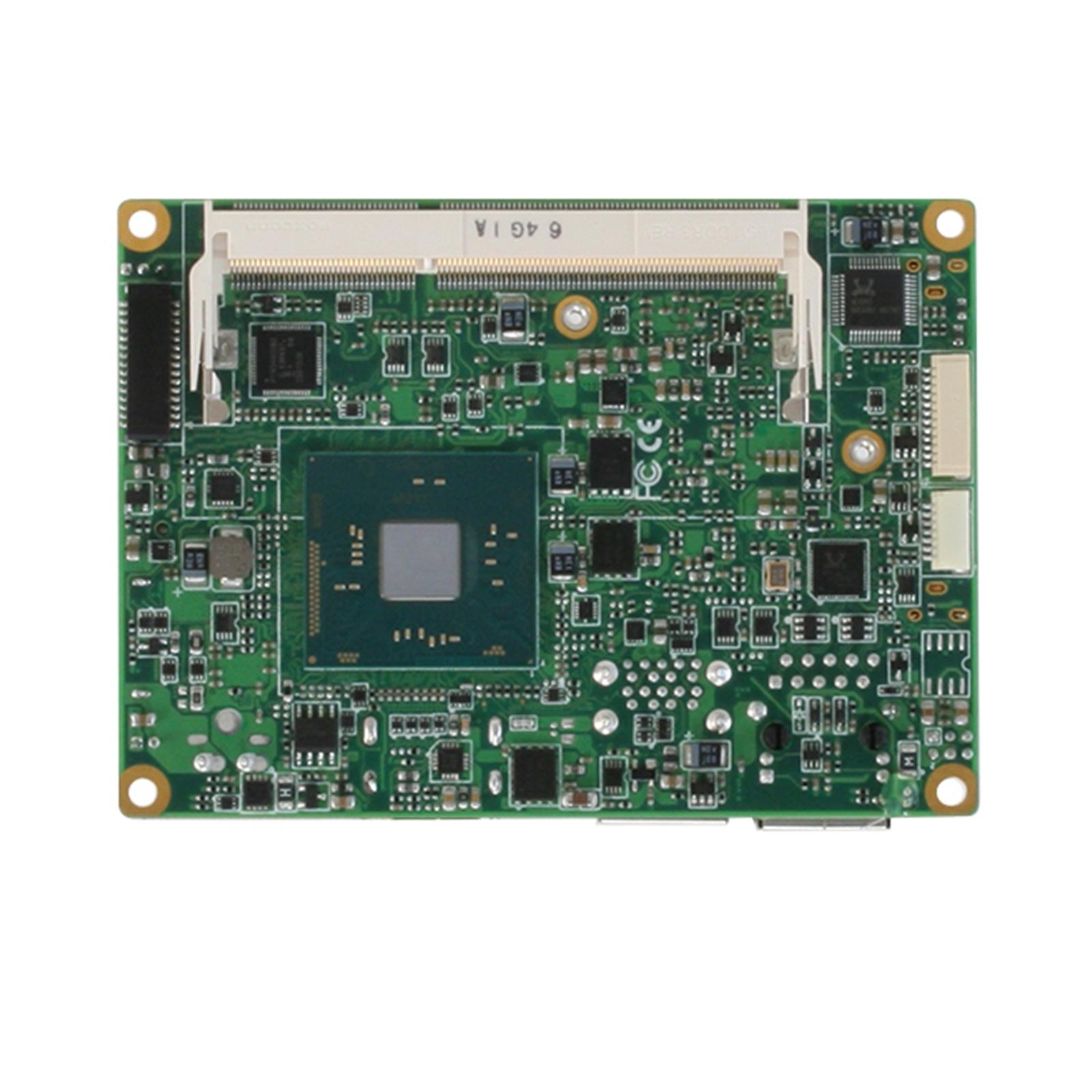

PICO-BSW1 is small yet technically highly advanced in visual display capabilities. 4K standard is supported through HDMI, and with BIO Board, Independent Triple Display is also supported. Even Dual Channel LVDS is supported to feature high performance data transfer applications. Special IOT support is featured as part of this board's design. You can choose to pair it with Intel X5-E800 CPU. With this board, you can experience the hottest IOT or robotics applications today.
The PICO-BSW1 offers a unique BIO (board-to-board I/O) to connect a Daughter Board for additional I/O port expansion, allowing users to implement their desired features without investing heavily in R&D.
SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Intel® N3160 Quad Core 1.6GHz (6W), Intel® N3060 Dual Core 1.6GHz (6W), Intel® X5-E8000 Quad Core 1.04GHz (5W) |
| CPU FREQUENCY | Up to 2.24 GHz |
| CHIPSET | Intel® N3160 Quad Core 1.6GHz (6W), Intel® N3060 Dual Core 1.6GHz (6W), Intel® X5-E8000 Quad Core 1.04GHz (5W) |
| MEMORY TYPE | 204-pin DDR3L SODIMM x 1, DDR3L 1600, Max. 8GB |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V DC |
| POWER SUPPLY TYPE | AT/ATX (default) optional lockable connector |
| POWER CONSUMPTION (TYPICAL) | Intel® Pentium® N3160@ DDR3L-1600MHz 8GB, 0.91A@+12V |
| SYSTEM COOLING | Heat-spreader; Heat-sink & cooler (optional) |
| DIMENSION | 3.94" x 2.84" (100mm x 72mm) |
| GROSS WEIGHT | 0.44 lb (0.2 kg) |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 100000 |
| CERTIFICATION | CE,FCC |
DISPLAY | |
| CHIPSET | Intel® N3160 Quad Core 1.6GHz (6W), Intel® N3060 Dual Core 1.6GHz (6W), Intel® X5-E8000 Quad Core 1.04GHz (5W) |
| RESOLUTION | LVDS (18/24bit 2CH) 1920 x 1200 HDMI up to 3840 x 2160 (4K) DDI (optional by BIO board) |
| LCD INTERFACE | 18/24-bit 2CH LVDS |

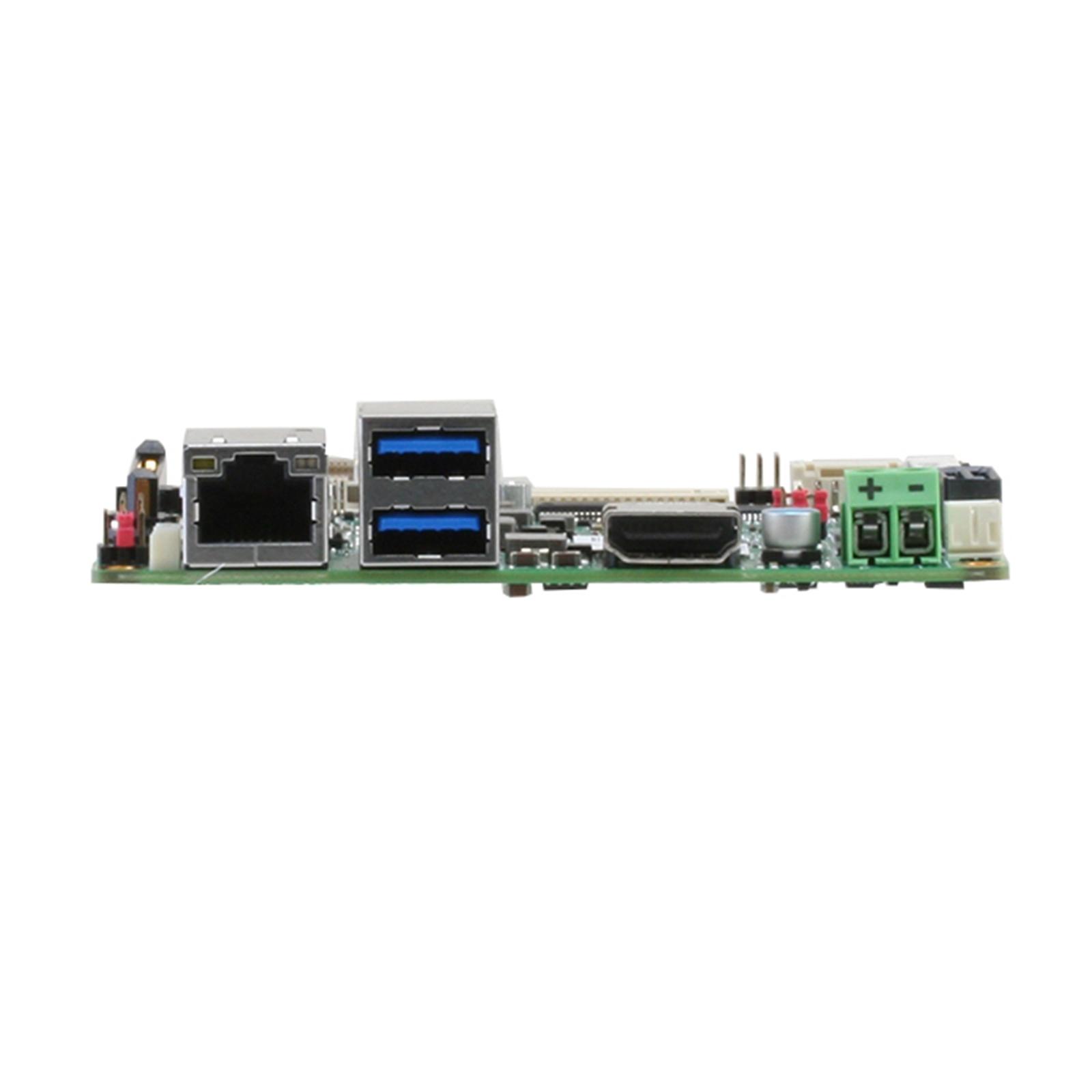

I/O | |
| STORAGE/SSD | SATA 6.0Gb/s x 1, mSATA/MiniCard (Full size) x 1 |
| ETHERNET | Realtek RTL 8111E, 10/100/1000Base-TX, RJ-45 x 1 |
| USB PORT | USB 3.2 Gen 1 x 2 Rear I/O |
| SERIAL PORT | COM1: RS-232 x 1, COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V) |
| AUDIO | Line-out x 1 |
| DIO | 4-bit (2-in, 2-out) |
| EXPANSION SLOT | Mini Card(Half-size) x 1, BIO x 1, I2C x 1 or Smbus x 1, LPC |
| SIM | — |
