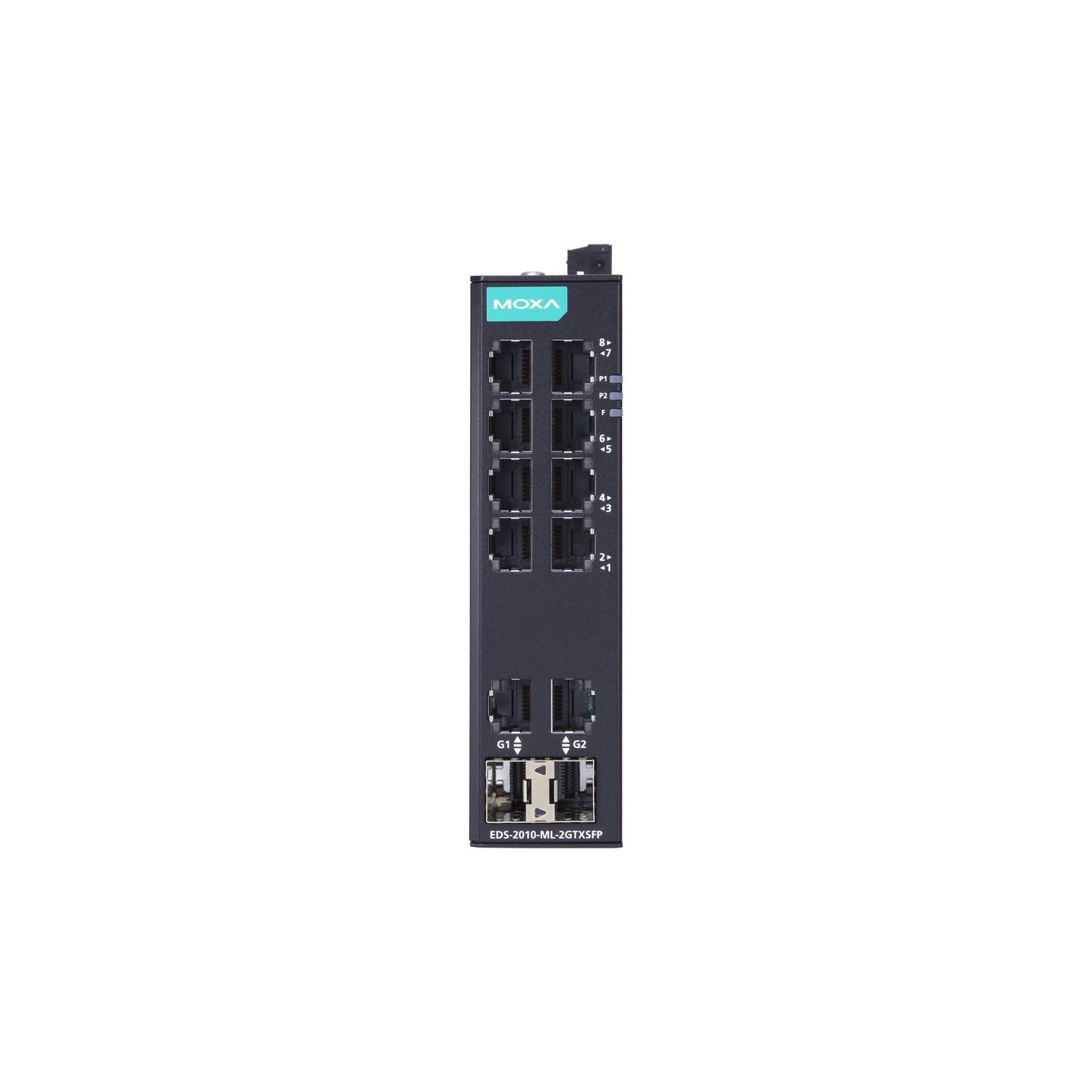

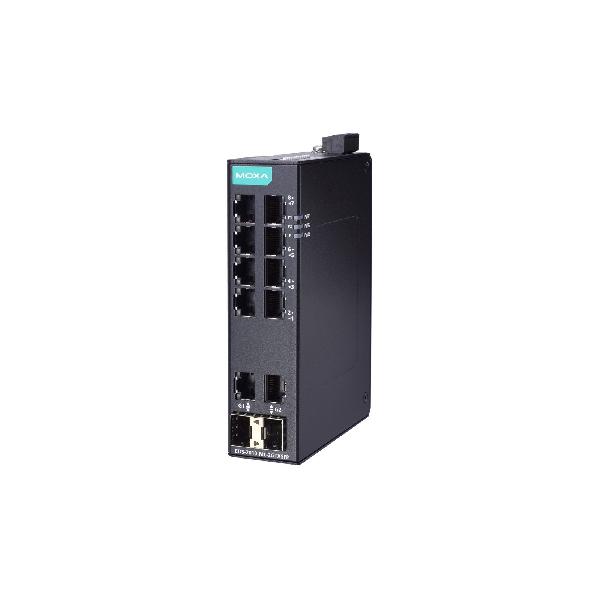

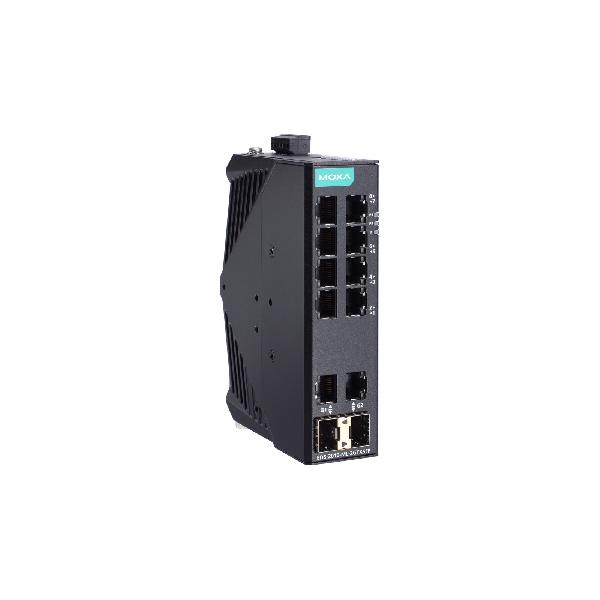

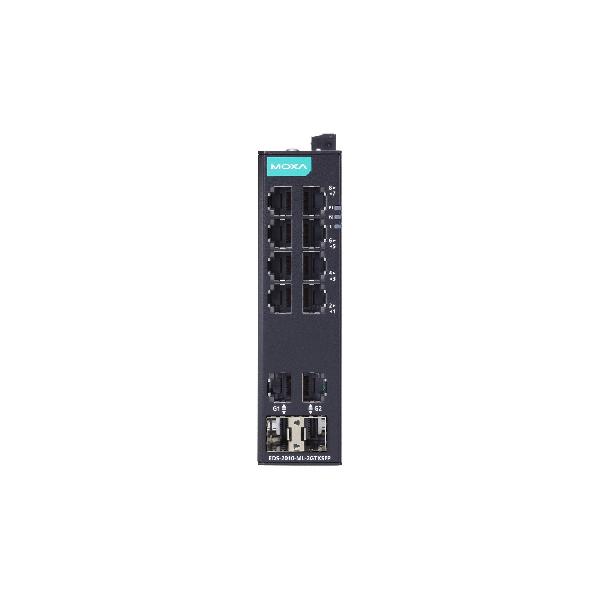

EDS-2010-ML Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Unmanaged Switches

8+2G-port Gigabit unmanaged Ethernet switches

Product Feature

  • 2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
  • QoS supported to process critical data in heavy traffic
  • Relay output warning for power failure and port break alarm
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -40 to 75°C operating temperature range (-T models)

Introduction

The EDS-2010-ML series of industrial Ethernet switches have eight 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2010-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.

The EDS-2010-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2010-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2010-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)2
Auto negotiation speed
Auto MDI/MDI-X connection
Full/Half duplex mode
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

DIP Switch Configuration

Ethernet InterfaceQuality of Service (QoS), Broadcast storm protection, Port break alarm

Input/Output Interface

Alarm Contact ChannelsRelay output with current carrying capacity of 1 A @ 24 VDC

Switch Properties

MAC Table Size8 K
Packet Buffer Size 4 Mbits
Processing TypeStore and Forward

Power Parameters

Connection1 removable 6-contact terminal block(s)
Input Current0.251 A @ 24 VDC
Input Voltage12/24/48 VDC, Redundant dual inputs
Operating Voltage9.6 to 60 VDC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Weight498 g (1.10 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureEDS-2010-ML-2GTXSFP: -10 to 60°C (14 to 140°F)
EDS-2010-ML-2GTXSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyUL 61010-2-201, EN 62368-1(LVD)
EMCEN 55032/35
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
RailwayEN 50121-4
Traffic ControlNEMA TS2
VibrationIEC 60068-2-6
ShockIEC 60068-2-27
FreefallIEC 60068-2-32

MTBF

Time2,174,016 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-2010-ML Series Datasheet V1.1 21 May 2020
