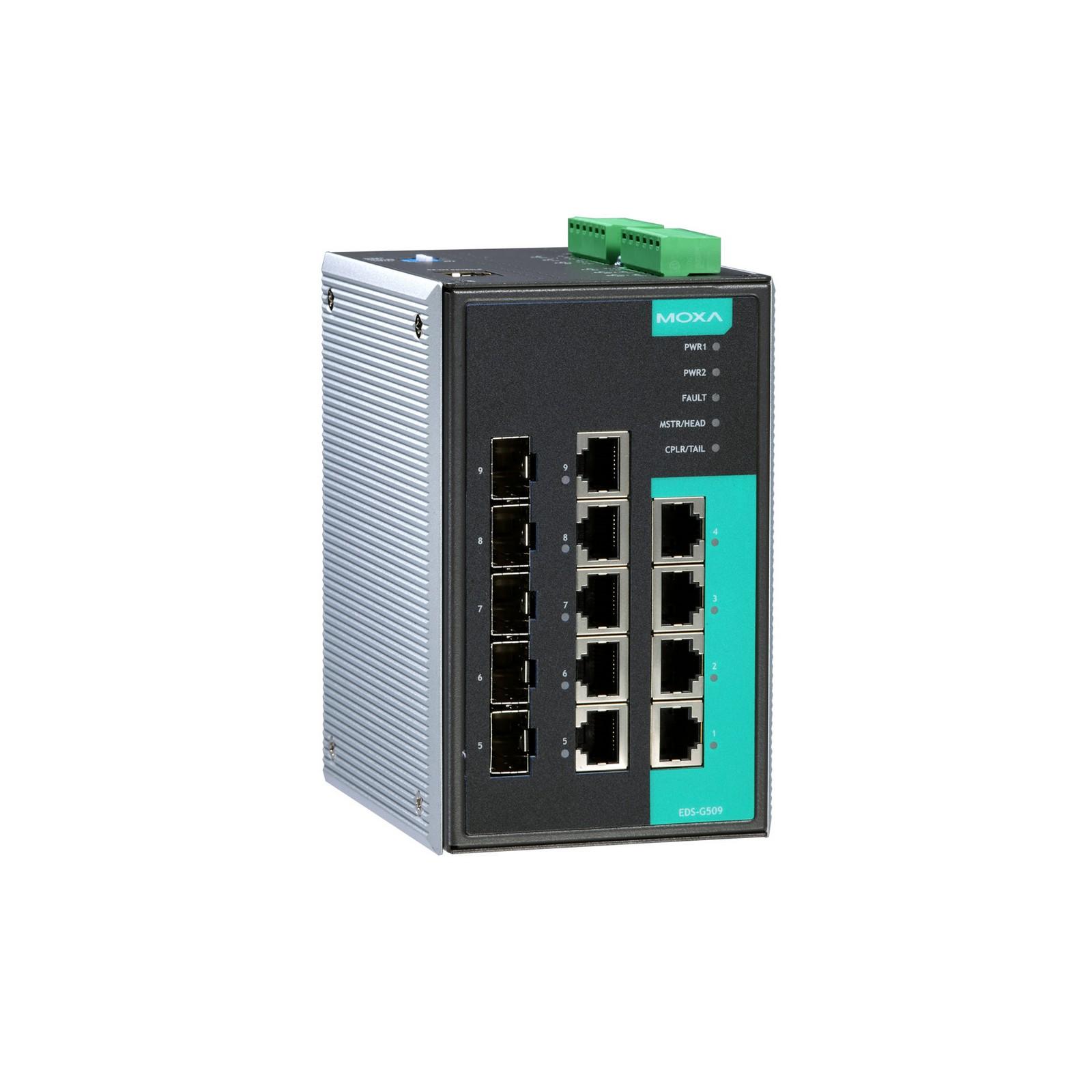

EDS-G509 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

9G-port full Gigabit managed Ethernet switches

Product Feature

  • 4 10/100/1000BaseT(X) ports plus 5 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports
  • Enhanced surge protection for serial, LAN, and power
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Introduction

The EDS-G509 Series is equipped with 9 Gigabit Ethernet ports and up to 5 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of video, voice, and data across a network quickly.

Redundant Ethernet technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase system reliability and the availability of your network backbone. The EDS-G509 Series is designed especially for communication demanding applications, such as video and process monitoring, shipbuilding, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.



Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • IGMP snooping and GMRP for filtering multicast traffic
  • Compatible with the ABC-01 (Automatic Backup Configurator) for system configuration backup
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output

Input/Output Interface

Alarm Contact Channels2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels2
Digital Inputs+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)5
StandardsIEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX

Ethernet Software Features

Filter802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial ProtocolsEtherNet/IP, Modbus TCP
Management

Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP

Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON,

SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB,

RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy ProtocolsLink Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security

Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH,

TACACS+, SNMPv3

Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups256
MAC Table Size8 K
Max. No. of VLANs64
Packet Buffer Size1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

LED Interface

LED Indicators

PWR1, PWR2, FAULT, 10/100/1000M (TP port), 100/1000M (SFP port),

MSTR/HEAD, CPLR/TAIL

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

Connection2 removable 6-contact terminal block(s)
Input Current0.69 A @ 24 VDC
Input Voltage12/24/48 VDC, Redundant dual inputs
Operating Voltage9.6 to 60 VDC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions87.1 x 135 x 107 mm (3.43 x 5.31 x 4.21 in)
Weight1510 g (3.33 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureEDS-G509: 0 to 60°C (32 to 140°F)
EDS-G509-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

FreefallIEC 60068-2-32
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
MaritimeABS, DNV-GL, LR, NK
RailwayEN 50121-4
SafetyEN 60950-1, UL 508
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time598,659 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-G509 Series Datasheet V1.2 30 August 2019
