INTRODUCTION

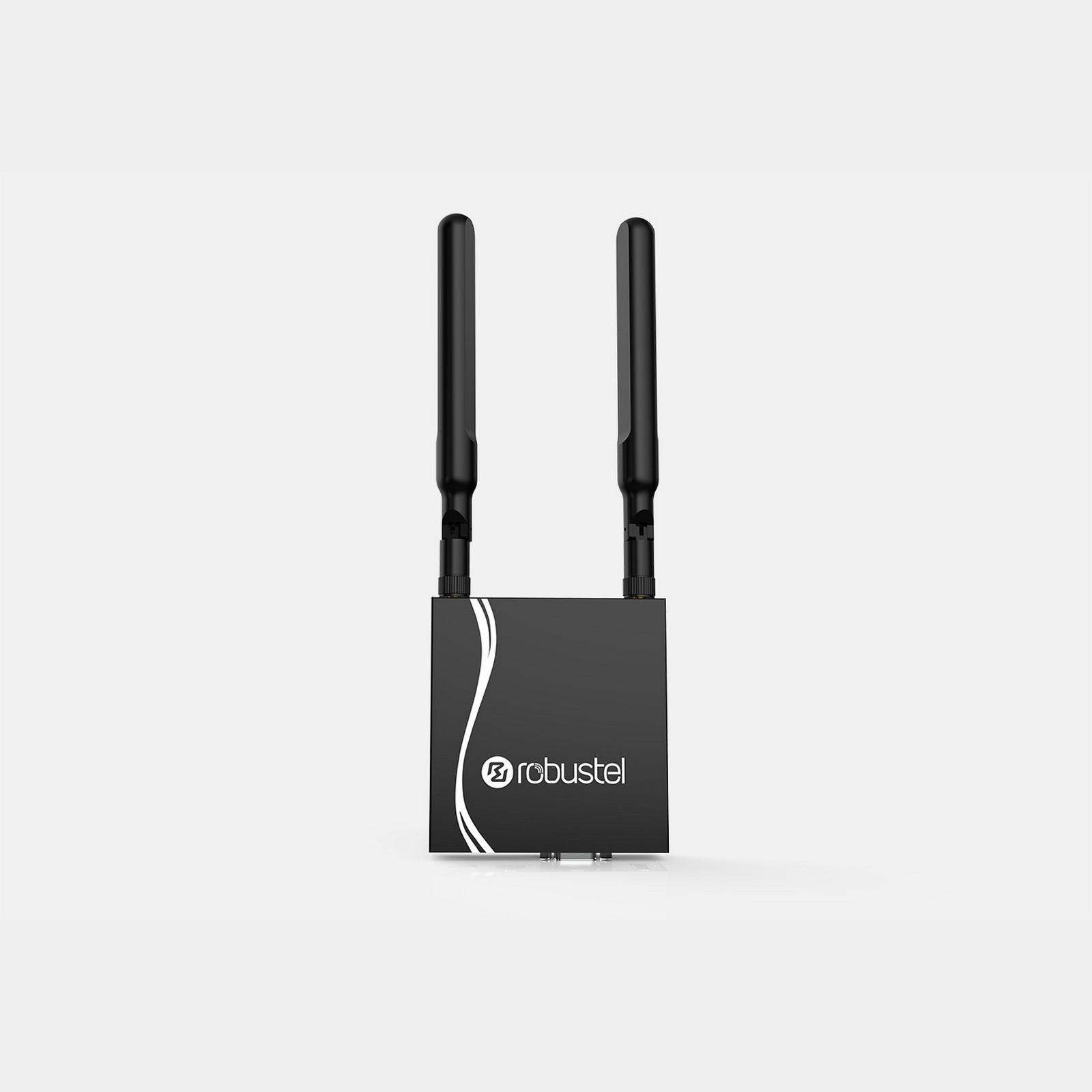

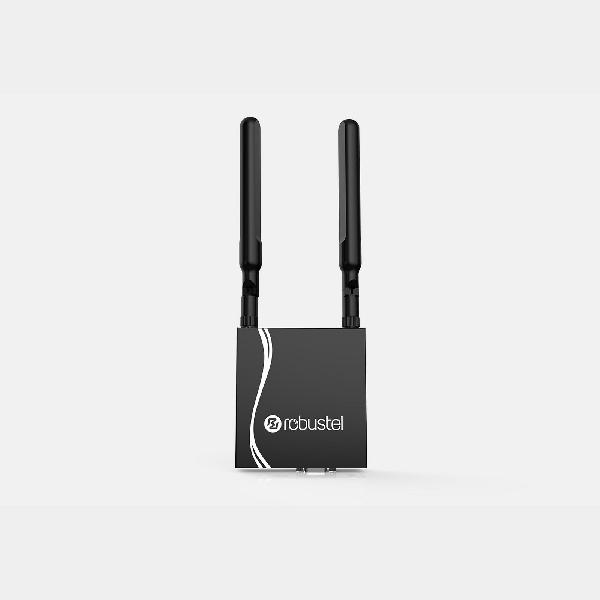

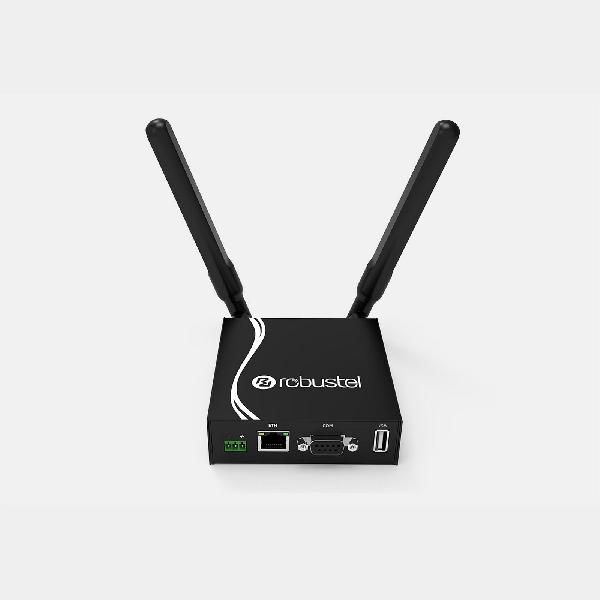

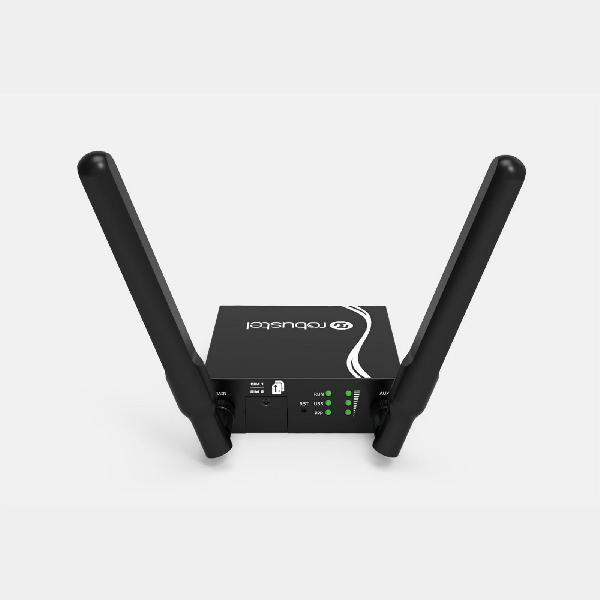

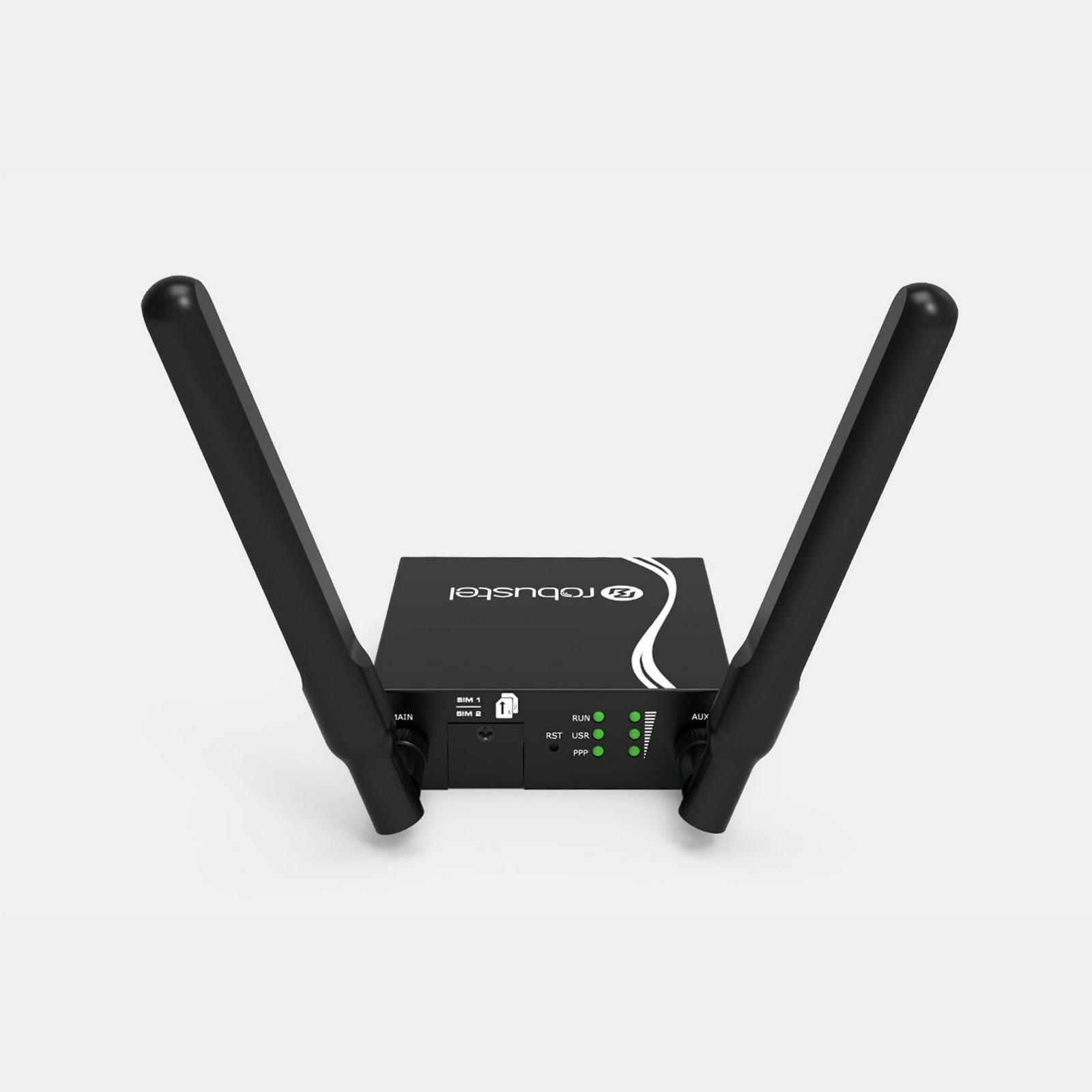

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.
R3000 Lite is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.
Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, Japan and Hong Kong.
Cellular Interface | |
| Number of ports | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 (3 V & 1.8 V) |
| Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
Ethernet Interface | |
| Number of ports | 1 x 10/100 Mbps LAN port |
| Magnet isolation protection | 1.5 KV |
Serial Interfaces | |
| Number of ports | 1 x RS-232 and 1 x RS-485 |
| Connector | DB9, female |
| ESD protection | ±15 KV |
| Baud rate | 300 bps to 230400 bps |
Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
| Built-in | RTC, Watchdog, Timer |
Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
App Center | |
| Apps | L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink |
| *Request on demand. For more Apps please visit www.robustel.com. | |
Power Supply and Consumption | |
| Power supply interface | 3.5 mm terminal block |
| Input voltage | 9 to 36 VDC |
| Power consumption | Idle: 100 mA @ 12 V |
| Data link: 400 mA (peak) @ 12 V | |
Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimension | 105 mm x 98 mm x 29.5 mm |
| Installation | Desktop or wall mounting or 35 mm DIN railmounting |
| Approvals | |
| Regulatory | CE, FCC, PTCRB, RCM, IMDA, EAC, ICASA |
| Carrier | Telefonica, AT&T, Verizon |
| Application | IEC 61000-4-12(Electromagnetic Compatibility– Oscillatory Waves Immunity Test) IEC 61000-4-18(Electromagnetic compatibility– Damped Oscillatory Wave Immunity Test) |
| Environmental | RoHS, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 |
| Name | Type | Version | Release Date | |
| R3000 Lite Datasheet | Datasheet | V2.1 | 23 July 2020 |
