INTRODUCTION

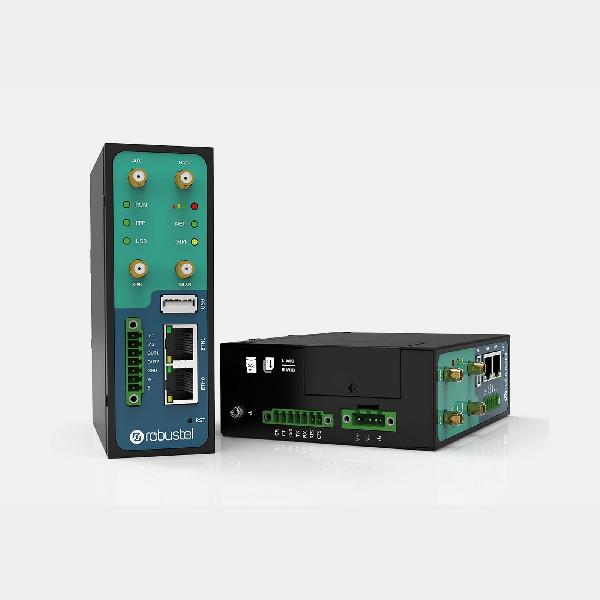

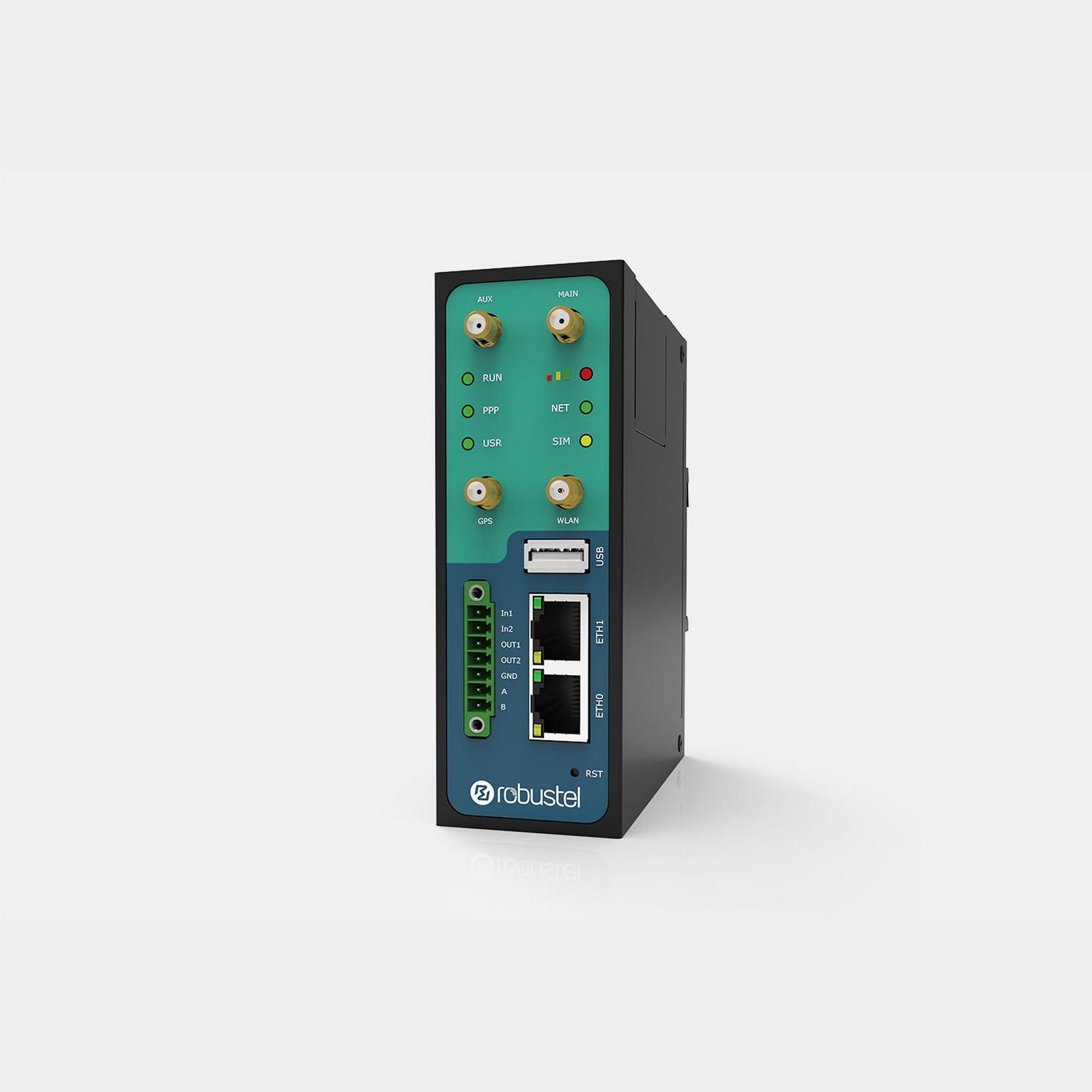

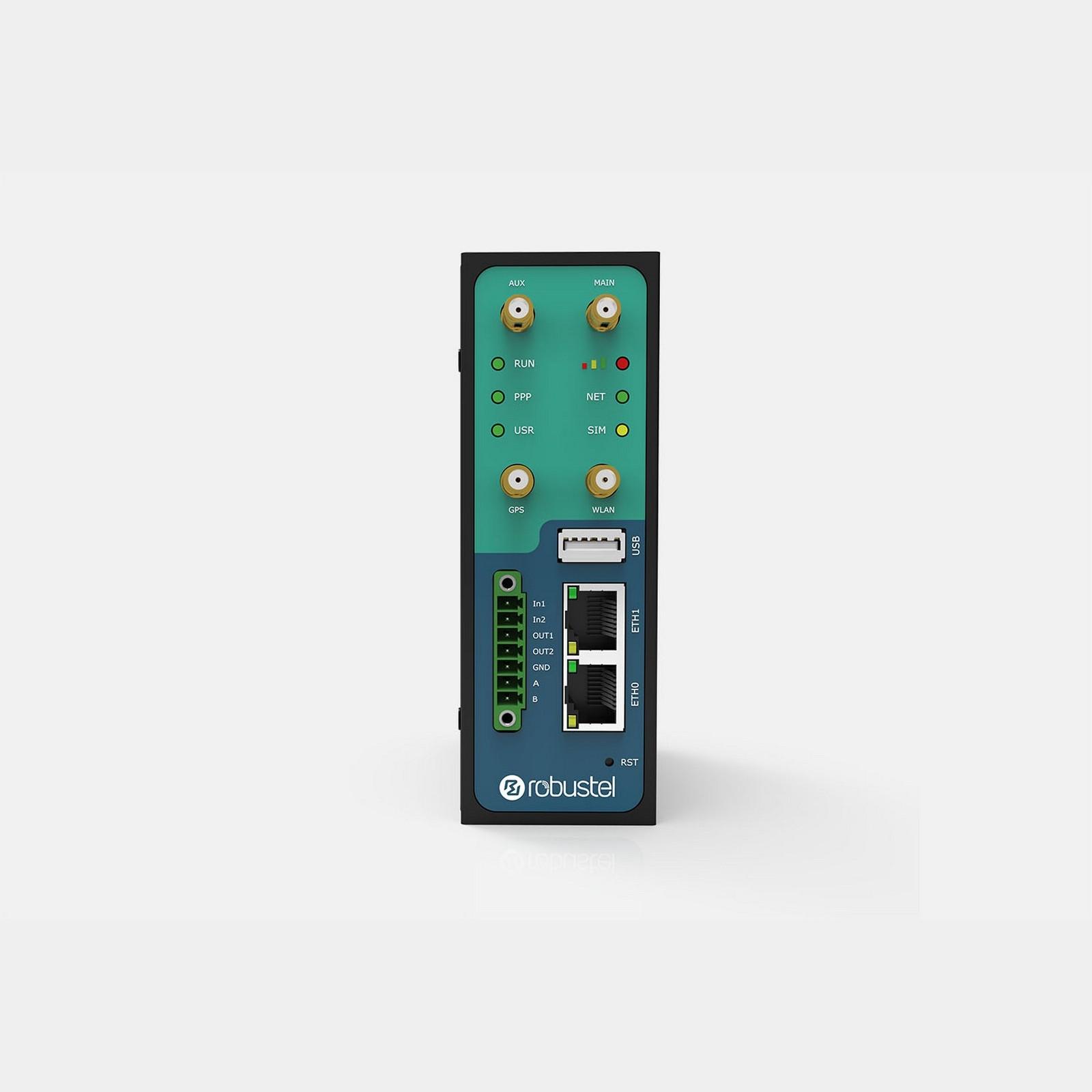

The Robustel Industrial Dual SIM Cellular VPN Router (R3000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.
R3000 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.
Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.
Cellular Interface | |
| Number of antennas | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 (3 V & 1.8 V) |
Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN |
| Magnet isolation protection | 1.5 KV |
Wi-Fi Interface (Optional) | |
| Number of antennas | 1 |
| Connector | RP-SMA-K |
| Standards | 802.11a/b/g/n, supporting AP and Client modes |
| Frequency bands | 2.4 GHz 5 GHz |
| Security | Open, WPA, WEP |
| Encryption | AES, TKIP, WEP64 |
| Data speed | Up to 150 Mbps |
GPS/GLONASS Interface (Optional) | |
| Number of antennas | 1 |
| Connector | SMA female with 50 ohms impedance |
| Tracking sensitivity | GPS: greater than -148 dBm GLONASS: greater than -140 dBm |
| Horizontal position | GPS: 2.5 m |
| accuracy | GLONASS: 4.0 m |
| Protocol | NMEA-0183 V2.3 |
Serial Interfaces | |
| Number of ports | 1 x RS-232 + 1 x RS-485 Optional hardware is 2 x RS-485 or 2 x RS-232 |
| Connector | 7-pin 3.5 mm female socket with lock |
| ESD protection | ±15 KV |
| Baud rate | 300bps to 230400bps |
DI/DO | |
| Type | 2 x DI (dry contact) + 2 x DO (wet contact), 4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI |
| Connector | 7-pin 3.5 mm female socket with lock |
| Isolation | 3KVDC or 2KVrms |
| Absolute maximum VDC | “V+” +5V DC (DI), 30V DC (DO) |
| Absolute maximum ADC | 300 mA |
Others | |
| Reset button | 1 x RST |
| SD | 1 x Micro SD interface |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET,1 x SIM |
| Built-in | RTC, Watchdog, Timer |
Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH2, etc. |
| VPN tunnel | IIPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, DNP3 Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
App Center | |
| Apps | L2TP, PPTP, DMVPN, VRRP, QoS, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
Power Supply and Consumption | |
| Connector | 3-pin 5 mm female socket with lock |
| Input voltage | 9 to 60 VDC |
| Power consumption | Idle: 100 mA@12 V Data link: 400 mA (peak) @12 V |
Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 570 g |
| Dimension | 125 x 104 x 43.5 mm |
| Installation | Desktop, wall mounting and 35 mm DIN rail mounting |
| Approvals | |
| Regulatory | CE, NBTC, FCC, RCM, PTCRB, GCF, IC, IMDA, EAC, Anatel, UL, CB, ICASA |
| Carrier | AT&T, Rogers, Vodafone |
| Application | C1D2, E-mark (Vehicle), IEC 61000-4-12 (Electromagnetic Compatibility – Oscillatory Waves Immunity Test) |
| Environmental | RoHS 2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-3 (RS) Level 4 IEC 61000-4-4 (EFT) Level 4 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-8 (M/S) Level 4 |
| Name | Type | Version | Release Date | |
| R3000 Datasheet | Datasheet | V3.2.4 | 23 July 2020 |
