ADDERLink™ INFINITY 4000

Home > Adder > Extenders >
USB Extenders

A high performance dual-head IP KVM matrix solution with support for 5K video and multigigabit Ethernet connectivity.

Product Feature

Dual-head 5K screens over a single link: The ALIF4000 can deliver two 5K screens over a single link.
Multigigabit Ethernet support: Multirate (1/2.5/5/10) GbE support enables premium video performance over 5Gb/s copper links using 100m of standard CAT6 cable.
Support for 1GbE: Integrated 1GbE ports enable easy delivery of 4K/60 video over ubiquitous 1Gb/s copper links using 100m of standard CAT5e or CAT6 cable.
Support for 5K Resolutions: 5K video resolutions supported for high resolution and ultra-wide video applications (5120x1440@60Hz or 5120x2880@30Hz).
Backwards compatibility: The ALIF4000 can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints
Digital KVM matrix: By the addition of ADDERLink INFINITY Management system (A.I.M.) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the A.I.M. datasheet for details
Audio capability: Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience.
EDID management: The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed
Plug and Play: The ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
USB True Emulation: USB2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

The ADDERLink™ INFINITY 4000 Series (ALIF4000) is the world's first dual-head, high performance 5K IP KVM extender over a single
fiber.

The ALIF4000 is fully compatible with the existing INFINITY range, and supported by the trusted ADDERLink INFINITY Manager (AIM), the
ALIF4000 can be used as a point-to-point extender or easily integrated into a wider matrix system; enabling KVM users to migrate to
5K without the need to rip and replace.

Dual-head 5K, video, audio and USB over a single fiber connection
Pixel-perfect image quality
Multi-channel digital audio via DisplayPort™
Adder's USB True Emulation for fast switching
Backwards compatible with existing ADDERLink INFINITY infrastructure
Plug and play

USB

4 ports of USB2.0 with USB True Emulation
to support keyboard, mouse and touch.
One port of transparent high speed USB2.0
USB device seen as: 7 or 13 port hub

Max video resolution

Supports resolutions up to 5120x2880 including
UHD or DCI and refresh rates up to 240Hz

Audio

Analog Line in/out 2 channel 16bit 48KHz
1V RMS in/1V RMS out

2x DisplayPort™ Audio in either 2, 6 or
8 channels linear PCM

Ethernet

2x 10GbE (no 10/100/1000 support on fiber) via SFP.
2x 10,5,2.5 and 1GbE when using SFPCATX-MR SFP.
2x 1GbE (no 10/100 support) via CATX ports.

Connections

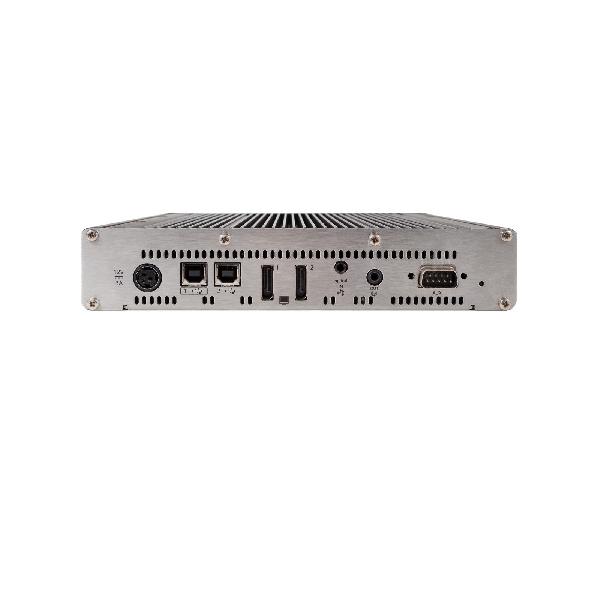

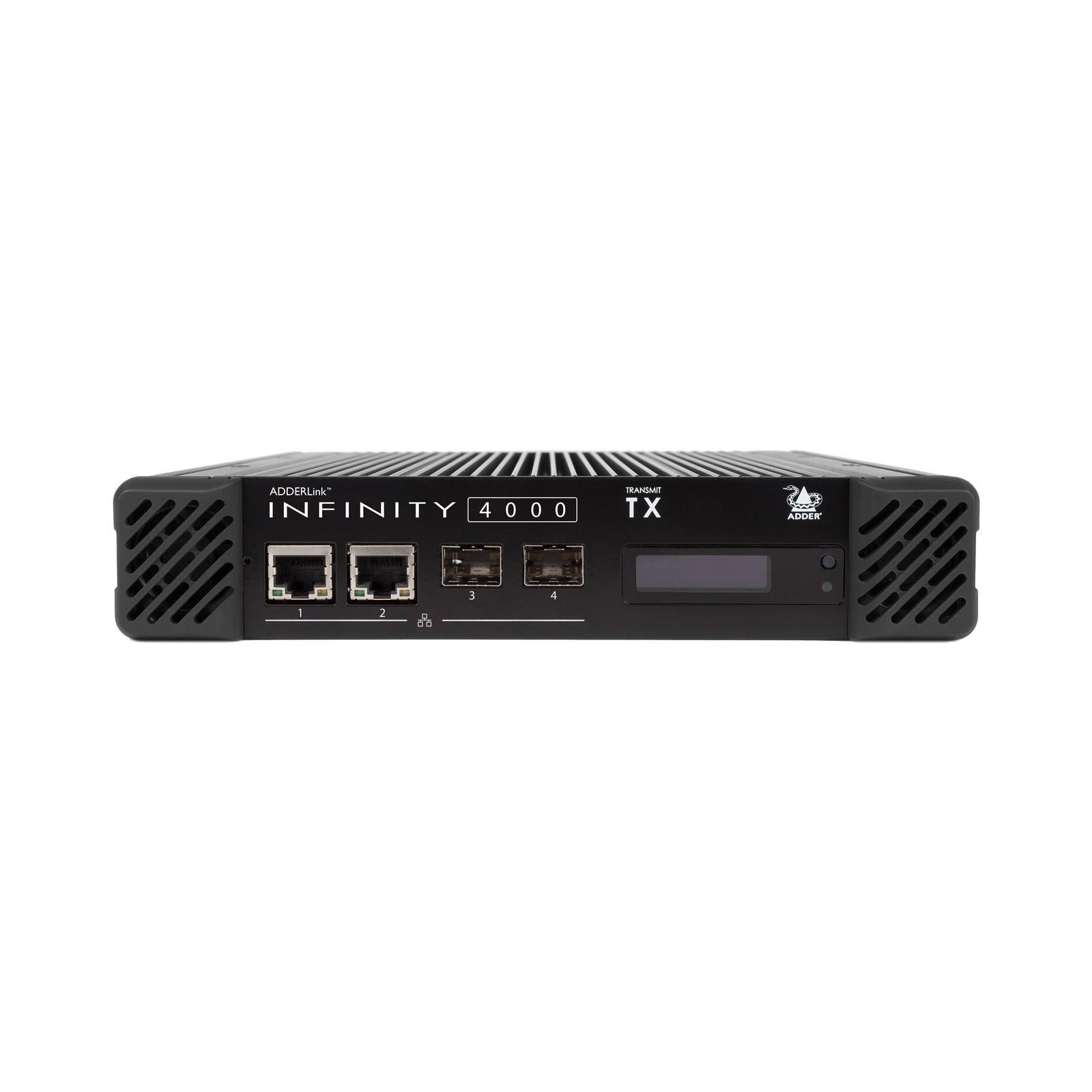

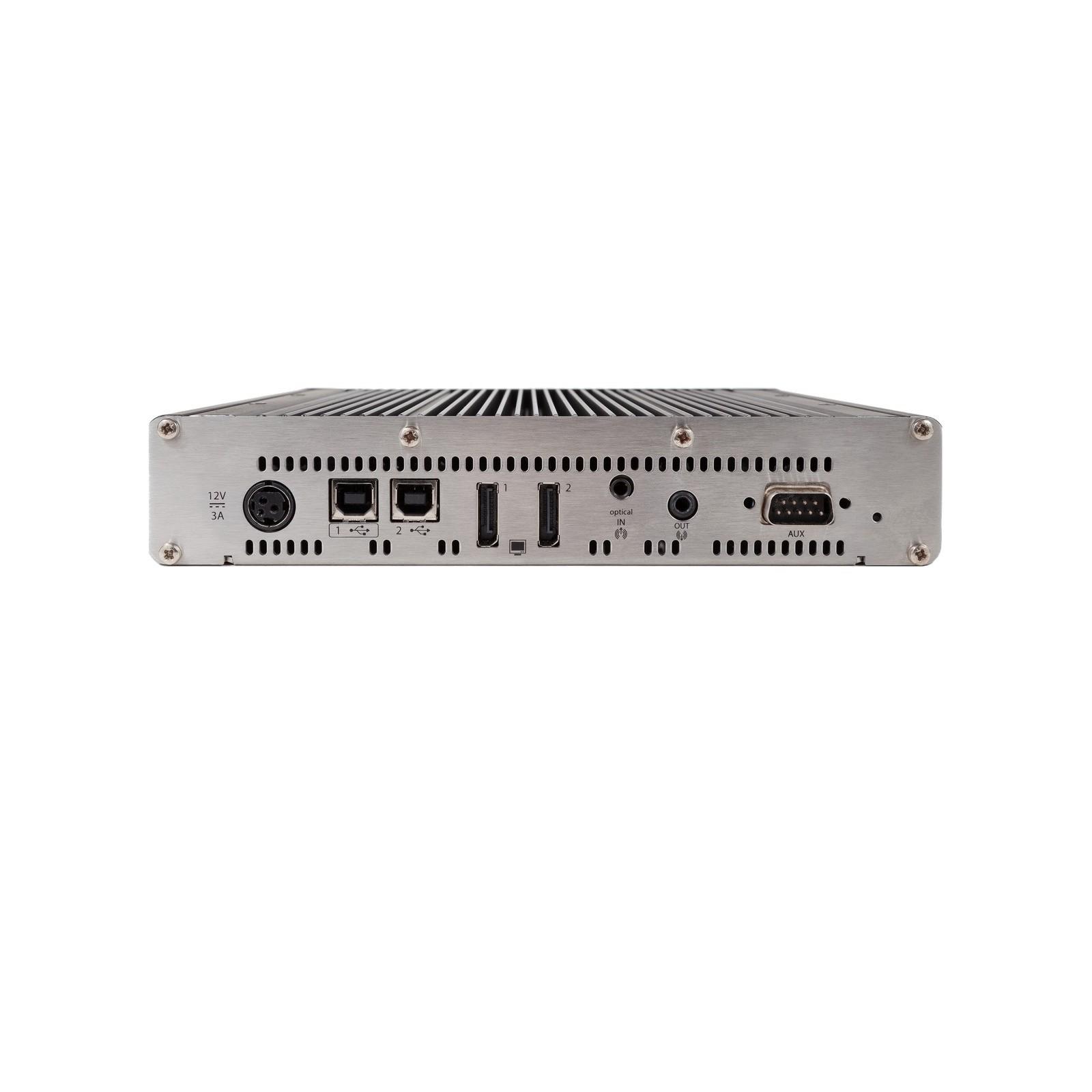

Local Unit - Transmitter (TX)
Computer: 2x DisplayPort™, 2x USB type B,
2x 3.5mm audio jack sockets, 1x DB9 socket.
Ethernet: 2x 8p8c (RJ45), 2x SFP+ cages.
Power: 3 pin Kycon socket.

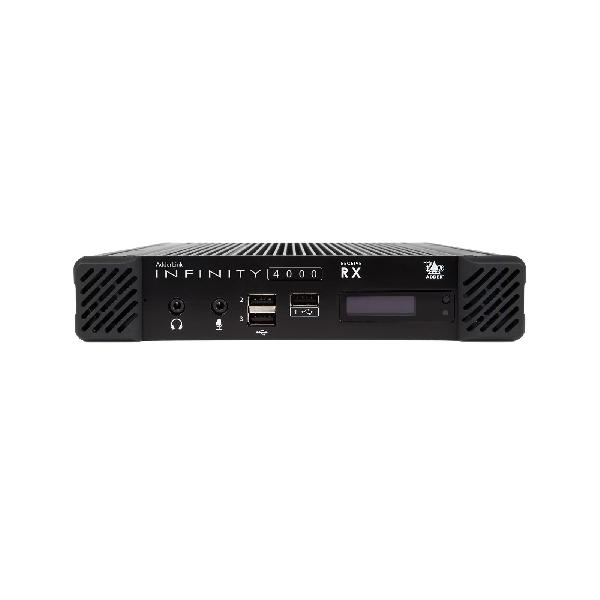

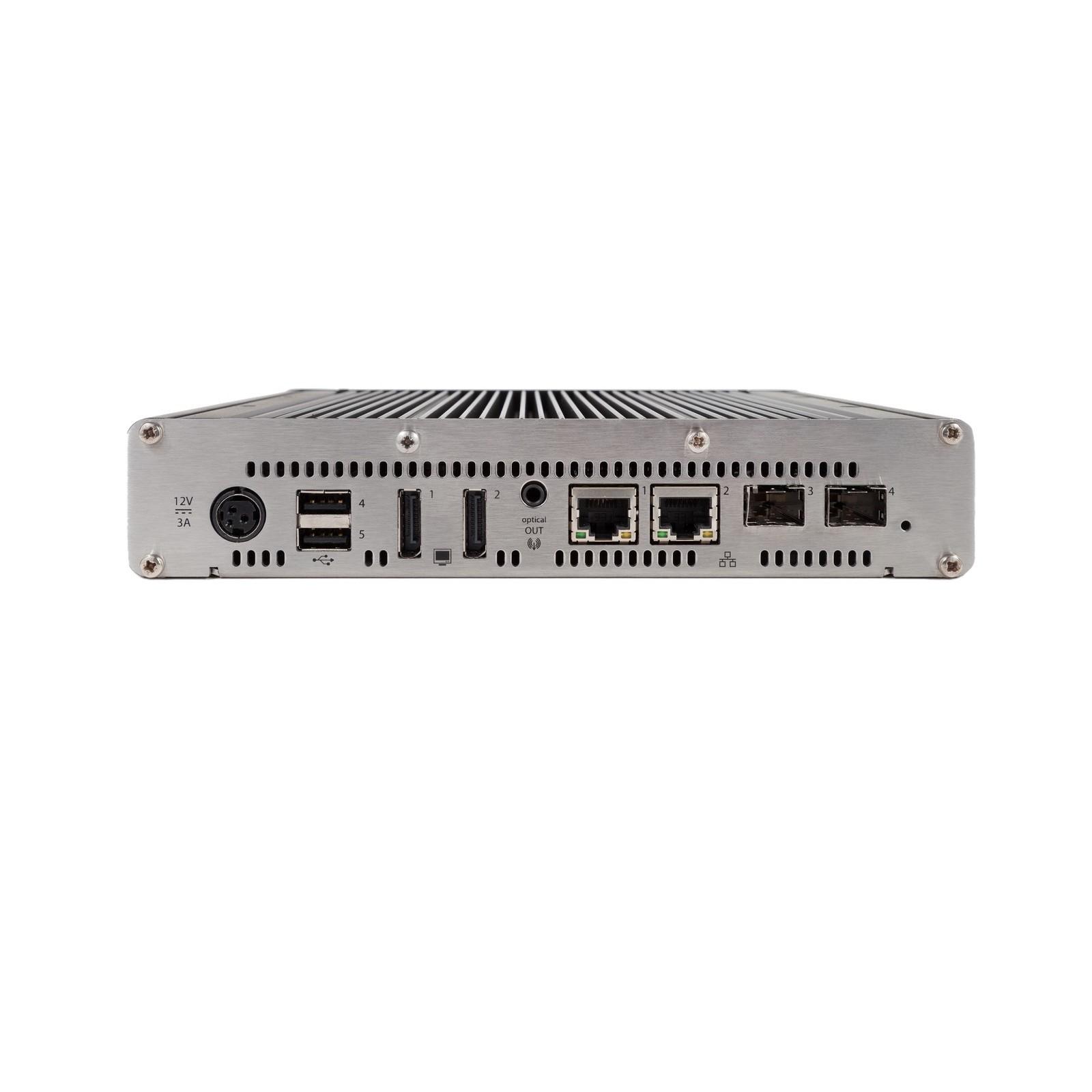

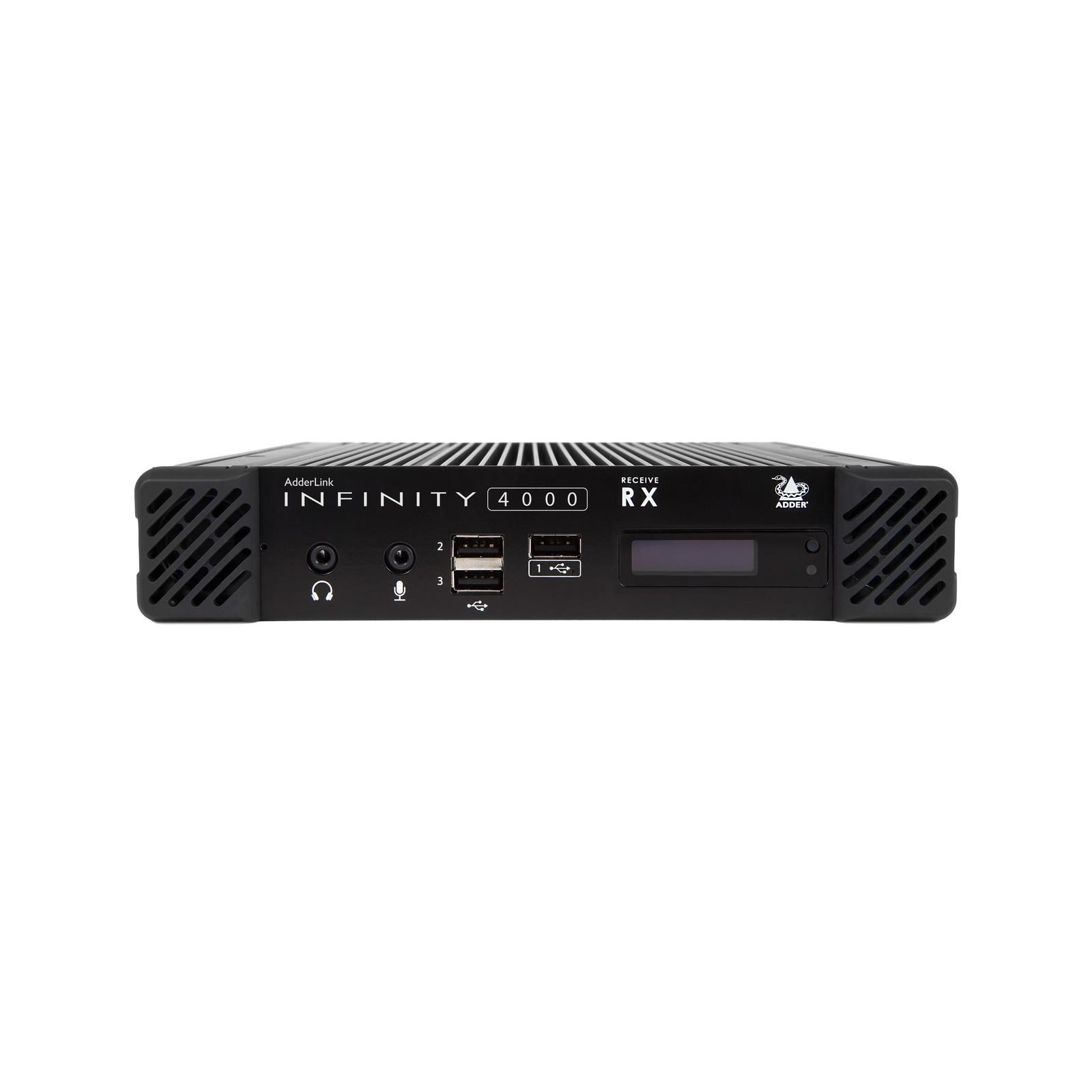

Remote Unit - Receiver (RX)
Desk: 2x DisplayPort™, 5x USB type A,
2x 3.5mm audio jack sockets, 1x 3.5mm
SPDIF socket
Ethernet: 2x 8p8c (RJ45), 2x SFP+ cages
Power: 3 pin Kycon socket

Physical Dimensions

(L)210mm /8.3”x(W)215mm/8.5”x
(D)40mm/1.6”
Weight: 1.8kg/4 lbs.

Materials

Aluminum and steel construction

Power

External power: 12VDC, 5A
Typical power consumption: 20W

Operating temperature

Operating temperature: 0 to 40o C/32 to 104o F

Storage temperature: 0 to 40o C/32 to 104o F

Storage and operating relative humidity:
10-90% non-condensing

Altitude: < 2000m

Packing Box

Dimensions: (L) 285mm /11.2-inch (W)
245mm/9.6inch (D) 145mm/5.7inch

Weight: 2.5kg / 5.5lb

Approvals

CE and FCC: See the compliance web page
for the full list

Mean Time Between Failure

ALIF4021T 159,000 hrs.

ALIF4021R 165,000 hrs.

Telcordia SR332 Issue 4 March 2016
Calculated @55o C

Name		Type	Version	Release Date
ADDERLink INFINITY 4000 Datasheet		Datasheet	V2.0	04 August 2020
