ADDER CATx DisplayPort CAM

Home  >   Adder  >   Extenders  >
USB Extenders

DisplayPort, Mini DisplayPort, USB and Audio Computer Access Module

Product Feature

The CATX Display port Computer Access Modules are highly compact devices that allow you to
extend your DisplayPort equipped computer over CATX cable up to 300 meters. TheCAM
connects to the DisplayPort video connector plus USB and Audio ports on your computer and
then connects via CAT 5, 5e or 6 cabling to the AdderView CATx KVM switches and/or Adder
extender receivers (either AdderLink X2 Silver or X200), each of which can be located up to
300 meters from the module. Your video display, keyboard, mice and speakers arethen all
linked to the remote device.

The CATX DisplayPort Computer Access Modules are highly compact devices that allow you to extend your DisplayPort equipped
computer over CATX cable up to 300 meters. TheCAM connects to the DisplayPort video connector plus USB and Audio ports on your
computer and then connects via CAT 5, 5e or 6 cabling to the AdderView® CATx KVM switches and/or Adder extender receivers
(either AdderLink® X100 or X200), each of which can be located up to 300 meters from the module. Your video display, keyboard,
mice and speakers are then all linked to the remote device.

Maximum Video Resolution

1920 x 1200

Extension Distance

1920 x 1200 x 60Hz at 200m
1280 x 1024 x 60Hz at 300m.

O/S Compatability

Operating system independent

Connectors

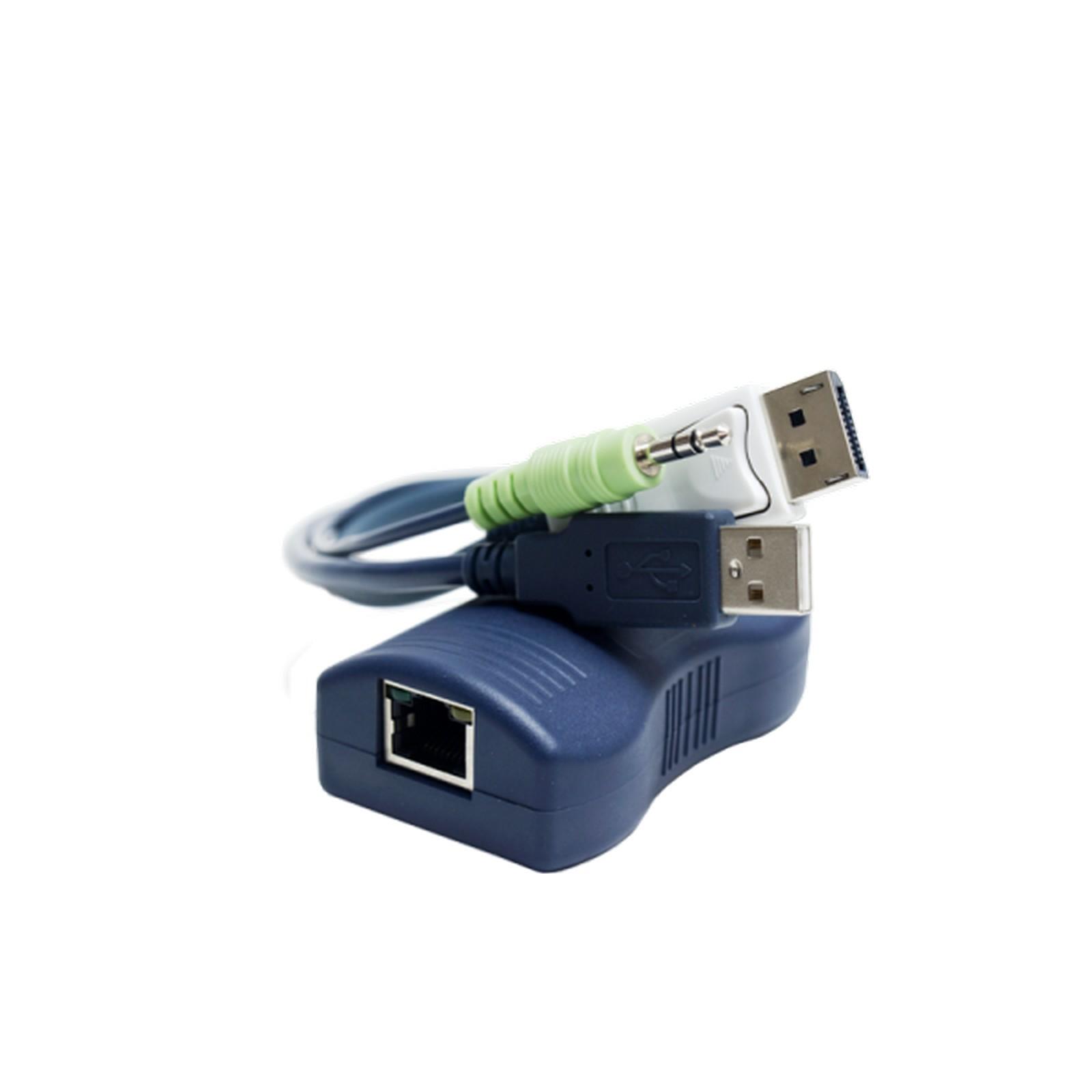

1 x Display Port, 1 x USB- Type A plug, 1 x
3.5 mm jack plug and 1 x RJ45

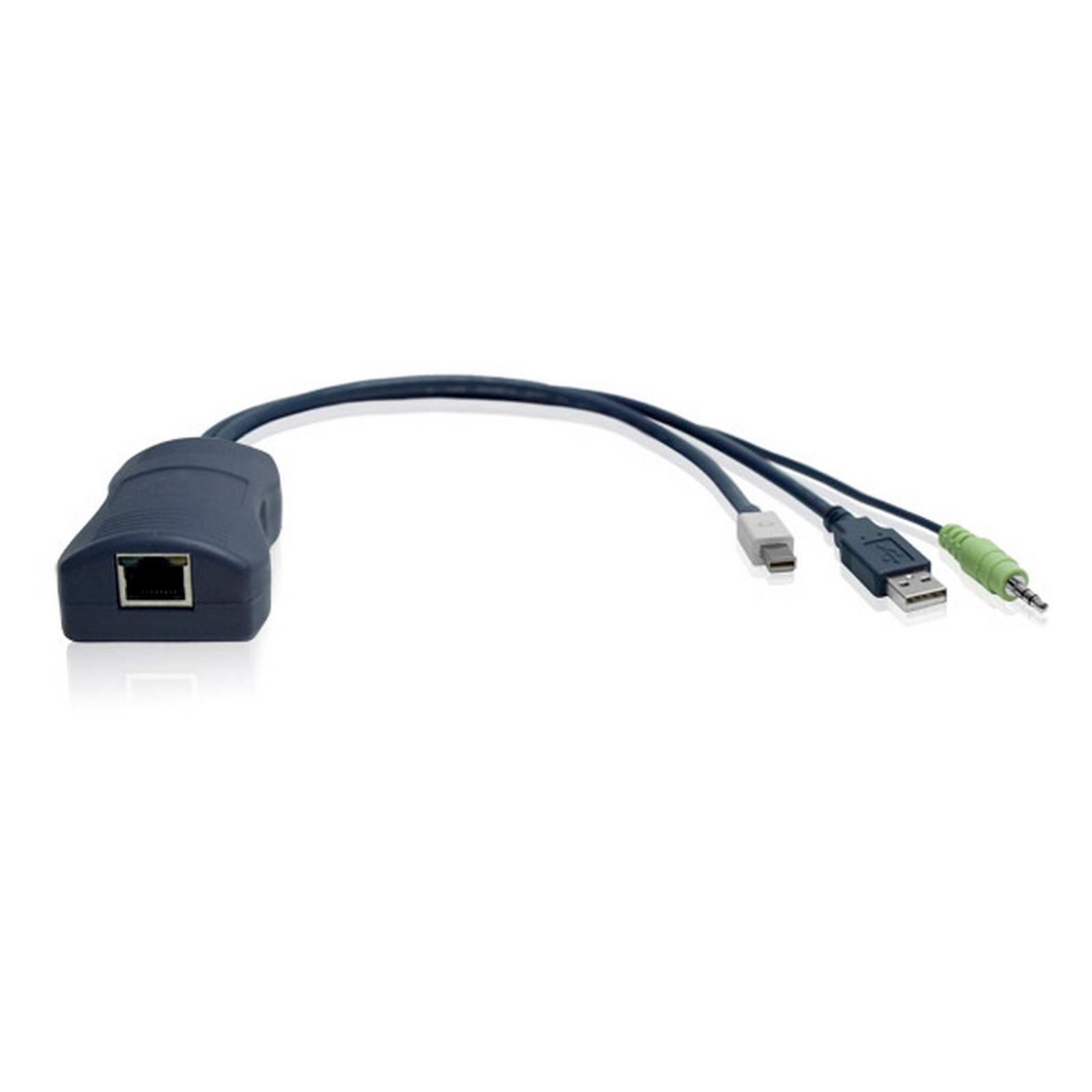

1 x Mini Display Port, 1 x USB- Type A
plug, 1 x 3.5 mm jack plug and 1 x RJ45
(CATX-MDP-USBA)

Physical design

Local: Hi Impact resistance ABS, 45mm
/1.75’’ (w) x 75mm / 3’’(d) x 25mm / 1’’
(h) with 300mm/12’’ flying leads
Weight 100g / 0.2 lb.

Power

USB powered device Max 500mA @ 5V

Operating temperature

0ºC to 40º / 32ºF to 104ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDER CATx DisplayPort CAM Datasheet Datasheet 04 August 2020
