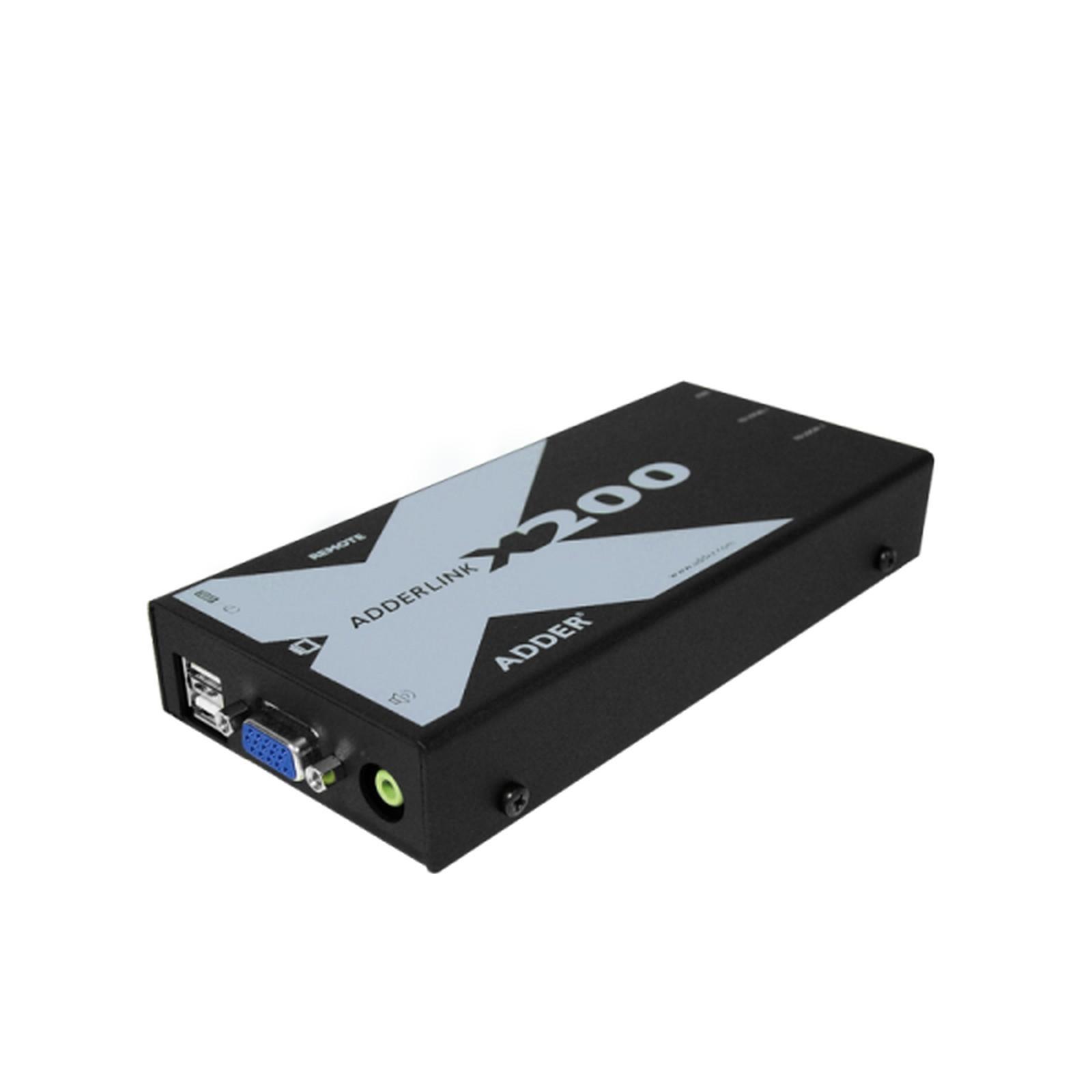

ADDERLink X200

Home  >   Adder  >   Extenders  >
USB Extenders

Fully featured USB keyboard, video and mouse extender with 44.1kHz digital stereo audio support for two computers

Product Feature

AdderLink X200s have been designed for use in applications where up to two computer
systems can have their keyboard, video, audio and mouse control extended up to 300 m
(1000 ft.) over CAT5 or higher UTP cable. The AdderLink X200 provides absolute real time
keyboard and mouse performance along with hi-definition, hiresolution video over a VGA
interface. The AdderLink X200 receiver can be connected to the AdderView CATx range of
KVM switches as well as to individual computers using Adder’s range of computer access
modules.

ADDERLink X200s have been designed for use in applications where up to two computers can have their keyboard, video, audio and
mouse control extended up to 300 m (1000 ft.) across CAT5 or higher UTP cable.

The ADDERLink X200 provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a
VGA interface. The ADDERLink X200 receiver can also be used as a remote user station for the ADDERView CATx range of KVM
switches.

Video resolutions

1920 x 1200 at distances up to 50 m/165 ft,
1600 x 1200 at distances up to 200 m/650 ft,
1280 x 1024 at distances up to 300 m/1000 ft.

Extension Distance

Up to 300 m/1000 ft. using CATx cable
(x=5,5e,6)

Devices Supported

Supports computers with USB style keyboard
and mice, flat-screen and CRT style monitors
with standard HDD-15 video connectors and
optional audio through 3.5 mm audio jack.

O/S Compatability

All known software and operating systems
including Windows (all), DOS, Linux, Unix,
BSD, Sun OS, Solaris, Mac OS, NetWare etc.

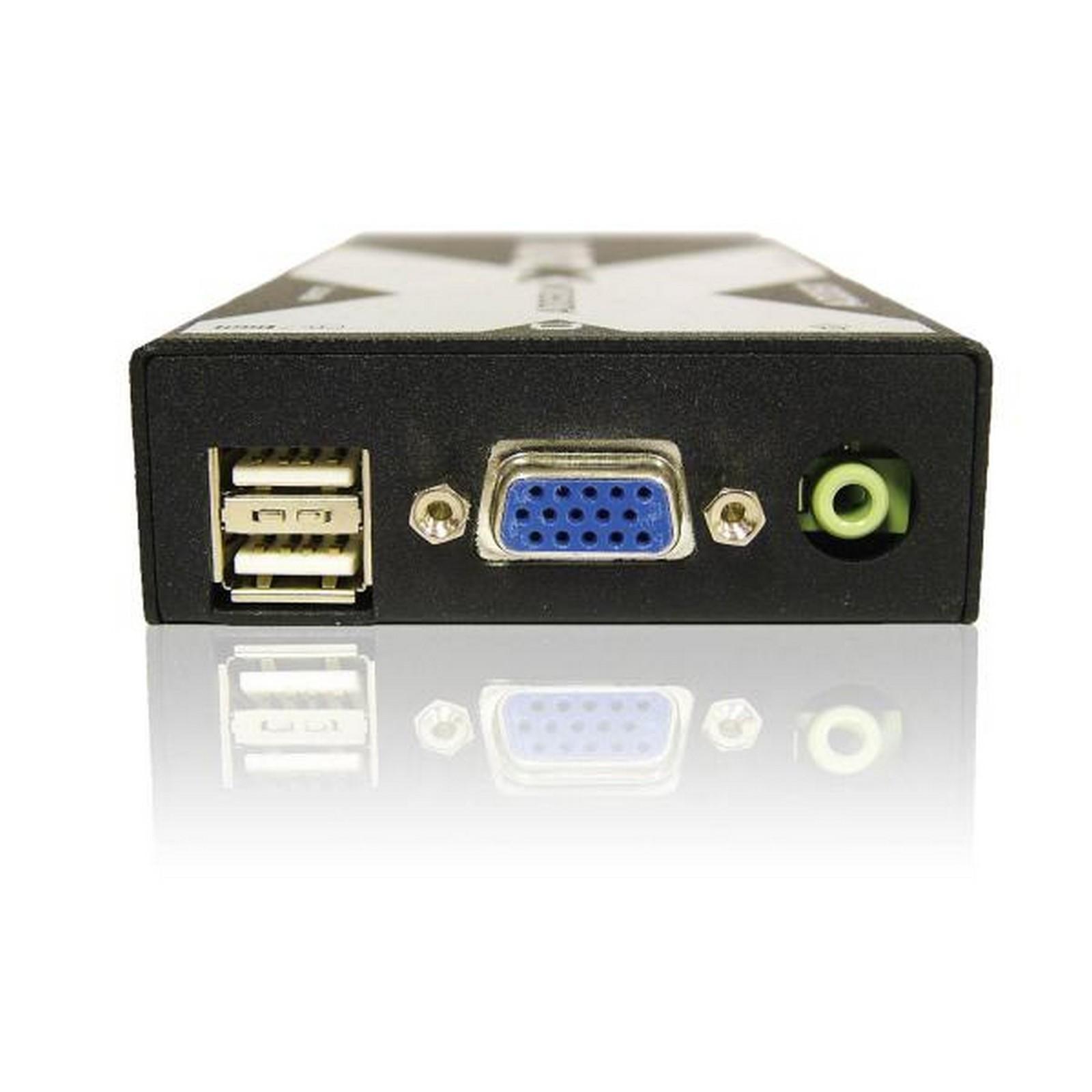

Connectors (USB CAM)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB type A CATx: RJ45 connector

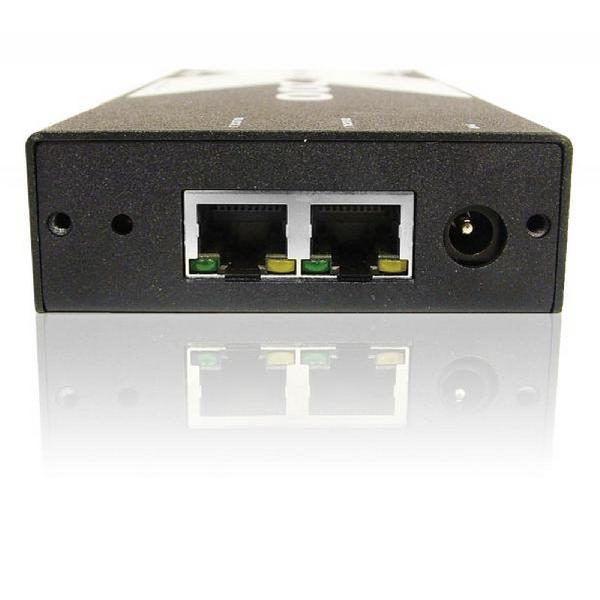

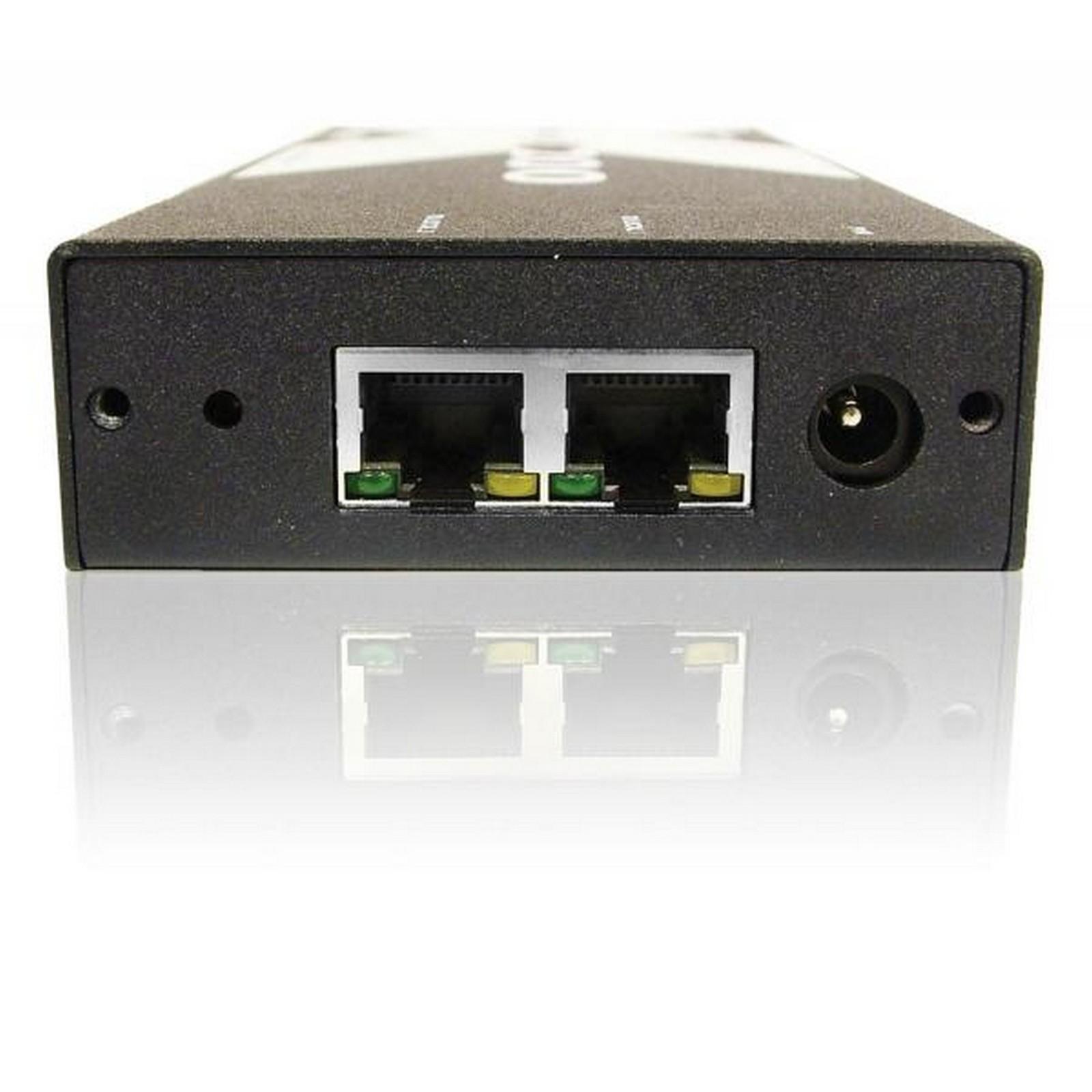

Connectors (X200 remote unit)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB Type A CATx: 2
x RJ45 connector
Power2.5 mm DC jack

Physical (USB CAM)

Combination of plastic enclosure and cables.
Enclosure: 64 mm/2.5 in. x 45 mm/1.8 in. x 25 mm/1 in.
Cables: 340 mm/13.4 in. long

Physical (X200 remote unit)

All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3
in. 430 g/1 lb.
Name Type Version Release Date
ADDERLink X200 Datasheet Datasheet V1.0 05 August 2020
