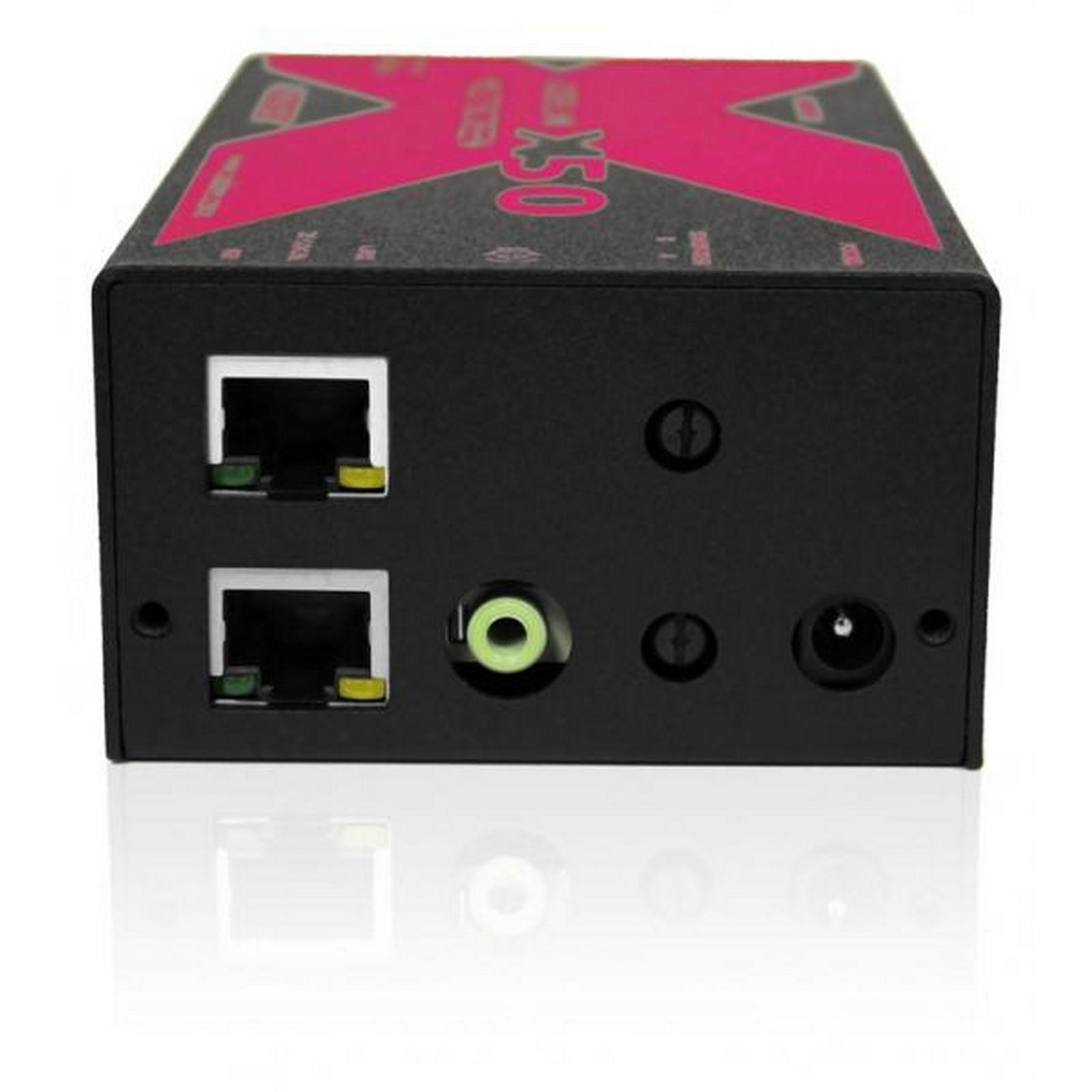

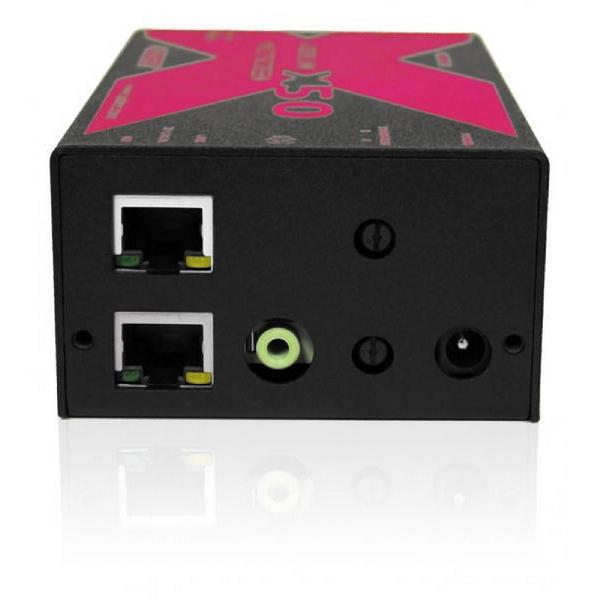

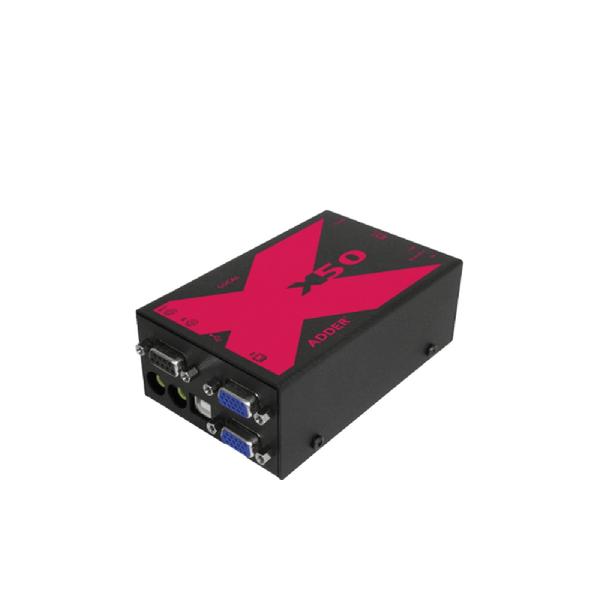

ADDERLink® X50-MS is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video
and Mice (KVM) up to 50m (150ft) over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital
stereo audio are delivered over a VGA interface to multiple screens with total USB 2.0 compatibility, regardless of the computer being
controlled or the peripheral being extended.
Video resolutions |
1920 x 1200 x 60Hz at distances up to 50m / 150 ft. |
Extension Distance |
Up to 50m / 150 ft. using CATx cable (x=5,5e,6) |
Devices Supported |
Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5 mm audio jack. Supports all USB devices |
O/S Compatability |
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc. |
Connectors (local / computer) |
AdderLink X50: Video input/output: HDD15, Keyboard /Mouse/USB devices USB type B, Audio input/output: 3.5mm jack, CATx: RJ45 connector, Power: 2.5mm DC jack AdderLink X50-MultiScreen: Same as X50 plus extra Video input/output: HDD15 and Serial: DB9 |
Connectors (remote / console) |
AdderLink X50: Video: HDD15, Keyboard/Mouse/ USB devices: USB Type A hub, Audio: 3.5mm jack, CATx: RJ45 connector, Power: 2.5mm DC jack AdderLink X50-MultiScreen: Same as X50 plus extra Video: HDD15 and Serial: DB9 |
Physical (local / computer) |
AdderLink X50: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 26mm / 1’’ (h) 430g / 1 lb. AdderLink X50-MultiScreen: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1 lb. |
Physical (remote / console) |
AdderLink X50: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 26mm / 1’’ (h) 430g / 1 lb. AdderLink X50-MultiScreen: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1 lb. |
Power (remote only) |
100 - 240VAC, 10W , 50-60Hz |
Operating temperature |
0ºC to 40ºC / 32ºF to 104ºF |
Approvals |
CE, FCC |
Name | Type | Version | Release Date | |
ADDERLink X50 MultiScreen Datasheet | Datasheet | V1.0 | 05 August 2020 |
