The new range of audio video extenders from ADDER deliver high resolution crystal clear video and CD quality digital stereo audio
across installations up to 2000ft in width, or 1000ft point to point. With full RS232 support video display panels can be controlled and
interrogated remotely, making the AV200 series the ideal professional Narrowcast Digital Signage solution.
The AV200 series is supplied complete with ADDER DM (Display Manager) software. This advanced application makes controlling VDU
power, video and audio possible from the transmitter, as well as allowing you to interrogate video panel status and dynamics*. Due to
ADDER's 'Open Architecture' policy, you can still use any 3rd party signage control system across the AV200 series.
Video Resolutions |
| 1600 x 1200 at distances up to 200 metres/650 feet, 1280 x 1024 at distances up to 300 metres/1000 feet. |
Extension distance |
| Up to 300 meters/1000 feet using CATx (x=5,5e,6,7). |
Connectors (ADDERLink AV 200T) |

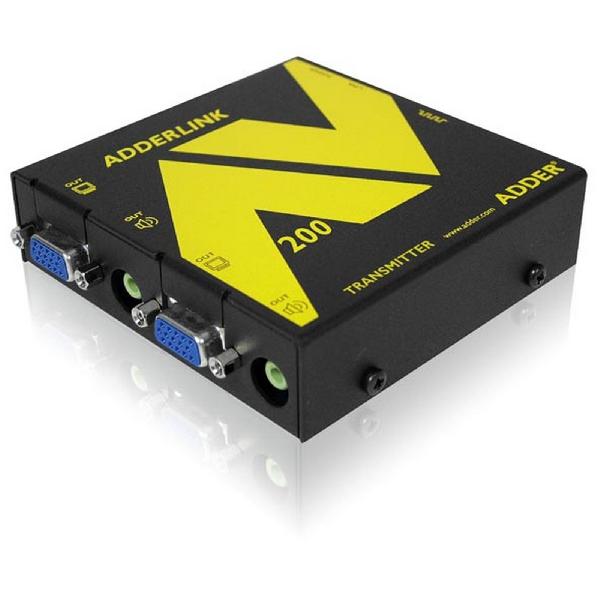

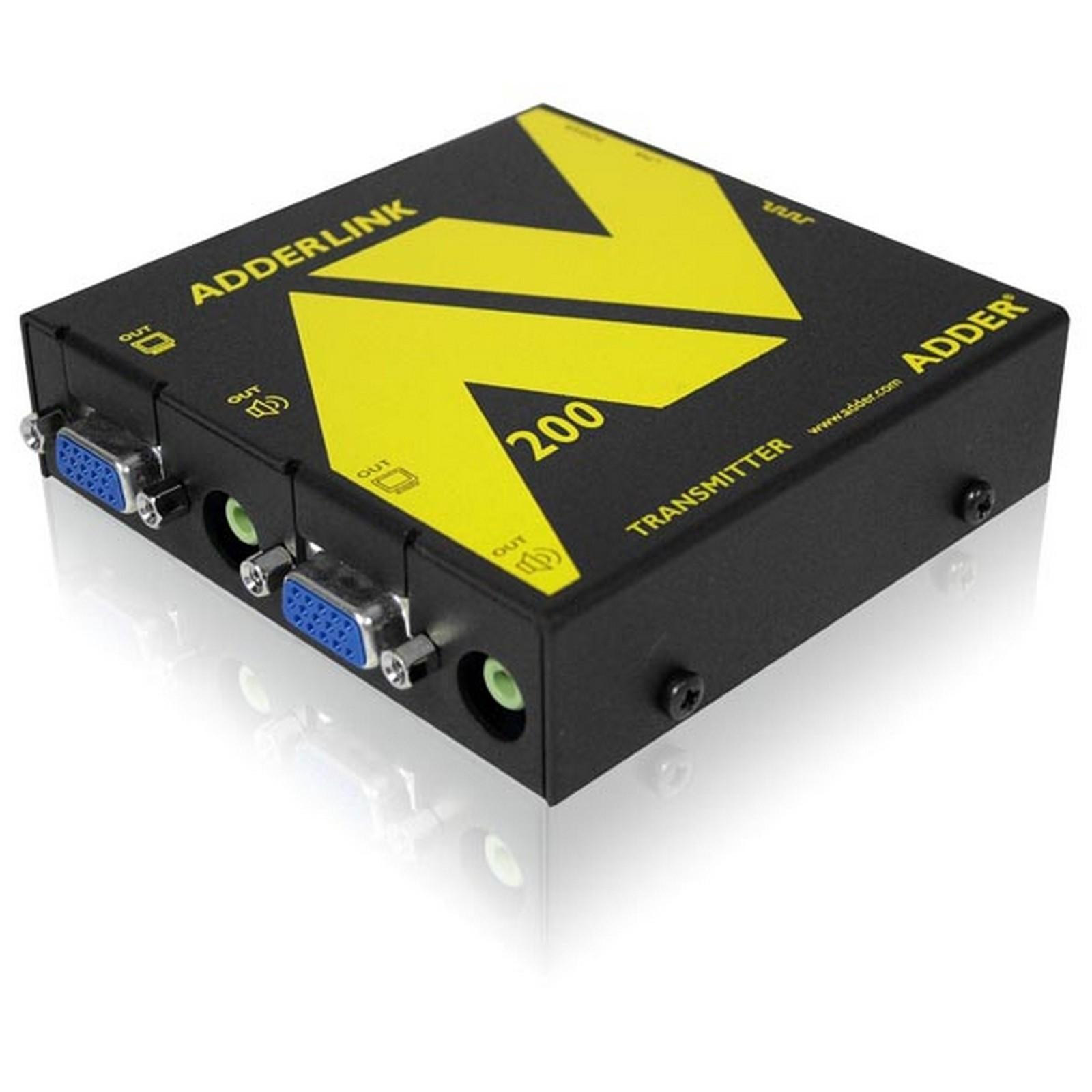

| 1 x blue 15-pin high-density D-type female connector for video input, 1 x light green 3.5mm audio jack for audio input, 1 x 9-pin D-type female for serial input. 1 x blue 15-pin high-density D-type female connector for video output and 1 x light green 3.5mm audio jack for audio output. 1 x RJ45 connector for CATx cable connection. 2.5mm DC jack for power adapter. |
Connectors (ADDERLink AV 200R) |
| 2 x blue 15-pin high-density D-type female connector for video output, 2 x light green 3.5mm audio jack for audio output and 1 x 9-pin D-type male for serial output (use splitter cable for dual serial conections). 1 x RJ45 connector for CATx cable connection. 2.5mm DC jack for power adapter. |
Physical |

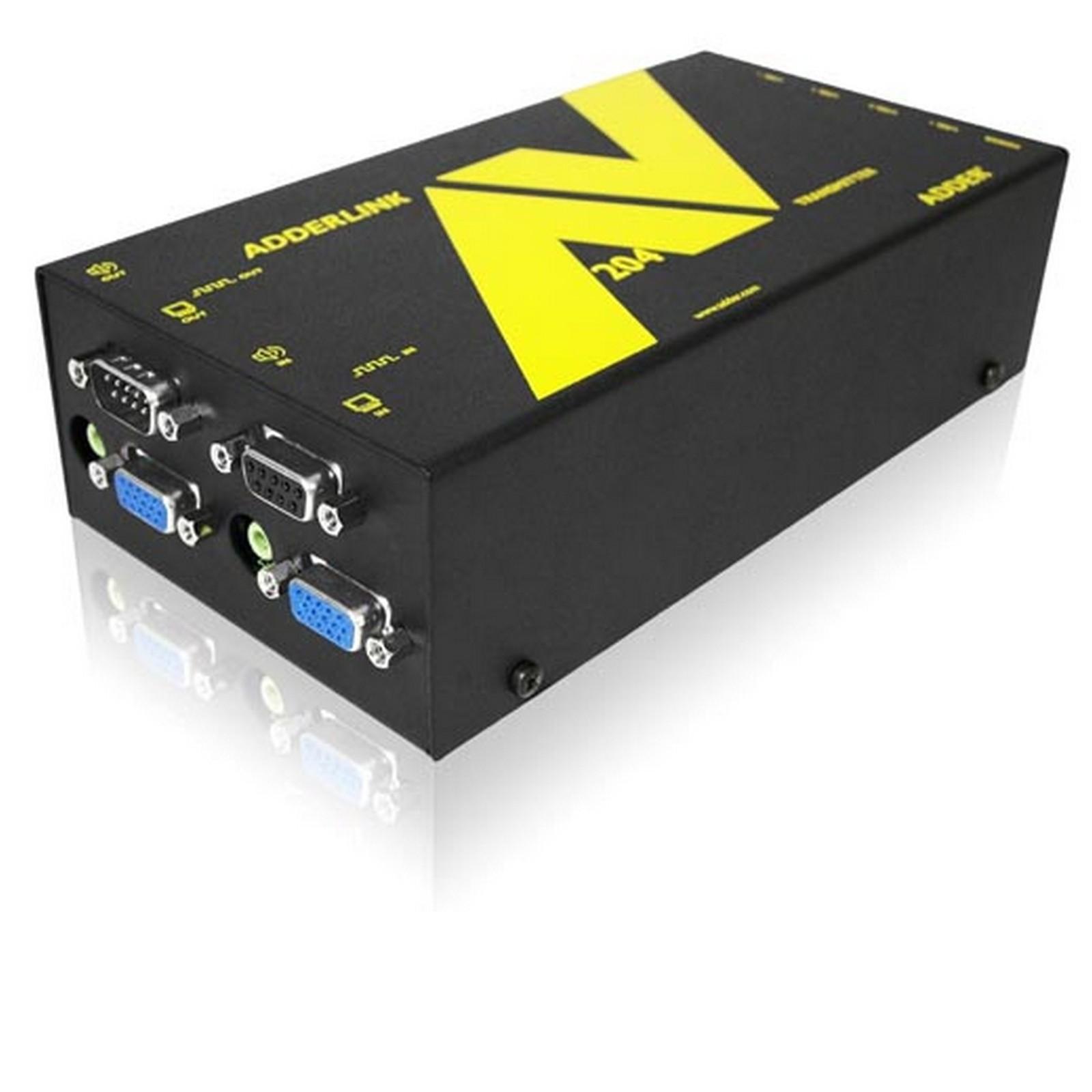

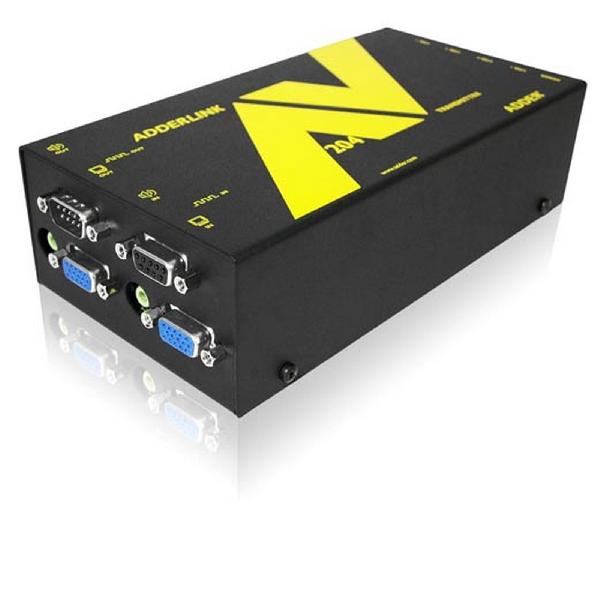

| ADDERLink AV 200T, 200R and 201R Metal case (steel and stainless steel), 98mm x 95mm x 25mm. ADDERLink AV 204T, 208T Metal case (steel and stainless steel), 185mm x 95mm x 51mm |
Power |
| All ADDERLink AV units are powered by an external 5.3V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 5.3V DC, 4amp power supply and the Adder “Squid” cable. |
Spike suppression |
| All ADDERLink AV units are fitted with spike suppression circuits. |
Display Data Channel |
| DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation. |
Optional accessories |
| ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for ALAV200T, 200R and 201R local/ remote units (part codes: ALAV-RMKFACIA), rack mount plate for ALAV204T and 208T (ALAV-RMK-XXXXX) Adder 4amp power supply and “squid” cable to power 4 ALAV units (part code ALAVPDM-KIT). |
Power |
| Operating Voltage: 100-240VAC Power Frequency: 50-60Hz Usage: 5VDC at 500mA |
Operating temperature |
| 0ºC to 40ºC / 32ºF to 104ºF |
Humidity Tolerance |
| 5 to 60% non-condensing |
Approvals |
| FCC class A, CE marked |
| Name | Type | Version | Release Date | |
| ADDERLink AV200 | Datasheet | V6.0 | 05 August 2020 |
