ADDERLink X100

Home  >   Adder  >   Extenders  >
USB Extenders

Short haul, fully featured, keyboard, video, mouse and optional audio extender for PS/2 and USB computers

Product Feature

  • Video performance
    Industry leading resolutions of 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).
  • Video compensation
    The ADDERLink X-100 applies signal compensation that allows for smooth and fine adjustments providing great video quality up to 100m.
  • Emulated DDC
    Unless an extender actively supports DDC some wellknown high performance video cards cannot be used at high resolutions. The ADDERLink X-100s fully support DDC.
  • USB Emulation
    When using an X-100 pair to extend a CPU with a USB keyboard and mouse interface, it is ensured that the keyboard and mouse are continually emulated for maximum availability and essential functionality such
    as country code reporting for Sun CPUs.
  • Brightness control
    The ADDERLink X-100s offer their own brightness correction to ensure images are crisp, clear and bright.
  • Audio
    Optional digital stereo audio delivers high fidelity audio for speakers.
  • Variety of models available
    To suit the maximum possible number of applications the X-100 is available in a number of models, PS/2 and video (X-100-PS2/P) PS/2, video and audio (X-100A-PS2/P), USB and video (X-100-USB/P) and USB, video and audio (X-100A-USB/P).

ADDERLink X100s have been designed for use in applications where keyboard, mouse, high quality video and audio needs to be
extended no more than 100m (330ft) over category 5 or higher UTP cable.

The ADDERLink X100s provide industry-leading video clarity, audio quality and compatibility.

Video resolutions

1600 x 1200 at distances up to 100m/330ft,
1900 x 1440 at distances up to 50m/165ft

Extension Distance

Up to 100m/330ft using CATx cable (x=5,5e,6,7)

Devices Supported

Supports any computer with PS/2 or USB style
keyboard and mice, flat-screen and CRT style
monitors with standard HD-15 video connectors
and optional audio through 3.5mm audio jack

O/S Compatability

All known software and operating systems
including Windows (all), DOS, Linux, Unix,
BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (local)

Video: HDD15 Keyboard Mouse: MiniDin6. Optional
audio: 3.5mm jack CATx: 1 x RJ45 connector Or
Video: HDD15 Keyboard Mouse: USB type A.
Optional audio: 3.5mm jack CATx: 1 x RJ45 connector

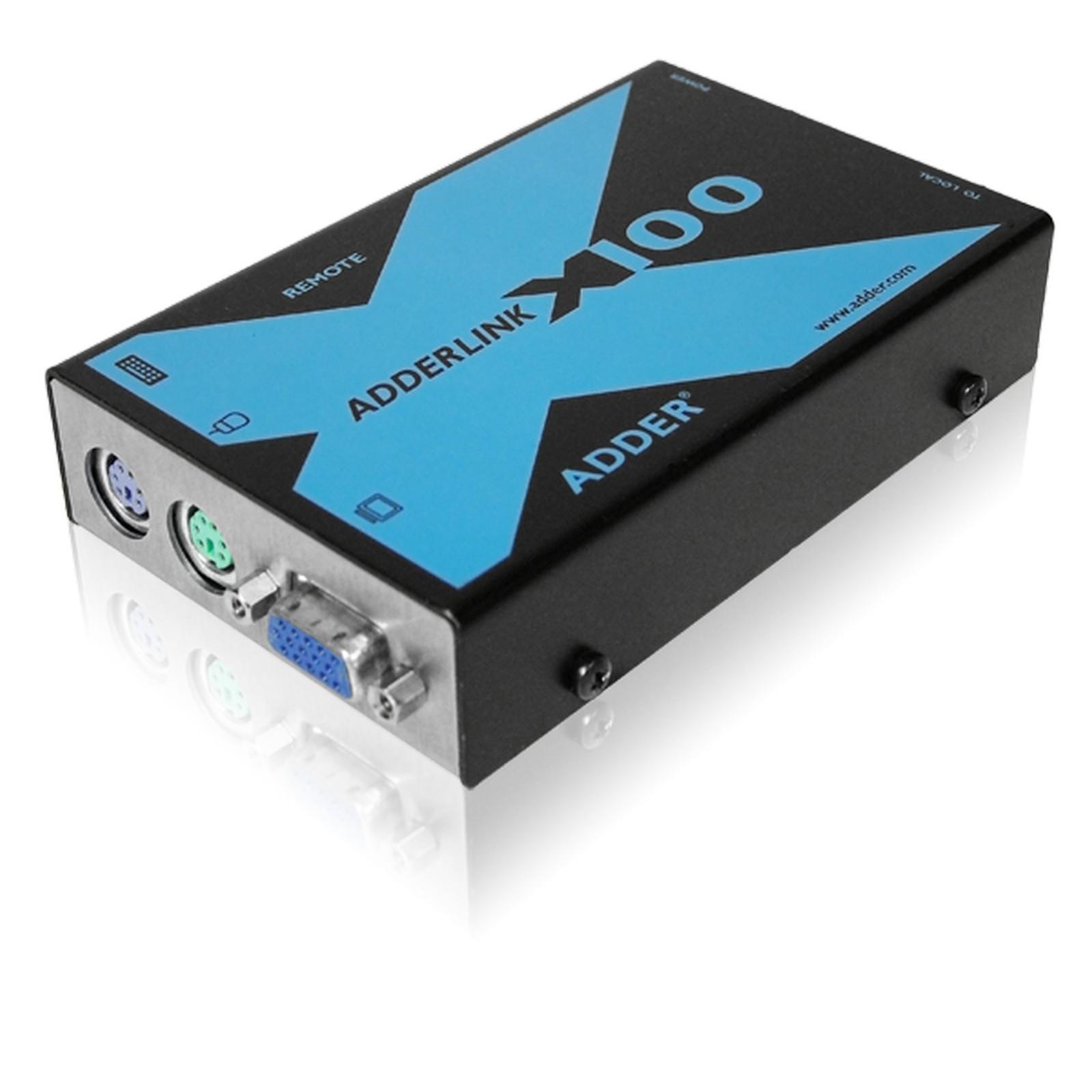

Connectors (remote)

Video: HDD15 Keyboard Mouse: MiniDin6.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector. Power: 2.5mm DC jack

Physical (local)

Combination of plastic enclosure and cables.
Enclosure: 64mm x 45mm x 25mm
Cables: 340mm long

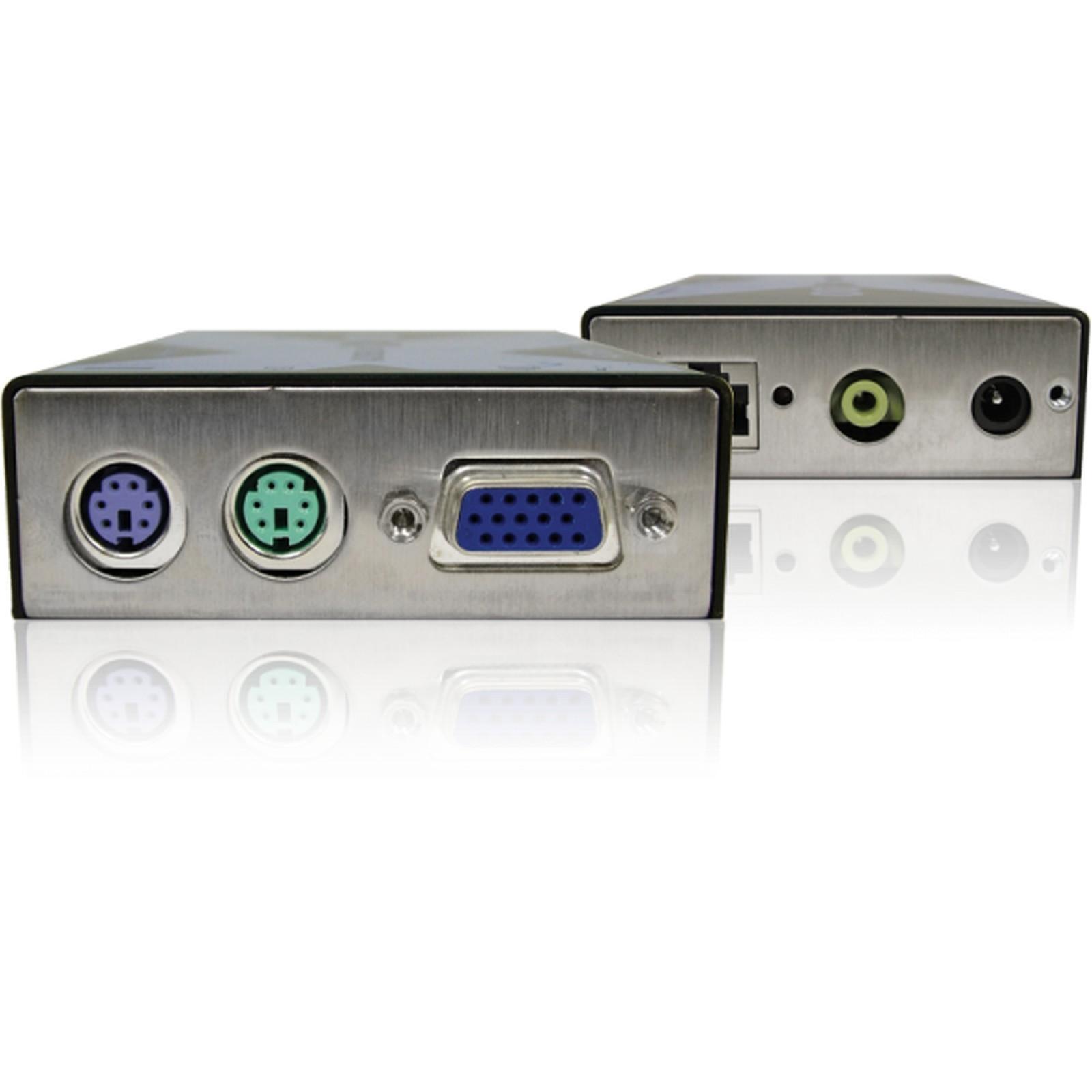

Physical (remote)

All metal case, 123mm x 74mm x 26 mm

Power supply

100 - 240VAC 50/60Hz

Operating temperature

0ºC to 40º / 32ºF to 104ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDERLink X100 Datasheet Datasheet 05 August 2020
