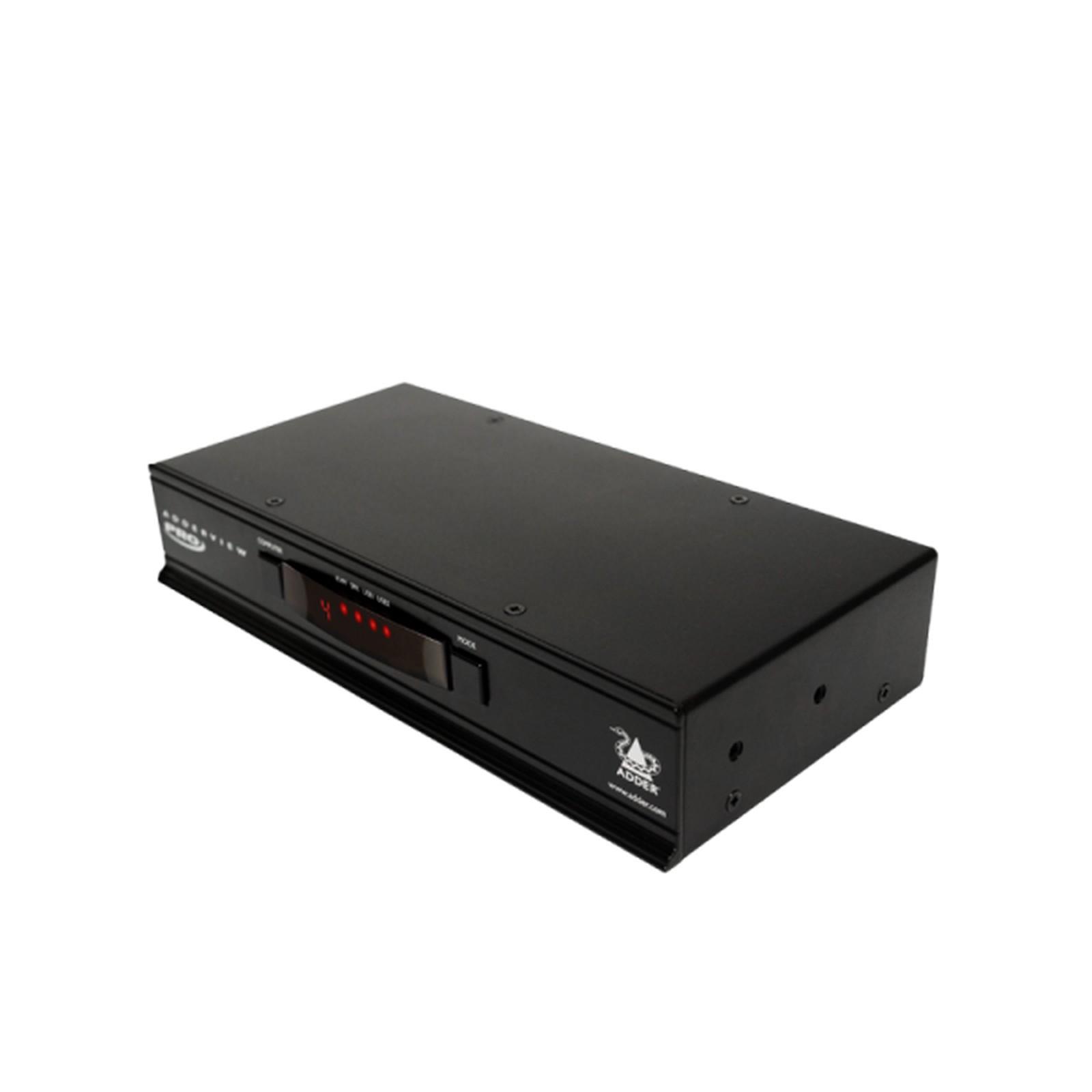

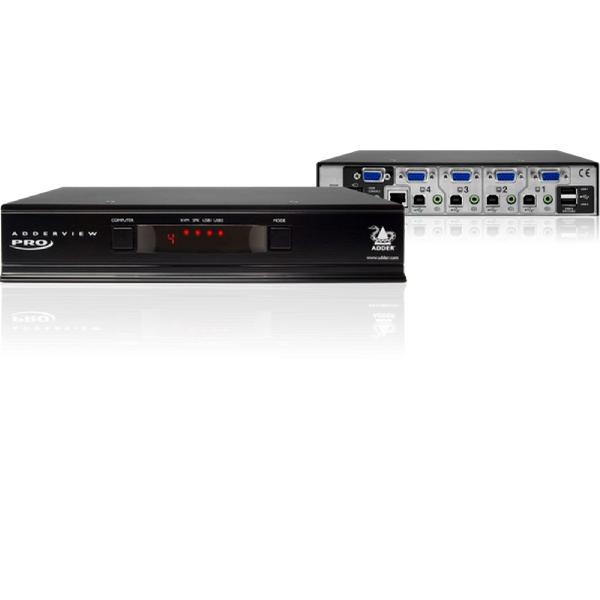

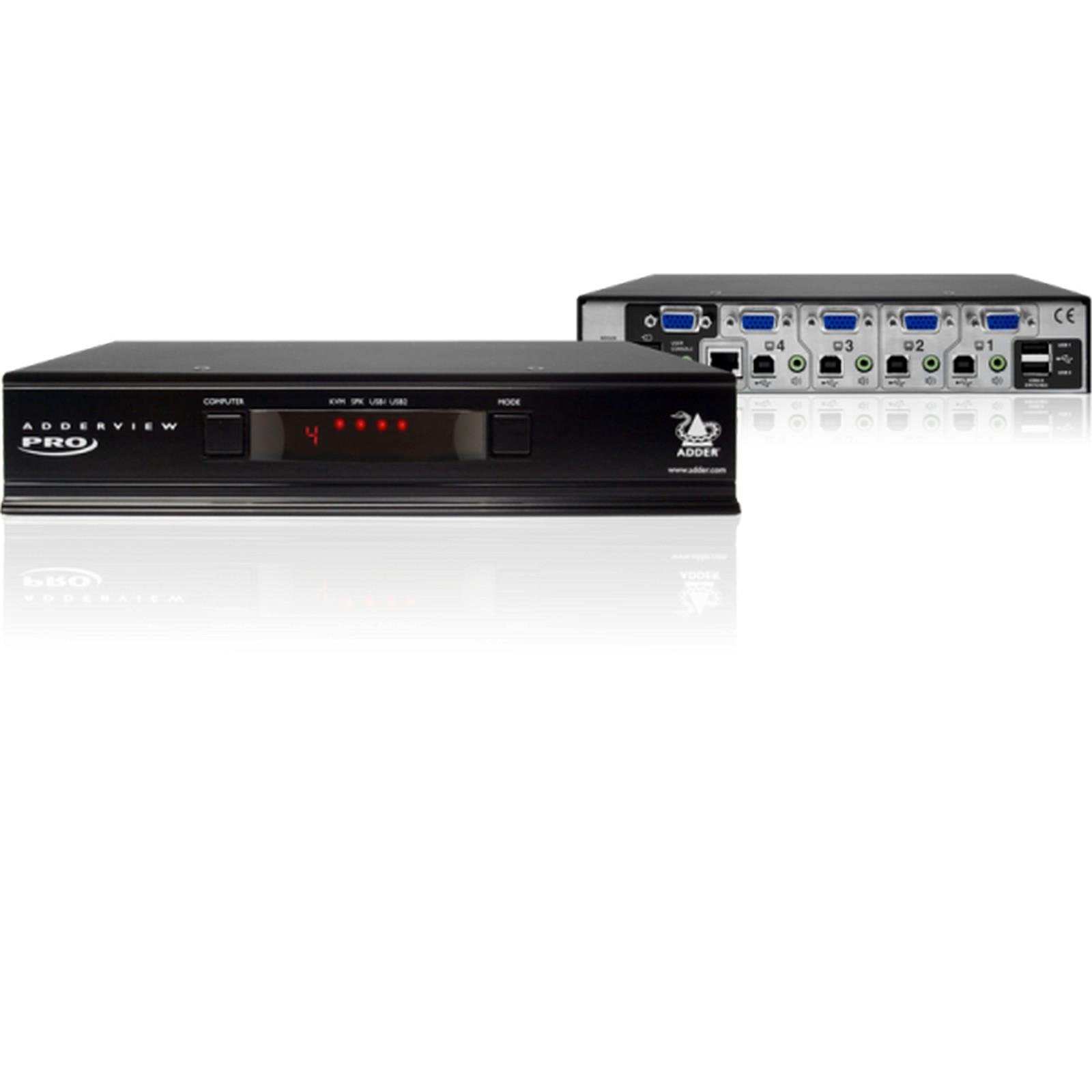

ADDERView 4 PRO VGA

Home  >   Adder  >   Switch  >
Desktop KVM Switches

KVMA switch that shares digital video and USB between up to four multi-head computers through a VGA port

Product Feature

  • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
  • High resolution video: VGA capabilities enable users to work at very high resolutions including WUXGA (1920 x 1200) or (1920 x 1440)
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
  • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
  • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
  • ‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port

Part of the ADDERView® PRO range, the AV4PRO VGA is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console using analog VGA video links. This four-port switch is available in Multiscreen, DVI or DisplayPort variants.

  • Access multiple applications: allow one display, keyboard and mouse to switch control between up to eight computers
  • Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching

Hardware compatibility

All computers with USB interfaces

Software compatibility

Operates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS,
NetWare etc.

Computer connections at switch

USB 2.0 type B, Hi Res VGA (up to 4 per connection), 3.5mm
stereo jack

Local KVM console connection

Video: VGA, Keyboard/Mouse: 2 x USB type A, Switched USB: 2 x
USB 2.0 type A USB True Emulation: Emulates keyboard and mouse
on each port. Low speed HID USB 2.0 devices supported. Audio: 3.5mm
stereo jack.Other Connections: Options (flash upgrade, sync with other
AV4PRO-VGA and RS232 triggered power switches): Modular 10P10C

Physical design

2.5U high metal case
260mm (w), 150mm (d), 100mm (h)

Power

2.5mm DC jack (power adapter included),100-240VAC 50/60Hz
input to power adapter, 5VDC 2A output from power adapter

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDERView 4 PRO VGA Datasheet V3.0 06 August 2020
ADDERView 4 PRO VGA MS Datasheet V3.0 06 August 2020
