ADDER CCS-PRO8

Home  >   Adder  >   Switch  >
KM Switches

KM Switch that enables the user to switch between eight computers with a single keyboard and mouse, and share video and audio

Product Feature

  • Adder’s multi-monitor Free-Flow technology: switch between target computers by moving the mouse pointer from screen to screen
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Multiple switching options: instant switching via one of seven different methods: Free-flow; keyboard hotkeys; remote control; API; mouse buttons; front panel button; and serial control
  • External API control: with an open API, the unit can be easily set up and integrate into third party systems
  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
  • Power redundancy: dual power inlets are available for mission critical control
  • Screen Illumination Module: an optional illumination module, the CCS-XB, is available to identify, with a LED indicator, which screen is being controlled

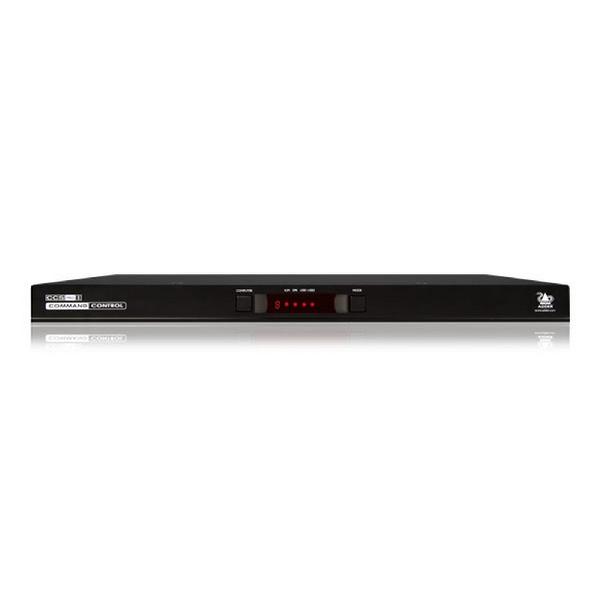

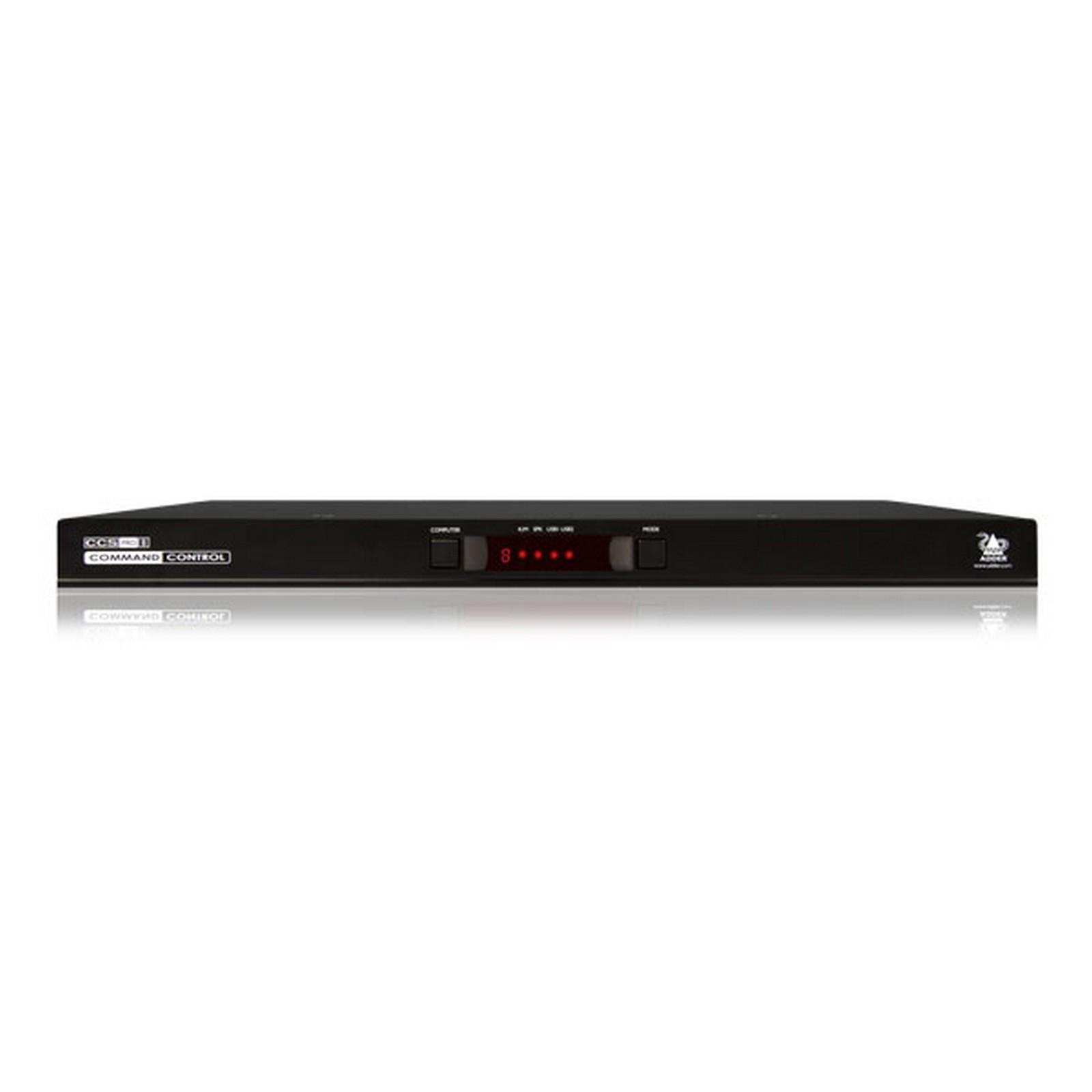

The ADDER® CCS-PRO8 is a Command and Control Switch which enables users to interact with up to eight computers using a single keyboard and mouse. The operator can simply move the cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.

  • Improved desk ergonomics: one keyboard and mouse to operate up to eight computers, saving desk space and reducing mental load
  • Seamless switching: Free-Flow allows users to switch intuitively between target computer by moving the mouse pointer from screen to screen
  • Flexible audio: amalgamated audio from selected computer sources enables the user to hear all relevant audio and alarm events

Approvals / Compliance

  • CE
  • FCC

Standards

USB 2.0

Cable Requirements

For connection to CCS-XB LED illumination module - 10p10c connector via cable VSC46

AB USB cable to connect to computer and 3.5mm audio cable

Environmental

0 to 40ºC / 32 to 104ºF

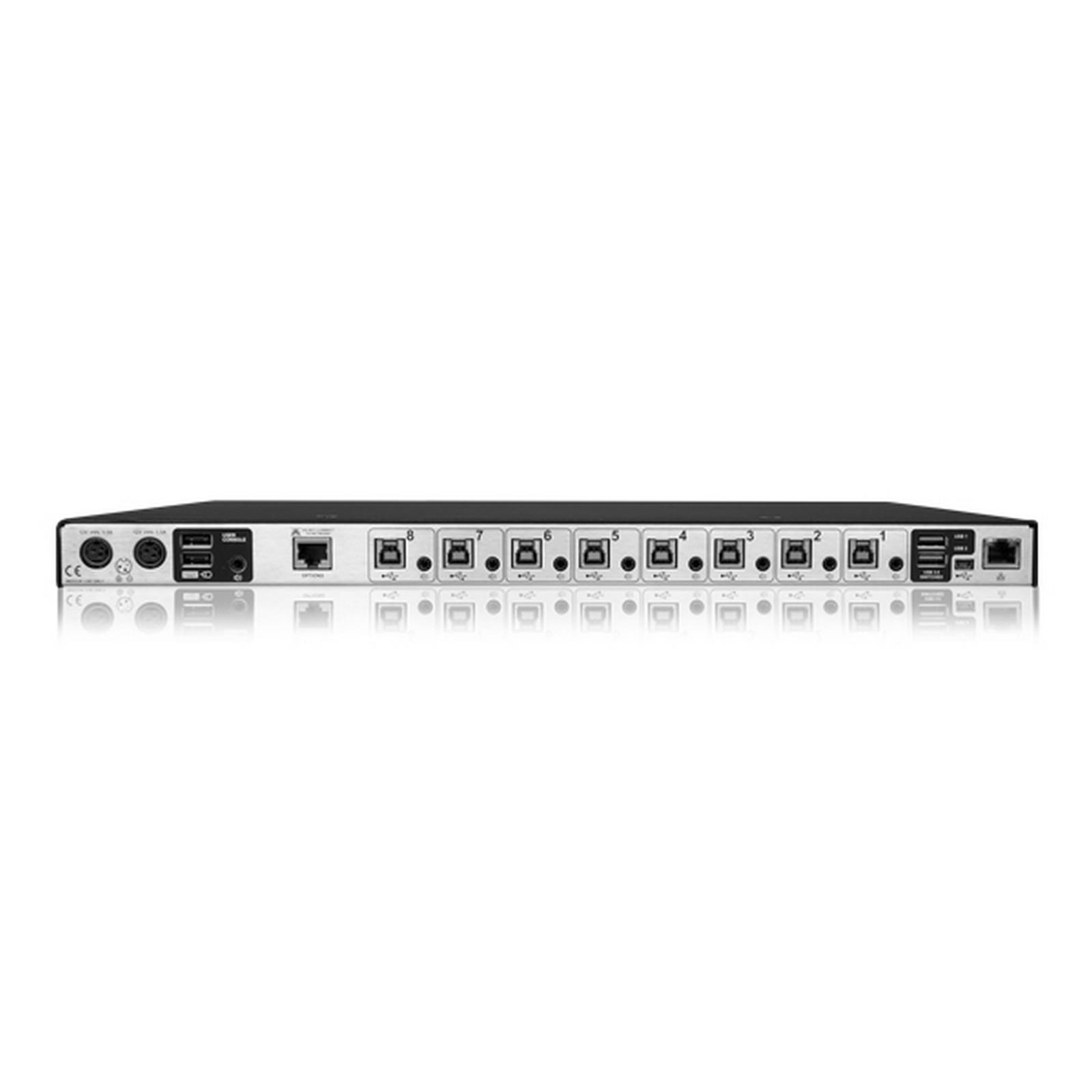

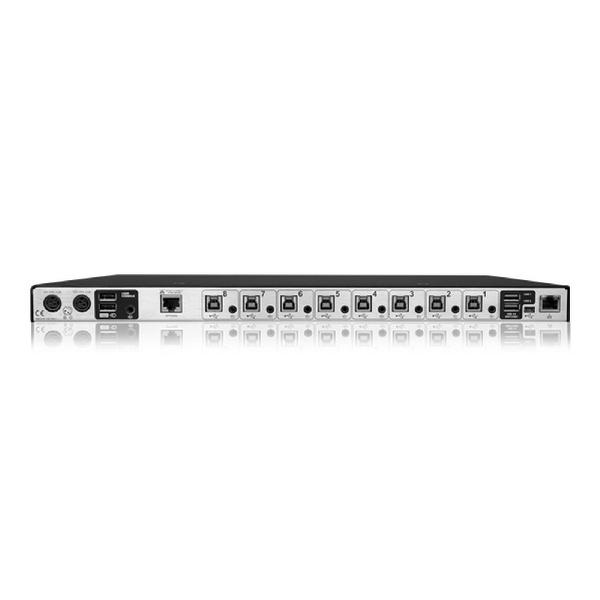

Connectors – Local Unit

10 x 6P6C connecters for the CCS-LED modules. 10P10C connector x 1, for upgrade cable or remote control RC4 4-button switch or RC8 8-button switch

Audio 3.5mm in x 8

USB type B x 8

All computers equipped with USB2.0 connections

Audio 3.5mm out x 1, USB type A x 2 (Console- USB2.0 Low and Full Speed), USB type A x2 (Enumerated USB2.0)

Mechanical

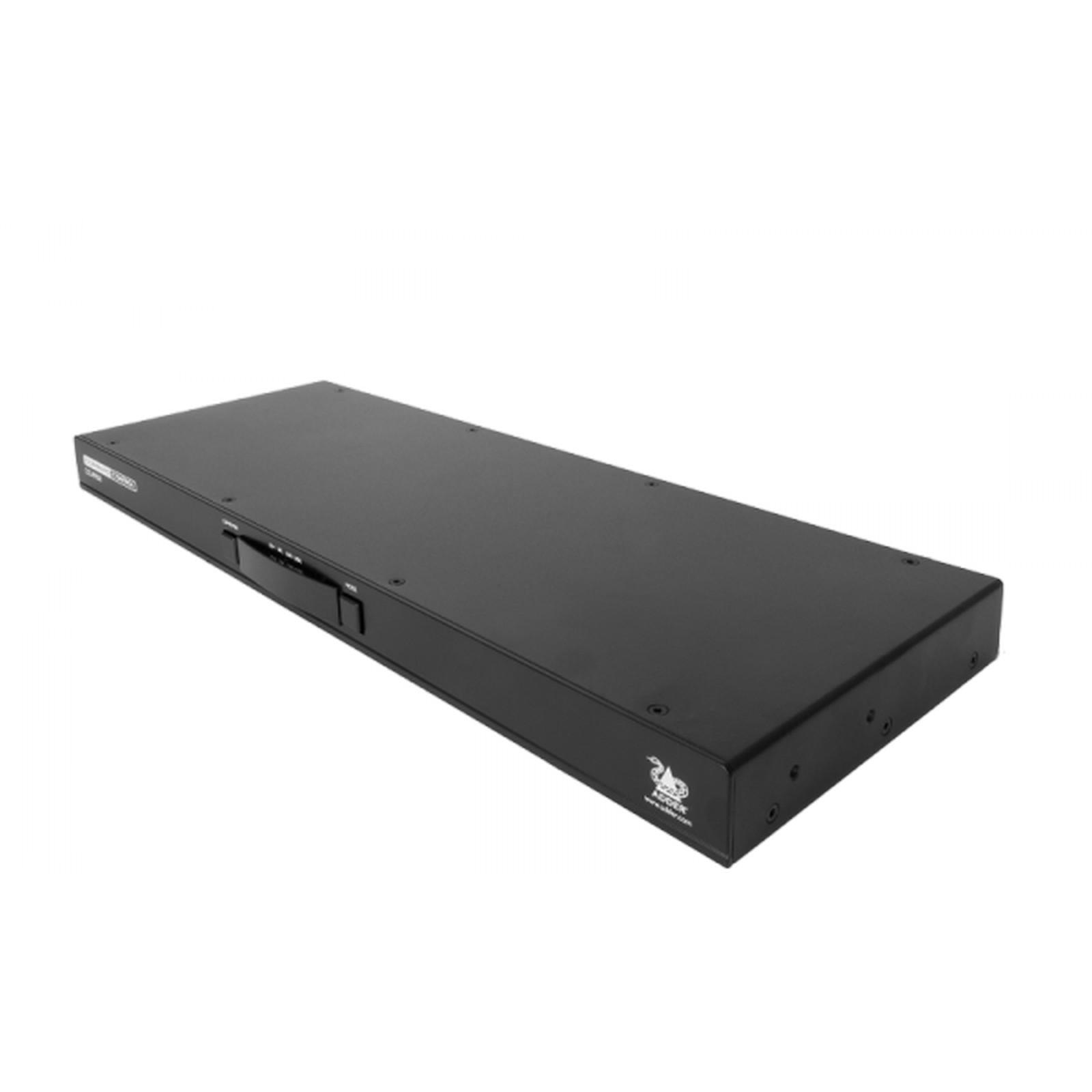

Robust metal construction. 433mm/17” (w), 30mm/1.2” (h), 158mm/6.2” (d), 1.57kg/3.5lbs

Power

Toby 3 pin jack x 2 (one power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter. 12VDC, 18W output from power adapter

Software

All known operating systems for single screens. Free-Flow works by reporting absolute mouse coordinates. Free-Flow Configuration and
firmware upgrade programs are available for use with Windows only.
Name Type Version Release Date
ADDER CCS-PRO Datasheet Datasheet V3.0 06 August 2020
