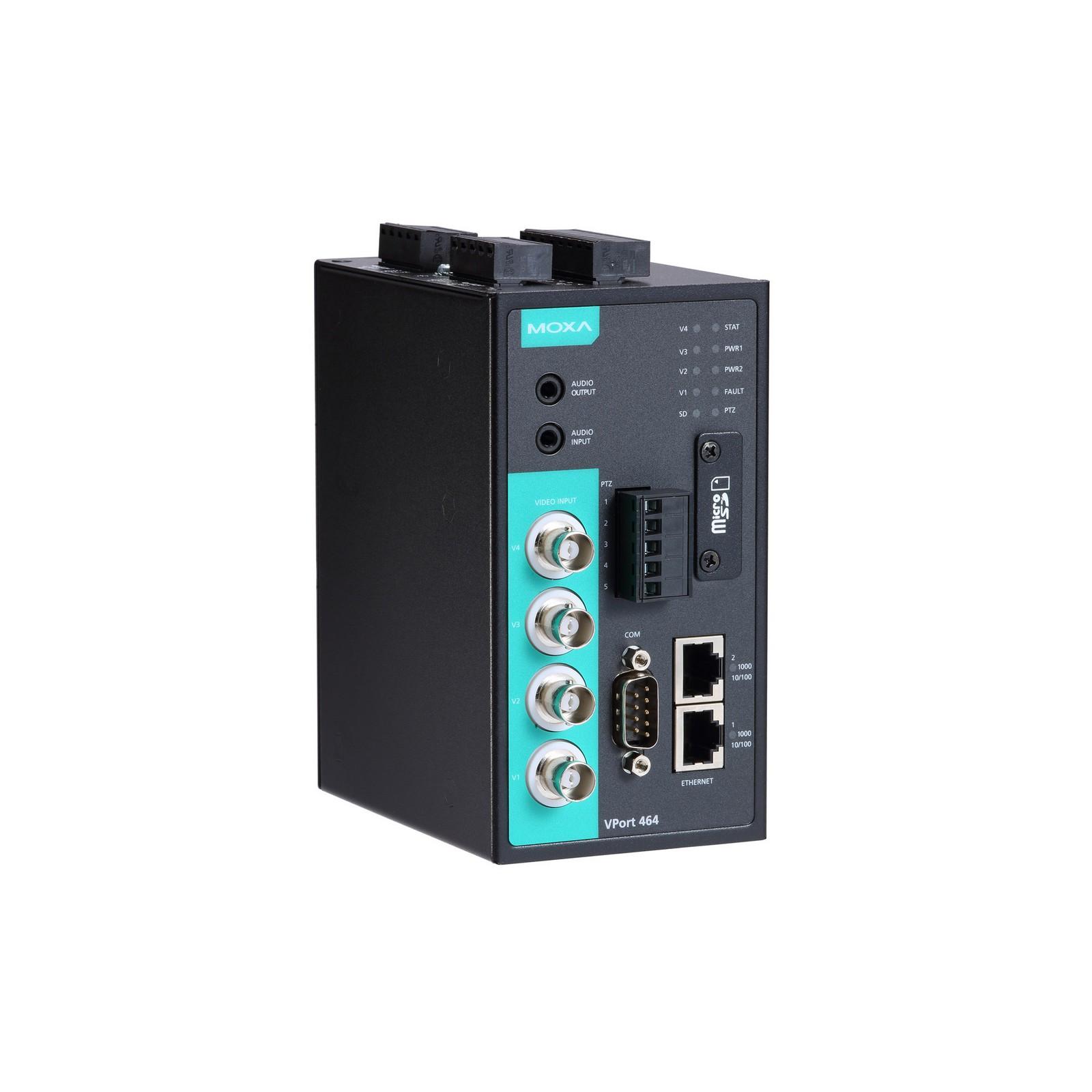

VPort 464 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
IP Cameras & Video Servers  >   Video Servers

Superior video performance, 4-channel industrial video encoders

Product Feature

  • Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
  • Video latency under 200 ms
  • 2 Ethernet ports for cascading or Ethernet port redundancy
  • DynaStream™ for optimized network efficiency
  • ONVIF support for standardization and interoperability
  • Local storage capability with microSD card slot
  • Industrial design with -40 to 75°C operating temperature

Introduction

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.

The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.

Memory

microSD SlotSDXC

Input/Output Interface

Digital Input Channels4
Digital Inputs+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Relay Channels2
Contact Current RatingResistive load: 1 A @ 24 VDC
ConnectorTerminal block

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)2

Ethernet Software Features

ProtocolsTCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client,
DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP

Security Functions

PasswordUser-level password protection
FilterIP address
Authentication802.1X
EncryptionHTTPS

LED Interface

LED IndicatorsSTAT: Indicates if system is booted up properly or not
Power 1: Power 1 on/off
Power 2: Power 2 on/off
FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
Video: Video input signal
PTZ: Indicates if PTZ or COM port data has been transmitted
SD: Indicates if SD card was mounted successfully
Network: 10 Mbps or 100 Mbps

Serial Interface

PTZ Port1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
COM Port1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
Console Port1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

No. of Power Inputs2
Input VoltageRedundant dual inputs
Operating Voltage12 to 32 VDC, 18 to 30 VAC
Input Current0.5 A @ 24 VDC
0.83 A @ 24 VAC
Power Connector2-pin terminal block

Video Interface

Video CompressionH.264 (ISO/IEC 14496-10) or MJPEG
Video Input4, BNC connector (1.0 Vpp, 75 ohm)
Video Outputvia Ethernet
Video Streams2 independent H.264 or MJPEG video streams
1 quad (4-channel images) stream
NTSC/PALAuto-sensing or manual
Video ViewingDynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 5 simultaneous unicast connections, 50 multicast clients
Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

Audio Interface

Audio Inputs1 Line-in or MIC-in with 3.5 mm phone jack
Audio Outputs1 Line-out, with 3.5 mm phone jack
Audio FormatMono, PCM (G.711)

Camera Software Development

VPort SDK PLUSIncludes CGI commands, ActiveX Control, and API library for customized applications or system
integration for third-party developers
Video StandardsONVIF Profile S

Camera PAN/TILT/ZOOM

PTZ Camera ControlVia PTZ port or COM port
PTZ Control FunctionsPan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
PTZ Function UpdatesDriver upload supported
ProtocolsPelco D, Pelco P, Custom Camera

Camera Alarm Software Features

Intelligent VideoCamera tampering detection
Video Motion Detection3 independently configurable areas
SchedulingDaily repeat timing schedule
ImagingJPEG snapshots for pre/trigger/post alarm images
Custom AlarmsHTTP event servers for setting customized alarm actions
Email/FTP MessagingAutomatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer50 MB video buffer for JPEG snapshot images
Video RecordingEvent recordings stored on the SD card

Software Requirements

Memory Size1 GB
Operating SystemWindows 7 or above
BrowserInternet Explorer 9.x or above
MultimediaDirectX 9.0C or above

Physical Characteristics

HousingMetal
Dimensions80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight1130 g (2.49 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Altitude2000 m

Standards and Certifications

EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
FreefallIEC 60068-2-31
SafetyUL 60950-1
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time569,152 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for VPort 464 Series Datasheet V1.0 12 November 2018
