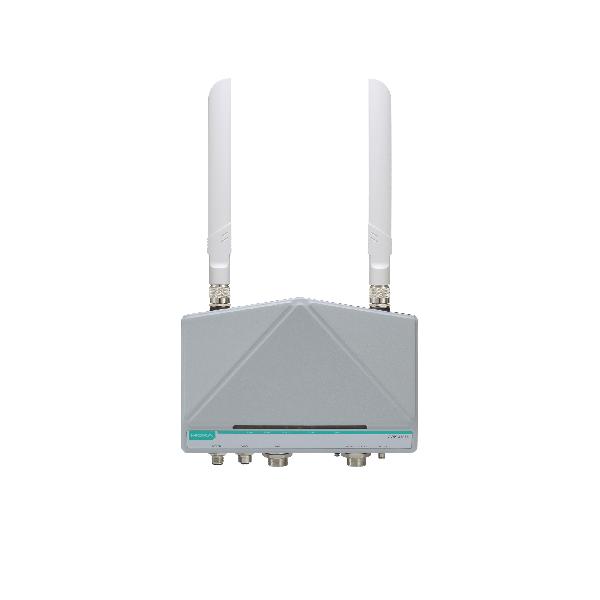

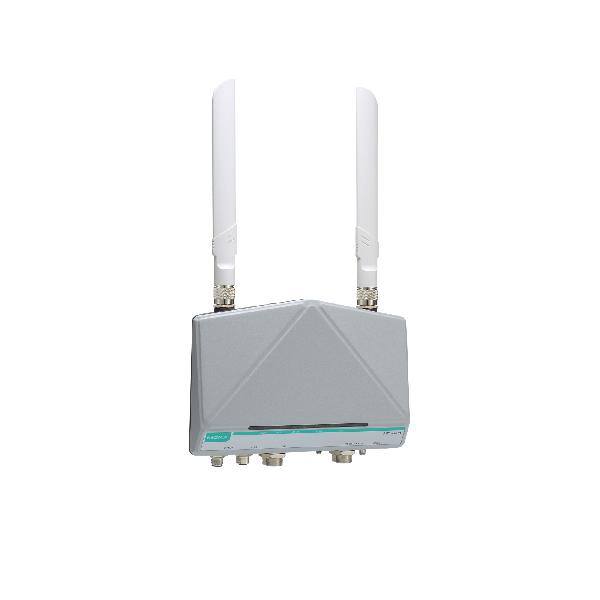

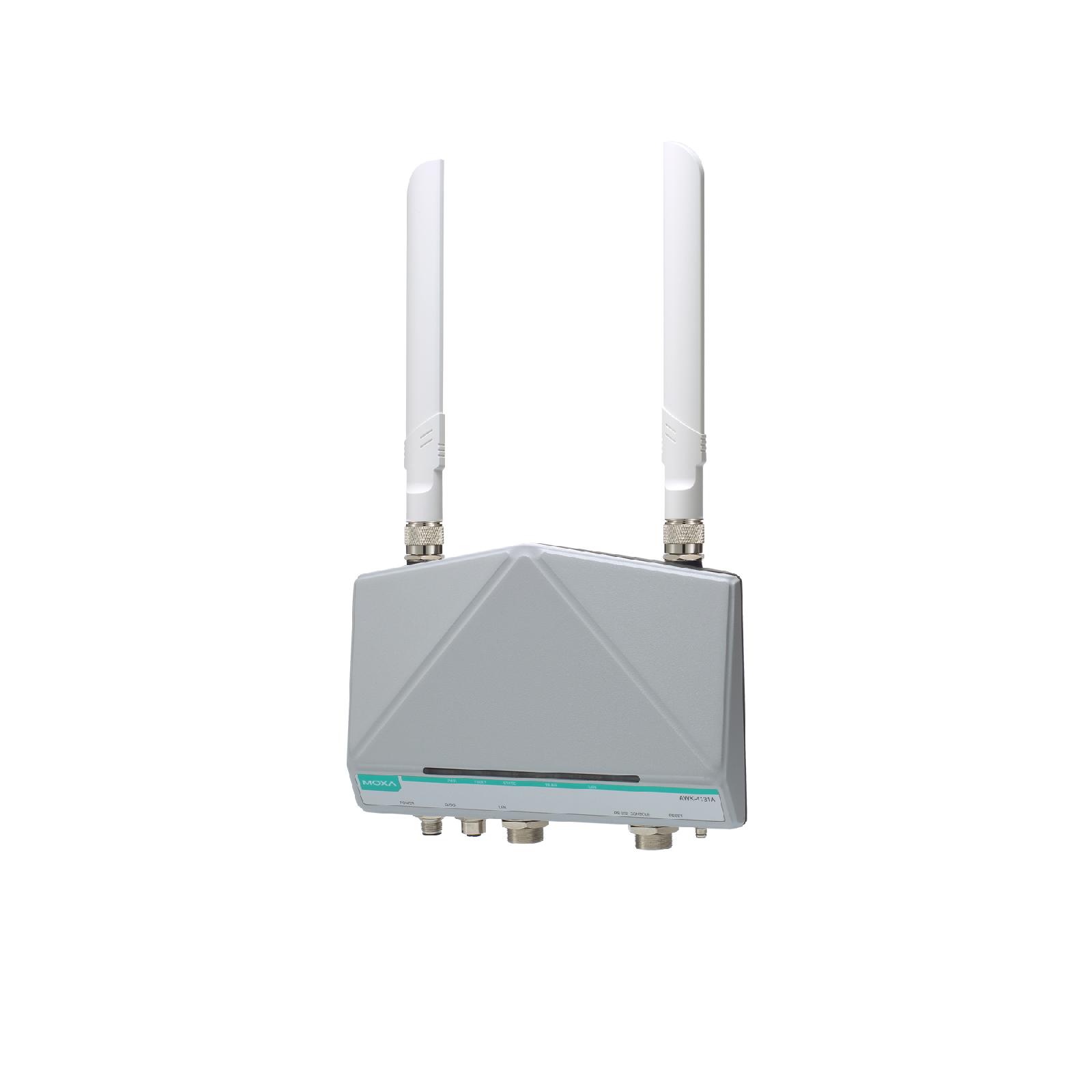

AWK-4131A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Wireless AP/Bridge/Client  >   WLAN AP/Bridge/Client

Outdoor industrial IEEE 802.11a/b/g/n wireless AP/bridge/client

Product Feature

  • 2x2 MIMO 802.11a/b/g/n AP/bridge/client
  • Millisecond-level Client-based Turbo Roaming
  • Easy setup and deployment with AeroMag
  • Wireless redundancy with AeroLink Protection
  • Easy network setup with Network Address Translation (NAT)
  • Rugged industrial design with integrated antenna and power isolation
  • IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range
  • Avoid wireless congestion with 5 GHz DFS channel support

Introduction

The AWK-4131A IP68 outdoor industrial AP/bridge/client meets the growing need for faster data transmission speeds by supporting 802.11n technology and allowing 2X2 MIMO communication with a net data rate of up to 300 Mbps. The AWK-4131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4131A can be powered via PoE to make deployment easier. The AWK-4131A can operate on either the 2.4 GHz or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.



Advanced 802.11n Industrial Wireless Solution

  • 802.11a/b/g/n compliant AP/bridge/client for flexible deployment
  • Software-optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)
  • Supports 60 clients connected concurrently
  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure



Advanced Wireless Technology for Mission-critical Applications

  • Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client mode)
  • AeroMag support for error-free setup of your industrial applications’ basic WLAN settings
  • Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between APs and their clients



Industrial Ruggedness

  • Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
  • IP68-rated metal casing for complete ingress protection for any outdoor weather
  • -40 to 75°C wide operating temperature models available for smooth wireless communication in harsh environments

WLAN Interface

WLAN Standards802.11a/b/g/n
802.11i Wireless Security
Modulation TypeDSSS
OFDM
MIMO-OFDM
Frequency Band for US (20 MHz
operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz
operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz
operating channels)
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.240 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Wireless SecurityWEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
Transmission Rate802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n
(5 GHz)
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power for 802.11b26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n
(2.4 GHz)
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz
Receiver Sensitivity for 802.11a
(measured at 5.680 GHz)
Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -72 @ 54 Mbps
Receiver Sensitivity for 802.11n
(5 GHz; measured at 5.680 GHz)
Typ. -69 dBm @ MCS7 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11b
(measured at 2.437 GHz)
Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps
Typ. -86 dBm @ 9 Mbps
Typ. -85 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -85 dBm @ 24 Mbps
Typ. -82 dBm @ 36 Mbps
Typ. -78 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n
(2.4 GHz; measured at 2.437 GHz)
Typ. -70 dBm @ MCS7 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -67 dBm @ MCS15 40 MHz
WLAN Operation ModeAccess point, Client, Client-Router, Master, Slave, Sniffer
AntennaExternal, 3/6 dBi, Omni-directional
WLAN Antenna Connector2 N-type female

Ethernet Interface

StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af for PoE
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
PoE Ports (10/100/1000BaseT(X),
RJ45 connector)
1

Ethernet Software Features

ManagementDHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP,
SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility,
MXview, MXconfig
RoutingStatic Route, NAT, Port forwarding
Redundancy ProtocolsRSTP, STP
SecurityHTTPS/SSL, RADIUS, SSH
Time ManagementSNTP Client

Firewall

FilterICMP, MAC address, IP protocol, Port-based

Serial Interface

Console PortRS-232, 8-pin RJ45

LED Interface

LED IndicatorsPWR, FAULT, STATE, WLAN, LAN

Input/Output Interface

Alarm Contact ChannelsRelay output with current carrying capacity of 1 A @ 24 VDC
ButtonsReset button
Digital Inputs+13 to +30 V for state 1
+3 to -30 V for state 0
Max. input current: 8 mA

Physical Characteristics

HousingMetal
IP RatingIP68
Dimensions224 x 147.7 x 66.5 mm (8.82 x 5.82 x 2.62 in)
Weight1,400 g (3.09 lb)
InstallationWall mounting (standard), DIN-rail mounting (optional), Pole mounting
(optional)

Power Parameters

Input Current 0.64 A @ 12 VDC, 0.16 A @ 48 VDC
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector M12 A-coded 5-pin male connector
Power Consumption 7.68 W (max.)
Reverse Polarity Protection Supported

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature
(package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class B
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
RadioEN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008,
ANATEL, MIC, NCC, RCM, SRRC, WPC, KC
SafetyEN 60950-1, UL 60950-1
VibrationIEC 60068-2-6

MTBF

Time440,764 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for AWK-4131A Series Datasheet V1.9 11 March 2020
