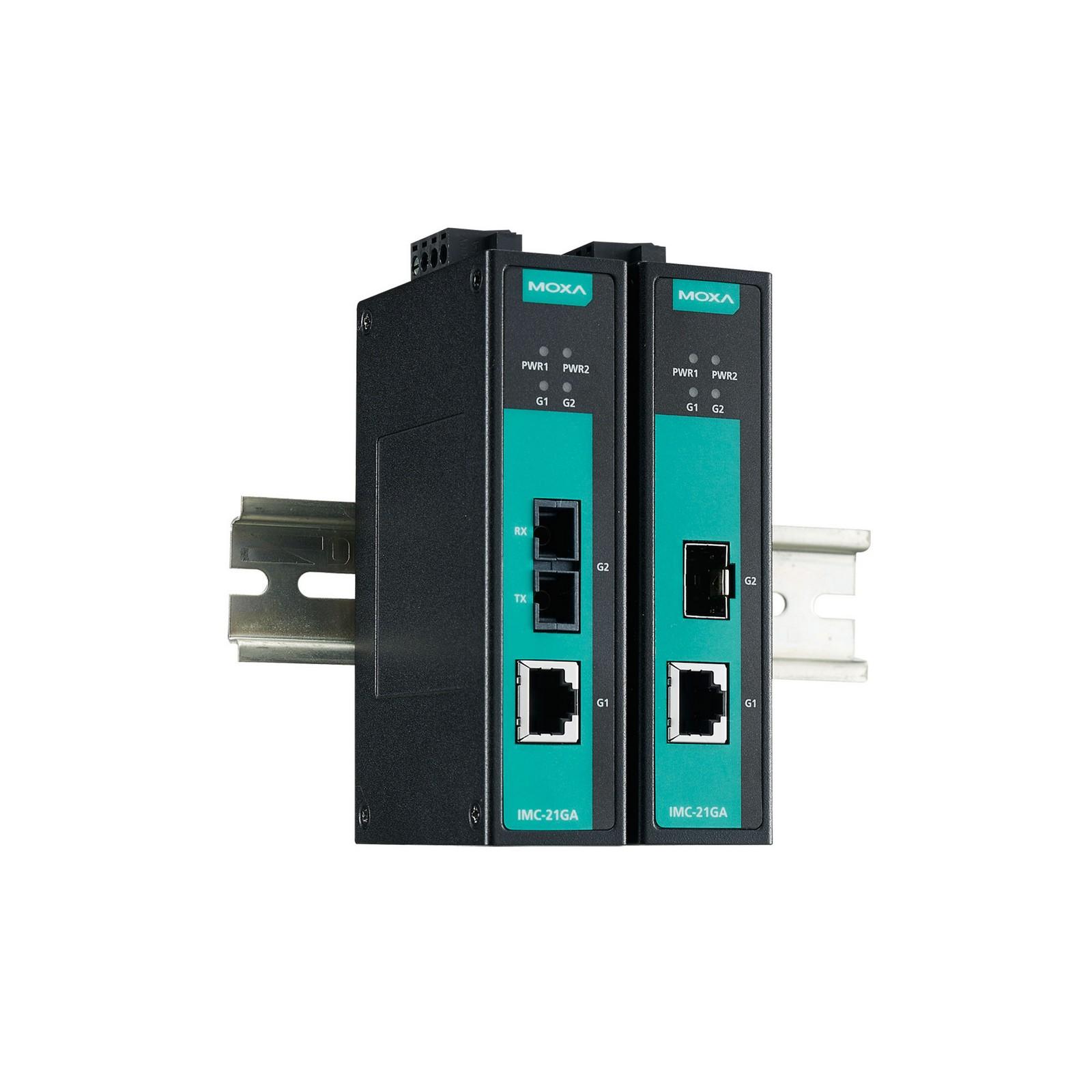

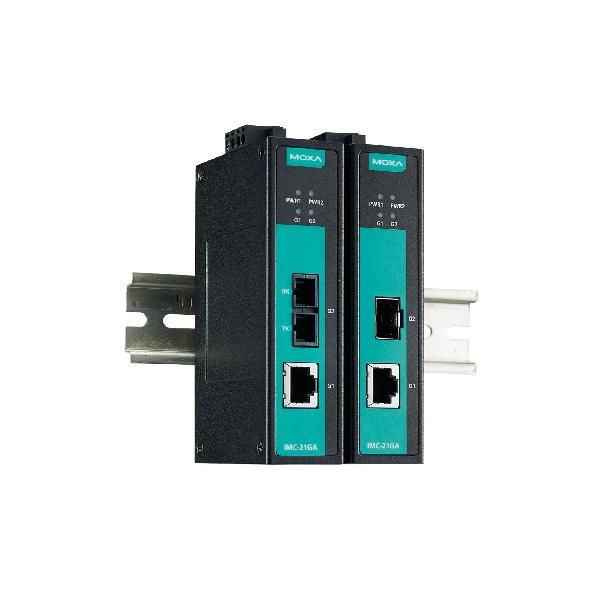

IMC-21GA Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Media Converters

Industrial Gigabit Ethernet-to-fiber media converters

Product Feature

  • Supports 1000Base-SX/LX with SC connector or SFP slot
  • Link Fault Pass-Through (LFPT)
  • 10K jumbo frame
  • Redundant power inputs
  • -40 to 75°C operating temperature range (-T models)
  • Supports Energy-Efficient Ethernet (IEEE 802.3az)

Introduction

The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy-Efficient Ethernet) and 10K jumbo frames, allowing it to save power and enhance transmission performance. All IMC-21GA models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

1

100/1000BaseSFP Ports

IMC-21GA models: 1

1000BaseSX Ports (multi-mode SC connector)

IMC-21GA-SX-SC models: 1

1000BaseLX Ports (single-mode SC connector)

IMC-21GA-LX-SC models: 1

Magnetic Isolation Protection

1.5 kV (built-in)

Optical Fiber

Read more

Power Parameters

Input Current

285 mA @ 12 VDC

Input Voltage

12 to 48 VDC

Overload Current Protection

Supported
Power ConnectorTerminal block

Power Consumption

285 mA @ 12 VDC

Physical Characteristics

Housing

Metal

Dimensions

30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)

Weight

170 g (0.37 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 1 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3

Safety

EN 60950-1, UL 60950-1

Vibration

IEC 60068-2-6

MTBF

Time

2,762,058 hrs

Standards

MIL-HDBK-217F

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for IMC-21GA Series Datasheet V1.4 19 Febuary 2020
