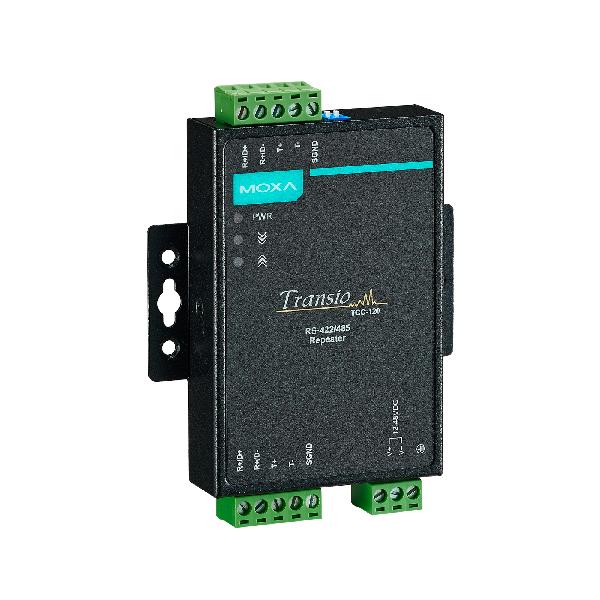

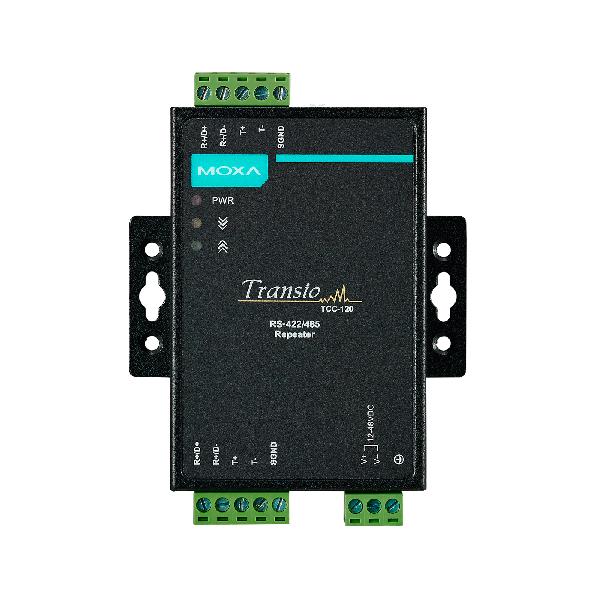

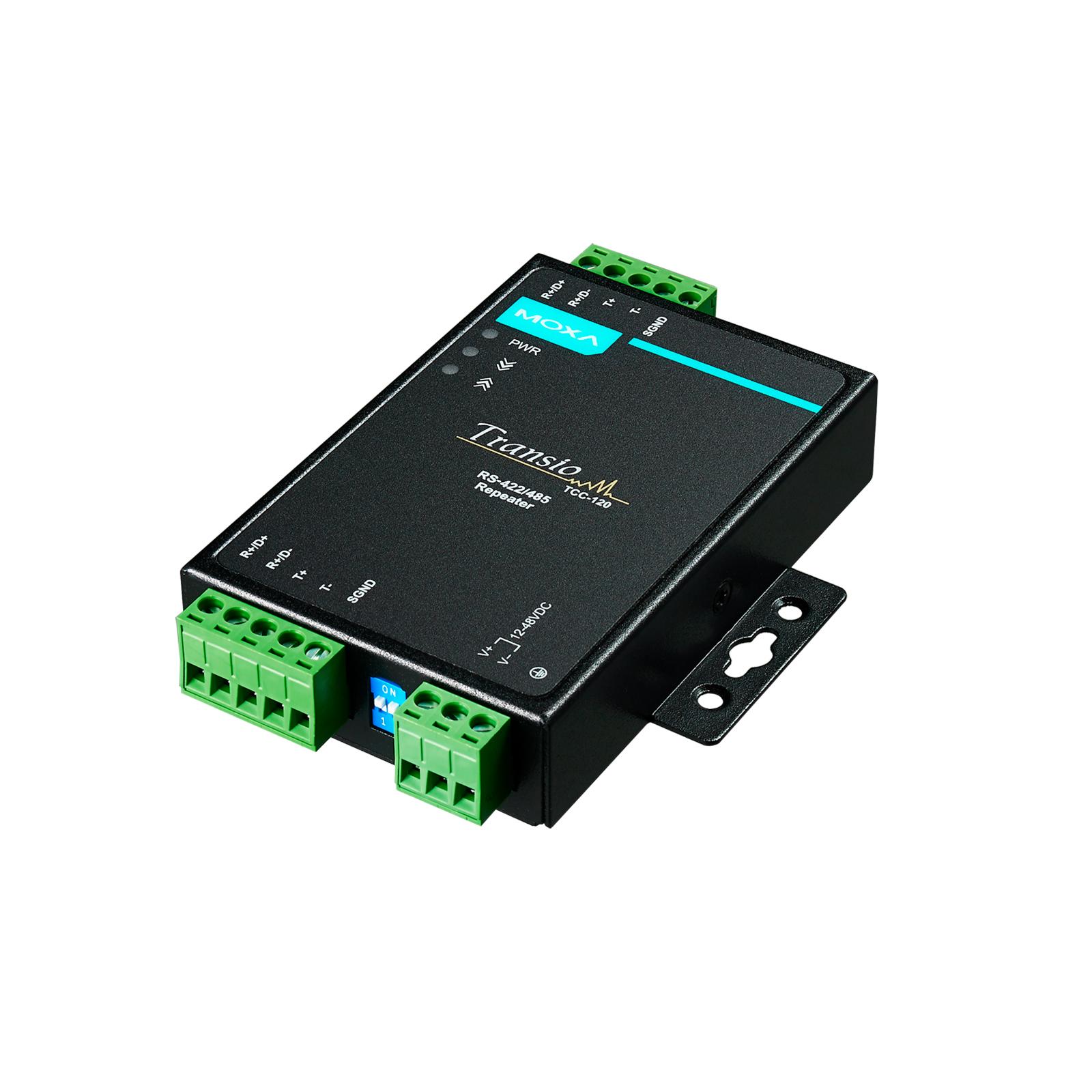

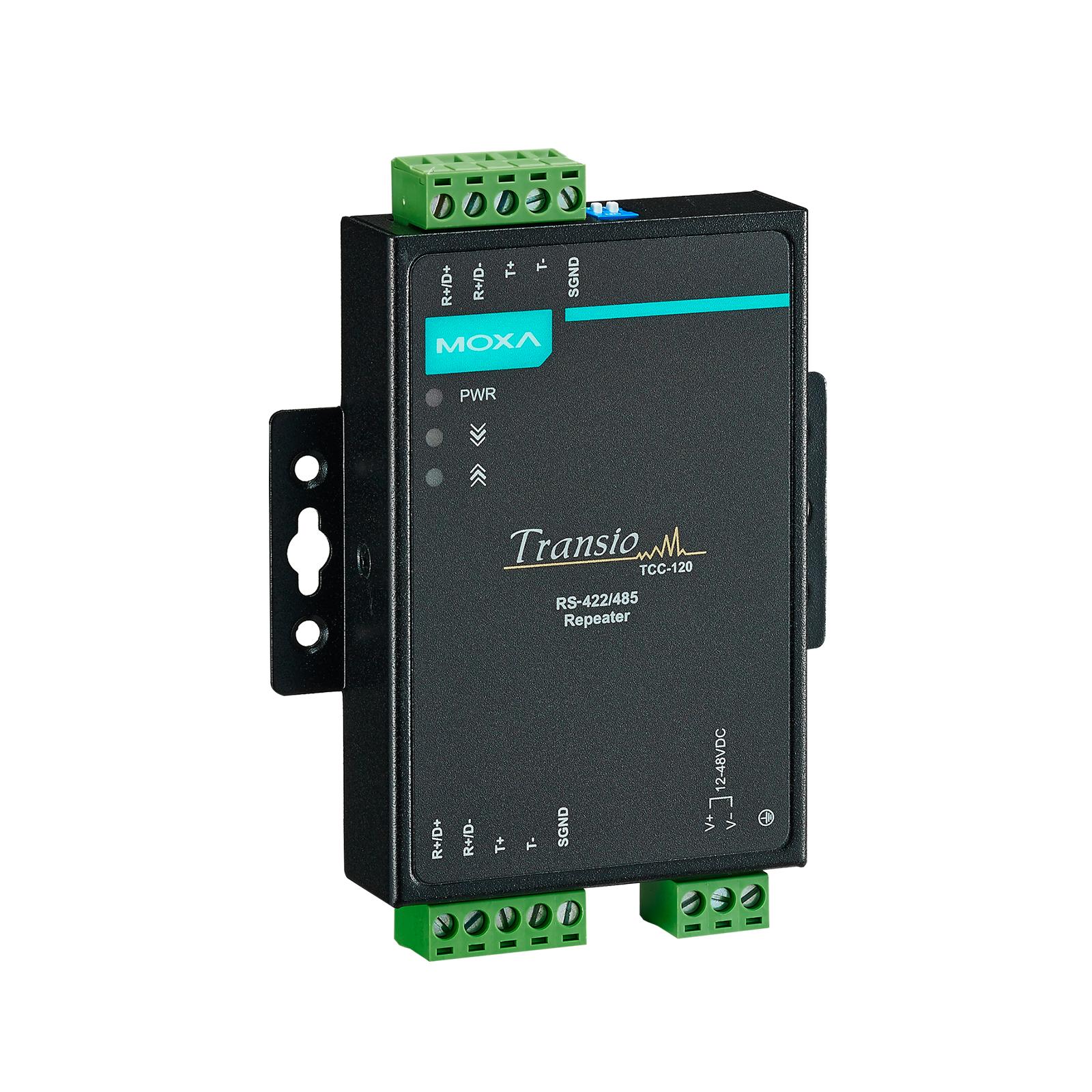

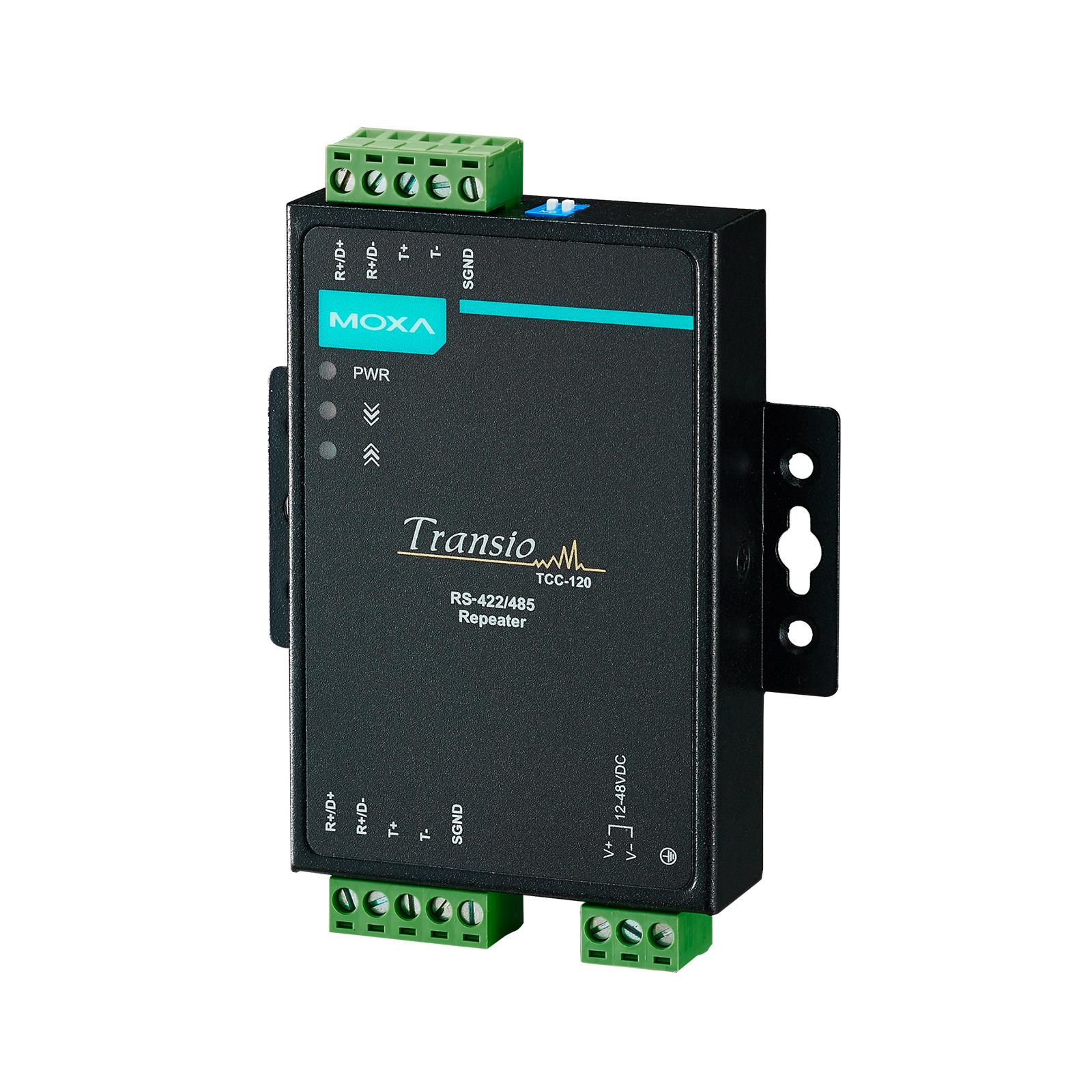

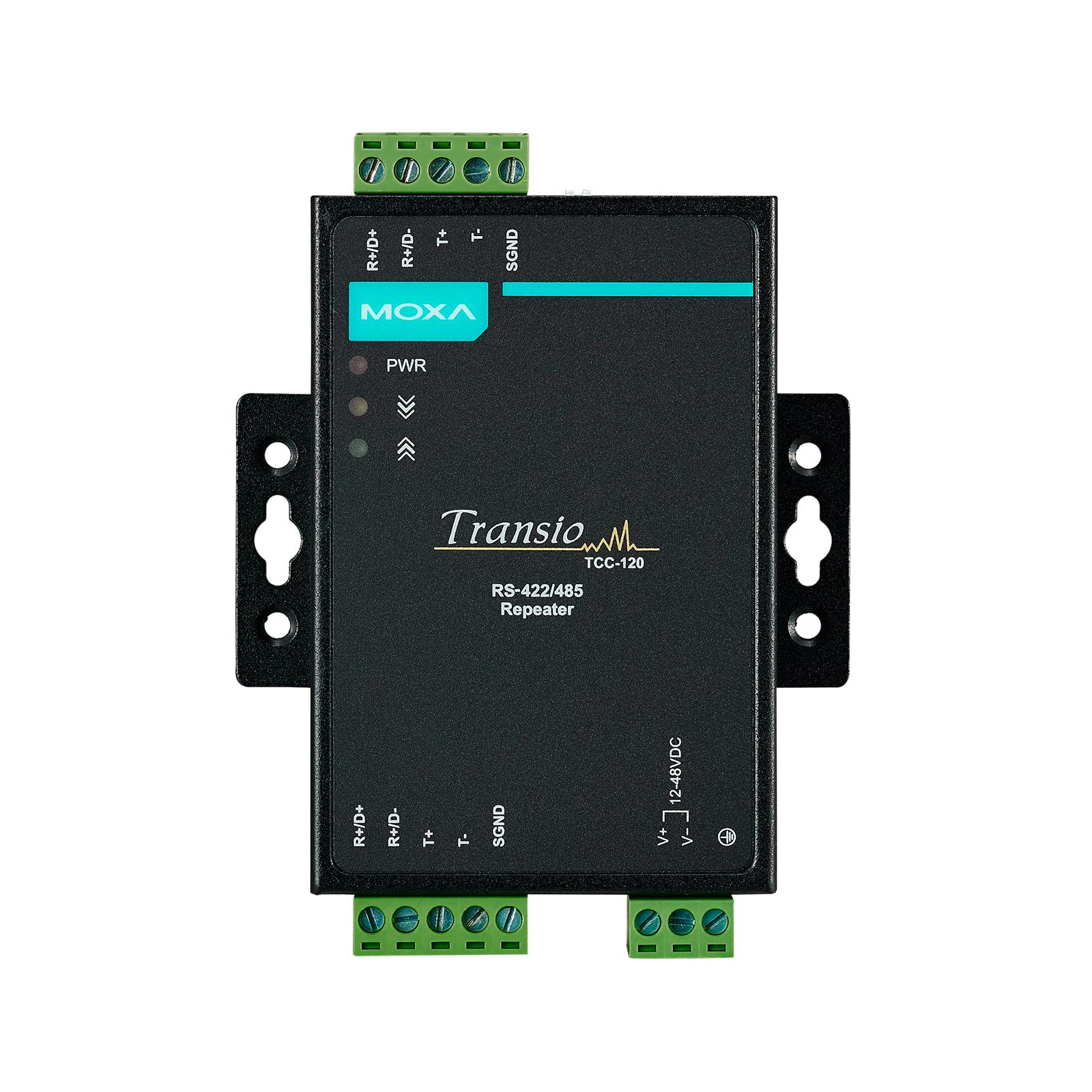

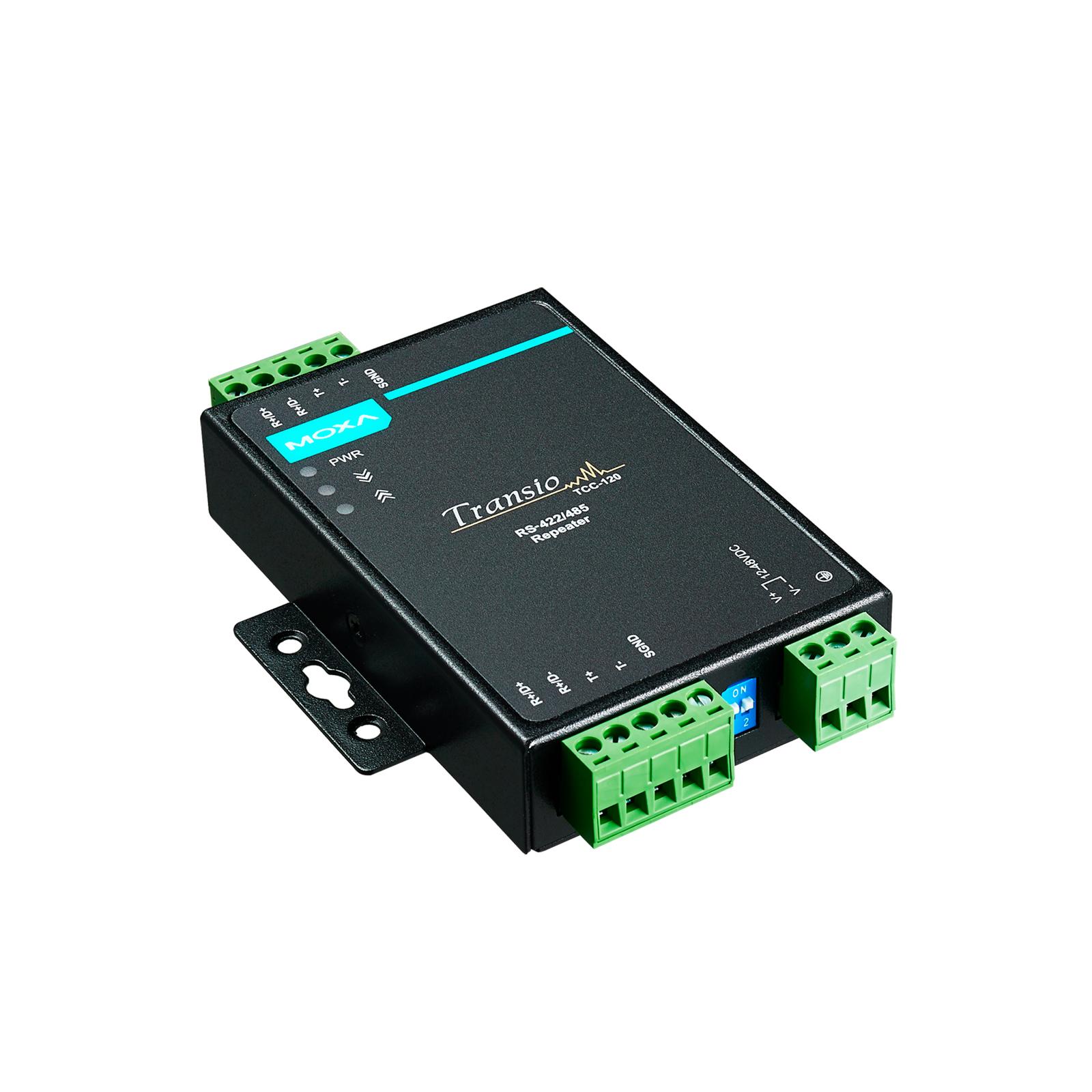

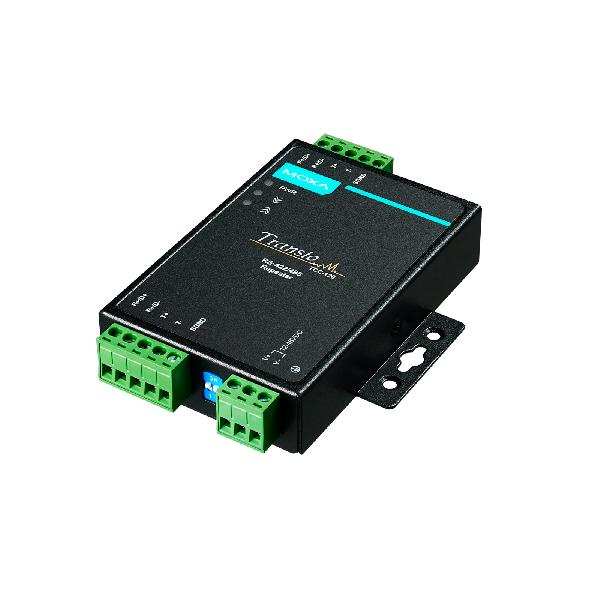

TCC-120/120I Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Converters  >   Serial-to-Serial Converters

Industrial RS-422/485 converters/repeaters with optional 2 kV isolation

Product Feature

  • Boosts serial signal to extend transmission distance
  • Wall mounting or DIN-rail mounting
  • Terminal block for easy wiring
  • Power input from terminal block
  • DIP switch setting for built-in terminator (120 ohm)
  • Boosts RS-422 or RS-485 signal, or converts RS-422 to RS-485
  • 2 kV isolation protection (TCC-120I)

Introduction

The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and an external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.

Serial Interface

Connector

Terminal block

No. of Ports

2

Serial Standards

RS-422, RS-485

Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)

Isolation

TCC-120I: 2 kV

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Terminator for RS-485

N/A, 120 ohms, 120 kilo-ohms

Serial Signals

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

TCC-120: 65 mA @ 12 VDC
TCC-120I: 180 mA @ 12 VDC

Input Voltage

12 to 48 VDC

No. of Power Inputs

1

Overload Current Protection

Supported

Power Connector

Terminal block (for DC models)

Power Consumption

TCC-120: 65 mA @ 12 VDC
TCC-120I: 180 mA @ 12 VDC

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)

Weight

148 g (0.33 lb)

Installation

DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature

Standard Models: -20 to 60°C (-4 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3

Safety

EN 60950-1, IEC 60950-1

Vibration

IEC 60068-2-6

MTBF

Time

1,949,025 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for TCC-120/120I Series Datasheet V1.1 21 May 2020
