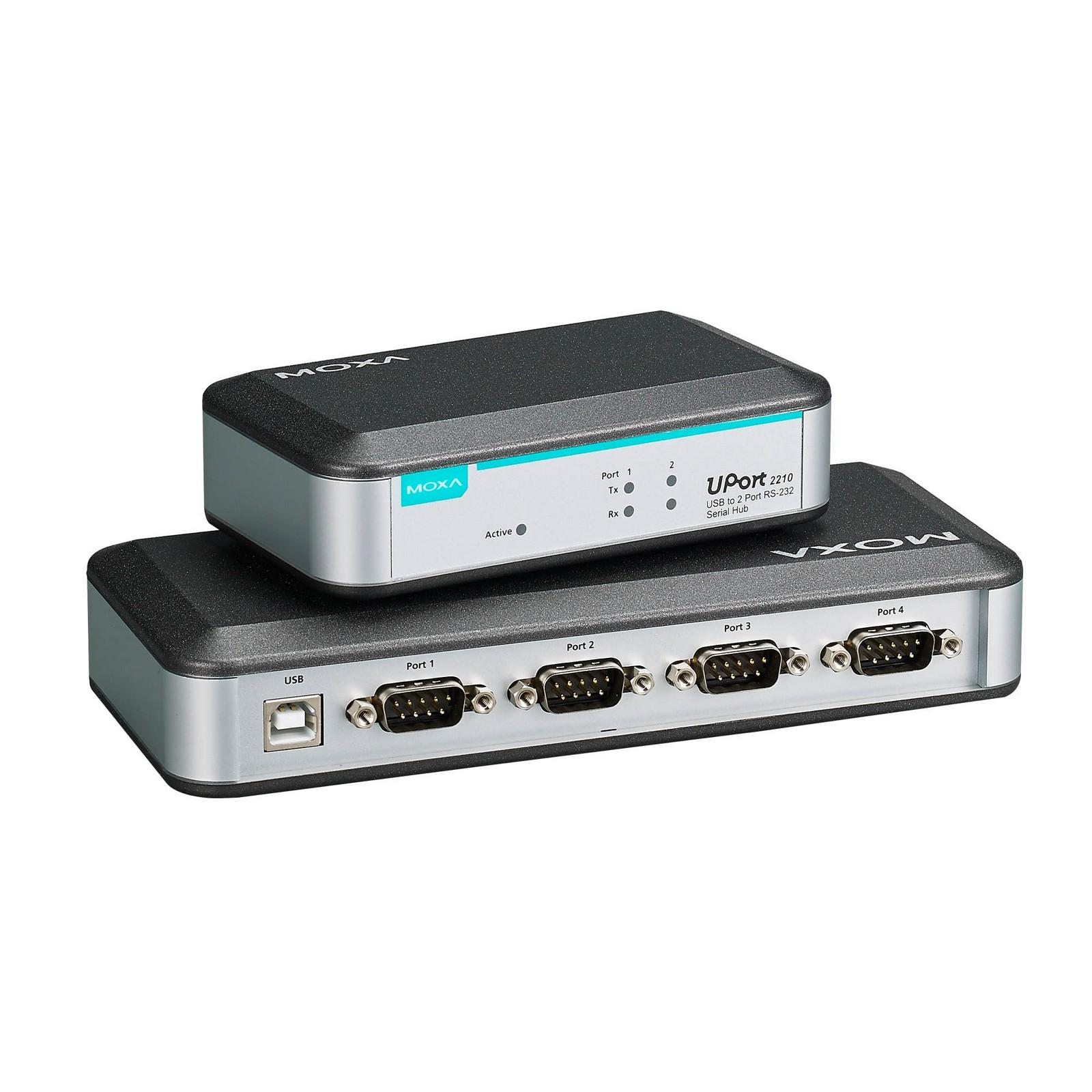

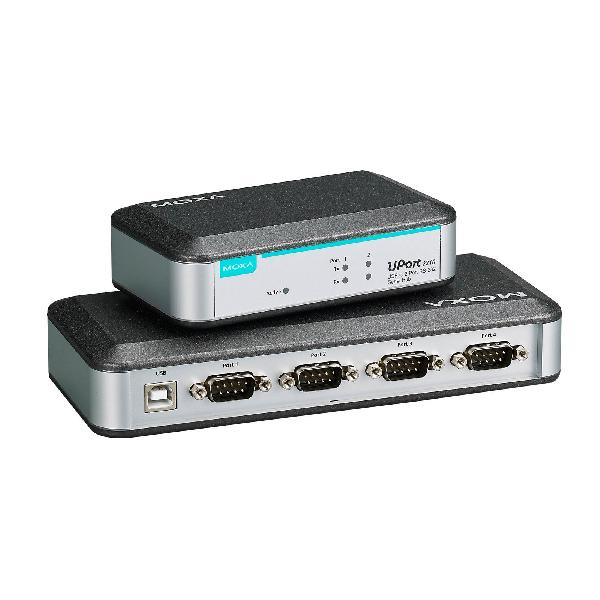

UPort 2210/2410 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
USB-to-Serial Converters/USB Hubs  >   USB-to-Serial Converters

2 and 4-port RS-232 USB-to-serial converters

Product Feature

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows and Linux
  • Driver support for MAC OS
  • Supports fixed-base COM Utility for setting the initial extended COM port number

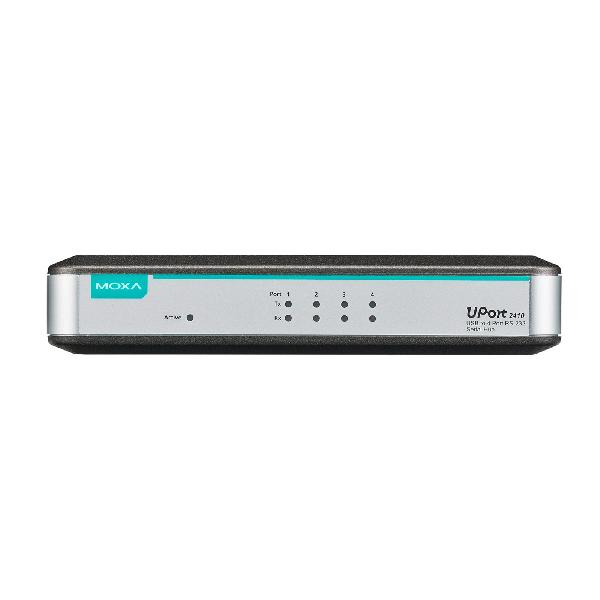

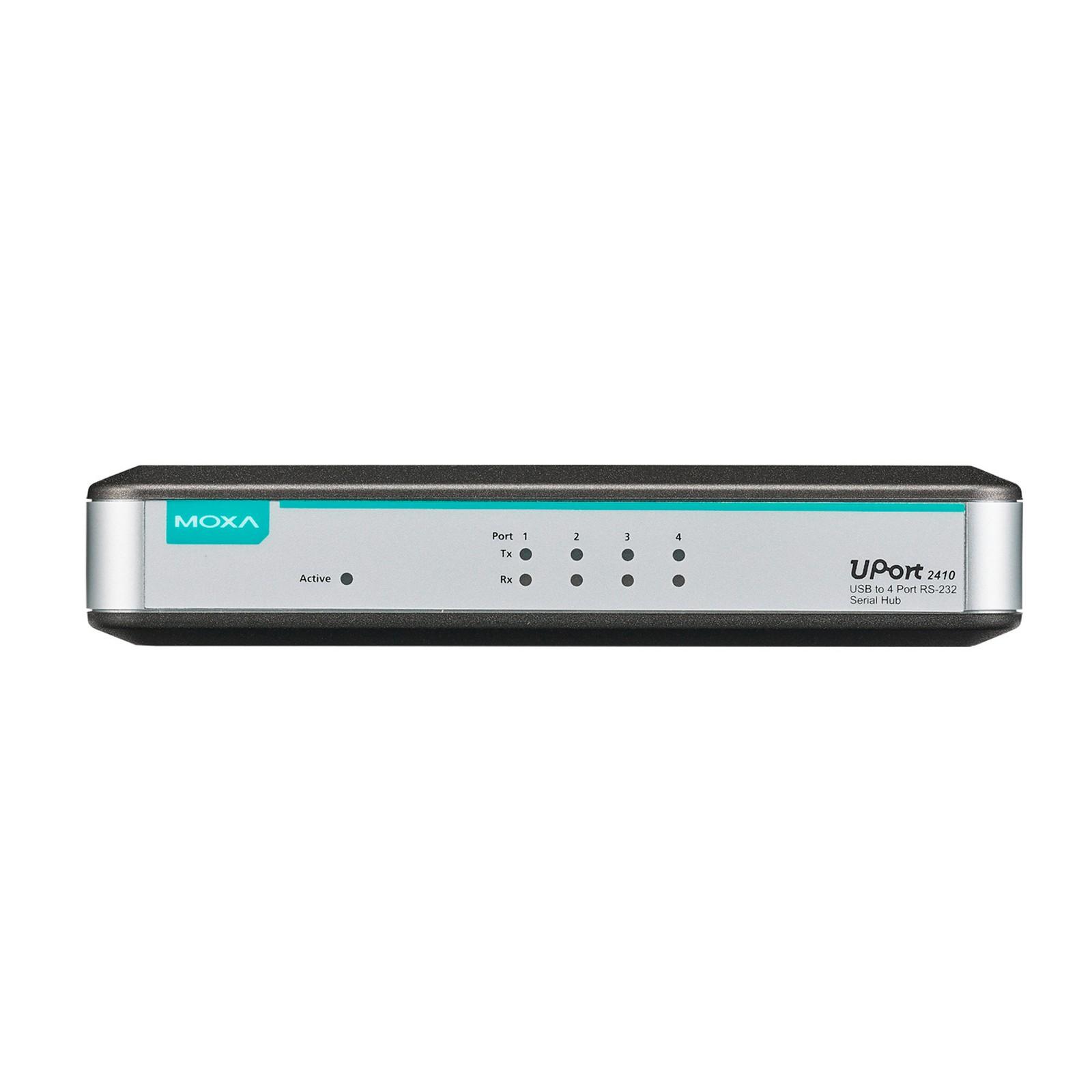

  • LEDs for easy monitoring

Introduction

The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

USB Interface

Speed12 Mbps, 480 Mbps
USB ConnectorUSB Type B
USB StandardsUSB 1.1/2.0 compliant

Serial Interface

Serial StandardsRS-232
No. of PortsUPort 2210: 2
UPort 2410: 4

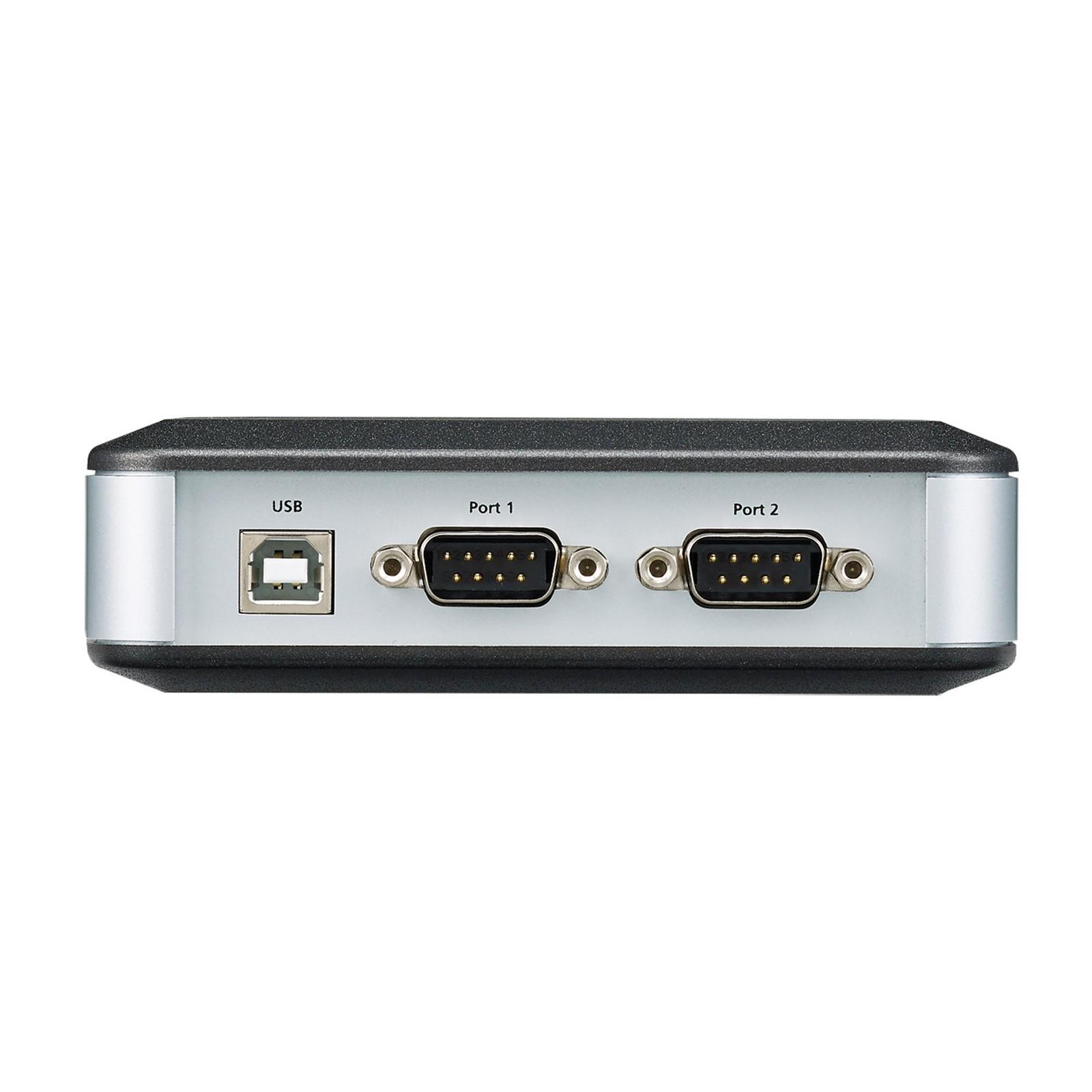

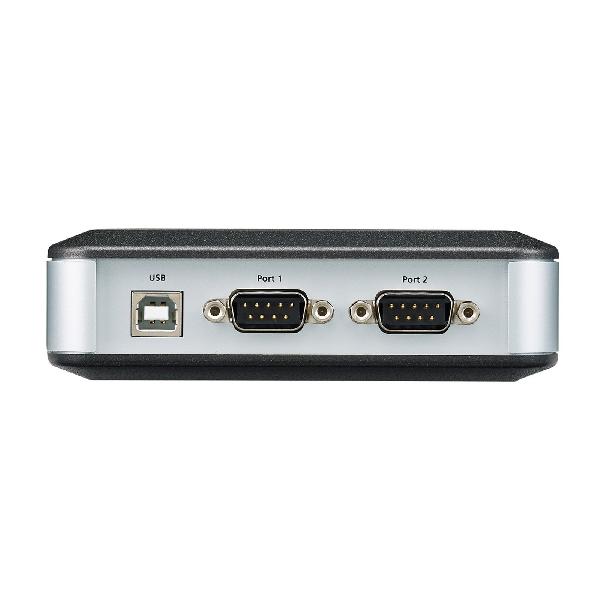

ConnectorDB9 male
Baudrate50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, XON/XOFF

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Parameters

Input Voltage5 VDC
Input Current
UPort 2210: 140 mA @ 5 VDC
UPort 2410: 240 mA @ 5 VDC

Physical Characteristics

HousingPolycarbonate (PC)
DimensionsUPort 2210: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
UPort 2410: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
WeightPackaged:
UPort 2210: 325 g (0.72 lb)
UPort 2410: 455 g (1 lb)

Product only:
UPort 2210: 120 g (0.26 lb)
UPort 2410: 210 g (0.46 lb)

Environmental Limits

Operating Temperature0 to 55°C (32 to 131°F)
Storage Temperature (package
included)
-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class B
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
SafetyUL 60950-1
VibrationIEC 60068-2-6
FreefallIEC 60068-2-32

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeUPort 2210: 4,221,778 hrs
UPort 2410: 3,901,775 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for UPort 2210/2410 Series Datasheet V1.2 17 January 2020
