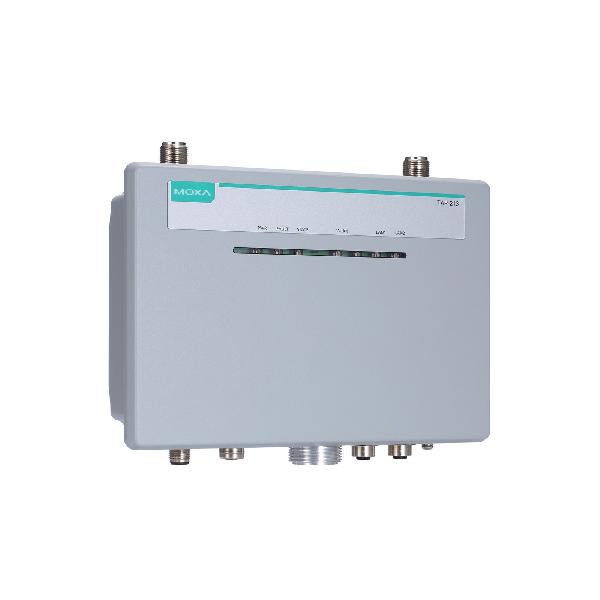

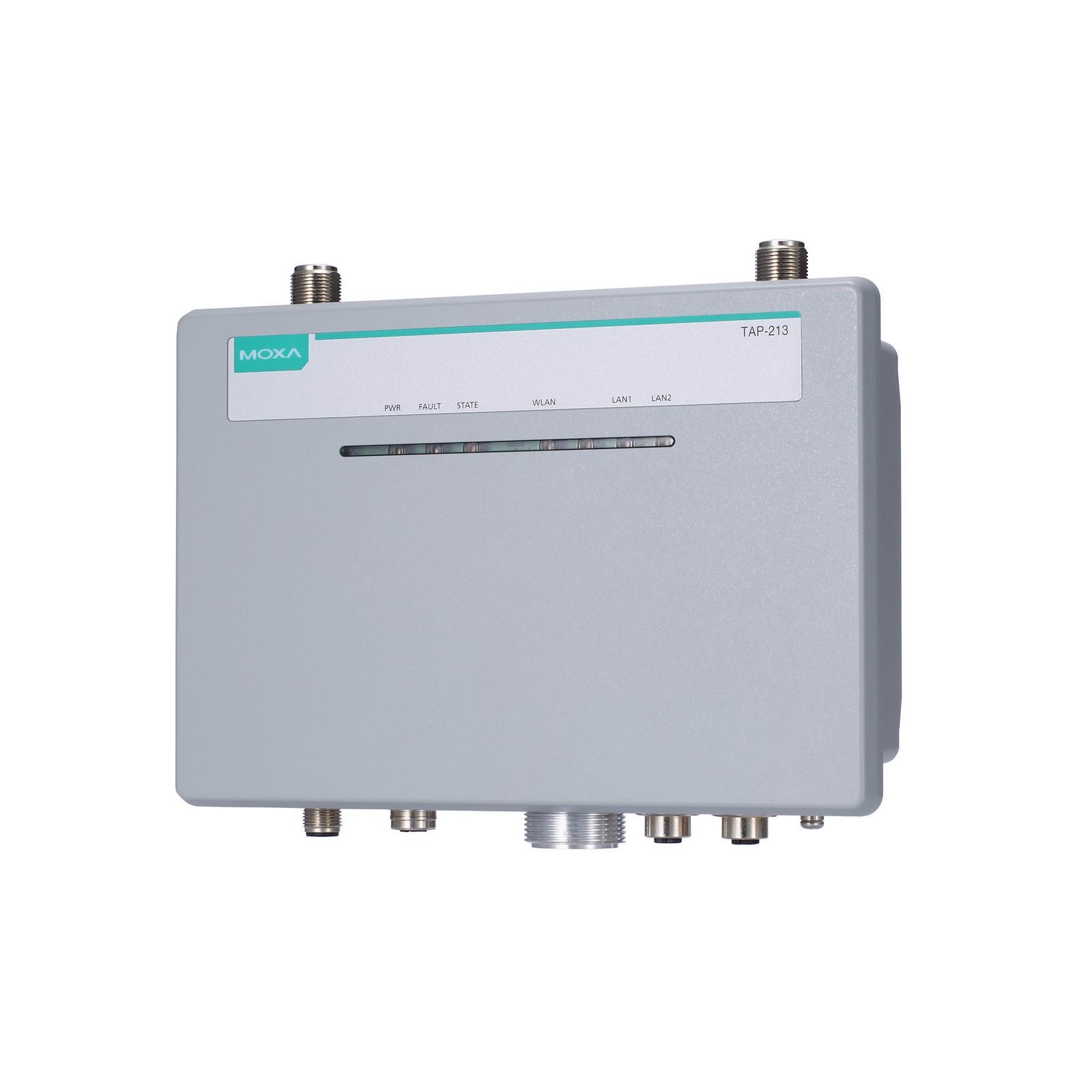

TAP-213 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Wireless AP/Bridge/Client  >   Rail Wireless LAN

Rail onboard 802.11n IP68 wireless AP/client

Product Feature

  • IEEE 802.11a/b/g/n compliant
  • Can be powered by redundant dual DC power inputs or PoE
  • QoS (WMM) and VLAN for efficient network traffic
  • Controller-based Turbo Roaming (less than 50 ms)
  • Complies with all EN 50155 mandatory test items
  • Rugged IP68-rated housing and -40 to 75°C operating temperature
  • Wireless network redundancy with AeroLink Protection

Introduction

The TAP-213 outdoor wireless AP/client is the ideal ruggedized wireless solution for railway onboard and train-to-ground applications such as CCTV and CBTC communications. The TAP-213’s dust-tight, weatherproof design is IP68-rated, allowing you to extend wireless networks to outdoor locations and critical environments. The two redundant DC power inputs increase the reliability of the power supply and the device can also be powered via PoE for easier deployment. The TAP-213 is compliant with the mandatory test items of the EN 50155 standard to ensure suitability for rolling stock applications. With many hardened industrial-grade features, the TAP-213 will provide stable and reliable wireless connectivity, especially for rail onboard environments.



Features for Critical Environments

  • IP68-rated metal housing and -40 to 75°C wide operating temperature
  • Anti-vibration M12 design with waterproof and dustproof connectors
  • PoE and dual DC power inputs
  • High-power 400 mW (max.) radio
  • Wide range power input from 24 to 110 VDC
  • Client-based Turbo Roaming handover time less than 150 ms with 3 channels and WPA2
  • Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) less than 50 ms with 3 channels and WPA2
  • Multiple roaming parameters for different installation structures and antenna types

WLAN Interface

Channel Bandwidth5 MHz, 10 MHz, 20 MHz, 40 MHz
Frequency Band for EU (20 MHz
operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz
operating channels)
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for US (20 MHz
operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (8 channels) Excludes 5.600 to 5.640
5745 to 5825 GHz (5 channels)
Receiver Sensitivity for 802.11a
(measured at 5.680 GHz)
Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11n
(5 GHz; measured at 5.680 GHz)
Typ. -88 dBm @ MCS0 20 MHz
Typ. -85 dBm @ MCS1 20 MHz
Typ. -82 dBm @ MCS2 20 MHz
Typ. -79 dBm @ MCS3 20 MHz
Typ. -76 dBm @ MCS4 20 MHz
Typ. -71 dBm @ MCS5 20 MHz
Typ. -70 dBm @ MCS6 20 MHz
Typ. -69 dBm @ MCS7 20 MHz
Typ. -95 dBm @ MCS8 20 MHz
Typ. -91 dBm @ MCS9 20 MHz
Typ. -87 dBm @ MCS10 20 MHz
Typ. -80 dBm @ MCS11 20 MHz
Typ. -78 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -72 dBm @ MCS14 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -81 dBm @ MCS1 40 MHz
Typ. -77 dBm @ MCS2 40 MHz
Typ. -75 dBm @ MCS3 40 MHz
Typ. -71 dBm @ MCS4 40 MHz
Typ. -67 dBm @ MCS5 40 MHz
Typ. -64 dBm @ MCS6 40 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -90 dBm @ MCS8 40 MHz
Typ. -85 dBm @ MCS9 40 MHz
Typ. -82 dBm @ MCS10 40 MHz
Typ. -81 dBm @ MCS11 40 MHz
Typ. -77 dBm @ MCS12 40 MHz
Typ. -73 dBm @ MCS13 40 MHz
Typ. -71 dBm @ MCS14 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11b
(measured at 2.437 GHz)
Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz)
Typ. -90 dBm @ 6 Mbps
Typ. -88 dBm @ 9 Mbps
Typ. -88 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -81 dBm @ 24 Mbps
Typ. -78 dBm @ 36 Mbps
Typ. -74 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n
(2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ MCS0 20 MHz
Typ. -85 dBm @ MCS1 20 MHz
Typ. -85 dBm @ MCS2 20 MHz
Typ. -82 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -74 dBm @ MCS5 20 MHz
Typ. -72 dBm @ MCS6 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -95 dBm @ MCS8 20 MHz
Typ. -90 dBm @ MCS9 20 MHz
Typ. -87 dBm @ MCS10 20 MHz
Typ. -83 dBm @ MCS11 20 MHz
Typ. -80 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -71 dBm @ MCS14 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -83 dBm @ MCS1 40 MHz
Typ. -83 dBm @ MCS2 40 MHz
Typ. -80 dBm @ MCS3 40 MHz
Typ. -76 dBm @ MCS4 40 MHz
Typ. -73 dBm @ MCS5 40 MHz
Typ. -69 dBm @ MCS6 40 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -93 dBm @ MCS8 40 MHz
Typ. -88 dBm @ MCS9 40 MHz
Typ. -85 dBm @ MCS10 40 MHz
Typ. -82 dBm @ MCS11 40 MHz
Typ. -78 dBm @ MCS12 40 MHz
Typ. -73 dBm @ MCS13 40 MHz
Typ. -69 dBm @ MCS14 40 MHz
Typ. -67 dBm @ MCS15 40 MHz
Modulation TypeDSSS
MIMO-OFDM
OFDM
Transmission Rate802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11n HT20: 6.5 to 144.4 Mbps (MCS0 to MCS15)
802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)
Transmitter Power for 802.11a23±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 12 Mbps
23±1.5 dBm @ 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n
(5 GHz)
23±1.5 dBm @ MCS0 20 MHz
20±1.5 dBm @ MCS1 20 MHz
20±1.5 dBm @ MCS2 20 MHz
20±1.5 dBm @ MCS3 20 MHz
19±1.5 dBm @ MCS4 20 MHz
18±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
20±1.5 dBm @ MCS9 20 MHz
20±1.5 dBm @ MCS10 20 MHz
20±1.5 dBm @ MCS11 20 MHz
19±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
18±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
18±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
19±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
18±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11b26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g23±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 12 Mbps
23±1.5 dBm @ 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n
(2.4 GHz)
23±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
20±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
21±1.5 dBm @ MCS9 20 MHz
21±1.5 dBm @ MCS10 20 MHz
21±1.5 dBm @ MCS11 20 MHz
20±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
19±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
17±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
20±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
17±1.5 dBm @ MCS15 40 MHz
Wireless SecurityWEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN Antenna Connector2 N-type female
WLAN Operation ModeAccess point, Client, Client-Router, Sniffer
WLAN Standards802.11a/b/g/n
802.11i Wireless Security
Frequency Band2.4 GHz
5 GHz

Input/Output Interface

ButtonsReset button

Ethernet Interface

10/100/1000BaseT(X) Ports (M12
A-coded 8-pin female connector)
1
1000BaseSFP Slots1
StandardsIEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af for PoE
IEEE 802.3u for 100BaseT(X)
Total Port Count2
Highest Speed1G
ConnectionsPoE
M12
Fiber

Ethernet Software Features

ManagementSNMPv1/v2c/v3, DHCP Server/Client, IPv4, LLDP, SMTP, Syslog, TCP/IP, Telnet, TFTP,
UDP, Web Console, Wireless Search Utility
SecurityHTTPS/SSL, RADIUS, SSH
Time ManagementNTP Client, SNTP
Unicast RoutingStatic Route

Switch Properties

VLAN ID RangeVID 1 to 4094

USB Interface

M12 ConnectorM12 A-coded 5-pin female (for ABC-02 USB storage)

Firewall

FilterIP address, MAC address, Ports

NAT

FeaturesPort forwarding

Serial Interface

Console PortUSB-M12 console (M12 B-coded 5-pin female connector)
Flow ControlRTS/CTS, XON/XOFF
ParityNone, Even, Odd, Space, Mark

Power Parameters

Input Current0.65 A @ 24 VDC, 0.16 A @ 110 VDC
Input Voltage24 to 110 VDC, Redundant dual inputs
Power ConnectorM12 A-coded 4-pin male connector
Power Consumption17.6 W (max.)
Reverse Polarity ProtectionSupported
Source of Input PowerPoE (IEEE 802.3af)

Physical Characteristics

HousingMetal
IP RatingIP68
Dimensions (without ears)220 x 150 x 50.5 mm (8.66 x 5.91 x 1.99 in)
Weight1,500 g (3.31 lb)
InstallationWall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional)
ProtectionPCB conformal coating

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Radio FrequencyEN 300 328, EN 301 489-1/17, EN 301 893, FCC, IC, WPC
RailwayEN 50121-4, EN 50155
Railway Fire ProtectionEN 45545-2
SafetyEN 60950-1, UL 60950-1, IEC 60950-1

MTBF

Time758,369 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for TAP-213 Series Datasheet V1.3 21 November 2019
