CN2510 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Terminal Servers

8 and 16-port RS-232 terminal servers

Product Feature

  • LCD control panel for easy on-site management
  • Supports up to 16 dial-in users when operating as a standalone remote access server
  • Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
  • Real COM/TTY drivers for Windows and Linux
  • 48 VDC for telecom applications (for CN2510-8/16-48V)

Introduction

For most companies, the performance of IT equipment is critical to daily operation. To keep a server, router, PBX, or leased-line modem working properly, it is important to minimize downtime and troubleshoot faulty devices quickly. KVM is commonly used for in-band management of devices that are equipped with a screen and keyboard. However, RS-232 console access is often used as a last resort for all devices.



Remote Console Management

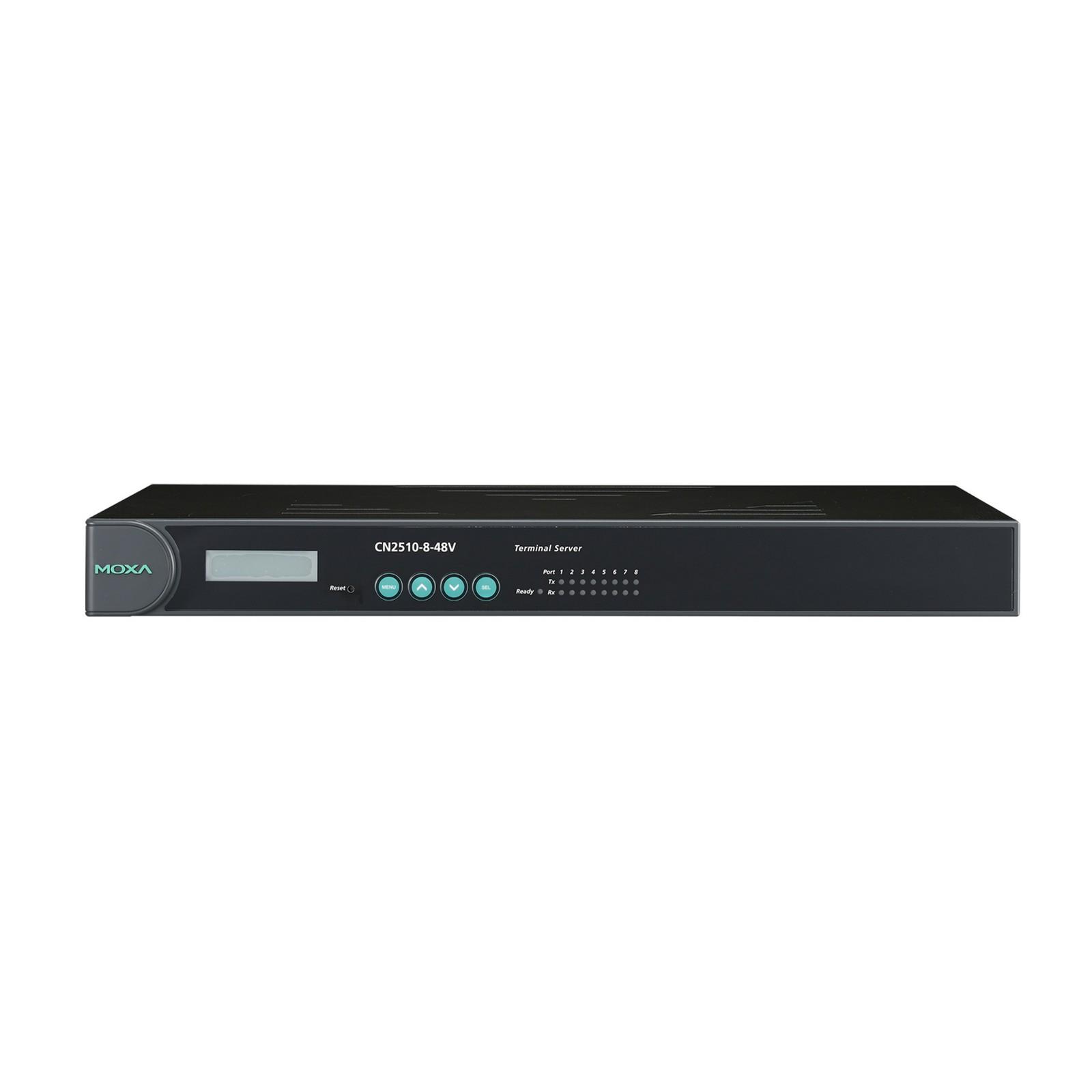

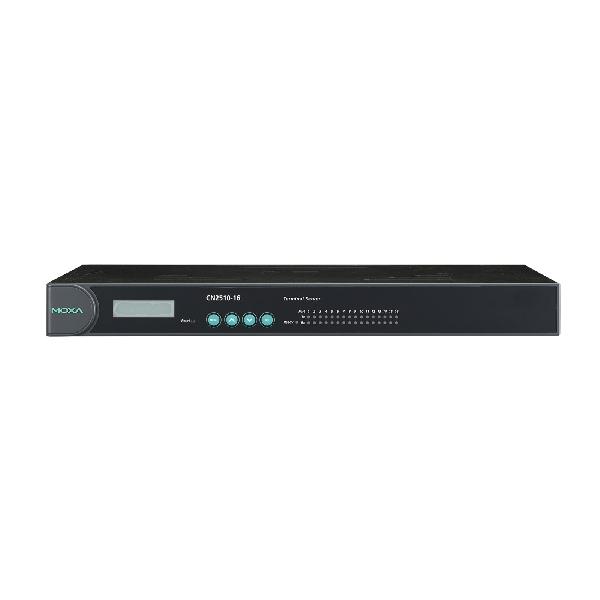

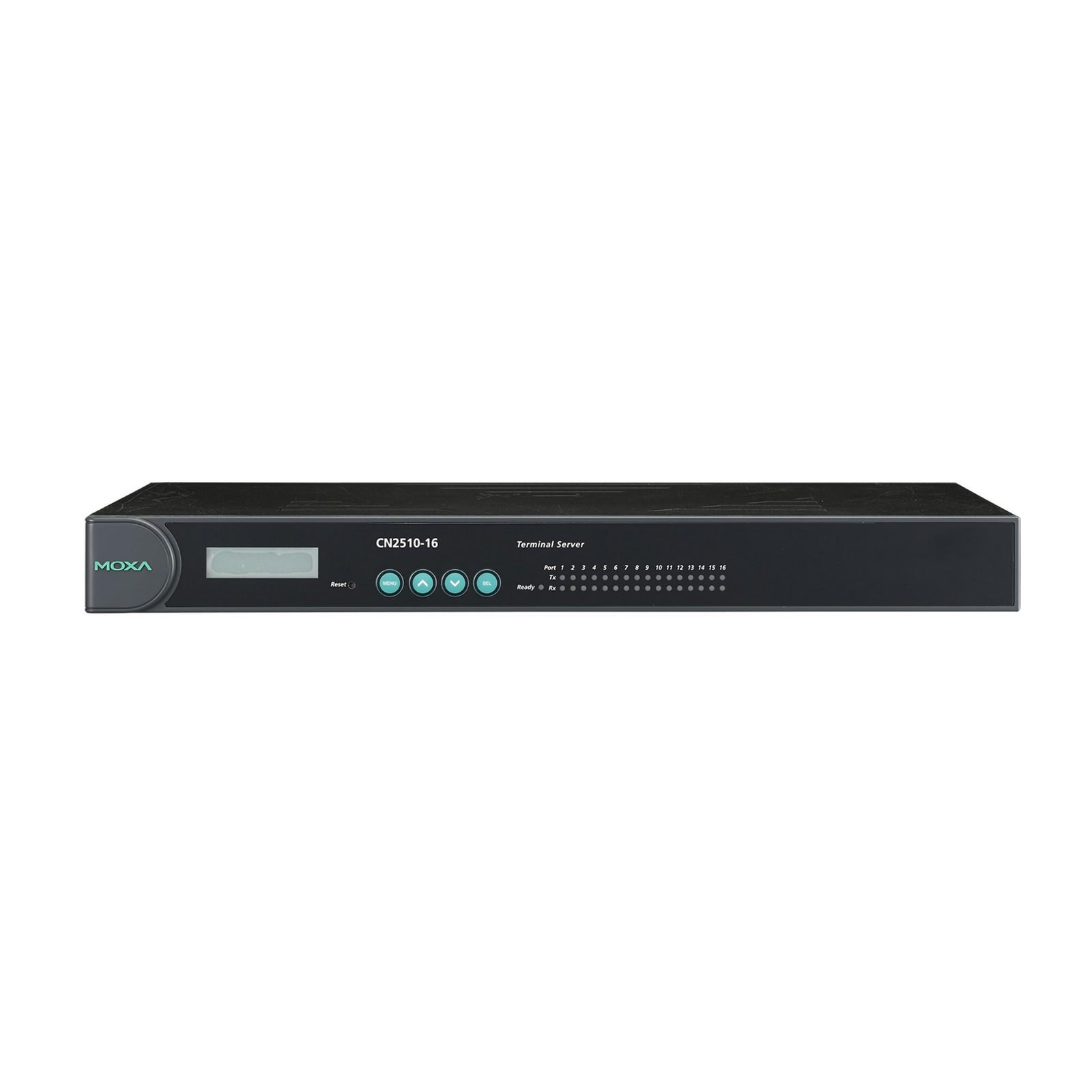

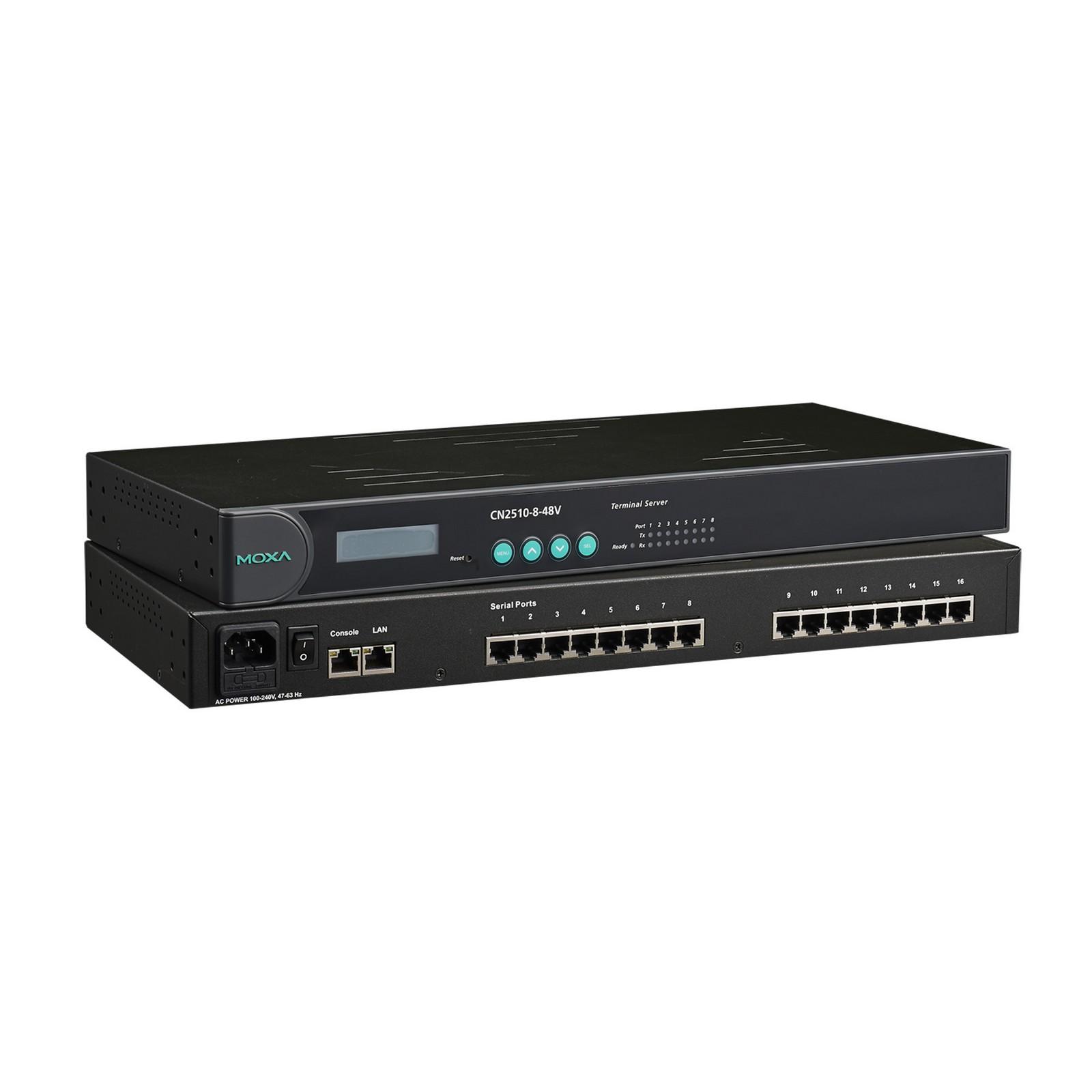

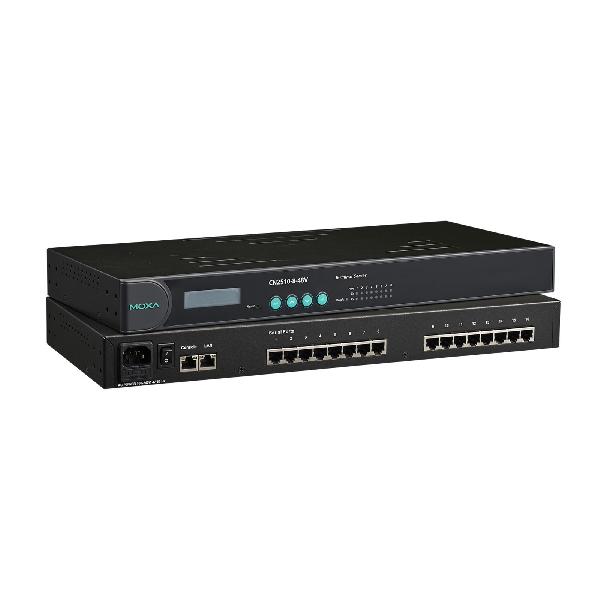

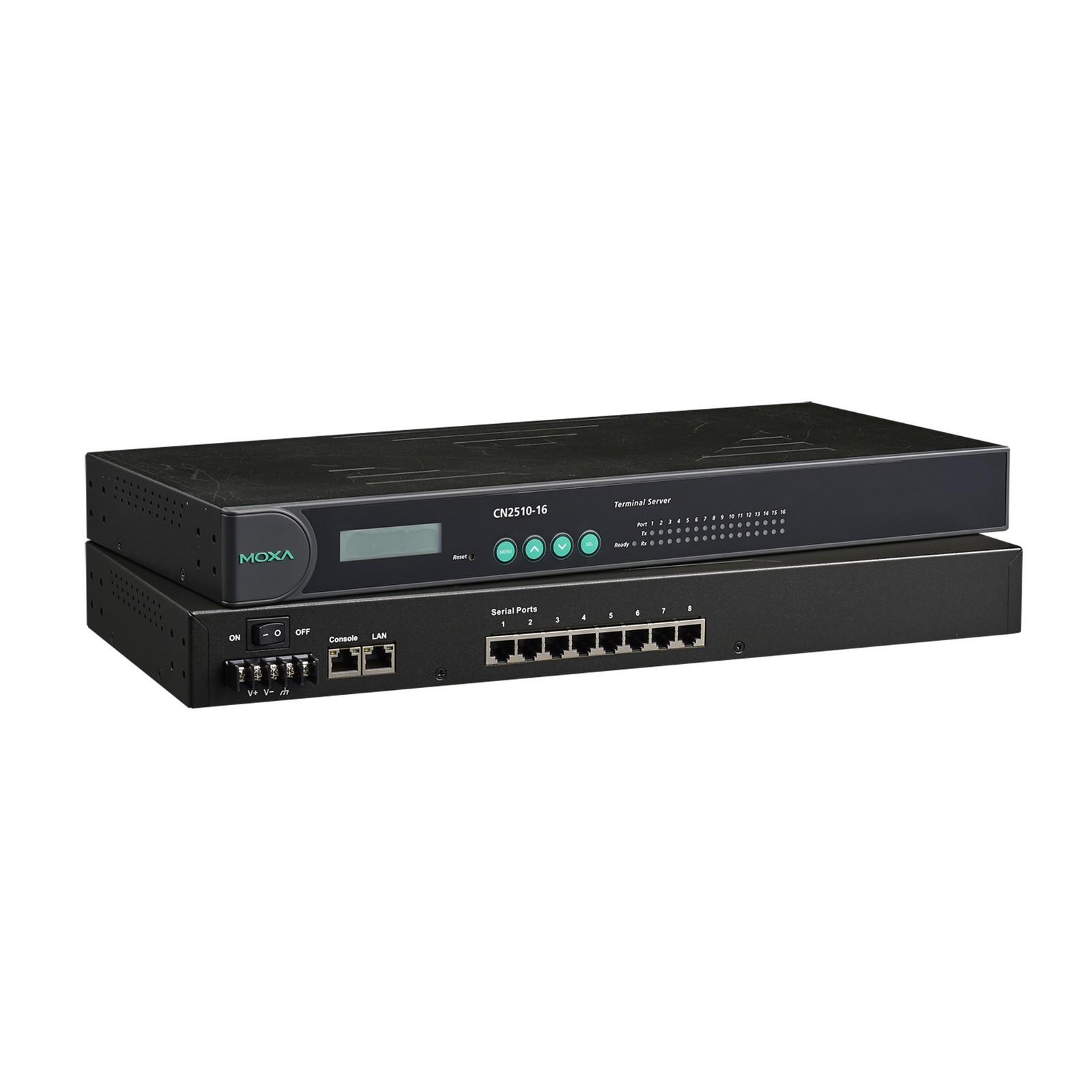

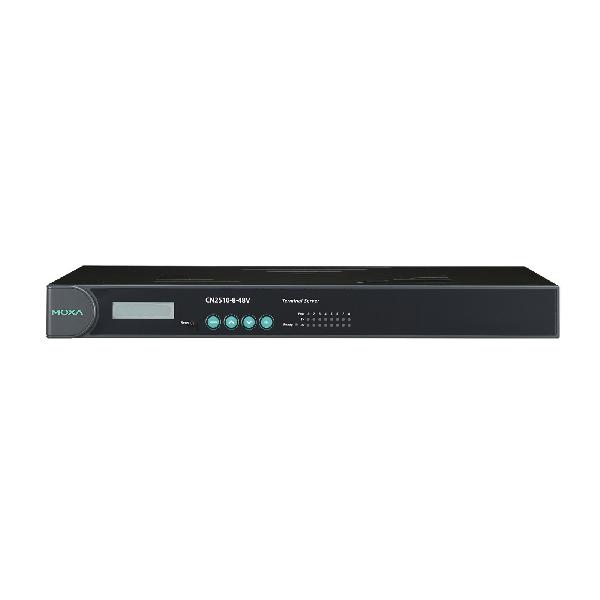

The CN2510 provides an easy console management solution in a convenient 1U rackmount package. With its RS-232 ports, connections are easily established to the console ports of network equipment, such as UNIX servers or routers, for centralized management of the attached devices. Each device’s RS-232 console port becomes a network-accessible node, giving users Telnet access from anywhere on the network for configuration and management of the device. Full modem control signals are supported, ensuring compatibility with a wide range of serial peripherals.



User Authentication

It is very important that access is strictly controlled in a console management solution, and user privileges should be validated before a console port connection is allowed. The CN2510’s authentication procedure involves verifying the username and password against an internal database or a RADIUS server.



Dial-back

When a dial-up connection is used for out-of-band management, the CN2510 provides a convenient dial-back function. Instead of accepting a connection request directly, the CN2510 calls back the management host to establish the connection. The dial-back function helps ensure that only registered users or hosts can remotely connect to the network through the CN2510, and helps to minimize long-distance phone costs.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
1

Ethernet Software Features

ManagementDevice Search Utility (DSU), DHCP Client, TCP/IP, UDP
MIBMIB-II
SecurityRADIUS
Unicast RoutingRIPV1/V2, Static Route
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE
5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Serial Interface

Connector8-pin RJ45
No. of PortsCN2510-8 Series: 8
CN2510-16 Series: 16
Serial StandardsRS-232
Operation ModesTerminal mode
Baudrate50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits
1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, XON/XOFF

Power Parameters

Input CurrentCN2510-8/16: 125 mA @ 110 VAC
CN2510-8/16-48V: 180 mA @ 48 VDC
Input VoltageAC models: 100 to 240 VAC (47 to 63 Hz)
DC models: ±48 VDC (38 to 72 VDC, -38 to -72 VDC)

Physical Characteristics

HousingMetal
Installation19-inch rack mounting
Dimensions440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
WeightCN2510-8: 2,680 g (5.91 lb)
CN2510-8-48V: 2,420 g (5.34 lb)
CN2510-16: 2,700 g (5.95 lb)
CN2510-16-48V: 2,480 g (5.27 lb)

Environmental Limits

Operating Temperature0 to 55°C (32 to 131°F)
Storage Temperature (package
included)
-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSAC models:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

DC models:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-8 PFMF
SafetyEN 60950-1, UL 60950-1

MTBF

TimeCN2510-8: 857,279 hrs
CN2510-8-48V: 850,673 hrs
CN2510-16: 654,195 hrs
CN2510-16-48V: 650,342 hrs
StandardsTelcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for CN2510 Series Datasheet V1.1 08 November 2019
