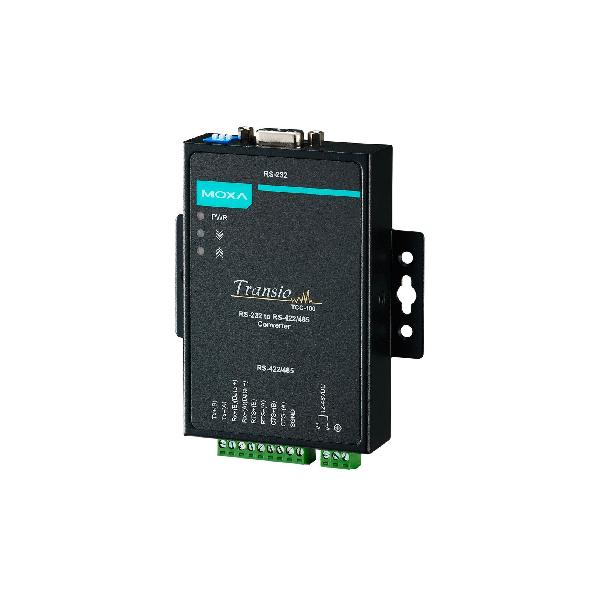

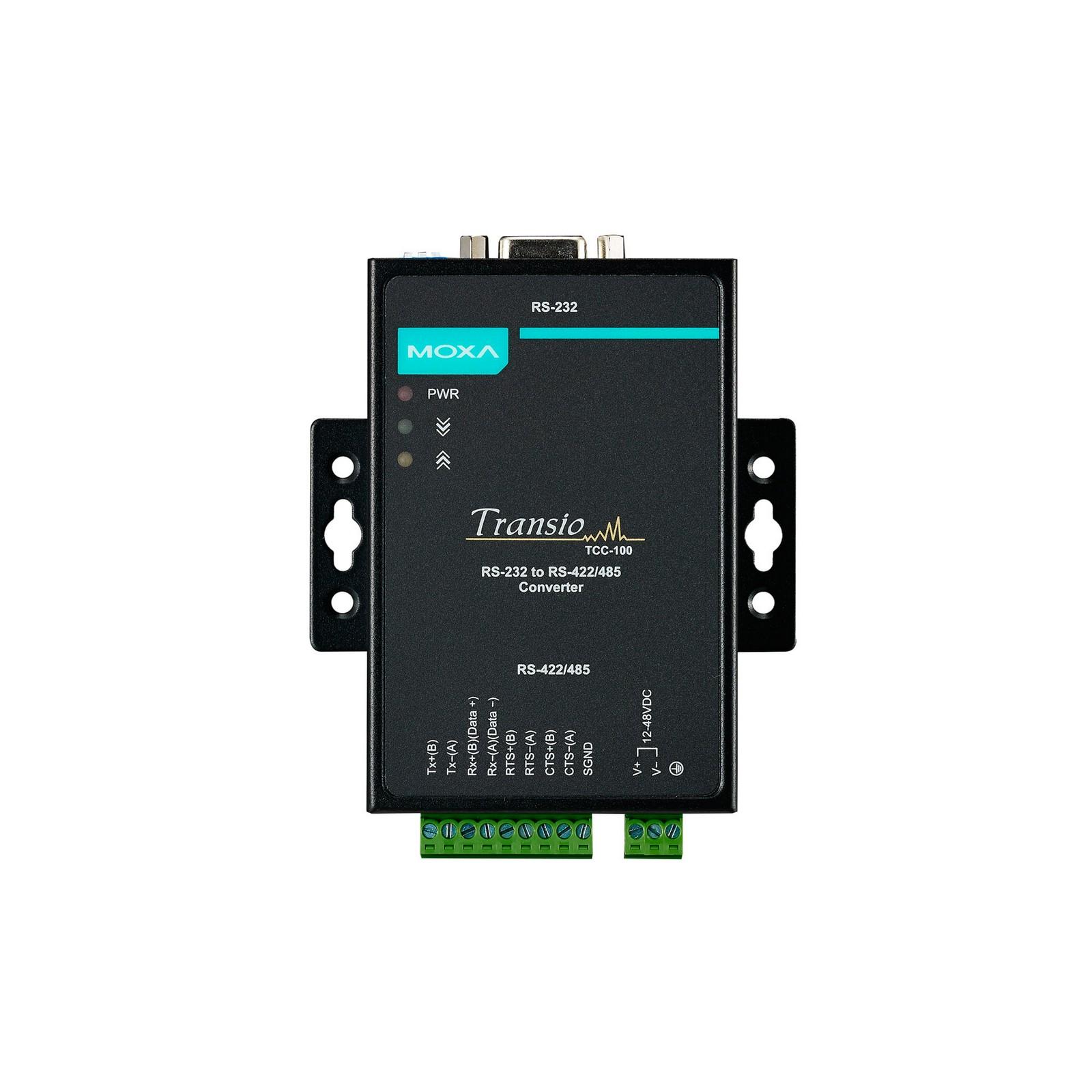

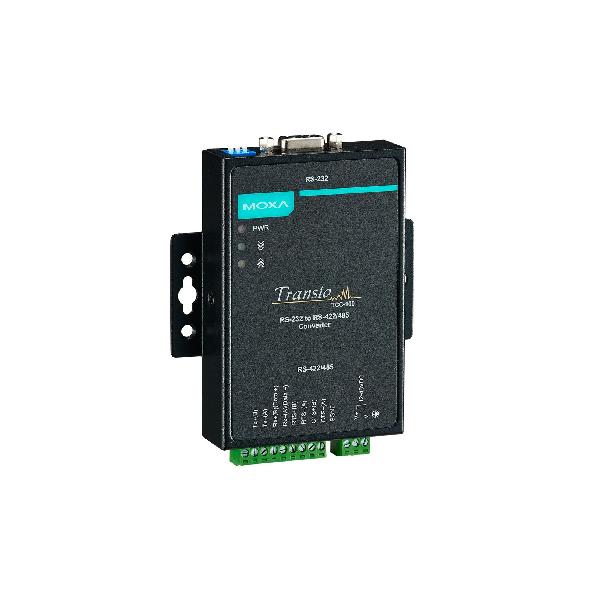

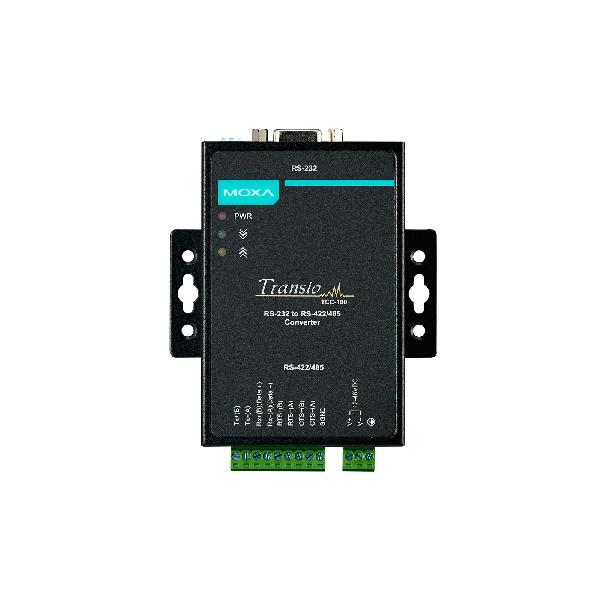

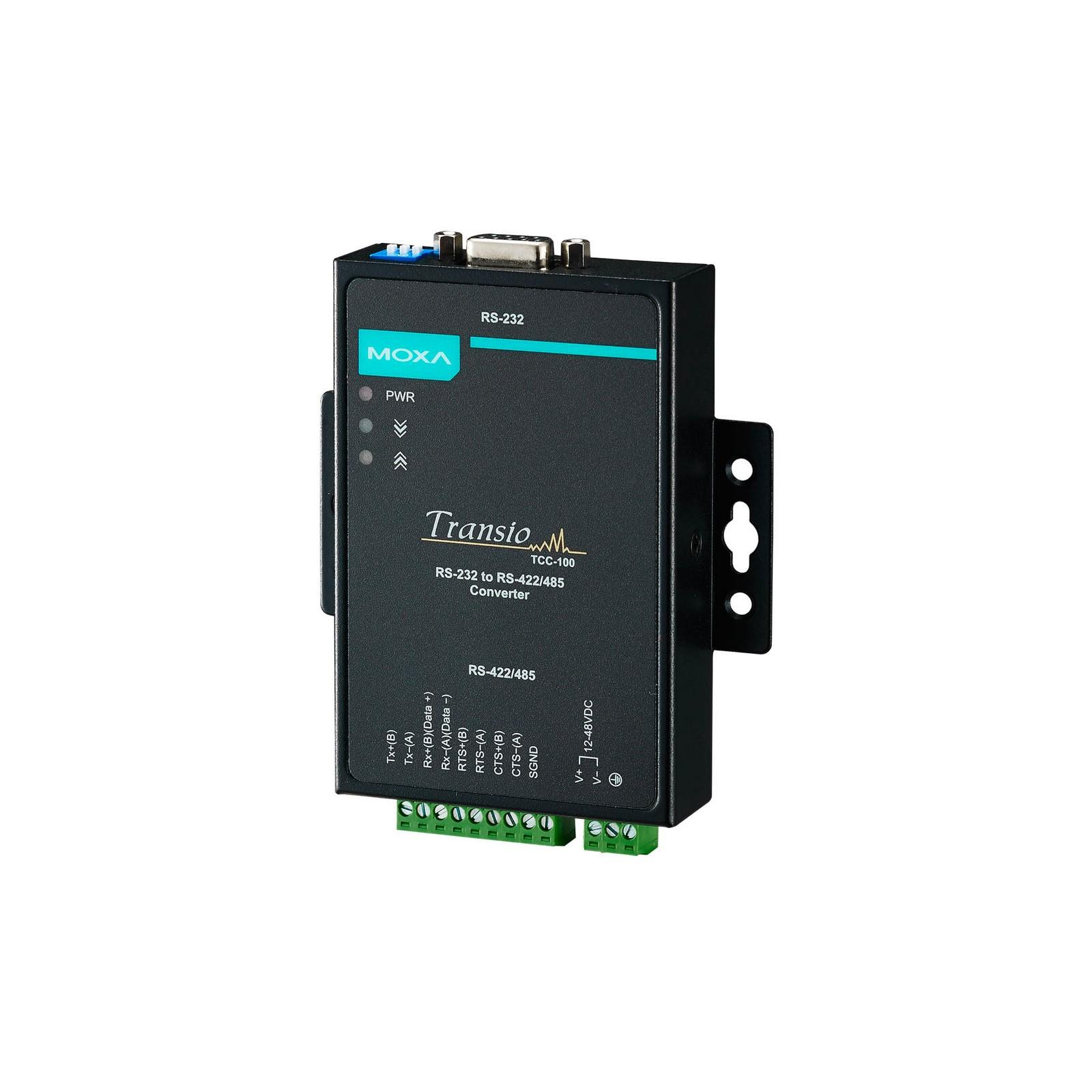

TCC-100/100I Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Converters  >   Serial-to-Serial Converters

Industrial RS-232 to RS-422/485 converters with optional 2 kV isolation

Product Feature

  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • 2 kV isolation protection (TCC-100I)
  • Wall mounting and DIN-rail mounting
  • Plug-in terminal block for easy RS-422/485 wiring
  • LED indicators for power, Tx, Rx
  • Wide-temperature model available for -40 to 85°C environments

Introduction

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.

Serial Interface

Baudrate50 bps to 921.6 kbps (supports non-standard baudrates)
ConnectorTerminal block
IsolationTCC-100I/100I-T: 2 kV (-I model)
No. of Ports2
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction ControlADDC® (automatic data direction control)
Serial StandardsRS-232, RS-422, RS-485
Terminator for RS-485N/A, 120 ohms, 120 kilo-ohms

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentTCC-100/100-T: 50 to 85 mA @ 12 to 48 VDC
TCC-100I/100I-T: 150 mA @ 12 to 48 VDC
Input Voltage12 to 48 VDC
No. of Power Inputs1
Overload Current ProtectionSupported
Power ConnectorTerminal block (for DC models)
Power ConsumptionTCC-100/100-T: 50 to 85 mA @ 12 to 48 VDC
TCC-100I/100I-T: 150 mA @ 12 to 48 VDC

Physical Characteristics

HousingMetal
Dimensions67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
IP RatingIP30
Weight148 g (0.33 lb)
InstallationDIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating TemperatureStandard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, IEC 60950-1
VibrationIEC 60068-2-6

MTBF

Time3,017,857 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for TCC-100/100I Series Datasheet V1.1 21 May 2020
