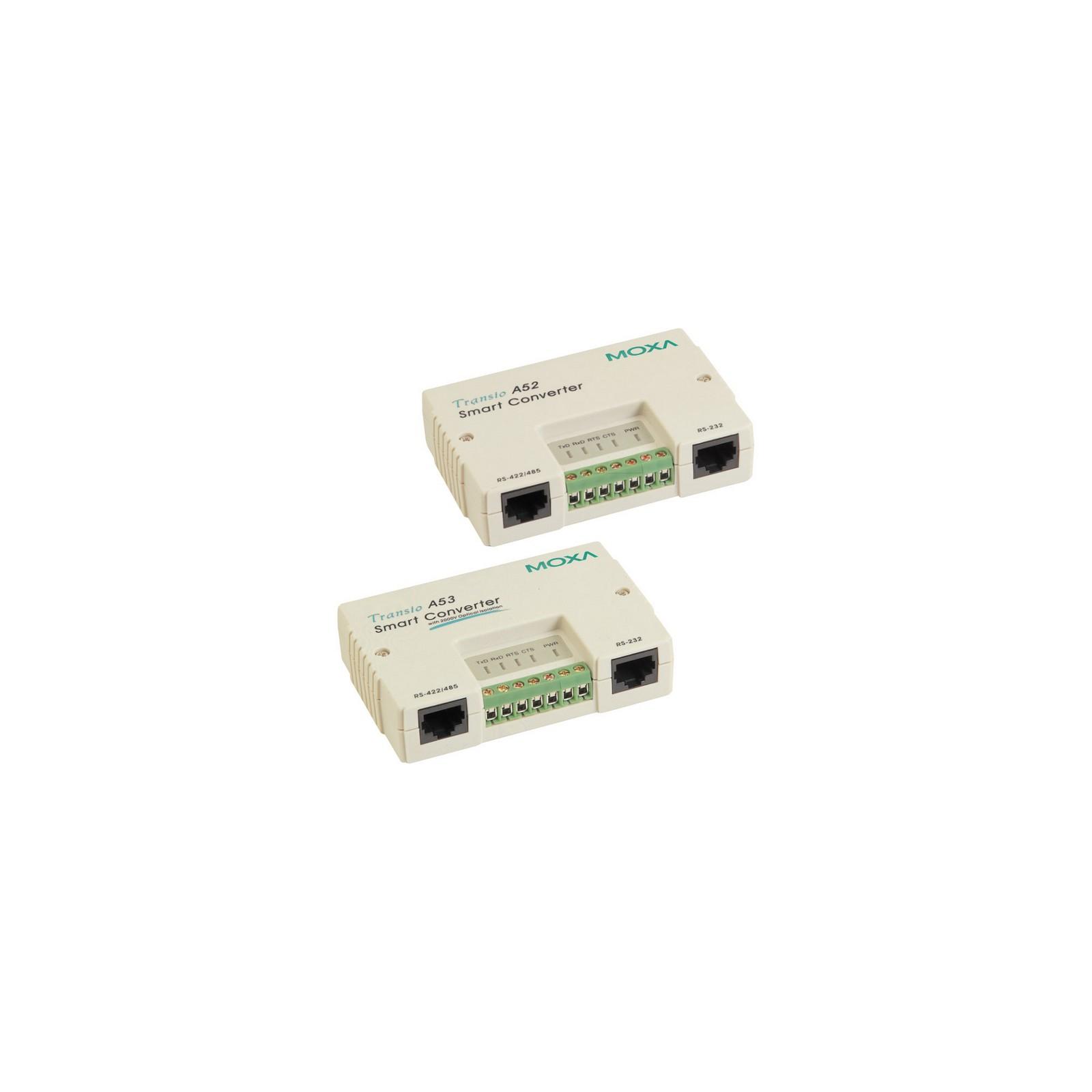

Transio A52/A53 Series

Home > MOXA > Industrial Edge Connectivity >
Serial Converters > Serial-to-Serial Converters

Entry-level RS-232 to RS-422/485 converters

Product Feature

ADDC™ (Automatic Data Direction Control) RS-485 data control
Automatic baudrate detection
RS-422 hardware flow control: CTS, RTS signals
LED indicators for power and signal status
RS-485 multidrop operation, up to 32 nodes
2 kV isolation protection (A53)
Built-in 120-ohm termination resistors

Introduction

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend RS-232 transmission distance and increase networking capability.

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/english/productview.php on line 614

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/english/productview.php on line 615

Serial Interface
Connector	10-pin RJ45
Flow Control	RTS/CTS
Isolation	A53 Series: 2 kV
No. of Ports	2
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Serial Standards	RS-232, RS-422, RS-485
Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Power Parameters
Input Current	A52 Series: 170 mA @ 9 VDC A53 Series: 195 mA @ 9 VDC
Input Voltage	9 to 30 VDC
No. of Power Inputs	1
Overload Current Protection	Supported
Power Consumption	A52 Series: 170 mA @ 9 VDC A53 Series: 195 mA @ 9 VDC
Source of Input Power	Power input jack
Physical Characteristics
Housing	Plastic
IP Rating	IP30
Dimensions	90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
Weight	85 g (0.19 lb)
Installation	Desktop
Environmental Limits
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, IEC 60950-1
Vibration	IEC 60068-2-6
MTBF
Time	1,870,854 hrs
Standards	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for Transio A52/A53 Series		Datasheet	V1.0	12 November 2018
