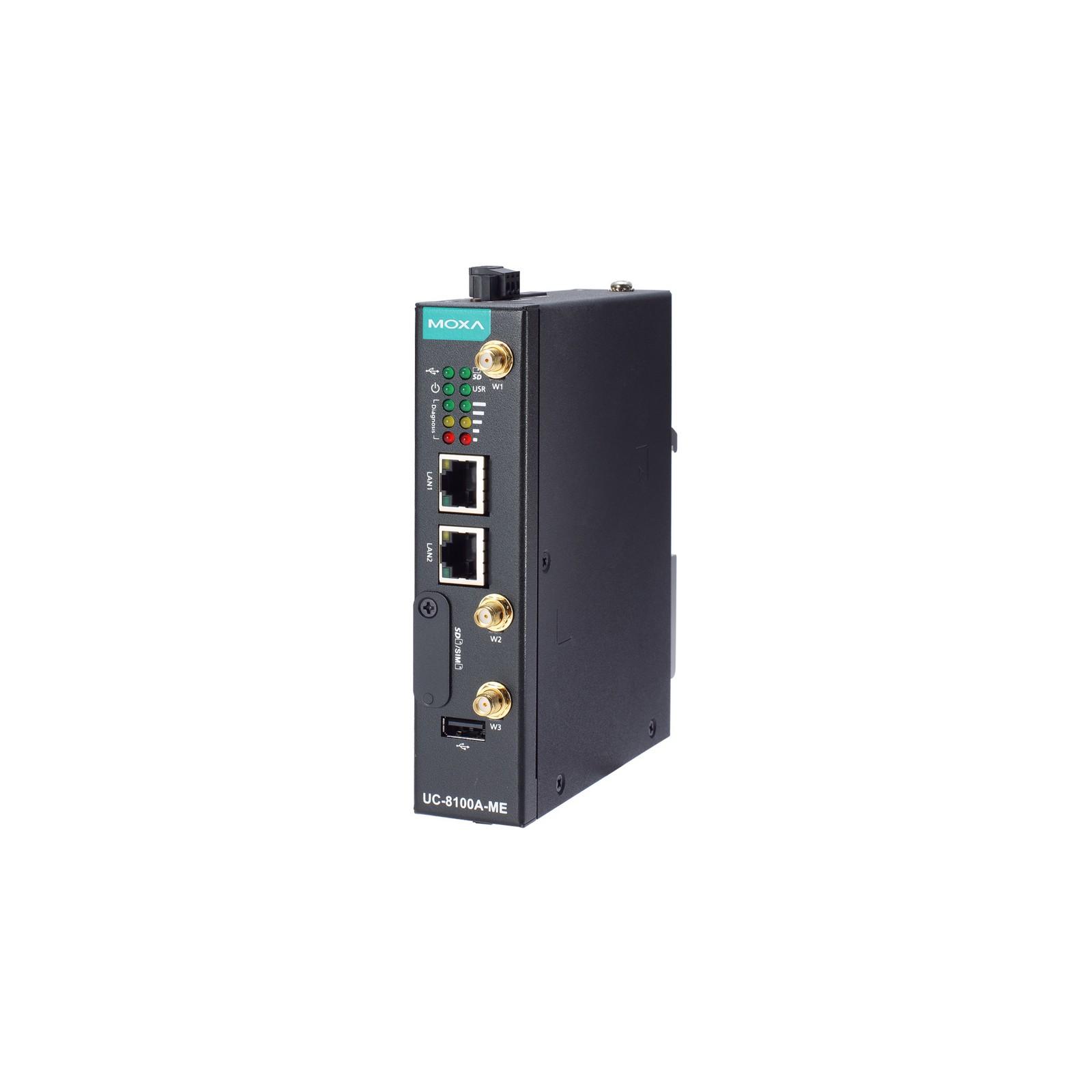

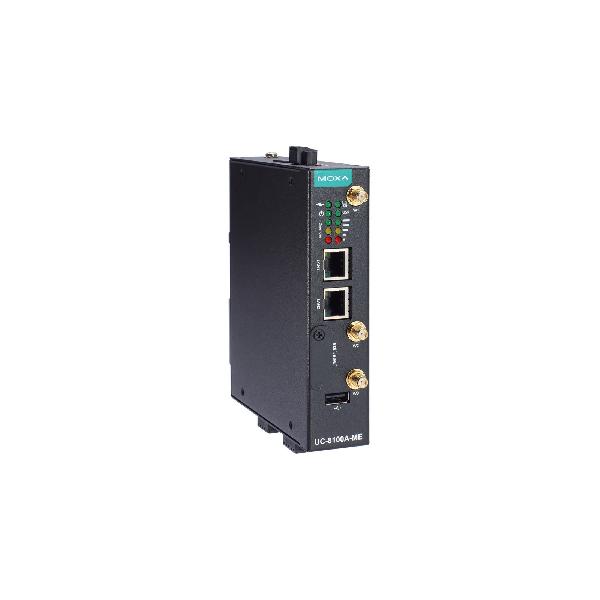

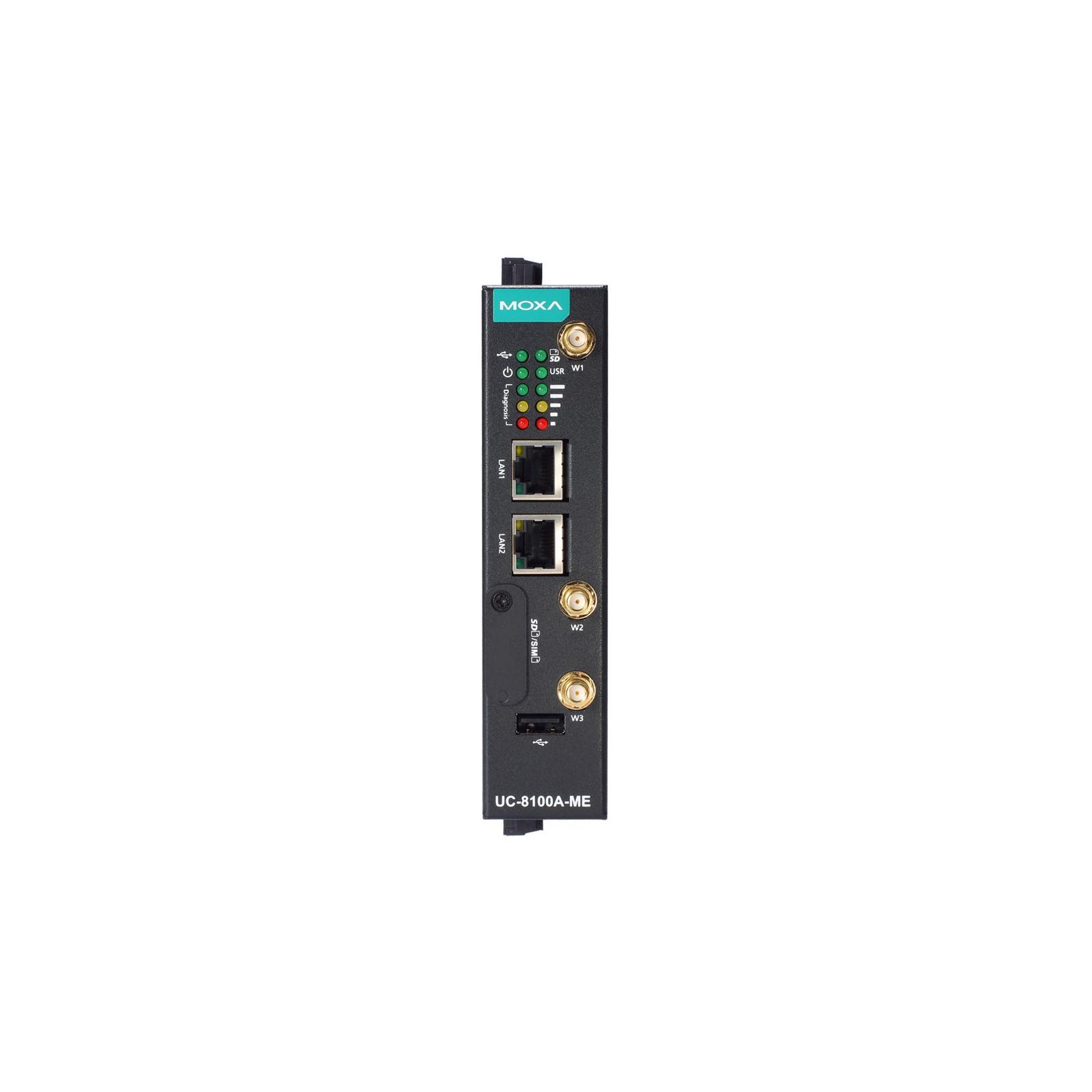

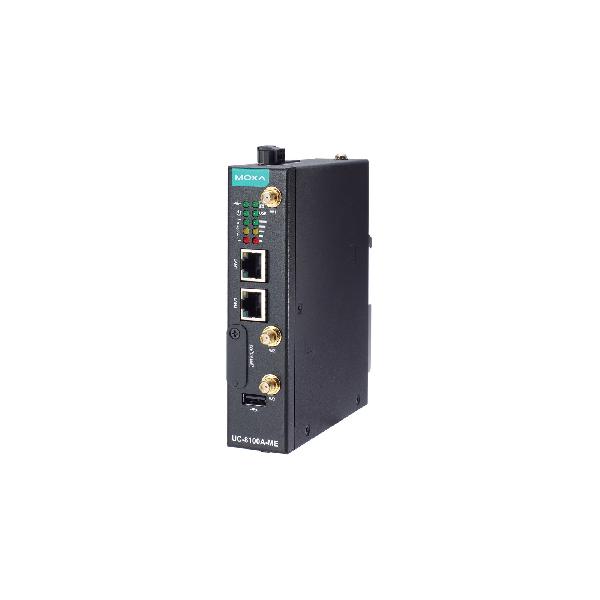

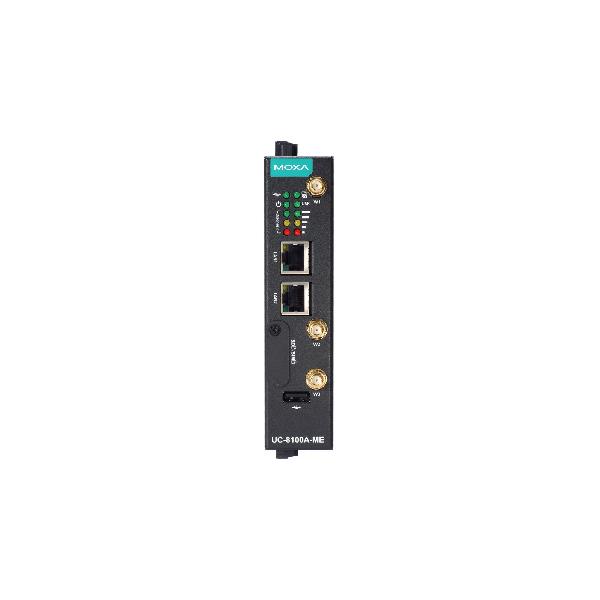

The UC-8100A-ME-T computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet ports, as well as a Mini PCIe socket to support cellular modules. These versatile capabilities let users efficiently adapt the UC-8100A-ME-T to a variety of complex communications solutions.
The UC-8100A-ME-T is built around a Cortex-A8 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
Computer | |
| CPU | Armv7 Cortex-A8 1 GHz |
| Pre-installed OS | Moxa Industrial Linux (Debian 9, Kernel 4.4) |
| DRAM | 1 GB DDR3 |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | SD slots x 1 |
Computer Interface | |
| USB 2.0 | USB 2.0 hosts x 1, type-A connectors |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| Expansion Slots | UC-8112A-ME-T-LX: mPCIe slot x 1 |
| Number of SIMs | 1 |
| SIM Format | Mini |
| Buttons | Reset button |
| Serial Ports | RS-232/422/485 ports x 2, software-selectable (terminal block) |
| Cellular Antenna Connector | SMA x 2 |
| GPS Antenna Connector | SMA x 1 |
LED Indicators | |
| System | Power x 1 Programmable x 1 SD slots x 1 USB x 1, Diagnostic x 3 |
| Wireless Signal Strength | Cellular/Wi-Fi x 3 |
Ethernet Interface | |
| Ethernet Ports | Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
Serial Interface | |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 300 bps to 921.6 kbps |
Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Cellular Interface | |
| Band Options (US) | UC-8112A-ME-T-LX-US: LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 13 (700 MHz) / LTE Band 17 (700 MHz) UC-8112A-ME-T-LX-US: UMTS/HSPA 850 MHz / 1900 MHz |
| Band Options (EU) | UC-8112A-ME-T-LX-EU: LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) UC-8112A-ME-T-LX-EU: UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz |
| Band Option (APAC) | UC-8112A-ME-T-LX-AP: LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) UC-8112A-ME-T-LX-AP: UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz |
GPS Interface | |
| Receiver Types | 72-channel u-blox M8 engine GPS/GLONASS/Galileo |
| Accuracy | Position: 2.5 m CEP SBAS: 2.0 m CEP |
| Acquisition | Aided starts: 3 sec Cold starts: 26 sec |
| Sensitivity | Cold starts: -148 dBm Tracking: -164 dBm |
| Time Pulse | 0.25 Hz to 10 MHz |
Power Parameters | |
| Input Current | 700 mA @ 12 VAC |
| Input Voltage | 12 to 36 VDC |
| Power Consumption | 6 W |
Reliability | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
Physical Characteristics | |
| Dimensions | 141 x 125.6 x 33 mm (5.55 x 4.94 x 1.3 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Weight | 550 g (1.22 lb) |
Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | UC-8112A-ME-T-LX: -40 to 85°C (-40 to 185°F) UC-8112A-ME-T-LX-AP: -40 to 70°C (-40 to 158°F) UC-8112A-ME-T-LX-US: -40 to 70°C (-40 to 158°F) UC-8112A-ME-T-LX-EU: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) |
Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 5 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-8 PFMF |
| Safety | UL 62368-1, EN 62368-1 |
| Hazardous Locations | Class I Division 2, ATEX, IECEx |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | UC-8112A-ME-T-LX: 868,326 hrs UC-8112A-ME-T-LX-US: 677,570 hrs UC-8112A-ME-T-LX-EU: 677,570 hrs UC-8112A-ME-T-LX-AP: 677,570 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for UC-8100A-ME-T Series | Datasheet | V1.7 | 13 March 2020 |
