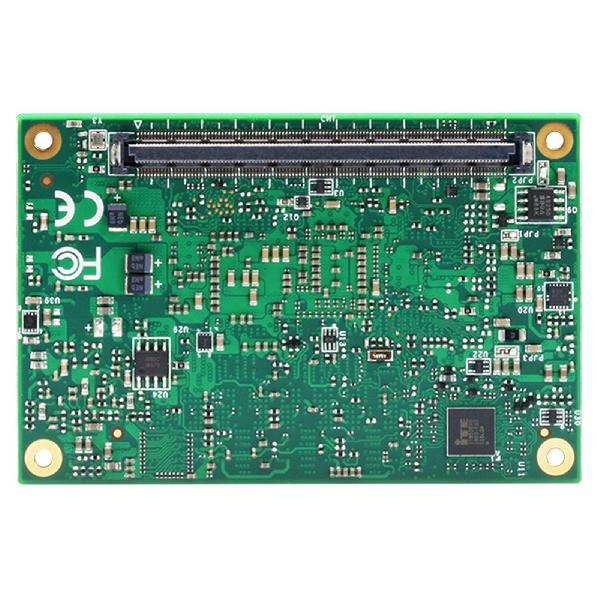

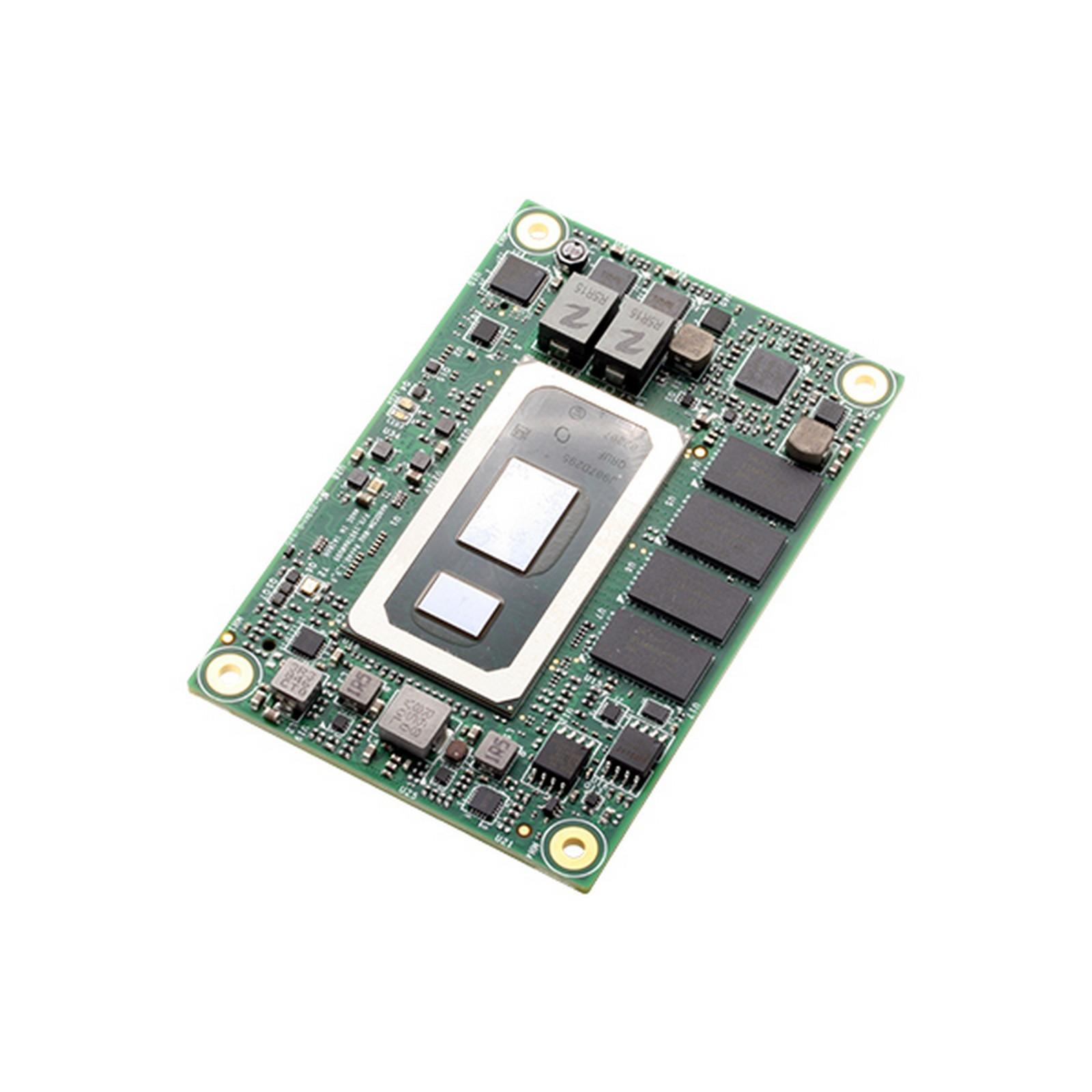

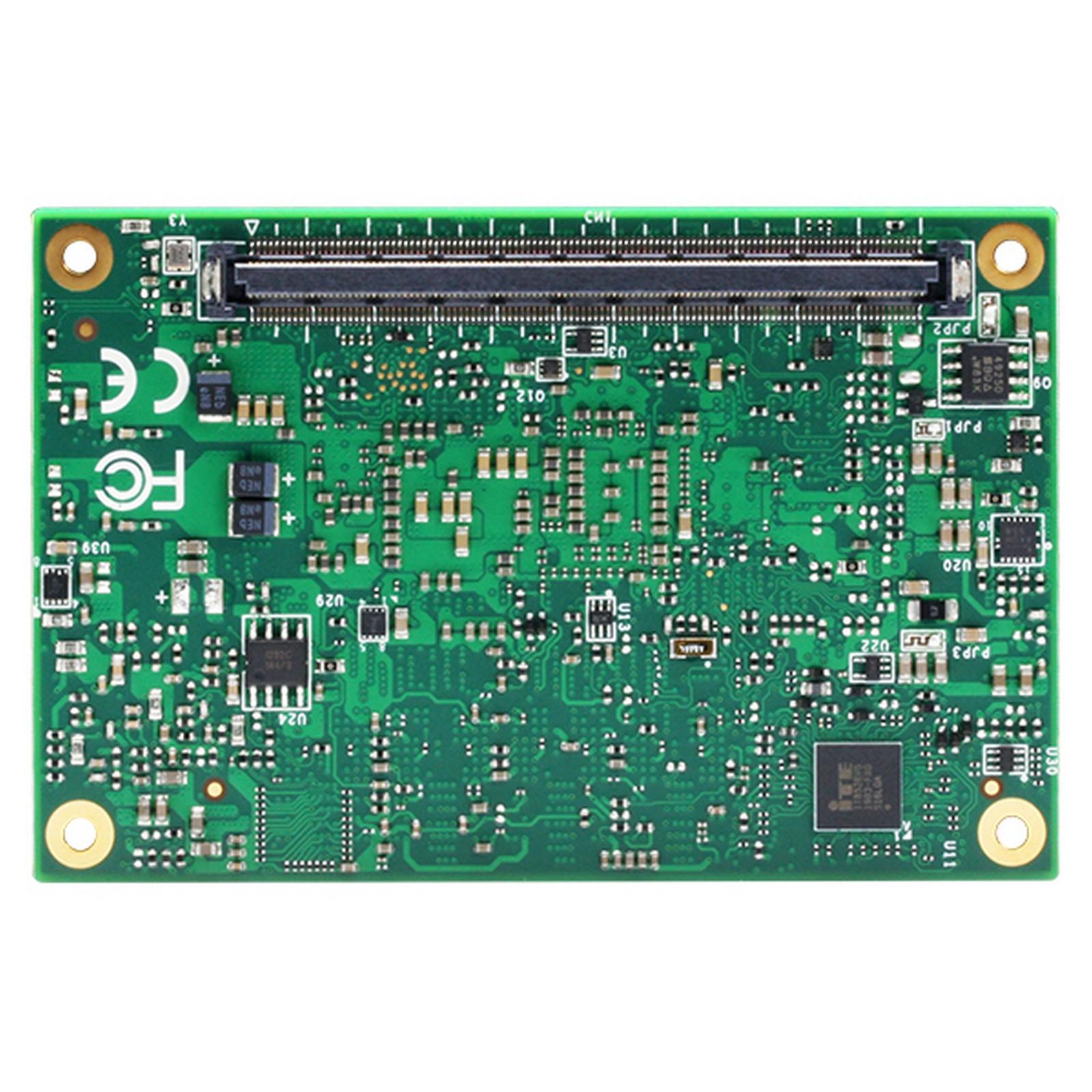

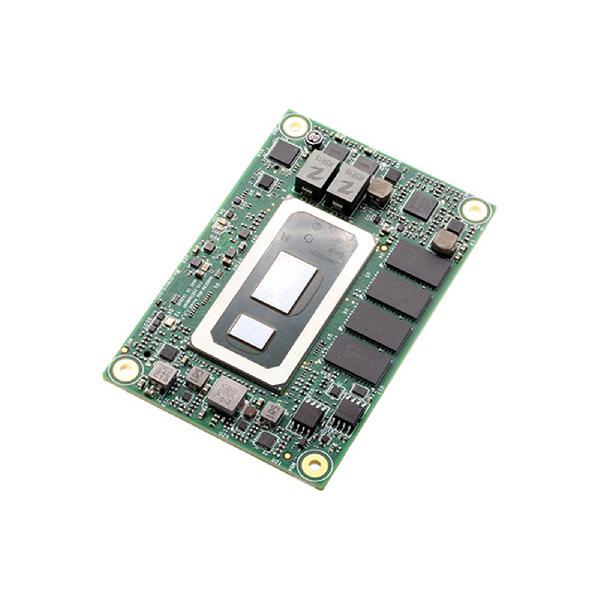

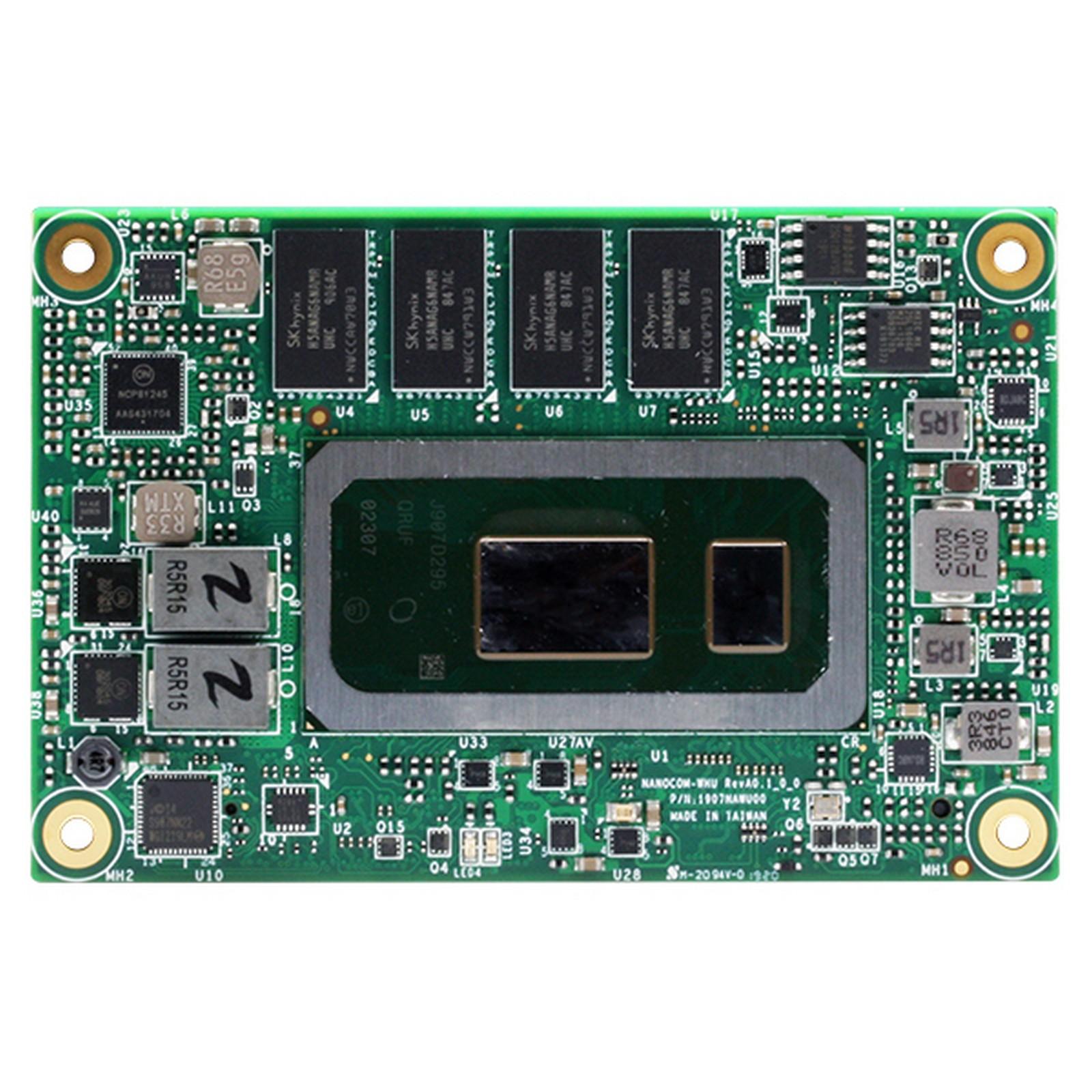

COM Express Type 10 with 8th Generation Intel® Core™ ULT Series Processor

Product Feature

  • 8th Generation Intel® Core™/Celeron™ ULT Processor
  • Onboard DDR4 memory, up to 8GB
  • Gigabit Ethernet x 1
  • eDP, DDI x 1
  • High Definition Audio Interface
  • SATA3 x 2, eMMC onboard (up to 64GB)
  • USB 3.2 x 2, USB 2.0 x 8
  • PCI-Express [x1] x 4
  • GPIO x8, SMbus, I2C, LPC
  • COM Express Type 10, Mini size, 84mm x 55mm

COM Express Type 10 with 8th Generation Intel® Core™ ULT Series Processor

SYSTEM
FORM FACTORCOM Express Mini size 84mm x 55mm
CPU8th Generation Intel® Core™ ULT Series Processor
CPU FREQUENCY
CHIPSETOnboard 8th Generation Intel® Core™ SoC
MEMORY TYPEOnboard DDR4-2400/2133, non ECC support.
MAX. MEMORY CAPACITYUp to 8GB
BIOSAMI BIOS, Legacy free BIOS
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENTStandard: +12V
POWER SUPPLY TYPEAT Mode
POWER CONSUMPTION (TYPICAL)TBD
DIMENSION (L X W)3.31” x 2.17” (84 mm x 55 mm)
OPERATING TEMPERATURE32°F~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)717,282
CERTIFICATIONCE/FCC Class A
DISPLAY
VGA/LCD CONTROLLERIntel® UHD Graphics 620 / 610
VIDEO OUTPUTeDP, DDI x1
I/O
ETHERNETIntel® I219 GbE x 1
AUDIOHD Audio x 1
USB PORTUSB 2.0 x 8
USB 3.2 x 2
SERIAL PORT2-wire UART x 2 (TX/RX)
HDD INTERFACESATA3 x 2
EXPANSION SLOTPCIe [x1] x4
I2C, LPC, SMBus
GPIO8 bit
ONBOARD STORAGEeMMC
TPMfTPM
Name Type Version Release Date
NANOCOM-WHU Datasheet Datasheet V3.0 11 August 2020
