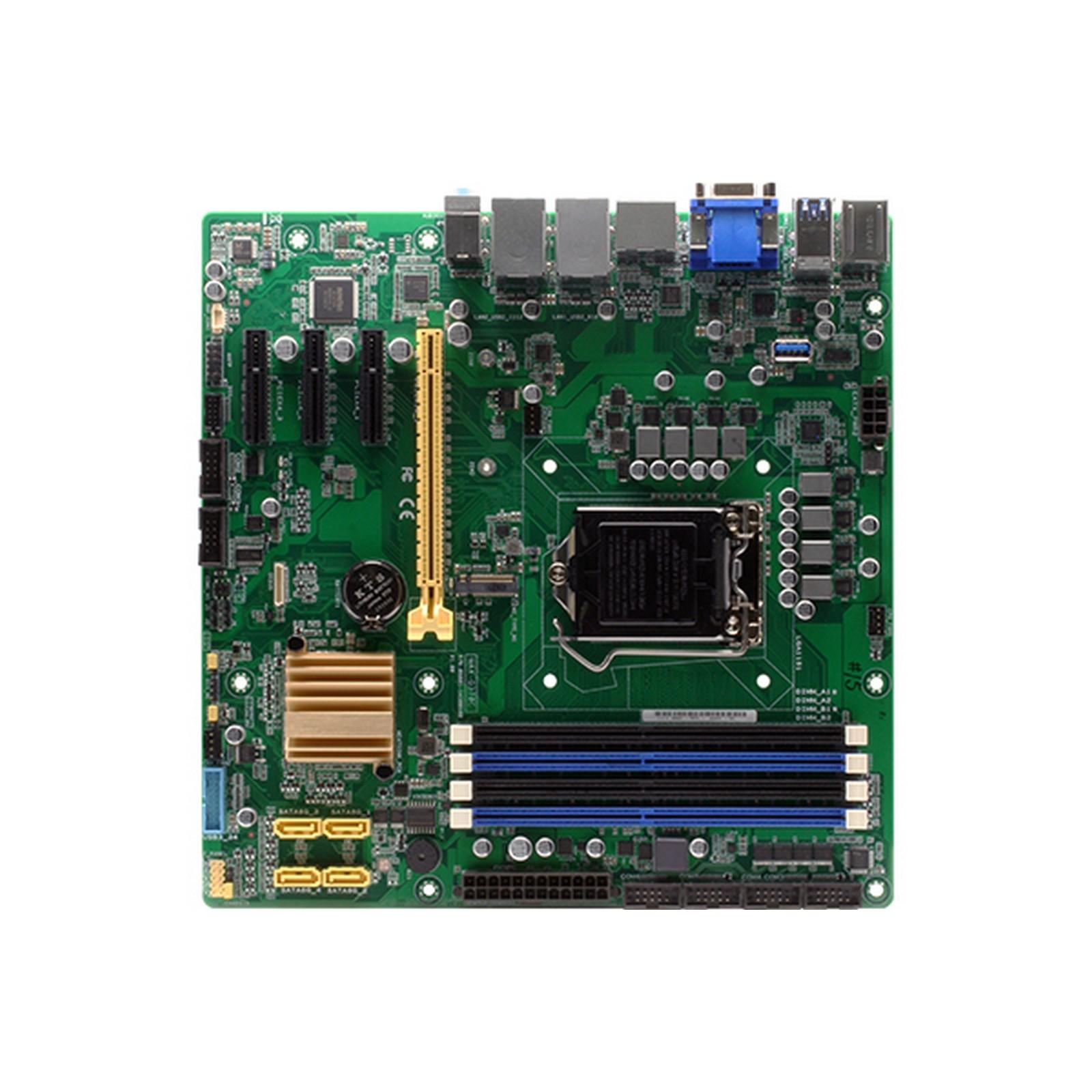

Micro-ATX Industrial Motherboard with 8th/9th Generation Intel® Core™ Processor, DDR4 DRAM, Multiple Display
Ports, Supports iAMT 12.0
| SYSTEM | |
| PROCESSOR | Intel® 8th/9th Generation (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9 /i7/ i5 /i3, Pentium 14nm LGA 1151 socket Processor, Max. 6 Core 95W |
| CHIPSET | Intel® Q370 Express Chipset |
| MEMORY | DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 128GB) non-ECC, un-buffered memory Dual channel memory architecture |
| I/O CHIPSET | NCT6793D+ F81216HD |
| ETHERNET | Intel® PHY i219LM Giga LAN (supports Intel® AMT 12.0) x 1 Intel® i211AT Giga LAN x 1, RJ45 x 2 |
| AUDIO | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| TPM | Nuvoton NPCT750AABYX TPM2.0 onboard (optional) |
| EXPANSION SLOT | PCIe 3.0[x16] Slot x 1 PCIe 3.0[x4] Slot (open edge) x 3 M.2 2280/2242 M-key (PCIe x 2) x 1 |
| BIOS | 256 Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® Graphics Media Accelerator |
| GRAPHICS MULTI DISPLAY | HDMI+VGA+DP, HDMI+HDMI+VGA, HDMI+HDMI+DP |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DVI | — |
| HDMI | Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, with Digital Audio |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8-pin (2x4) ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | Micro-ATX Form Factor, 9.6"x9.6" (244 mm x 244 mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 264,820 |

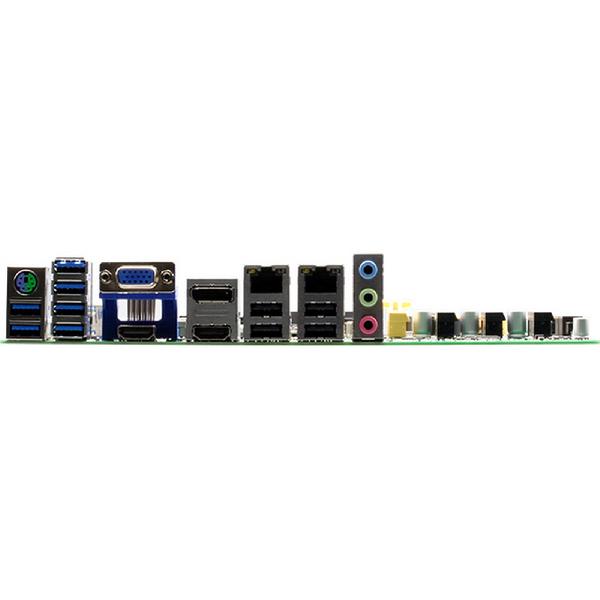

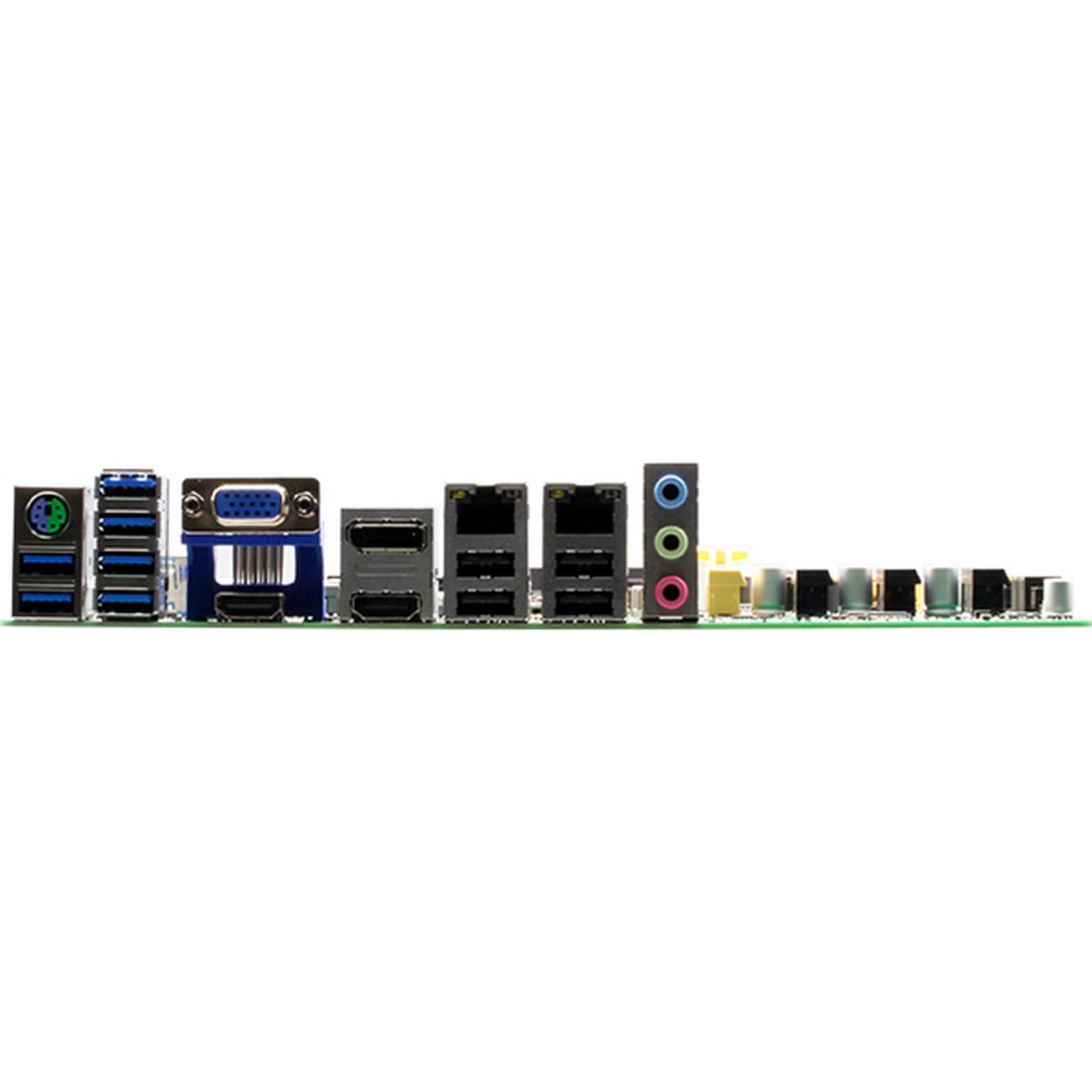

| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 1 ports (5 Gbps) x 6, USB 2.0 ports x 4 |
| DISPLAY I/O | DP x 1, VGA x 1, HDMI x 2 |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ45) ports x 2 |
| SERIAL PORT | — |
| PS/2 PORT | PS/2 combo Port (Keyboard & Mouse) x 1 |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA III (6.0Gb/s) ports x 4, support RAID 0/1/5/10 M.2 2280/2242 M-key (PCIe x 2) x 1 |
| USB | USB 3.2 Gen 1 box header x 1, support additional 2 ports (2x5PIN, p=2.54mm), USB 3.2 Gen 1 Type A (vertical) connector x 1 |
| DISPLAY I/O | — |
| AUDIO I/O | speaker header (Line-out) x 1, AAFP x 1 |
| SERIAL PORT | RS-232 headers x 5 RS-232/422/485 (COM1, supports 5V/12V/RI optional) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface (In/Out programmable) x 1 |
| FAN | CPU Fan connector(s) (4-pin) x 1, Chassis Fan connector(s) (4-pin) x 2 |
| OTHERS | Chassis Intrusion x 1 AT/ATX mode select jumper x 1 Front panel header x 1 Clear CMOS jumper x 1 3-pin ME lock header x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64bit, Linux Ubuntu 64bit (18.04.1/Kernal4.8.0) |
| Name | Type | Version | Release Date | |
| MAX-Q370C Datasheet | Datasheet | V2.0 | 31 August 2020 |
