Smart Display Module

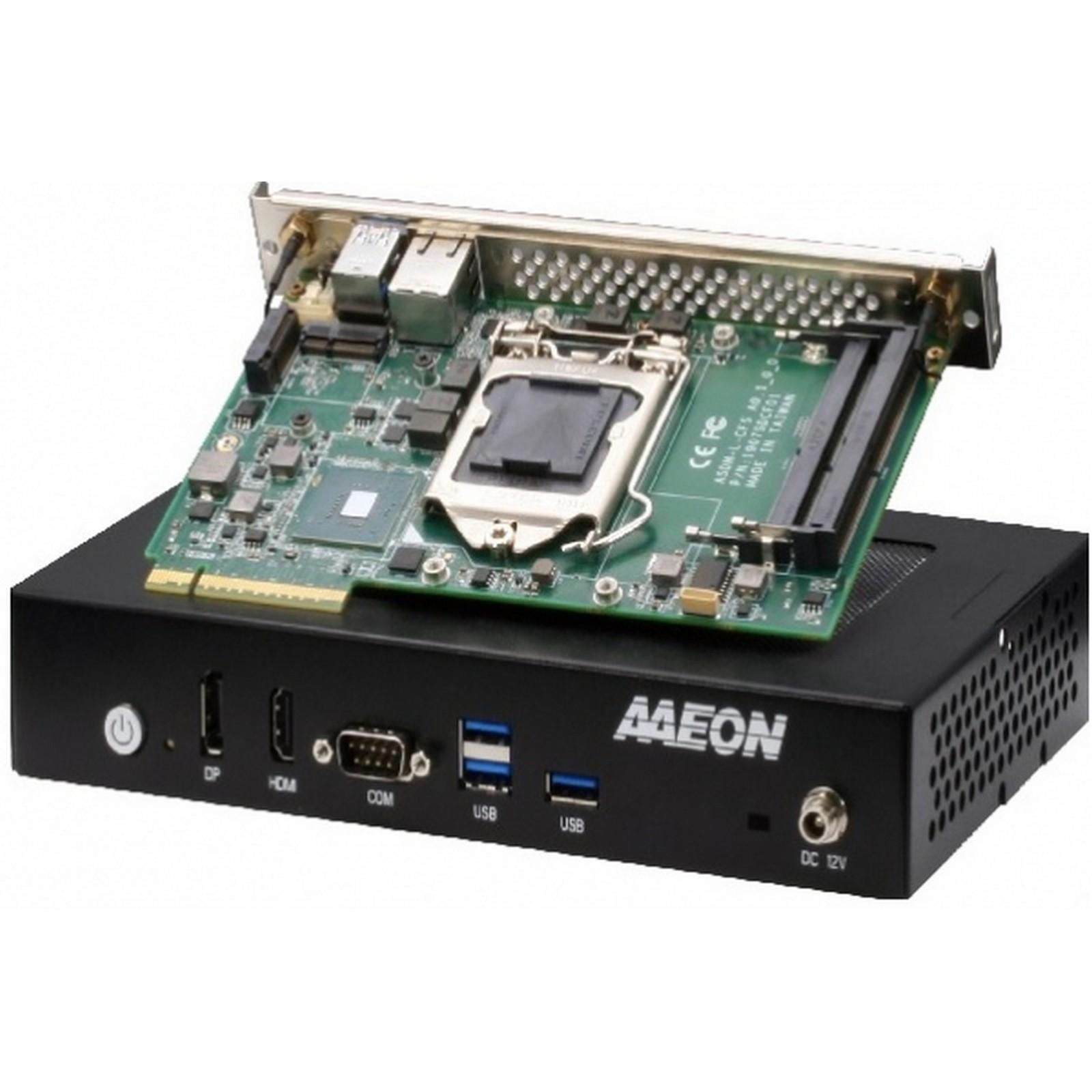

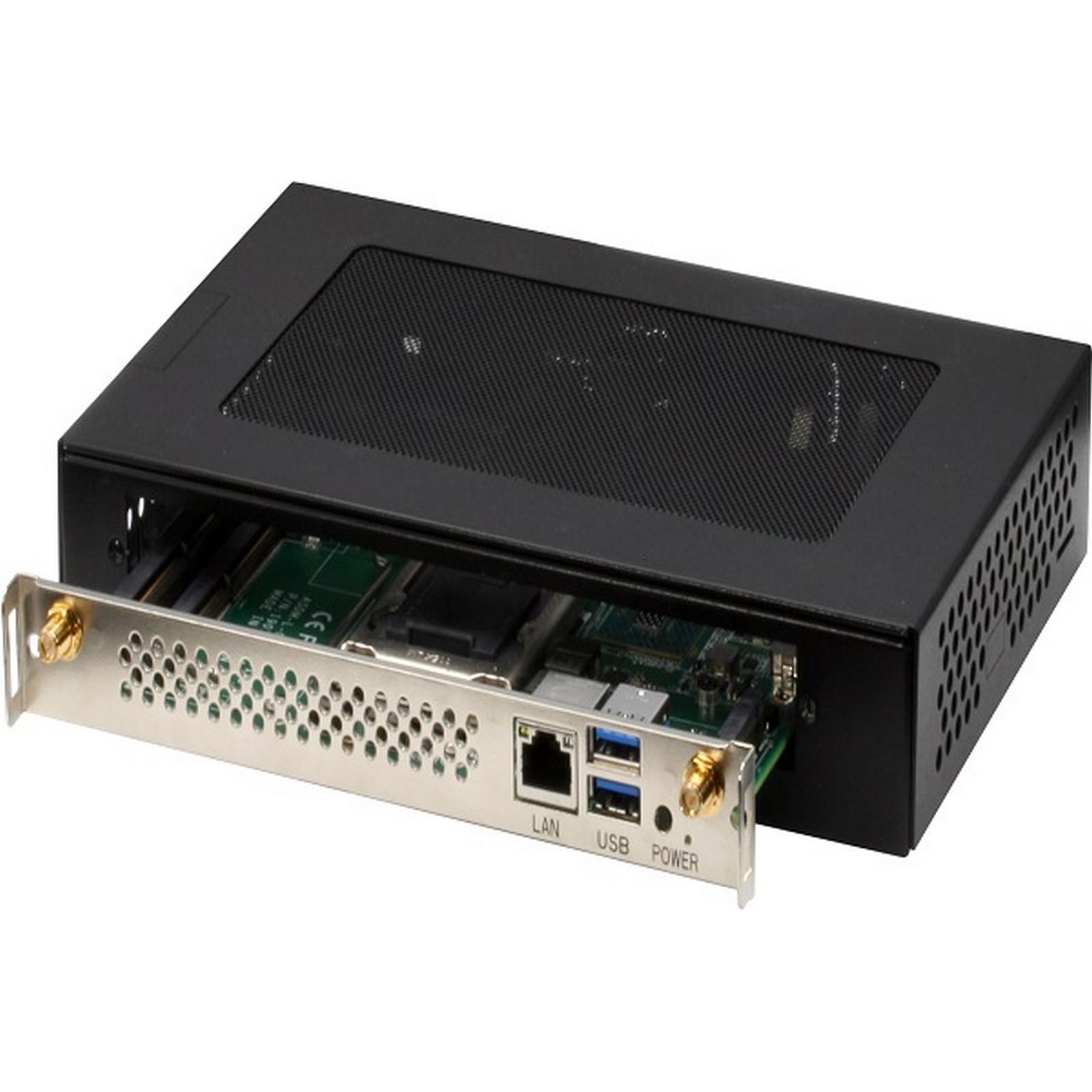

Intel® Smart Display Module-Large Size with 8th/9th Generation Intel®Coffee Lake -S / Refresh series Processor (Socket Type)

Product Feature

Intel® Smart Display Module-Large Size
8th/9th Generation Intel® Core™ i-S series Processor (Coffee Lake-S/ Refresh)
DDR4 2666 SO-DIMM x 2
M.2 2242 (B key) x 1, M.2 2230 (E-Key) x 1
USB 3.2 Gen 1 x 2 (Gen 2 supported by Q370)
Intel® I219 GbE x 1
HDMI 2.0 x 1, DP1.2 x 1 (through Edge Connector)

Intel® Smart Display Module-Large Size with 8th/9th Generation Intel®Coffee Lake -S / Refresh series Processor (Socket Type)

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/english/productview.php on line 614

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/english/productview.php on line 615

PT AUTOMATION (THAILAND) CO.,LTD.

9 Pakin Building 9 Floor, Room 901, Ratchadaphisek Road, Din Daeng, Din Daeng, Bangkok 10400
TEL. & FAX : +66(0)-2020-3000
Email : product@pt-automations.com
Facebook : facebook.com/ptautomations

Monday - Friday : office hours 9.00 AM – 6.00 PM

SYSTEM
FORM FACTOR	Intel SDM-L Module
CPU	8th/9th Generation Intel® Core™, Pentium®, and Celeron® processors (Coffee Lake S, Coffee Lake Refresh) , TDP up to 35W
CPU FREQUENCY	Up to 4.0 GHz
CHIPSET	Intel® Chipsets H310/ Q370
MEMORY TYPE	DDR4 2666 SO-DIMM x 2 (Non-ECC Support)
MAX. MEMORY CAPACITY	Up to 32GB
BIOS	AMI BIOS
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	12V DC from the Docking Board through the Edge Connector
POWER SUPPLY TYPE	AT/ATX
POWER CONSUMPTION (TYPICAL)	12V, 6.08A, estimate 72.96W with i7-9700TE at 100% loading
DIMENSION	3.94" x 6.89" x 0.79" (100 mm x 175 mm x 20 mm)
OPERATING TEMPERATURE	32°F ~ 131°F (0°C ~ 55°C)
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	—
CERTIFICATION	CE/FCC
DISPLAY
CONTROLLER	Intel® UHD Graphics 630/620/610
VIDEO OUTPUT	HDMI 2.0 x 1 (through edge connector) DP1.2 x 1 (through edge connector)
AUDIO	Through HDMI, DP by edge connector
I/O
ETHERNET	LAN I219, RJ45 x 1
USB PORT	USB 3.2 Gen 1 x 2 USB 3.2 Gen 2 support by Q370
STORAGE	M.2 2242 B-Key
EXPANSION SLOT	M.2 2230 (E-Key) TPM2.0(optional)

Name	Type	Version	Release Date
ASDM-L-CFS Datasheet	Datasheet	V2.0	24 August 2020
ACS-1U01-BT4, datasheet	Datasheet	V1.0	09 December 2015
