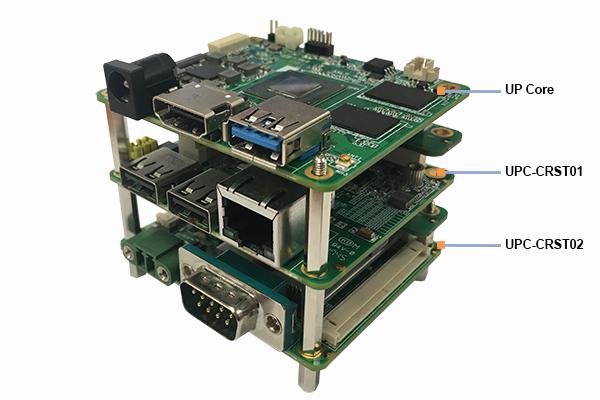

AAEON currently produces two standard carrier boards for the UP Core.

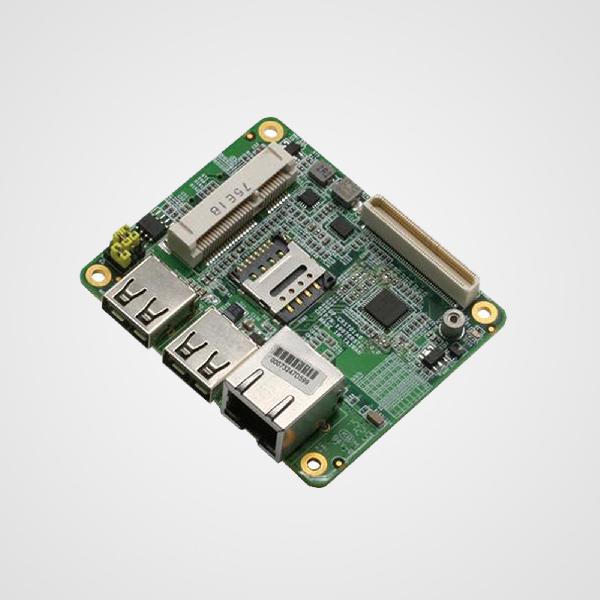

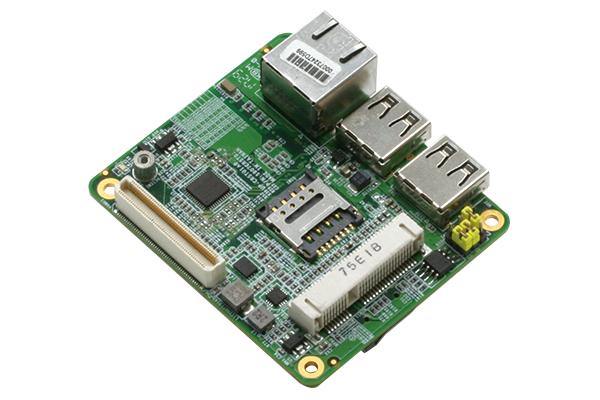

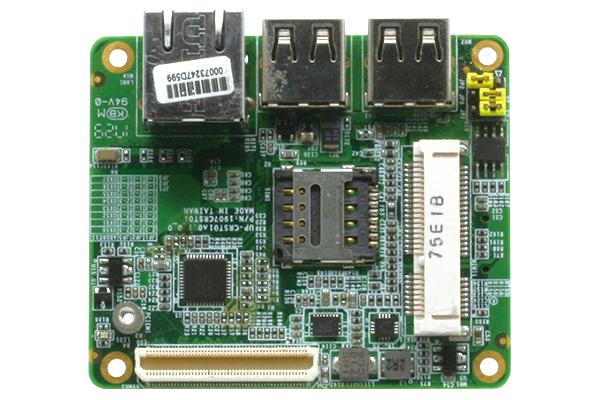

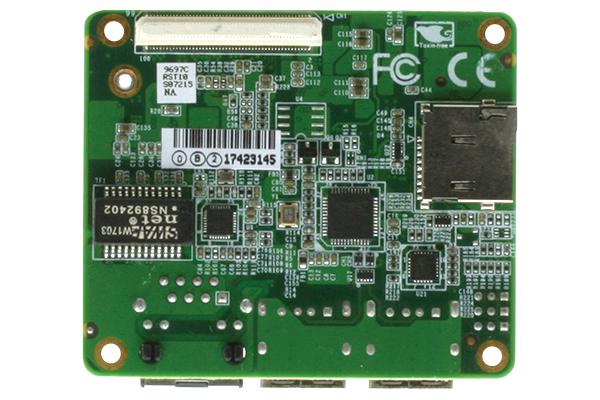

The high-speed board features a LAN port, two USB2.0 ports, a 2-channel PCIe switch, Minicard and SD Card slots, and a uSIM Card reader.
The low-speed board features a COM port and a 12V~24V power input.
system | |
| IC | 2 channel PCIe Switch x 1 Realtek RTL8111G-CG x 1 HSIC to USB to 3 USB ports (1 x minicard, 2 x connector) x 1 EEPROM on I2C0 4Kb with Jumper for A0~A2 address x 1 |
i/o placements | |
| External Ports | RJ45 Ethernet port x 1 USB 2.0 x 2 SD Card (Pluggable at back side) x 1 |
| Internal Connector | Power LED x 1 Minicard x 1 uSIM Card Reader x 1 100PIN board-board connector(M) x 1 100PIN board-board connector(F) x 1 |
others | |
| Form Factor | 2.22" x 2.6" (56.5 mm × 66 mm) |
| Certification | CE/FCC Class A |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Operating Humidity | 10%~80%RH, non-condensing |
