AI Core XP4 XP8 (UP AI Modules)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP AI Modules

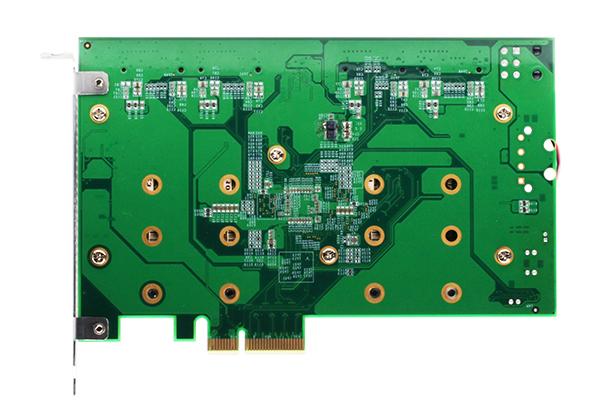

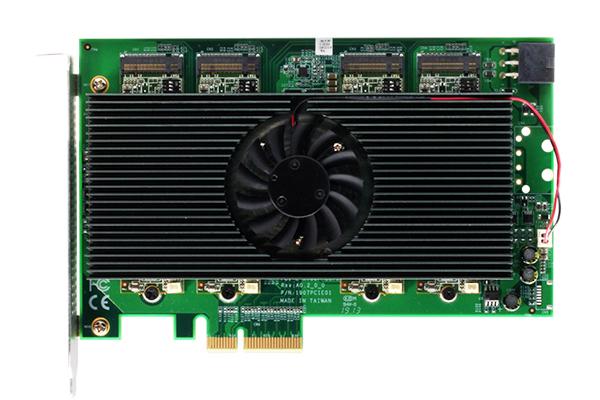

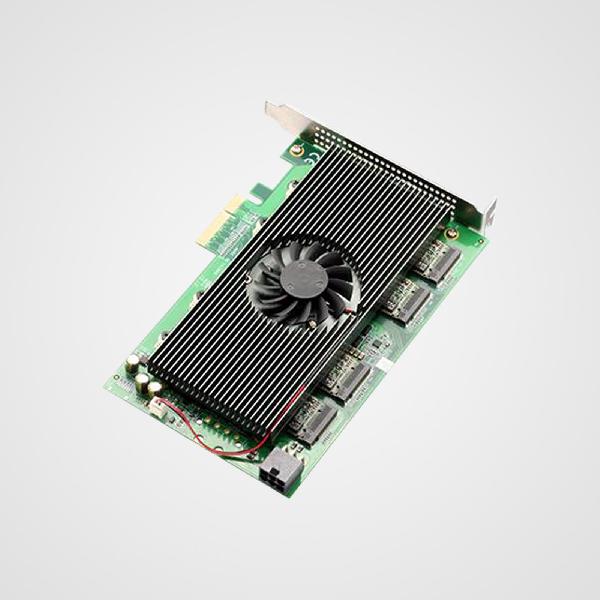

AI Edge Computing Module with Intel® Movidius™ Myriad™ X VPU, 4 or 8 x Intel® Movidius™ Myriad™ X VPUs

Product Feature

  • PCIe x 4 Standard Full Length Low Profile Slot Card
  • Supports 4 x M.2 2280 M-Key
  • Intel® Movidius™ Myriad™ X VPU
  • Intel® Vision Accelerator Design SW SDK
  • Supported Framework: TensorFlow, Caffe, MXNET
  • Ubuntu 16.04, Windows® 10

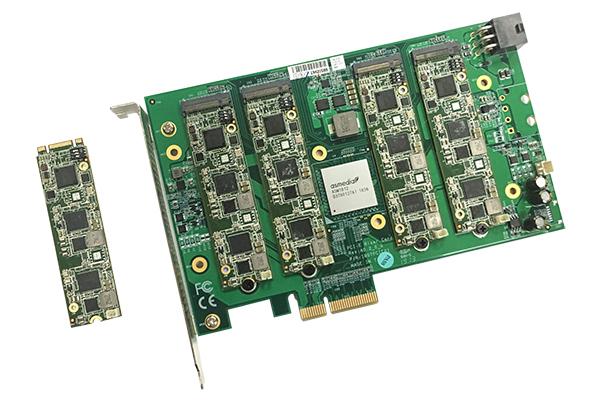

AAEON designed a PCIe[x4] card to accommodate 4 slot of AI Core XM 2280. The standard product will be based on 4x Intel® Movidius™ Myriad™ X on board, or 8x Intel® Movidius™ Myriad™ X on board. This could be a good way for you to try out how many Intel® Movidius™ Myriad™ X you really need for your project and help you to scale your vision accelerator.



By working closely with Intel, AAEON has developed a wide range of AI solutions powered by Intel® Movidius™ Myriad™ X. Please learn more here.

system

ICAsmedia PCIe switch
Supported FrameworksTensorflow, Caffe, MXNET

others

Form FactorPCIe x 4 card, full length, low profile
Dimension4.37" x 6.57" (111 mm x 167 mm)
CertificationCE/FCC Class A
Operating Temperature32°F ~ 122°F (0°C ~ 50°C)
Operating Humidity10% ~ 80% relative humidity, non-condensing
