ARC-645M

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Rackmount Chassis

4U Rackmount Chassis, Industrial Main Board Support

Product Feature

  • 4U Height 19” Rackmount Chassis
  • System Fan x 2, Support Cool Down CPU And Key Component Temperature
  • Standard Motherboard ATX/ Micro ATX/ Mini-ITX
  • Standard PS2 AT/ATX

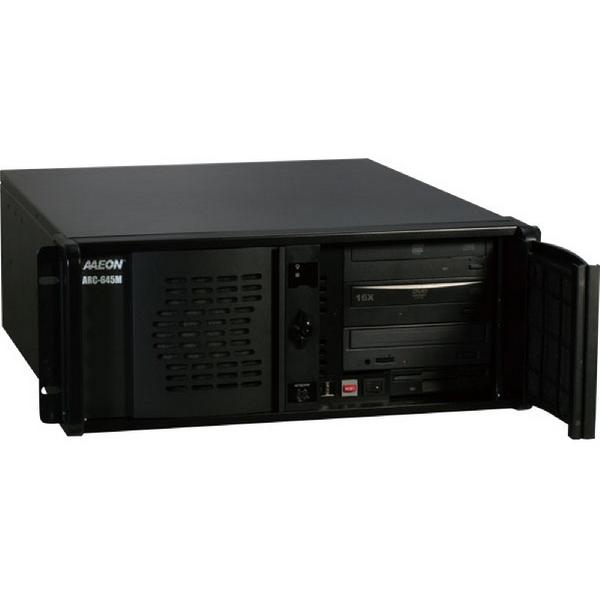

  • 5.25” x 4 and 3.5” x 1 Front Access Drive Bays
  • 3.5” x 2 Internal Drive Bays

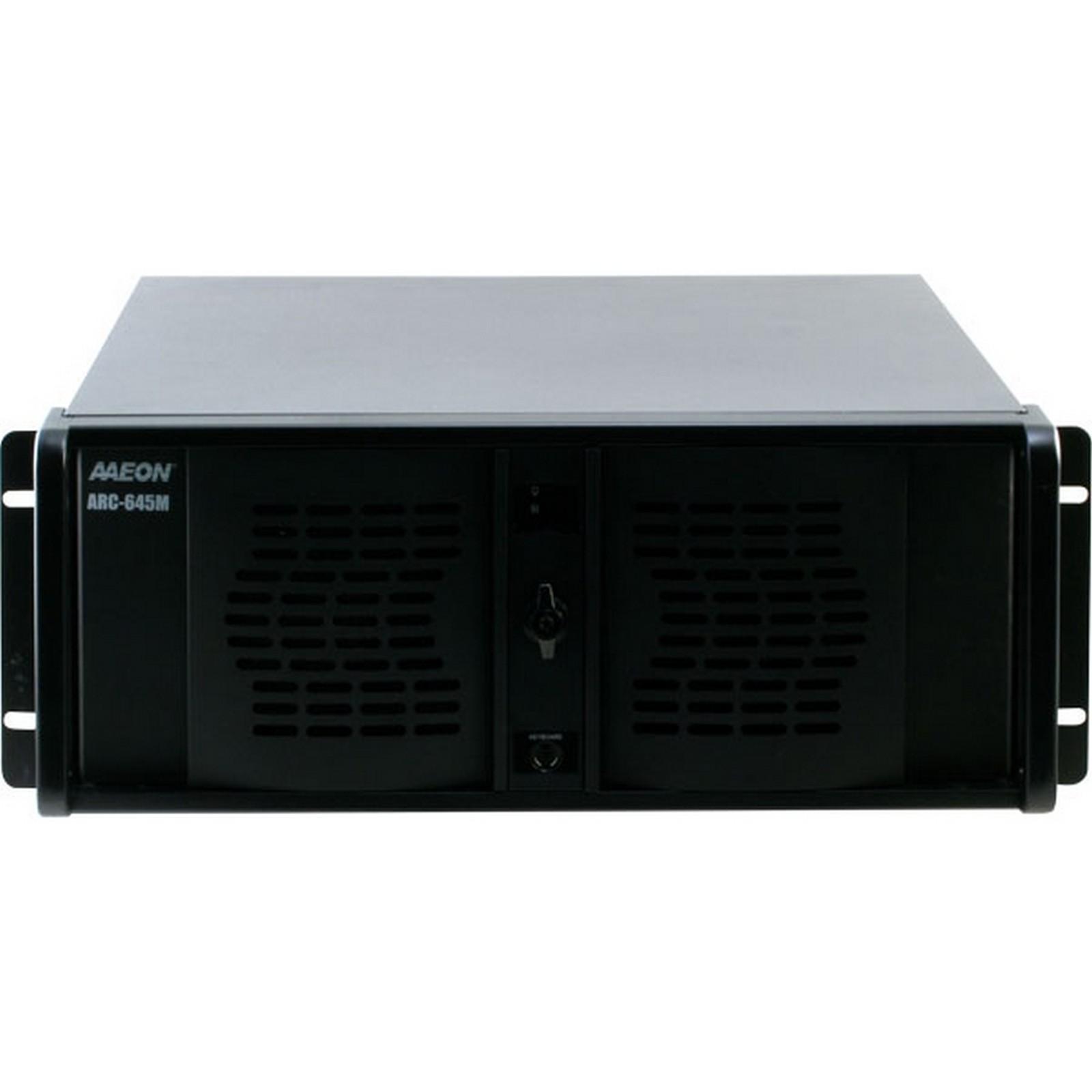

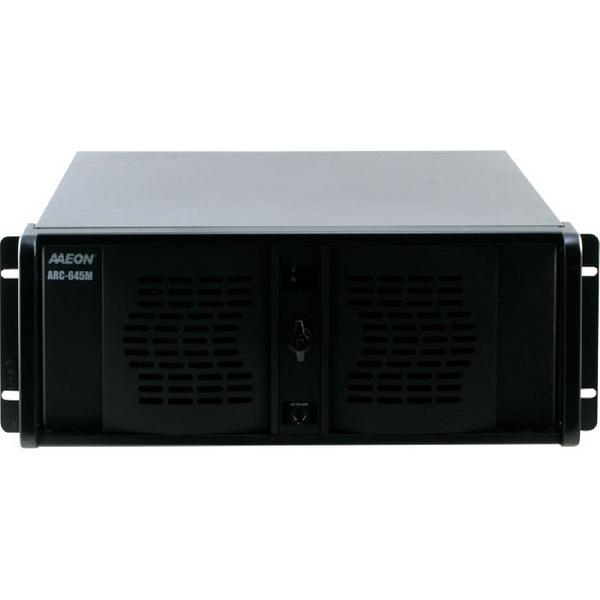

  • Dual Lockable Front Doors For Added Protection
  • USB2.0 x 4 On Front Panel

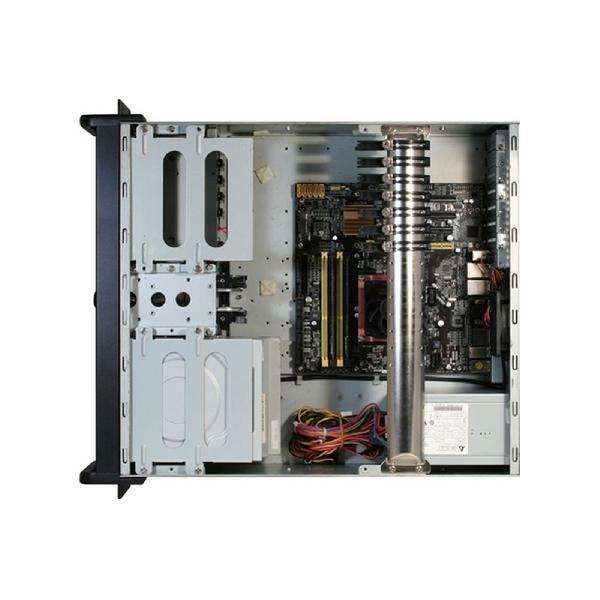

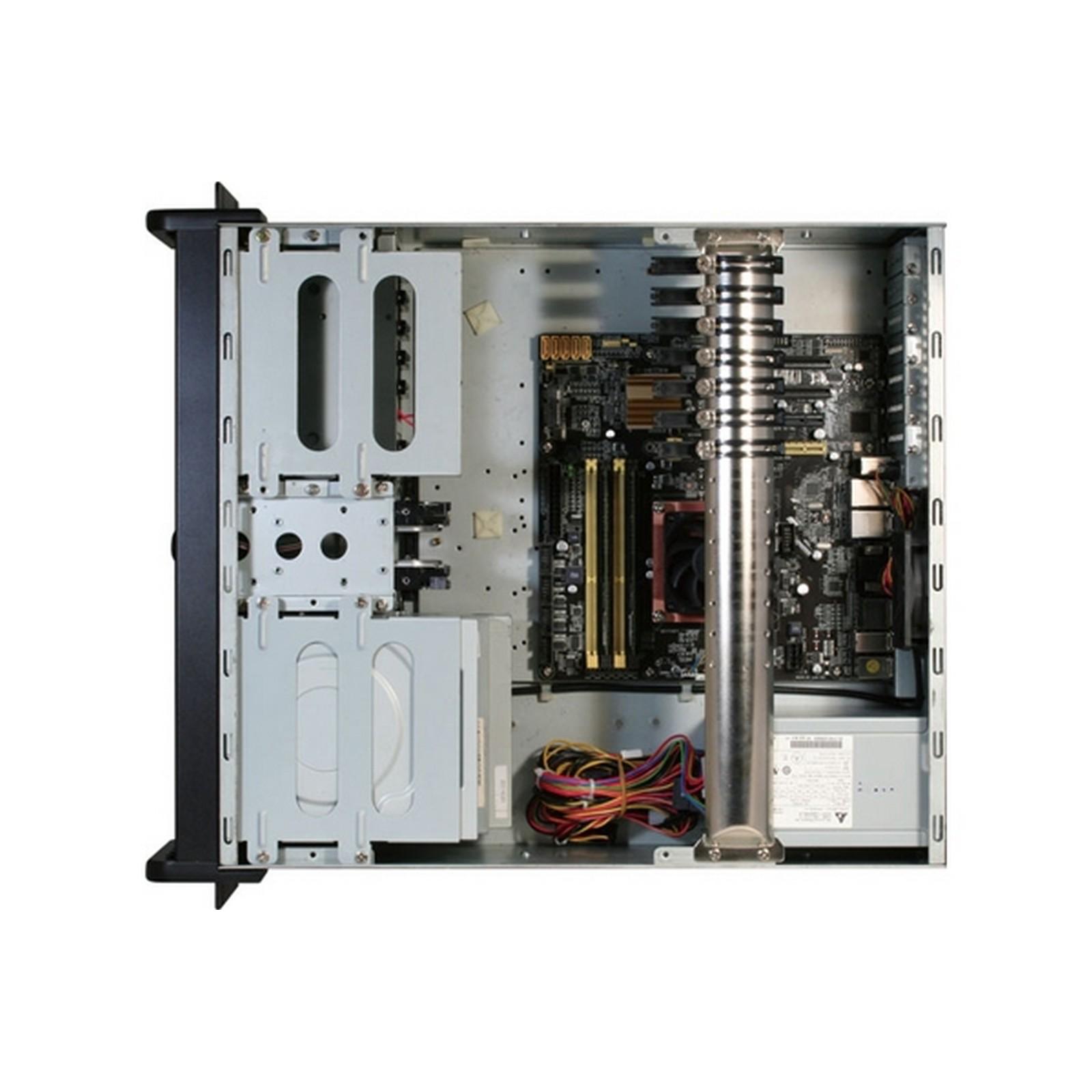

The 4U ARC-645M Rackmount chassis supports ATX, Micro ATX, and Mini-ITX form factor. It is equipped with five external drive bays (3.5" x 1, 5.25" x 4), two internal drive bays (3.5" x 2) and dual system fans. ARC-645M can be utilized as a reliable storage device fort Factory Automation, Industrial Automation, Network Security, DVR/Surveillance and Application Server.

SYSTEM
CONSTRUCTION1.2mm SECC Zinc-coated Steel (Japanese Manufactured)
STORAGEExternal: 3.5” Drive Bay x 1
5.25” Drive Bay x 4
Internal: 3.5” Drive Bay x 2
SYSTEM FAN12 cm Fan on Front Panel x 1, 8 cm Fan On Rear Side x 1
FRONT PANELPower ON/OFF Switch x 1 Reset Button x 1
Power ON LED x 1
Hard Disk Drive Active LED x 1 USB Port x 4

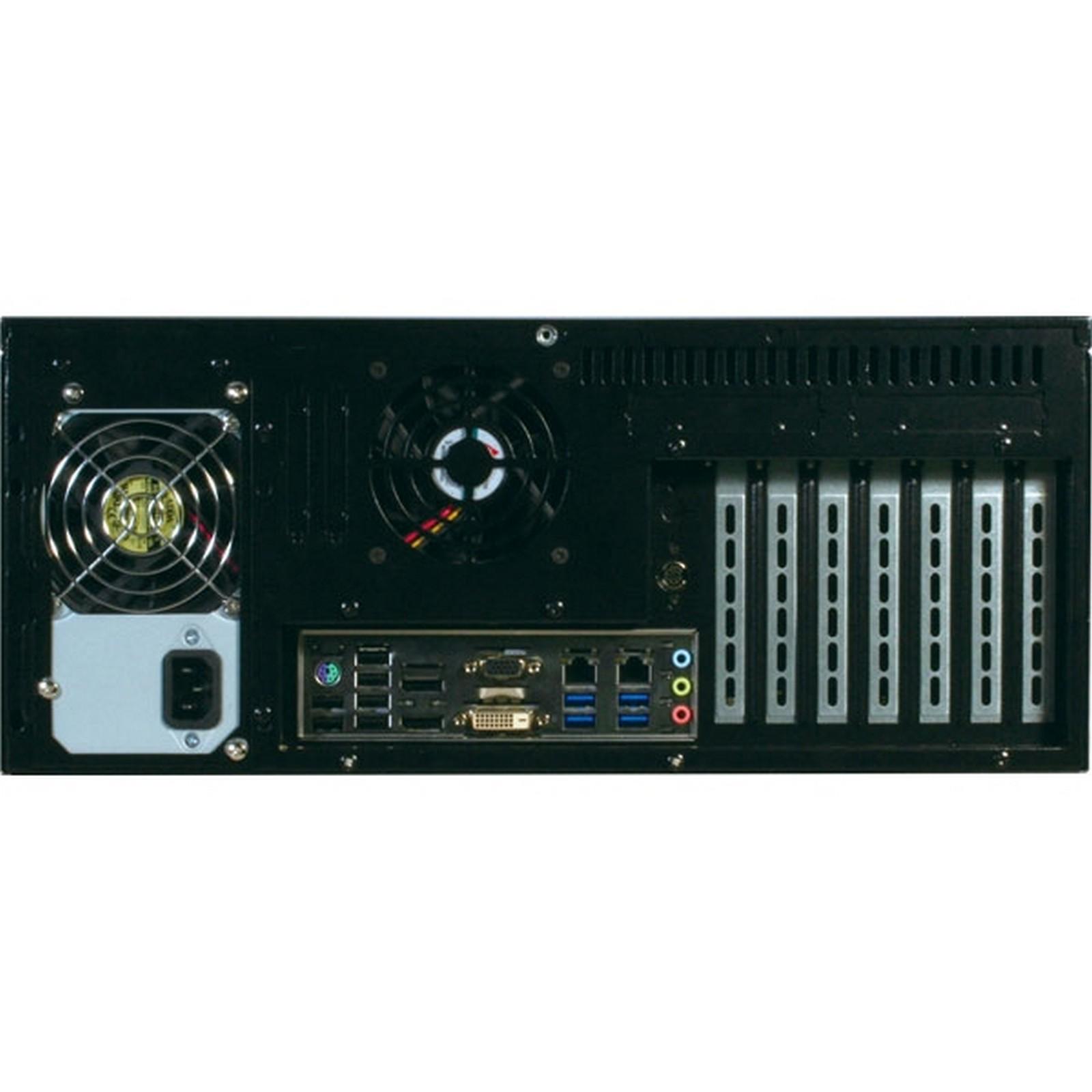

REAR PANELAT Keyboard Cut-out x 1
Reserved Cut-out for DB Connector x 4
7 Slots, supports max. 312 mm (length) for expansion card
COLORBlack
CARTON DIMENSION21.6” (W) x 12.4” (H) x 27” (D) (548mm x 315mm x 685mm)
NET WEIGHT26.4 lb (12 kg)
GROSS WEIGHT30.8 lb (14 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE-4°F ~ 176°F (-20°C ~ 80°C)
STORAGE HUMIDITY10 ~ 90% @ 40°C, non-condensing
VIBRATION0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive)
1.5 Grms/ 5 ~ 500Hz/ non operation
SHOCK15 G peak acceleration (11 m sec. duration), operation
30 G peak acceleration (11 m sec. duration), non operation
EMCCE/FCC Class A
Name Type Version Release Date
ARC-645M, datasheet Datasheet V1.0 12 Febuary 2015
