ACS-1U01-BT4

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Wallmount Chassis

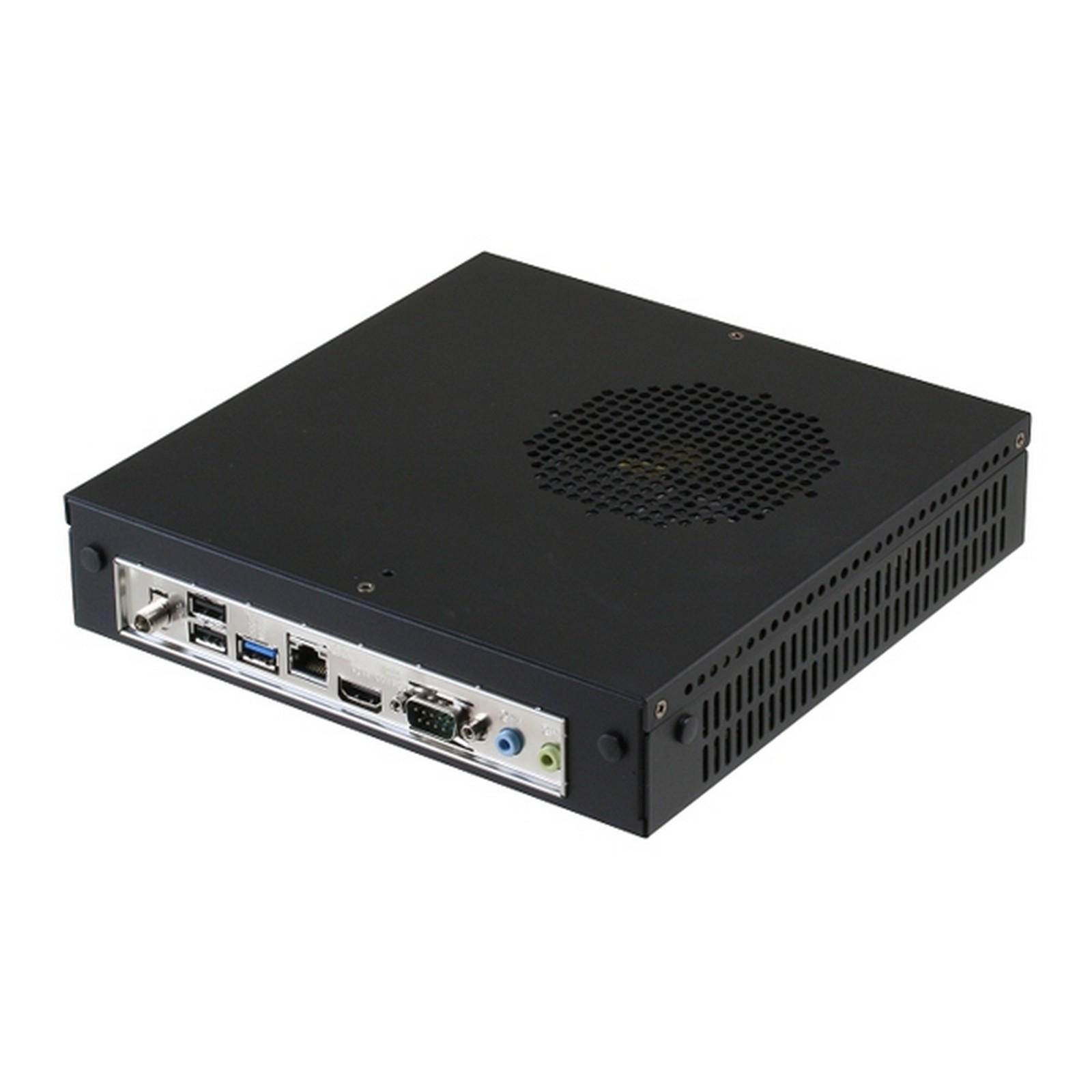

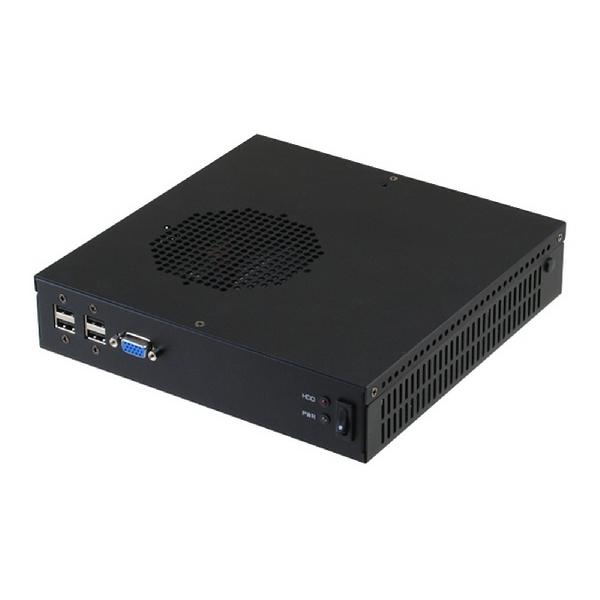

Fanless Solution with Intel® Atom™ J1900/ N2807 Processor

Product Feature

  • Intel® Atom™ J1900/ N2807 Processor
  • DDR3L 1333 SODIMM x 2, Up to 16GB (J1900), DDR3L 1333 SODIMM x 1, Up to 4GB (N2807)

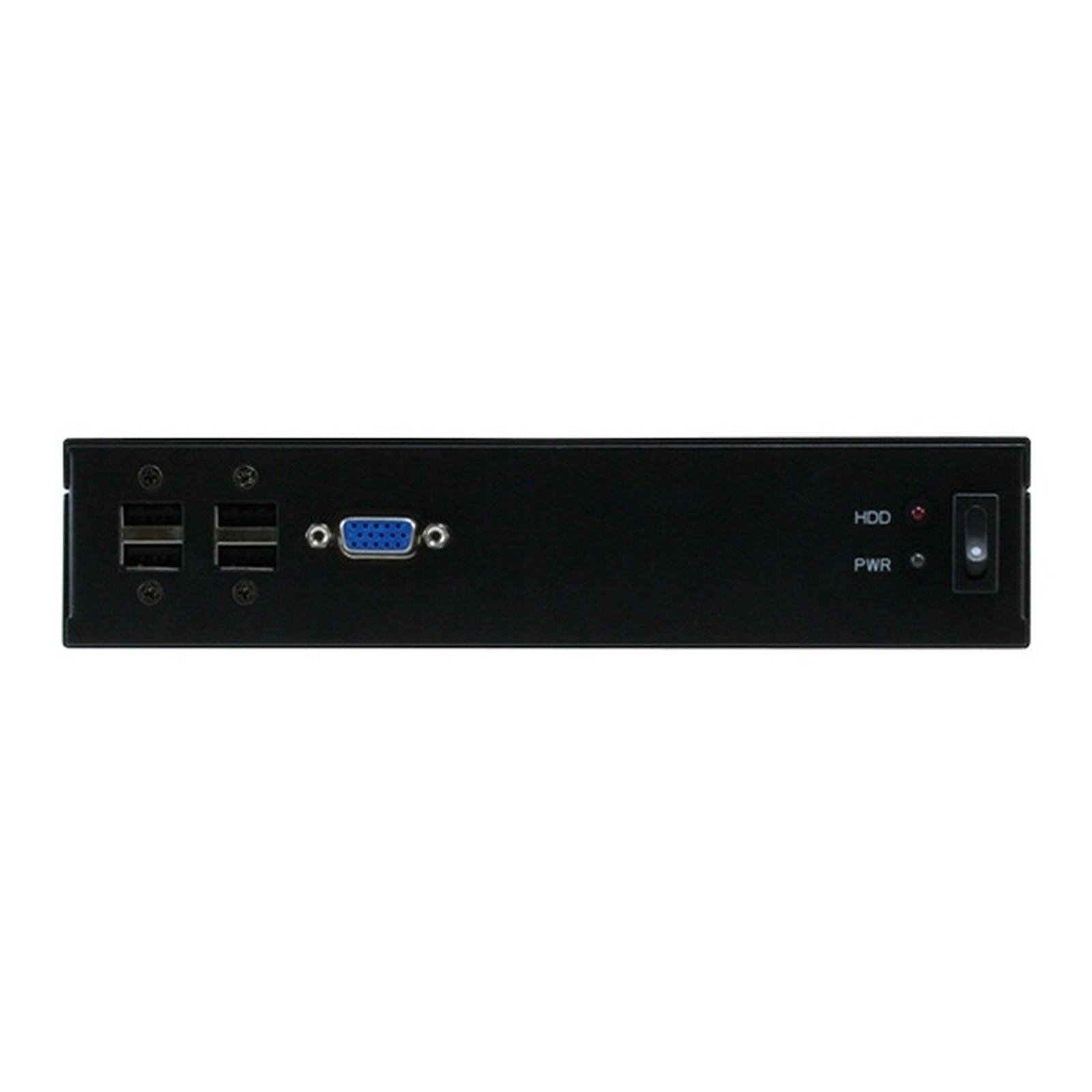

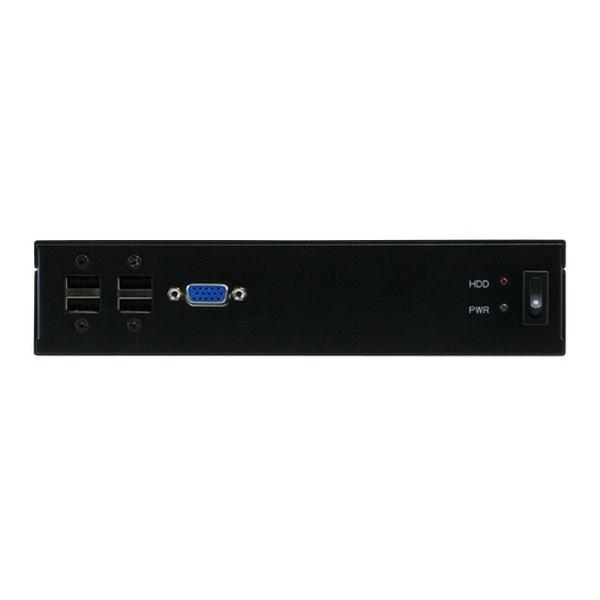

  • Dual Independent Display: VGA + HDMI

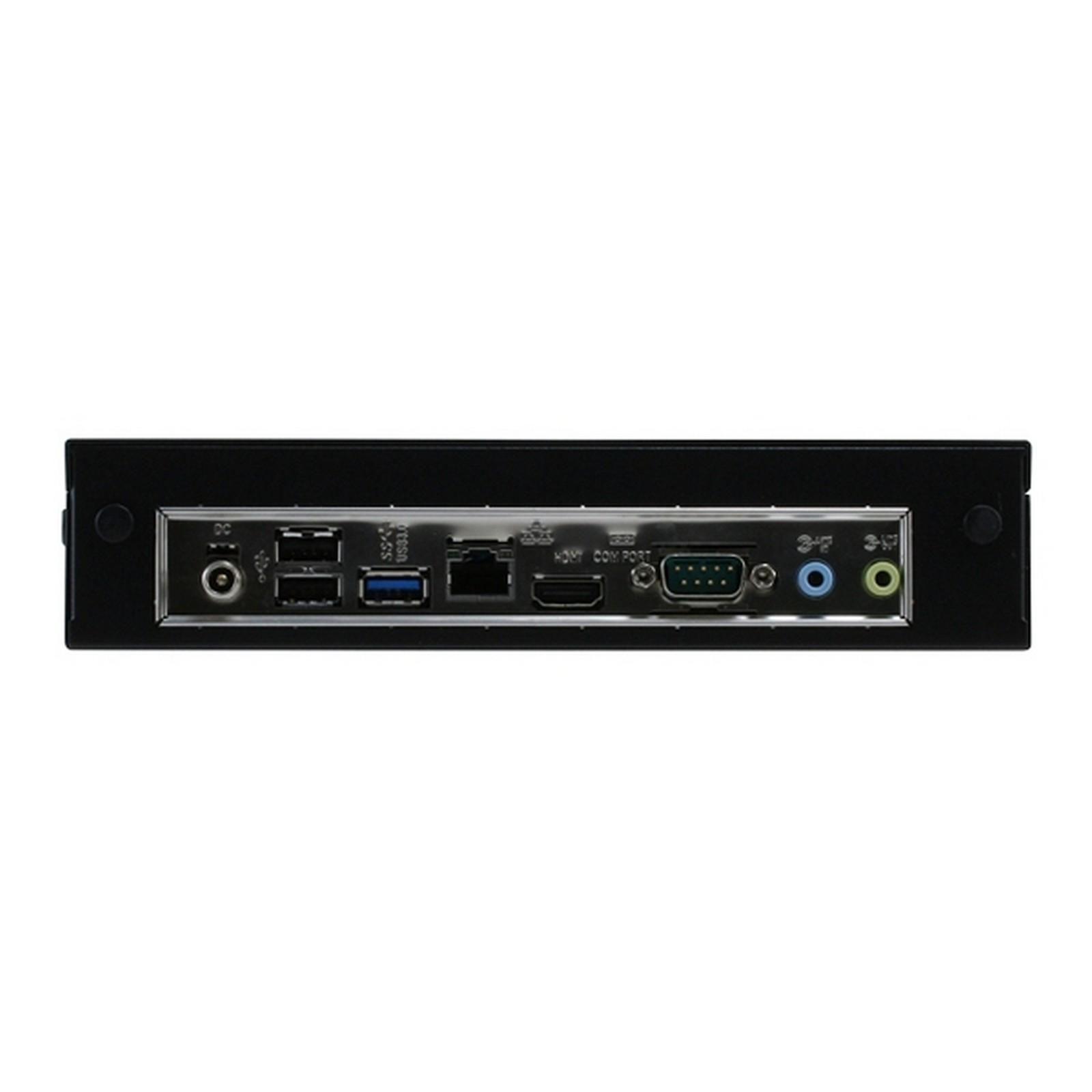

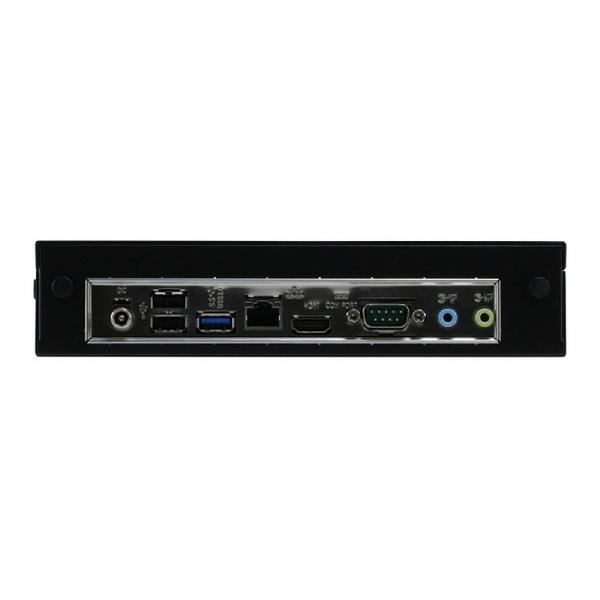

  • Rich IO Supported: USB 3.2 Gen 1 x 1, USB 2.0 x 4~7
  • Compact Size, Low Power & Fanless Solution

Fanless Solution with Intel® Atom™ J1900/ N2807 Processor

SYSTEM
CPUIntel® Atom™ J1900 Processor (4C @ 2.00 GHz CPU, 688/854 MHz GFX, 10W TDP),
Intel® Atom™ N2807 Processor (2C @ 1.58 GHz CPU, 313/750 MHz GFX, 4.3W TDP)
CHIPSET
SYSTEM MEMORY204-pin SODIMM x 2 up to 8 GB (for J1900)
204-pin SODIMM x 1 up to 4 GB (for N2807) DDR3L 1333 MHz , Non-ECC,
un-buffered memory, Dual-channel memory architecture
DISPLAY INTERFACEChipset: Intel® Graphics Media Accelerator
DP:VGA x 1, Up to 1920 x 1200 @60 Hz ; HDMI x 1, Up to 1920 x 1200 @60 Hz
STORAGE DEVICE2.5” HDD, Full-Size Mini-Card (optional)
ETHERNET
I/OFintech 81866D
EXPANSIONMini PCIe:
Full-size Mini-Card (PCIe +USB or mSATA) + SIM Card (mSATA default) x 1,Half-size Mini-Card (PCIe +USB) x 1
Storage:
Full-size Mini-Card slot (mSATA default) x 1, SATA3 (6.0Gb/s) x 1, SATA2 (3.0Gb/s) x 1, SATA power connector x 1
Others:
RS-232 9-pin int. box header x 1, RS-232/422/485 9-pin box header x 1, 5-pin USB 2.0 header(p=2.00mm) x 2
INDICATORFront:
Power LED x 1, HDD Active LED x 1
OS SUPPORTMS Windows:Windows® 7 32/64-bit, Windows® 8.1 32/64-bit
POWER SUPPLY
POWER REQUIREMENTDC: 12V
MECHANICAL
MOUNTINGWallmount
DIMENSIONS (W X H X D)8” x 8” x 1.75” (203.20mm x 203.20mm x 44.45mm)
GROSS WEIGHT
NET WEIGHT
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE
STORAGE HUMIDITY
ANTI-VIBRATION0.5 Grms/ 5~ 500Hz/ operation – HDD
CERTIFICATIONCE & FCC Class A
Name Type Version Release Date
ACS-1U01-BT4, datasheet Datasheet V1.0 09 December 2015
