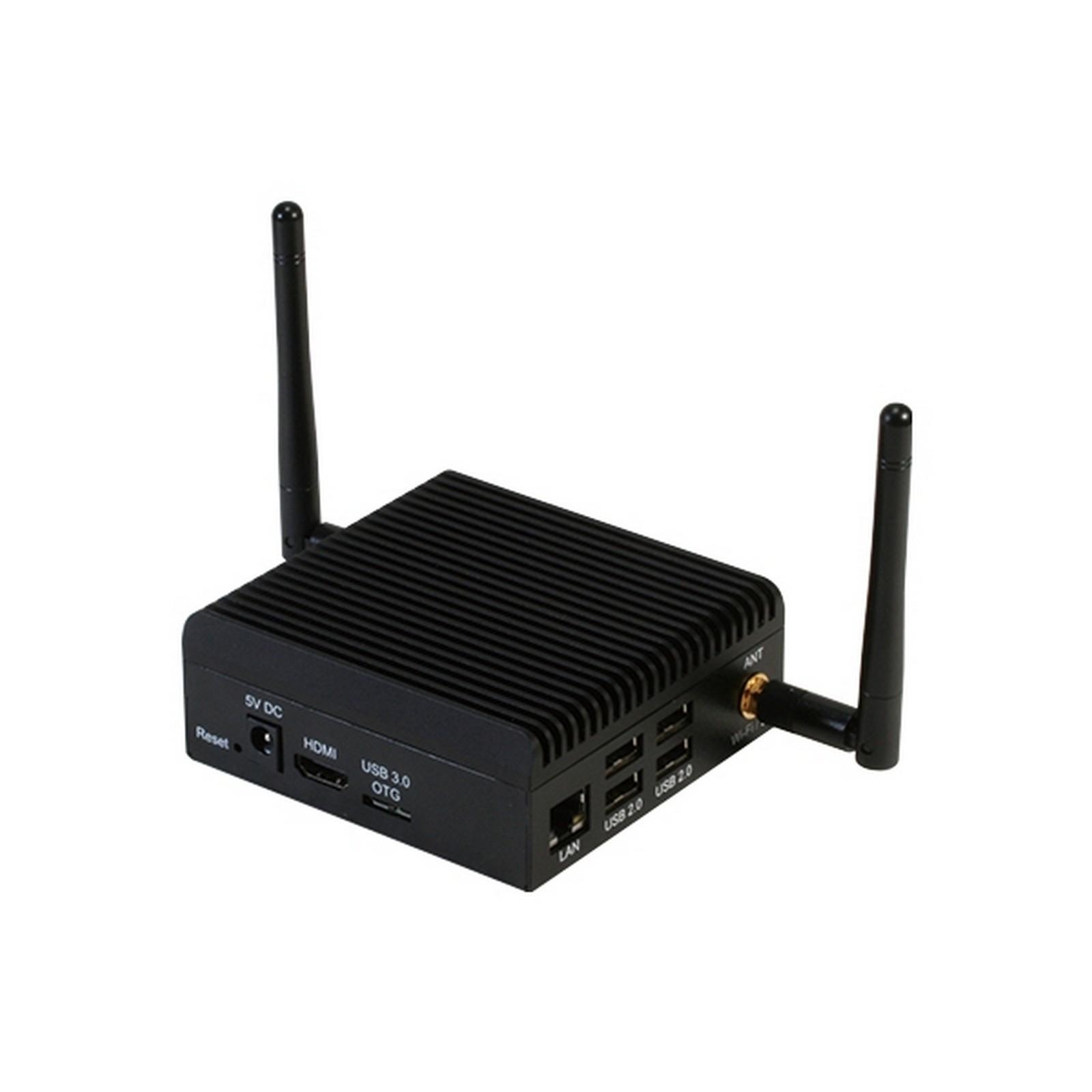

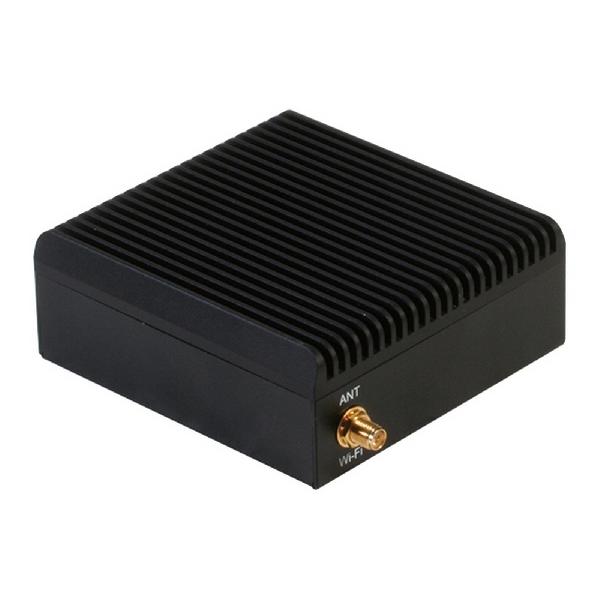

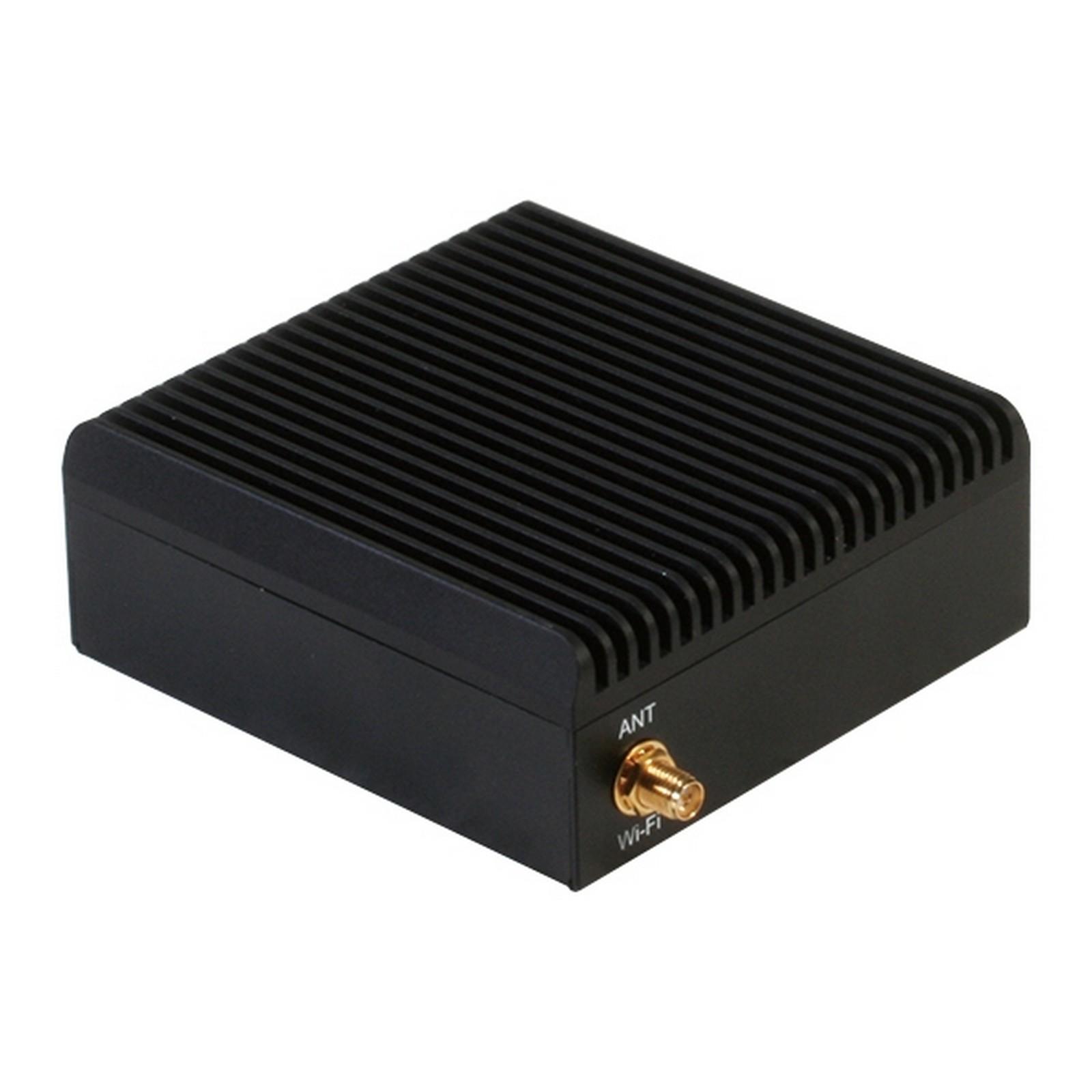

Compact in Design: 95mm x 91mm x 37mm (WxLxH)
Palm-sized compact system design for space-constrained surroundings.
Flexible Connectivity

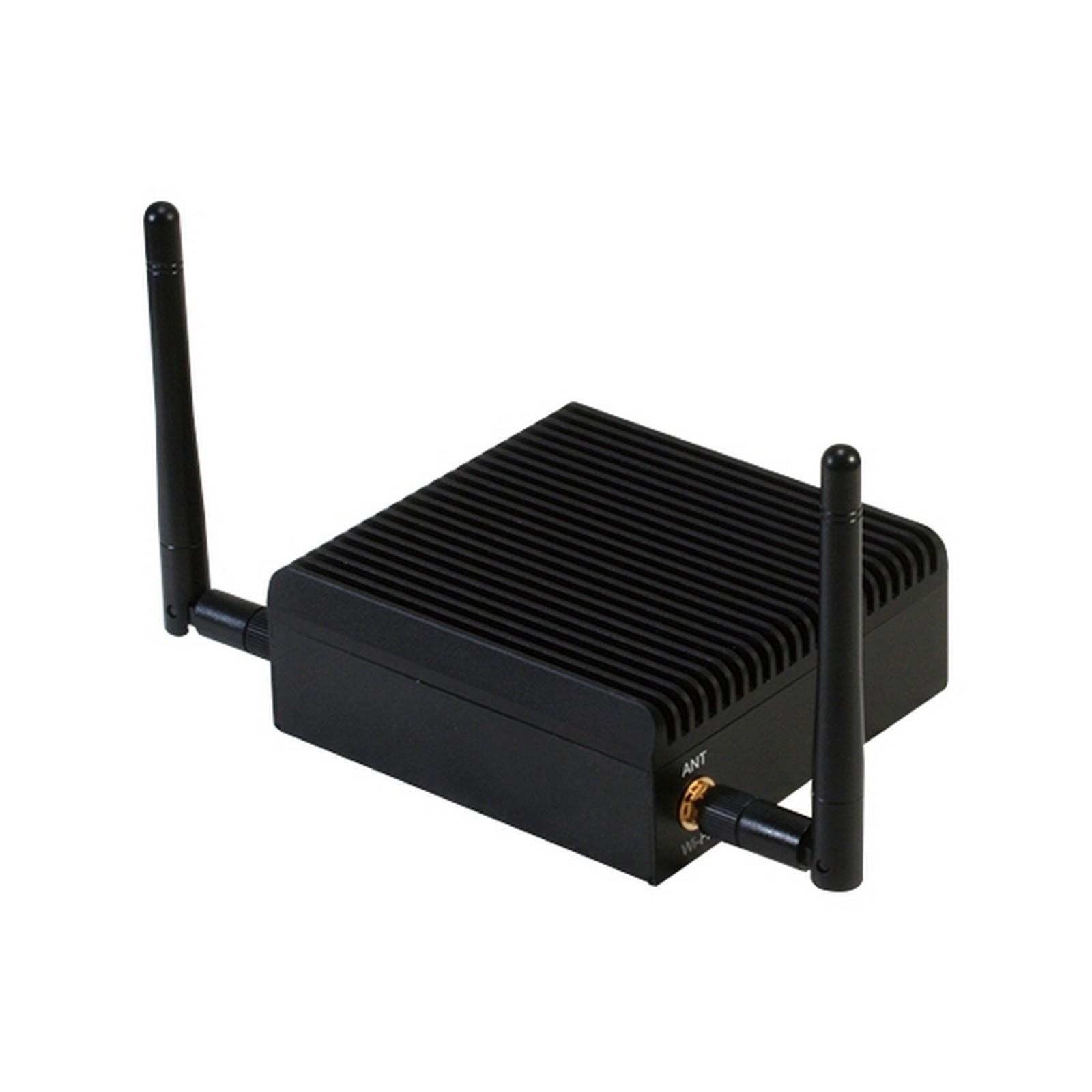

UP-GWS01 offers optional WIFI and BT modules and default Giga LAN. Designed to connect to cloud and server with ease.
IoT Support
Through powerful Intel® x5-Z8350 CPU plus various I/O expansion and connectivity, UP-GWS01 is fit for applications of all sizes. From factory automation gateway, security management, digital signage, to personal home application gateway.
| SYSTEM | |
| CPU | Intel® Atom™ x5-Z8350 Processor (2M Cache, 1.44 GHz up to 1.92 GHz) CPU with 64 bit architecture; Quad Core |
| MEMORY | Onboard DDR3L memory |
| GRAPHICS | Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC (decode), VP8 |
| STORAGE | Onboard eMMC |
| ETHERNET | Gb LAN x 1 |
| WIFI/BT | Optional |
| AUDIO | HDMI x 1 |
| USB | USB2.0 x 4, USB3.0 OTG x 1 |
| EXPANSION SLOT | — |

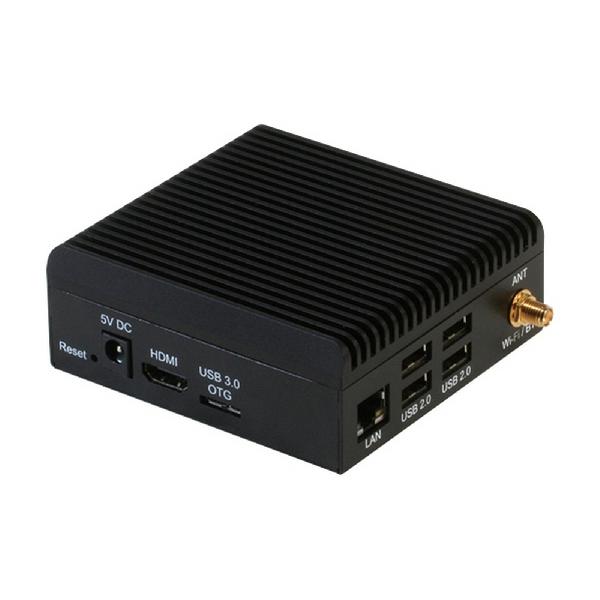

| I/O PLACEMENTS | |
| POWER | DC-in Jack x 1 |
| USB | USB2.0 x 4, USB3.0 OTG x 1 |
| DISPLAYPORT | HDMI x 1 |
| ETHERNET | Gb LAN x 1 |
| COM | — |
| ENVIRONMENT | |
| POWER | 5V/4A DC Only |
| FORM FACTOR | 3.74" x 3.58" x 1.46" (95mm x 91mm x 37mm) |
| GROSS WEIGHT | — |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity non-condensing |
| CERTIFICATION | CE/FCC Class A |
| OS SUPPORT | Windows® 10, Linux, Android 6.0, Windows® 10 IoT core |
| Name | Type | Version | Release Date | |
| UP-GWS01, datasheet | Datasheet | V1.0 | 16 December 2016 |
